Rain Bird ESP-BAT-BT1 Advanced Bluetooth Battery-Operated Controller

1. Introduction

This manual provides comprehensive instructions for the installation, operation, and maintenance of the Rain Bird ESP-BAT-BT1 Advanced Bluetooth Battery-Operated Controller. This device is designed to provide efficient and reliable irrigation control for a single zone, managed conveniently via a mobile application.

The ESP-BAT-BT1 controller offers an advanced, app-controlled solution for irrigation, featuring extended battery life and a robust, waterproof design suitable for various environmental conditions. Its Bluetooth connectivity allows for easy programming and management directly from your smartphone or tablet.

Figure 1.1: Front view of the Rain Bird ESP-BAT-BT1 Advanced Bluetooth Battery-Operated Controller.

2. Key Features

The Rain Bird ESP-BAT-BT1 controller is equipped with a range of features designed for optimal irrigation management and user convenience:

2.1. Controller Features

• Easy Battery Replacement: Wireless battery pack allows for quick removal and replacement of batteries.
• Extended Battery Life: Up to 5 years of operation with four high-quality AA batteries (not included).
• Durable Design: IP68 rated waterproof construction ensures protection against dirt, dust, and water, even in flooded valve boxes.
• Master Valve/Pump Output: Available on all models for comprehensive system control.
• Flexible Programming: Four independent programs (A, B, C, D) with up to 8 start times per day. Stations can be assigned to multiple programs with varying run times.
• Wide Run Time Range: Adjustable from 7 seconds to 9 hours (up to 18 hours with 200% seasonal adjust) in 1-second increments.
• Independent Station Operation: Allows sequential start times with stacking for overlap management.
• Global Monthly Seasonal Adjust: Adjust watering from 0% to 200% in 1% increments for the entire year.
• Watering Day Cycles: Custom, even, odd, and cyclical modes with permanent days off for compliance with watering restrictions.
• Program Backup: Ability to save and restore programs manually or automatically.
• No Program Loss: Irrigation program remains intact after battery replacement.
• Safety Features: Short and open circuit detection, PIN code protection.
• Rain Sensor Connection: Direct connection for Rain Bird RSD-BEx Rain Sensor, with global or per-station shutoff options.

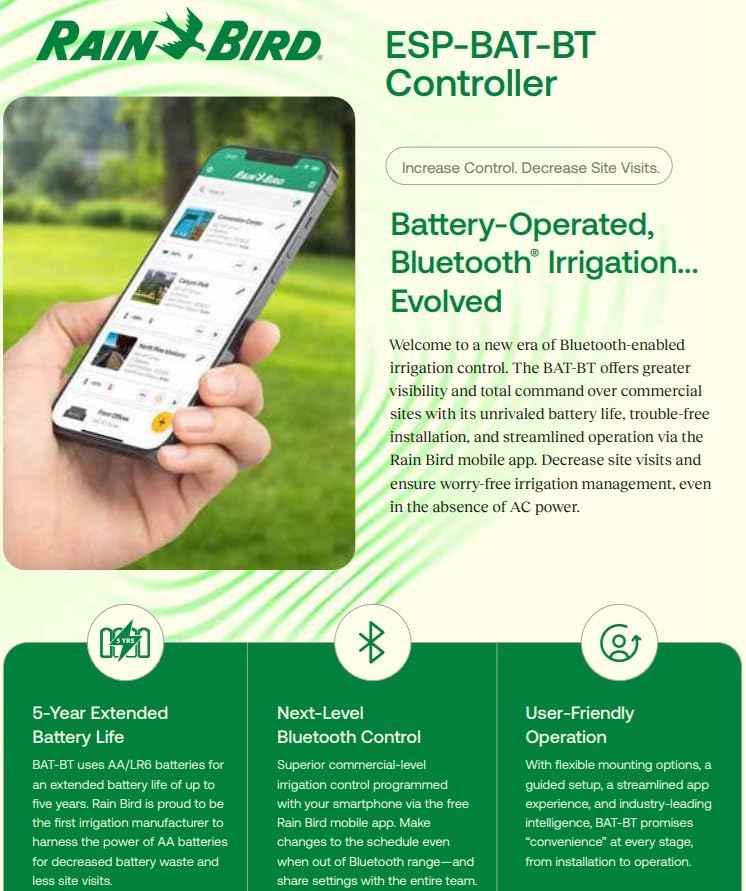

Figure 2.1: Diagram illustrating key features such as 5-year extended battery life, next-level Bluetooth control, and user-friendly operation.

2.2. Rain Bird 2.0 App Features

The dedicated Rain Bird 2.0 App (available for Android and iOS) enhances control and management:

• Advanced Mapping: Visual representation of controllers with status indicators (e.g., battery below 30%). Provides quick access to shortcuts like manual water, editing, battery status, and device sharing.
• Offline Mode: Allows editing and saving changes even when out of Bluetooth range. Changes synchronize rapidly upon reconnection.
• Controller Sharing: Securely share access to devices with team members, facilitating collaboration and remote updates.
• Monthly Seasonal Adjust: Program adjustment values for the entire year in advance, optimizing water usage.
• Cycle & Soak: Prevents runoff by breaking total run time into shorter cycles, allowing water to soak into the soil. Supports cycles down to 7 seconds.
• Seconds Based Irrigation: Run times can be set in 1-second intervals, from 7 seconds to 18 hours.
• Calendar Days Off: Schedule specific days off in advance to prevent irrigation during events.
• Permanent Days Off: Exclude recurring days of the week (e.g., mow days) regardless of watering frequency.
• Additional Images: Upload custom images to quickly identify stations and sites.
• Interstation Delay: Set delays between station turn-off and turn-on to protect hydraulics.
• Rain Delay: Pause irrigation for up to 14 days with auto-resume.
• Pause Active Irrigation: Temporarily pause a station to address issues (e.g., broken nozzle) and resume from where it left off.
• Search & Filter: Easily locate controllers by name, type, connection status, or battery level.
• Controller Grouping: Organize multiple battery-operated controllers into groups for streamlined on-site operations.
• Quick Status: View essential statuses of connected controllers, including auto/off mode, rain delay, battery life, and Bluetooth connection.

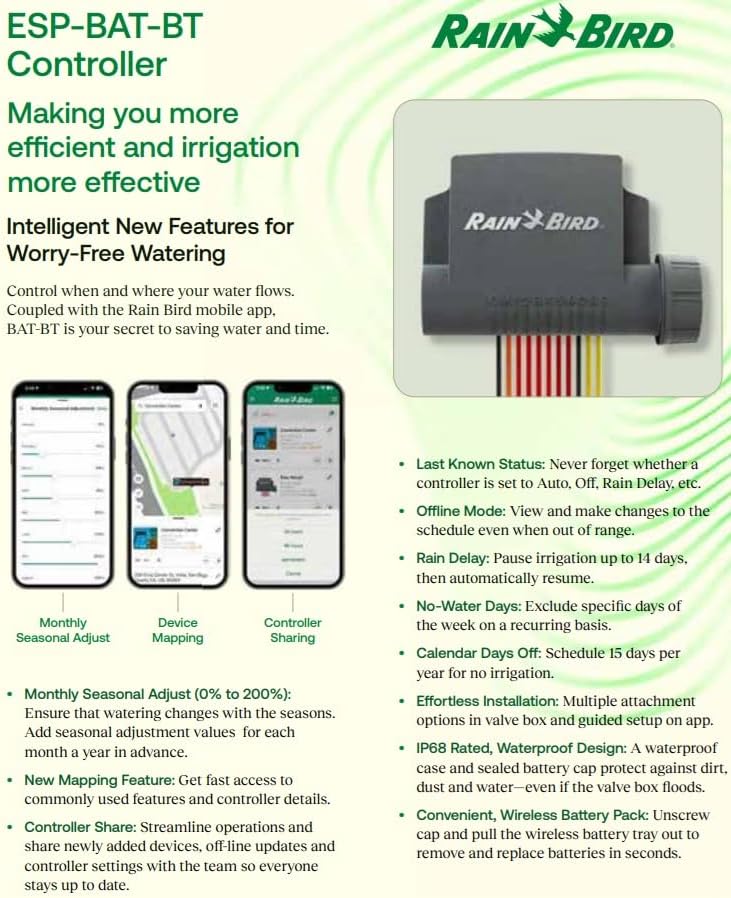

Figure 2.2: Diagram showcasing intelligent new features of the Rain Bird 2.0 App, including Monthly Seasonal Adjust, Device Mapping, and Controller Sharing.

3. Setup and Installation

The Rain Bird ESP-BAT-BT1 controller is designed for fast and easy installation. Follow these steps for initial setup:

3.1. Battery Installation

1. Locate the wireless battery pack on the controller.
2. Gently pull out the battery pack to remove it from the controller housing.
3. Insert four (4) new AA alkaline batteries (LR6, LR06) into the battery pack, ensuring correct polarity. Batteries are not included.
4. Slide the battery pack back into the controller until it clicks securely into place.

The controller is designed to retain its irrigation program even after battery replacement, ensuring continuous operation.

Figure 3.1: Close-up view of the Rain Bird ESP-BAT-BT1 controller, showing the battery compartment area.

3.2. Wiring Connections

Connect the controller to your irrigation system's valve(s) and common wire. The ESP-BAT-BT1 operates one valve per station.

• Ensure all connections are secure and waterproof, especially given the controller's IP68 rating for submersion.
• The maximum wire run between the controller and the TBOSPSOL DC-latching solenoid is 98.4ft (30m) using 1.5mm² (16 AWG) extended wire.
• Refer to the "Maximum Wire Run" in the Specifications section for detailed wire gauge distances.

Figure 3.2: The Rain Bird ESP-BAT-BT1 controller with its wiring connections visible, ready for installation.

3.3. App Download and Pairing

1. Download the "Rain Bird 2.0" app from your device's app store (available for Android and iOS).
2. Open the app and follow the on-screen instructions to create an account or log in.
3. Enable Bluetooth on your mobile device.
4. Within the app, select the option to add a new controller. The app will guide you through the pairing process with your ESP-BAT-BT1 controller via Bluetooth.
5. Once paired, you can begin configuring your irrigation schedules.

4. Operating Instructions

All programming and operational control of the ESP-BAT-BT1 controller are managed through the Rain Bird 2.0 mobile application.

4.1. Basic Programming

The controller supports four independent programs (A, B, C, D), each capable of having up to 8 start times per day. Stations can be assigned to multiple programs with different watering run times.

• Setting Run Times: Adjust run times from 7 seconds to 9 hours (up to 18 hours with 200% seasonal adjust) in 1-second increments.
• Watering Days: Choose from custom, even, odd, or cyclical watering day modes. You can also set permanent days off to exclude specific days of the week.
• Seasonal Adjust: Utilize the Global Monthly Seasonal Adjust feature to modify watering duration for the entire year, from 0% to 200%, in 1% increments.

4.2. Advanced App Features in Operation

• Manual Watering: Initiate manual watering cycles directly from the app for specific stations or programs.
• Rain Delay: If rain is expected, use the Rain Delay feature to suspend irrigation for up to 14 days. The system will automatically resume after the set delay.
• Cycle & Soak: To prevent water runoff, enable Cycle & Soak. This feature divides the total watering time into shorter intervals, allowing water to absorb into the soil.
• Offline Mode: Make programming changes in the app even without a Bluetooth connection. These changes will be saved and synchronized with the controller once a connection is re-established.
• Controller Sharing: Share access to your controller with other users (e.g., maintenance teams) through the app for collaborative management.

5. Maintenance

Regular maintenance ensures the longevity and optimal performance of your Rain Bird ESP-BAT-BT1 controller.

5.1. Battery Maintenance

• Battery Life: The controller is designed for up to 5 years of battery life with quality AA alkaline batteries.
• Battery Replacement: When the app indicates low battery (map pins turn red when below 30%), replace all four AA batteries promptly. Refer to Section 3.1 for battery replacement instructions.
• Battery Status Monitoring: Regularly check the battery status via the Rain Bird 2.0 app's Quick Status or Advanced Mapping features.

5.2. Environmental Protection

• IP68 Rating: The controller's IP68 rating means it is fully protected against dust and can withstand immersion in water. No special cleaning is typically required for the housing.
• Wire Connections: Periodically inspect wire connections for any signs of wear, corrosion, or damage, especially in harsh environments. Ensure all connections remain secure.

6. Troubleshooting

This section provides solutions to common issues you might encounter with your ESP-BAT-BT1 controller.

7. Technical Specifications

Detailed specifications for the Rain Bird ESP-BAT-BT1 Advanced Bluetooth Battery-Operated Controller:

7.1. Operating Specifications

• App Compatibility: Rain Bird 2.0 App (Android and iOS devices).
• Programs: Four independent programs (A, B, C, D).
• Start Times: 8 start times per day per program.
• Run Time: 7 seconds to 9 hours (max 18 hours with 200% seasonal adjust) in 1-second increments.
• Seasonal Adjust: Global Monthly Seasonal Adjust; 0% to 200% (1% increment).
• Watering Day Modes: Custom, Even, Odd, Cyclical with Permanent Days Off.
• Power Source: Four AA alkaline batteries (AA, LR6, LR06) - batteries not included.
• Rain Sensor: Direct connection for Rain Bird RSD-BEx Rain Sensor.
• Protection: PIN code protection, Short and open circuit detection.

7.2. Radio Frequency Specification

• Operation Frequency Band: Bluetooth, 2402-2480 MHz.
• Maximum Radio-Frequency Power: 9.95 dBm (for EU and UK), 9.66 dBm (for USA and Canada).
• Antenna Type: PCB antenna.
• Antenna Gain: 2.41 dBi (for EU and UK), 2.35 dBi (for USA and Canada).

7.3. Certifications - Product Compliance

• European Union: CE
• United Kingdom: UKCA
• Australia and New Zealand: ACMA-RCM
• USA: UL-US, FCC Part 15b & 15c, Bluetooth SIG Qualification.
• Canada: C-UL, ICES-003, ISED RSS-247.
• Mexico: NOM, IFETEL.
• Brazil: ANATEL.
• Japan: MIC.
• Saudi Arabia: CST.
• South Africa: ICASA.
• UAE: TDRA, ECAS-ROHS.
• Egypt: NTRA.
• Ingress Protection: IP68 (Total protection against solids and water ingress).

7.4. Dimensions and Weight

• Width: 5.6 inches (14.22 cm).
• Height: 4 inches (10.16 cm).
• Depth: 2.5 inches (6.35 cm).
• Weight: 24 ounces (680g) including batteries.

7.5. Maximum Wire Run

Tested with all Rain Bird valves compatible with TBOSPSOL DC-latching solenoid (Max distances tested up to 100 PSI):

• 12 AWG: 1250ft (381m).
• 14 AWG: 750ft (229m).
• 18 AWG: 300ft (91m).
• Controller to Solenoid: 98.4ft (30m) using 1.5mm² (16 AWG) extended wire.

Figure 7.1: Diagram detailing the technical specifications of the ESP-BAT-BT1 controller, including features, app functions, dimensions, and certifications.

8. Warranty Information

Specific warranty details for the Rain Bird ESP-BAT-BT1 controller are typically provided with the product packaging or can be found on the official Rain Bird website. Please refer to the documentation included with your purchase for the most accurate and up-to-date warranty terms and conditions.

9. Customer Support

For further assistance, technical support, or to inquire about replacement parts, please contact Rain Bird customer service or visit their official website:

• Rain Bird Official Website: www.rainbird.com
• Rain Bird Store on Amazon: Visit the Rain Bird Store

When contacting support, please have your product model number (ESPBAT-BT1) and any relevant purchase information ready.
