1. Introduction and Overview

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Lifan M90R 177F-BR 9HP Industrial Grade OHV Engine. Please read this manual thoroughly before operating the engine.

The Lifan 177F-BR is a 9.0 HP, 270cc industrial grade OHV engine. The M90R model is EPA certified, designed for quiet and dependable performance. It features a 1-inch horizontal keyway output shaft and a unique clutch drive housing, making it suitable for various commercial lawn and garden equipment, water pumps, and pressure washers.

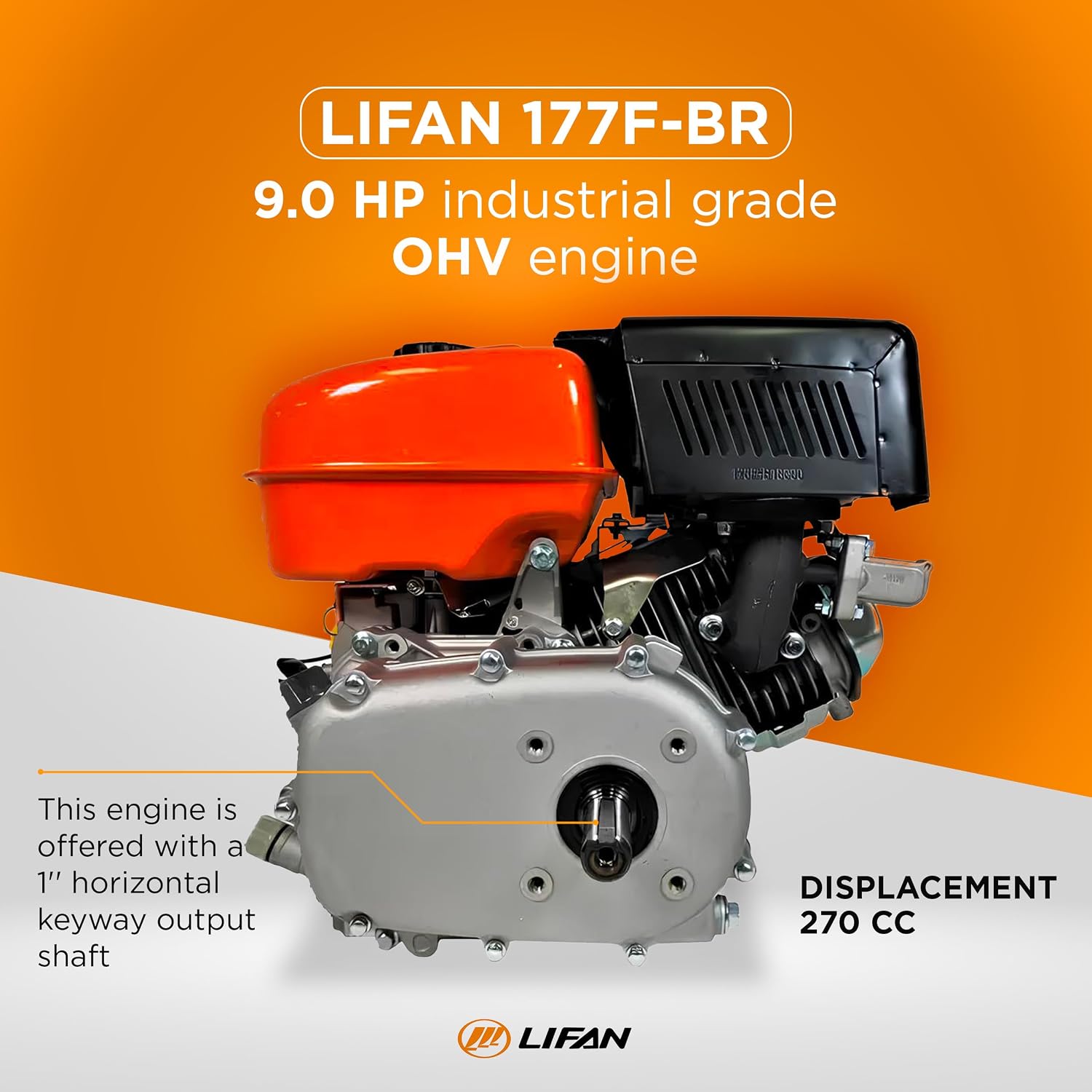

Image: The Lifan 177F-BR 9.0 HP industrial grade OHV engine, highlighting its 270cc displacement and 1-inch horizontal keyway output shaft.

Image: Text emphasizing that the M90R engine is EPA certified, extremely quiet, and dependable, suitable for various commercial applications.

2. Safety Information

Always prioritize safety when operating or maintaining the engine. Failure to follow safety instructions can result in serious injury or death.

• Fuel Safety: Gasoline is highly flammable. Store fuel in approved containers, in a well-ventilated area, away from ignition sources. Do not refuel while the engine is running or hot.
• Exhaust Fumes: Engine exhaust contains carbon monoxide, a colorless, odorless, poisonous gas. Operate the engine only in well-ventilated outdoor areas. Never operate indoors.
• Hot Surfaces: The engine and exhaust system become very hot during operation and remain hot for some time after shutdown. Avoid contact to prevent burns.
• Moving Parts: Keep hands, feet, and clothing away from rotating parts such as the crankshaft and recoil starter to prevent entanglement.
• Eye Protection: Always wear appropriate eye protection when working with the engine.
• Children and Pets: Keep children and pets away from the engine, especially during operation.

3. Setup

Before starting the engine, ensure it is properly set up and all connections are secure.

1. Mounting: Securely mount the engine to a stable, level surface using appropriate hardware. Ensure proper alignment if connecting to other equipment.
2. Oil Fill: Fill the engine crankcase with the recommended type and amount of engine oil. Refer to the specifications section for oil capacity and type. The engine features a low-oil shutoff system to prevent damage from insufficient oil levels.
3. Fuel Fill: Fill the 6-liter fuel tank with fresh, clean gasoline. Do not overfill. Ensure the fuel cap is securely tightened.
4. Shaft Connection: Connect your equipment to the 1-inch horizontal keyway output shaft. Ensure the connection is firm and secure.

4. Operating Instructions

Follow these steps to start and operate your Lifan M90R engine.

1. Check Oil Level: Verify the engine oil level is within the safe operating range. The low-oil shutoff system will prevent the engine from starting or running if the oil level is too low.
2. Check Fuel Level: Ensure the 6-liter fuel tank contains sufficient gasoline.
3. Open Fuel Valve: Turn the fuel valve to the 'ON' position.
4. Choke (Cold Start): If the engine is cold, move the choke lever to the 'CLOSED' or 'START' position. For a warm engine, the choke may not be necessary.
5. Throttle: Set the throttle lever to the 'FAST' or 'RUN' position.
6. Recoil Start: Grasp the recoil starter handle firmly. Pull the handle slowly until resistance is felt, then pull quickly and smoothly to start the engine. Repeat if necessary.
7. Choke (Warm-up): Once the engine starts, gradually move the choke lever to the 'OPEN' or 'RUN' position as the engine warms up.
8. Operation: Allow the engine to warm up for a few minutes before applying a load. Adjust the throttle as needed for your application.
9. Shutting Down: To stop the engine, move the throttle lever to the 'SLOW' or 'IDLE' position, then turn the engine switch to 'OFF' and close the fuel valve.

Image: The Lifan M90R engine, highlighting its clutch drive housing, recoil starting system with low-oil shutoff, and 6-liter fuel tank capacity. The dry weight is 30 kg (66 lbs).

5. Maintenance

Regular maintenance is crucial for the longevity and optimal performance of your engine. Perform maintenance tasks at the recommended intervals.

• Oil Change: Change the engine oil after the first 20 hours of operation, then every 50-100 hours or annually, whichever comes first. Use the recommended oil type.
• Air Filter: Inspect the air filter regularly and clean or replace it as needed, especially in dusty conditions. A dirty air filter can reduce engine performance and lifespan.
• Spark Plug: Inspect the spark plug annually or every 100 hours. Clean or replace it if it is fouled or worn. Ensure the gap is set correctly.
• Fuel Filter: Check and clean the fuel filter periodically to ensure a clean fuel supply to the carburetor.
• General Cleaning: Keep the engine clean and free of debris. Remove any buildup around the cooling fins to prevent overheating.

6. Troubleshooting

This section provides solutions for common engine issues. For problems not listed here, consult a qualified service technician.

• Engine Will Not Start:
  • Check fuel level and ensure the fuel valve is open.
  • Verify engine oil level; the low-oil shutoff may be activated.
  • Ensure the engine switch is in the 'ON' position.
  • Check spark plug for fouling or damage.
  • Ensure the choke is set correctly for a cold start.
• Engine Runs Poorly or Lacks Power:
  • Check air filter for clogging.
  • Inspect spark plug.
  • Ensure fresh fuel is being used; stale fuel can cause issues.
  • Check for proper throttle setting.
• Excessive Smoke:
  • Blue smoke indicates oil burning; check oil level and engine wear.
  • Black smoke indicates rich fuel mixture; check air filter or carburetor.

7. Specifications

Key technical specifications for the Lifan M90R 177F-BR 9HP Industrial Grade OHV Engine.

Image: A detailed table outlining the specifications of the Lifan 177F-BR engine.

8. Warranty and Support

For warranty information, technical support, or replacement parts, please contact Lifan customer service or your authorized dealer. Keep your purchase receipt and engine model/serial number readily available when contacting support.
