Introduction
This instruction manual provides detailed guidance for the installation, operation, and maintenance of the RHYTHM TESTAMENT Carburetor replacement kit for Cub Cadet CC53 SPO mowers equipped with 173cc OHV engines. This carburetor is designed to restore proper fuel and air mixture balance for consistent combustion and reliable engine response. Please read this manual thoroughly before installation and use to ensure correct procedure and safe operation.
Safety Information
WARNING:
- Always disconnect the spark plug wire before performing any maintenance or installation to prevent accidental engine startup.
- Work in a well-ventilated area. Gasoline fumes are flammable and hazardous.
- Wear appropriate personal protective equipment, including safety glasses and gloves.
- Ensure the engine is cool before handling fuel system components. Hot engine parts can cause burns.
- Handle gasoline with extreme care. Do not smoke or use open flames near fuel.
- Dispose of old fuel and parts according to local regulations.
Package Contents
Verify that all components listed below are present in your kit:
- 1x Carburetor Assembly
- 3x Mounting Gaskets
- 1x Primer Bulb
- 1x Inline Fuel Filter
- 1x Fuel Hose
Image: Overview of the RHYTHM TESTAMENT Carburetor and included components. This image displays the main carburetor unit, along with the primer bulb, fuel filter, fuel hose, and mounting gaskets, providing a visual confirmation of the kit's contents.
Setup and Installation
Pre-Installation Steps:
- Ensure the engine is completely cool.
- Turn off the fuel supply valve (if equipped) or clamp the fuel line.
- Disconnect the spark plug wire.
- Drain any remaining fuel from the fuel tank into an approved container.
- Remove the air filter assembly and any shrouds covering the carburetor area.
Carburetor Replacement Procedure:
- Carefully disconnect the fuel line from the old carburetor. Be prepared for residual fuel leakage.
- Disconnect the throttle and choke linkage from the old carburetor. Note their positions for reassembly.
- Unbolt the old carburetor from the engine manifold. Remove and discard the old gaskets.
- Clean the mounting surfaces on the engine and air filter housing to ensure a proper seal.
- Install the new mounting gaskets onto the engine manifold, then position the new RHYTHM TESTAMENT carburetor.
- Secure the carburetor with the original bolts, tightening them evenly to prevent warping.
- Reconnect the throttle and choke linkage to the new carburetor. Ensure smooth operation.
- Install the new fuel filter into the fuel hose. Connect the new fuel hose from the fuel tank to the carburetor's fuel inlet.
- Install the new primer bulb if replacing the old one.
- Reinstall the air filter assembly and any removed shrouds.

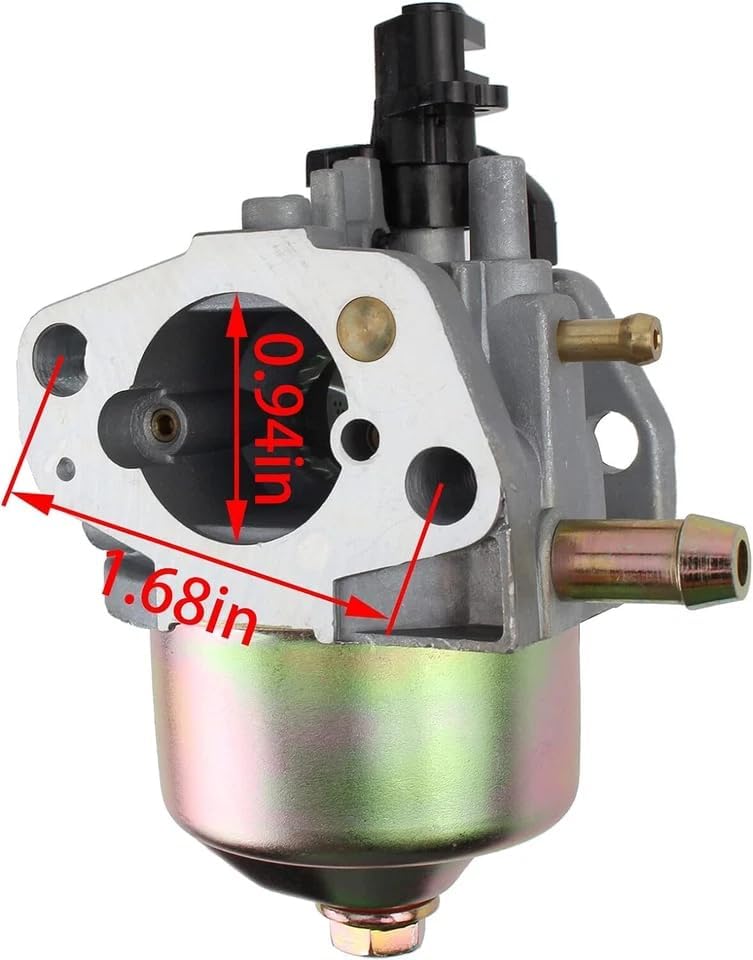

Image: Side view of the carburetor showing key dimensions. This image highlights the mounting bolt spacing and intake opening diameter, which are critical for ensuring compatibility and proper fitment during installation.
Image: Front view of the carburetor showing additional dimensions. This image provides further dimensional details of the carburetor's intake and mounting points, assisting in verifying the correct alignment with the engine's existing throttle and choke controls.
Operating Instructions
Initial Startup:
- Refill the fuel tank with fresh, appropriate gasoline.
- Open the fuel supply valve (if applicable).
- Prime the carburetor by pressing the primer bulb several times until fuel is visible in the bulb or fuel lines.
- Reconnect the spark plug wire.
- Set the choke to the "START" position (if applicable).
- Start the engine according to your mower's manufacturer instructions.
- Once the engine starts, gradually move the choke to the "RUN" position as the engine warms up.
Allow the engine to run for a few minutes to ensure proper fuel flow and carburetor function. Check for any fuel leaks.
Maintenance
- Fuel Filter: Inspect the inline fuel filter periodically. Replace it if it appears dirty or clogged to ensure clean fuel delivery to the carburetor.
- Fuel Lines: Check fuel lines for cracks, leaks, or deterioration. Replace as necessary to prevent fuel leaks and ensure proper fuel flow.
- Carburetor Cleaning: If the engine experiences performance issues due to fuel contamination, the carburetor may require cleaning. This typically involves disassembling the carburetor, cleaning jets and passages with carburetor cleaner, and replacing gaskets. This procedure should be performed by individuals with appropriate mechanical knowledge.
- Seasonal Storage: Before long-term storage, drain the fuel tank and run the engine until it stops from lack of fuel, or use a fuel stabilizer to prevent fuel degradation and carburetor clogging.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine hard to start or won't start | No fuel, clogged fuel filter, faulty primer bulb, incorrect choke setting, old fuel. | Check fuel level, replace fuel filter, check primer bulb function, adjust choke, use fresh fuel. |
| Engine runs rough or idles unevenly | Dirty carburetor jets, air leak around carburetor gaskets, improper fuel mixture. | Clean carburetor, check and replace gaskets, ensure proper fuel/air mixture (may require professional adjustment). |
| Fuel leaks from carburetor | Loose connections, damaged fuel lines, faulty float needle or bowl gasket. | Tighten connections, replace damaged fuel lines, inspect and replace float needle or bowl gasket. |
| Reduced engine power | Clogged fuel filter, dirty carburetor, restricted air filter. | Replace fuel filter, clean carburetor, clean or replace air filter. |
Specifications
- Brand: RHYTHM TESTAMENT
- Model Number: CC53SPO-173CC-CARB
- Flange Type: 2-bolt mounting flange
- Fuel Type: Gasoline
- Exterior Finish: Aluminum
- Recommended Uses: Restoring starting performance, correcting fuel mixture issues, seasonal maintenance
- Specific Uses: Lawn mower engine repair, fuel system replacement
- Included Components: 1x Carburetor, 3x Mounting Gaskets, 1x Primer Bulb, 1x Fuel Filter, 1x Fuel Hose
Warranty and Support
Specific warranty information for this product is not provided in the available documentation. For warranty claims or technical support, please contact the RHYTHM TESTAMENT manufacturer or your point of purchase directly. Keep your purchase receipt as proof of purchase.
