1. Product Overview
The GTKZW 3000W 2-Burner Induction Cooktop is a versatile cooking appliance designed for both built-in and freestanding use. It features two independent cooking zones (1800W and 1200W), touch controls, 9 power levels, temperature control, and a timer function. Its compact design makes it suitable for various settings, including small kitchens, studios, and for portable use.
Image 1.1: GTKZW 2-Burner Induction Cooktop in a kitchen setting.
2. Safety Instructions
Please read all safety instructions carefully before using the appliance to prevent injury or damage.
- Electrical Safety: Ensure the power supply matches the appliance's requirements (220-240V). Do not use damaged power cords.
- Overheat Protection: The cooktop is equipped with an overheat protection system. If the temperature becomes too high, the unit will automatically shut off.
- Child Lock: Activate the child lock function to prevent accidental operation by children.
- Proper Ventilation: Ensure adequate ventilation around the cooktop, especially if built-in, to allow for proper heat dissipation. Do not block air vents.
- Suitable Cookware: Only use induction-compatible cookware. Incompatible cookware will not heat up.
- Hot Surface Warning: The cooktop surface may remain hot after use. Avoid touching it until it has cooled down.
- Cleaning: Always unplug the appliance before cleaning. Allow it to cool completely.
Image 2.1: Illustration of the child lock feature on the control panel.
3. Product Components
The GTKZW Induction Cooktop consists of the following main components:
- Crystal Glass Surface: Durable and easy-to-clean cooking surface.
- Two Induction Zones: One 1800W zone (22 cm diameter) and one 1200W zone (16.5 cm diameter).
- Touch Control Panel: Intuitive controls with LED display for power, temperature, and timer settings.
- Cooling System: Integrated fan and air channel for efficient heat dissipation.
- Non-slip Feet: For stable freestanding placement.
Image 3.1: Overview of the cooktop showing dimensions and power ratings for each zone.
Image 3.2: Diagram illustrating the optimized cooling system with fan and air flow.
4. Installation
The GTKZW Induction Cooktop offers flexible installation options: freestanding or built-in.
4.1 Freestanding Installation
For freestanding use, simply place the cooktop on a stable, flat, and heat-resistant surface. Ensure there is sufficient clearance around the unit for ventilation. The integrated non-slip feet provide stability.
4.2 Built-in Installation
To install the cooktop as a built-in unit, prepare a countertop cutout with the following dimensions:
- Cutout Dimensions: Approximately 49 cm (length) x 27 cm (width).
Ensure adequate space below and around the cooktop for proper ventilation and heat dissipation. Consult a qualified electrician for electrical connections if you are unsure.
Image 4.1: Visual representation of the cooktop in both built-in and freestanding configurations.
5. Operation
The cooktop features an intuitive touch control panel for easy operation.
5.1 Power On/Off
Press the power button (O) to turn the cooktop on or off.
5.2 Selecting a Cooking Zone
After powering on, select the desired cooking zone by touching its corresponding control area.
5.3 Adjusting Power/Temperature
Use the '+' and '-' buttons to adjust the power level (P1-P9) or temperature (80°C to 270°C). The LED display will show the current setting.
Image 5.1: Chart showing 9 power levels and corresponding temperatures for various cooking tasks.
Image 5.2: Close-up of the touch control panel with LED display.
5.4 Timer Function
Press the timer button (Minuterie) and use '+' and '-' to set the cooking time, up to 120 minutes. The cooktop will automatically turn off once the timer expires.
Image 5.3: Visual of the cooktop in use with the 120-minute timer activated.
5.5 Child Lock
To activate the child lock, press and hold the lock button (Verrouillage enfant) for a few seconds. The controls will be disabled. Repeat the process to unlock.
6. Cookware Compatibility
Induction cooktops require specific types of cookware. Use only pots and pans with a magnetic base.
6.1 Compatible Cookware
- Cast iron pots and pans
- Stainless steel cookware with a magnetic base
- Enamelled steel cookware
6.2 Incompatible Cookware
- Aluminum cookware
- Ceramic cookware
- Copper cookware
- Glass cookware
To test if your cookware is compatible, place a magnet on the bottom of the pot or pan. If the magnet sticks, the cookware is suitable for induction cooking.

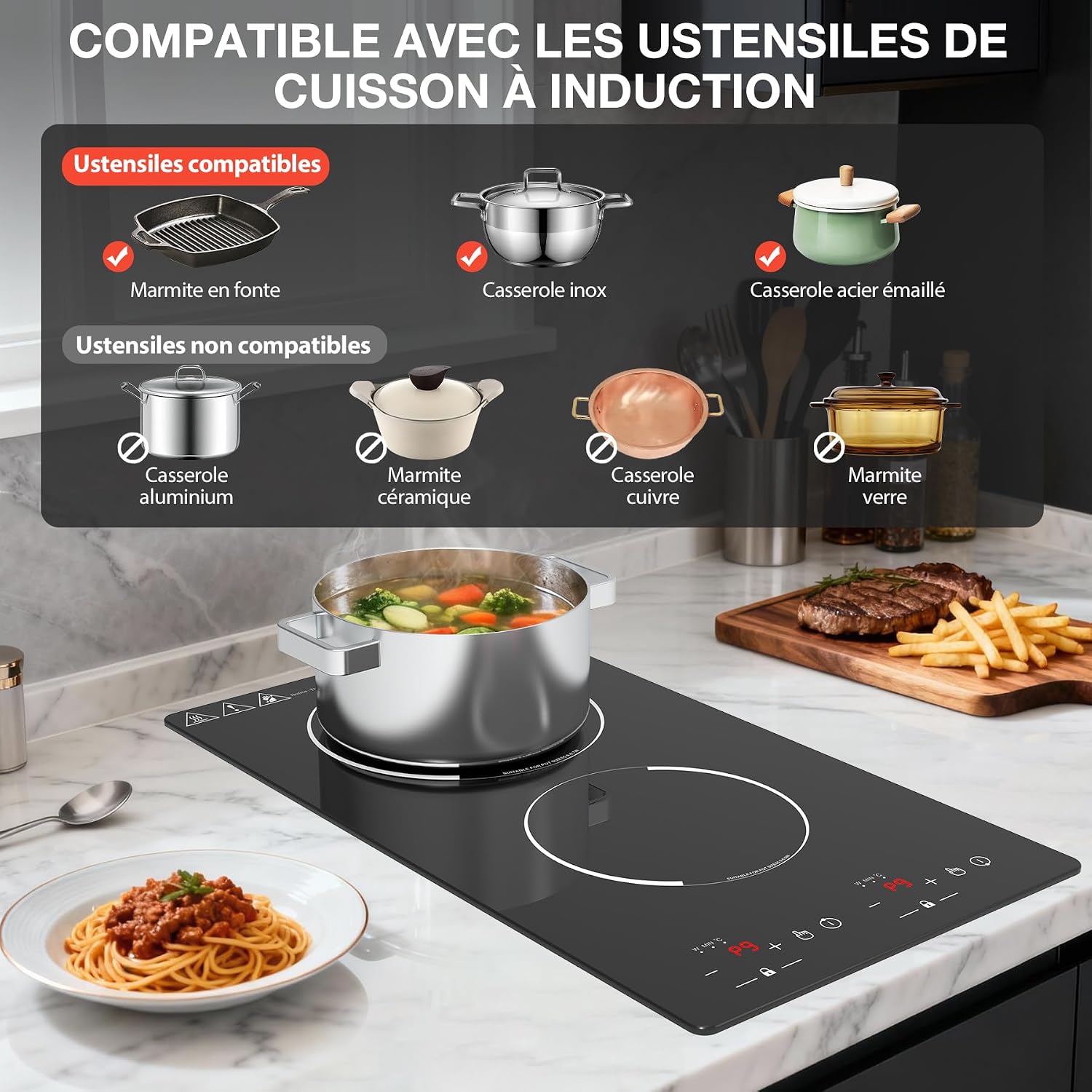

Image 6.1: Visual guide to compatible and incompatible cookware types for induction cooktops.
7. Cleaning and Maintenance
Regular cleaning and maintenance will ensure the longevity and optimal performance of your cooktop.
- Before Cleaning: Always unplug the cooktop from the power outlet and allow it to cool completely before cleaning.
- Surface Cleaning: The black crystal glass surface is easy to clean. Wipe it with a damp sponge and mild detergent. For stubborn stains, use a non-abrasive cooktop cleaner.
- Drying: Dry the surface thoroughly with a soft, clean cloth to prevent water spots.
- Avoid Abrasives: Do not use abrasive cleaners, scouring pads, or harsh chemicals, as these can scratch or damage the glass surface.
- Ventilation Openings: Keep the ventilation openings clear of dust and debris to ensure proper cooling.
Image 7.1: Demonstration of cleaning the cooktop surface with a sponge after use.
8. Troubleshooting
If you encounter issues with your induction cooktop, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Cooktop does not turn on. | No power supply; power cord not plugged in; circuit breaker tripped. | Check power connection; ensure outlet is functional; reset circuit breaker. |
| Cookware is not heating. | Cookware is not induction-compatible; cookware is too small or too large for the zone. | Use induction-compatible cookware; ensure cookware base covers at least 70% of the cooking zone. |
| Error code displayed. | Specific malfunction or sensor issue. | Refer to the full manual for specific error code meanings. Try turning off and on again. |
| Unusual noise during operation. | Normal fan operation; resonance from certain cookware. | A low humming sound from the fan is normal. Some cookware may produce slight vibrations. |
9. Specifications
Key technical specifications for the GTKZW 3000W 2-Burner Induction Cooktop:
- Model Number: Plaque Induction 2 feux
- Brand: GTKZW
- Power: 3000 Watts (1800W + 1200W)
- Voltage: 220-240 Volts
- Number of Heating Elements: 2
- Control Type: Touch Sensitive
- Material: Tempered Glass
- Color: Black
- Product Dimensions (L x W x H): 51 cm x 28.8 cm x 8 cm
- Cutout Dimensions (Built-in): Approx. 49 cm x 27 cm
- Item Weight: 5.5 Kilograms
- Special Features: Temperature Control, Timer, Portable, Child Lock
- UPC: 686875801937
- Country of Origin: China
10. Warranty and Support
Warranty: The manufacturer's warranty information is not applicable as per product details. Please refer to your retailer's return policy for details on returns or exchanges.
Customer Support: For any questions, technical assistance, or service inquiries, please contact the retailer or the manufacturer directly through their official channels. Keep your purchase receipt for reference.
