Joossnwell 3-Light 5CCT Dimmable LED Vanity Light Instruction Manual

Introduction

Thank you for choosing the Joossnwell 3-Light 5CCT Dimmable LED Vanity Light. This manual provides essential information for the safe installation, operation, and maintenance of your new lighting fixture. Please read these instructions thoroughly before installation and retain them for future reference.

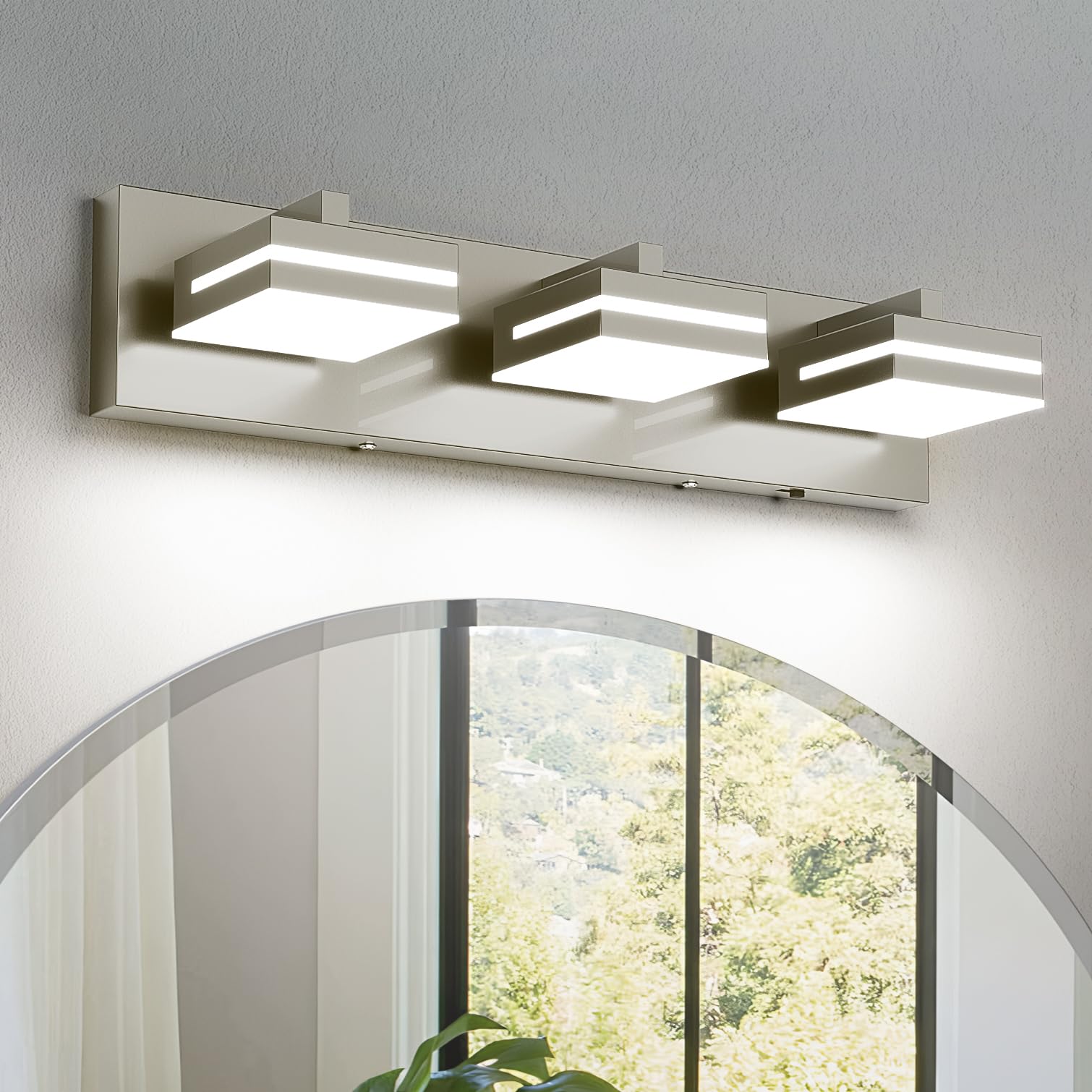

Image: The Joossnwell 3-Light 5CCT Dimmable LED Vanity Light in brushed nickel, showcasing its modern design when installed above a bathroom mirror.

Important Safety Information

Always follow basic safety precautions when installing and operating electrical fixtures to reduce the risk of fire, electric shock, and personal injury.

• WARNING: To avoid electric shock, disconnect power at the circuit breaker or fuse box before installation or servicing.
• All electrical connections must be in accordance with local codes, ordinances, or the National Electric Code (NEC). Contact a qualified electrician if you are unfamiliar with electrical wiring.
• Use only UL/ETL listed wire connectors for connections.
• Do not install this fixture in wet locations. It is designed for indoor use in damp locations like bathrooms.
• Ensure the fixture is securely mounted to a structural element of the building.
• Do not exceed the recommended wattage. This fixture uses integrated LED chips.
• Keep flammable materials away from the light fixture.

Package Contents

Carefully unpack your fixture and check that all parts are included. If any parts are missing or damaged, do not attempt to assemble or install the product. Contact customer service for assistance.

• Joossnwell 3-Light 5CCT Dimmable LED Vanity Light Fixture
• Mounting Hardware (screws, wire nuts, mounting bracket)
• Instruction Manual

Specifications

Image: Product details highlighting dimensions (19.69 inches length, 4.33 inches height, 5.91 inches distance from wall) and construction materials.

Setup and Installation

This fixture is designed for hardwired installation. Ensure power is OFF at the circuit breaker before beginning installation.

1. Turn off Power: Locate the circuit breaker controlling the light fixture's power supply and switch it to the OFF position. Verify power is off using a voltage tester.
2. Prepare Mounting Surface: Ensure the wall surface is clean and clear for mounting.
3. Install Mounting Bracket: Attach the provided mounting bracket to the junction box in your wall using the screws.
4. Wire Connections:
   • Connect the black wire from the fixture to the black (hot) wire from the junction box using a wire nut.
   • Connect the white wire from the fixture to the white (neutral) wire from the junction box using a wire nut.
   • Connect the ground wire (bare copper or green) from the fixture to the ground wire from the junction box and the mounting bracket using a wire nut.

   Note: If your house wiring does not include a ground wire, consult a qualified electrician.

5. Secure Fixture: Carefully tuck all wires into the junction box. Align the fixture with the mounting bracket and secure it with the provided screws.
6. Restore Power: Once the fixture is securely installed, turn the power back ON at the circuit breaker.

Operating Instructions

5-Color Temperature (5CCT) Adjustment

Your Joossnwell vanity light features a convenient 5CCT toggle switch located on the side of the fixture's base. This switch allows you to select from five different color temperatures to match your preference or mood.

• 2500K: Soft light
• 3000K: Warm light
• 3500K: Neutral light
• 4000K: Day light
• 5300K: Cool light

Simply slide the switch to your desired color temperature setting. This is not an on/off switch.

Image: Illustration of the 5-color temperature selection feature with the toggle switch clearly marked.

Dimmable Functionality

This modern vanity light is equipped with an ETL certified dimmable driver, allowing for a 5%-100% dimming range. It is compatible with most household Triac LED dimmers (dimmer switch not included).

• To utilize the dimming feature, ensure you have a compatible Triac LED dimmer switch installed in your wall.
• Adjust the dimmer switch to achieve your desired brightness level, from a soft glow to full illumination.
• The dimming operation is designed to be smooth and flicker-free.

Image: Visual representation of the dimmable function, showing the light output from 10% to 100% brightness.

Maintenance

To ensure the longevity and optimal performance of your vanity light, follow these simple maintenance guidelines:

• Cleaning: Always turn off the power before cleaning. Use a soft, dry, or slightly damp cloth to wipe the fixture. Avoid abrasive cleaners, solvents, or polishes as they may damage the finish or electrical components.
• Inspection: Periodically check for any loose connections or signs of wear. If any issues are found, disconnect power and consult a qualified electrician.
• LED Care: The integrated LED chips are designed for long life and do not require replacement.

Troubleshooting

If you experience issues with your vanity light, refer to the following common problems and solutions:

If these solutions do not resolve the issue, please contact Joossnwell customer support.

Warranty and Support

Joossnwell products are manufactured to high-quality standards. For specific warranty details, please refer to the warranty card included with your purchase or visit the official Joossnwell website. If you require technical assistance, replacement parts, or have any questions, please contact Joossnwell customer support through the retailer where the product was purchased or via the contact information provided on the Joossnwell brand store page.
