Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your PUTORSEN Sit-Stand Monitor Desk Mount with Keyboard Tray. This product is designed to enhance your workstation ergonomics by allowing seamless transitions between sitting and standing positions. Please read this manual thoroughly before installation and retain it for future reference.
Safety Information
- Ensure all components are present and undamaged before assembly. Do not use if any parts are missing or defective.
- Verify that your desk surface can support the combined weight of the mount, monitor, keyboard, and any other items placed on the tray.
- Do not exceed the maximum weight capacities for the monitor arm (19.8 lbs / 9 kg) and keyboard tray (2.2 lbs / 1 kg).
- Tighten all screws and bolts securely. Periodically check for loose connections.
- Keep children and pets away during installation.
- Adjust the monitor and keyboard tray carefully to avoid pinching fingers or damaging equipment.
Package Contents
Verify that all the following components are included in your package:
- 1 x Monitor Stand
- 1 x Keyboard Tray
- 1 x Mounting Hardware Kit (includes C-clamp, grommet base, screws, and tools)
Setup and Installation
Follow these steps to install your sit-stand monitor desk mount.
Step 1: Choose Your Mounting Option
The mount supports two installation methods: C-clamp or Grommet base.
Image: Illustration of C-clamp and grommet base mounting options. The C-clamp is suitable for desks 0.39 to 3.15 inches thick, while the grommet base is for desks up to 1.97 inches thick.
- C-Clamp: Attach the C-clamp to the edge of your desk. Ensure the desk thickness is between 0.39 and 3.15 inches (10-80mm). Tighten the clamp securely.
- Grommet Base: If your desk has a grommet hole, use the grommet base. Ensure the desk thickness is up to 1.97 inches (50mm). Secure the base through the grommet hole.
Step 2: Attach the Monitor
Attach your VESA-compatible monitor (17-32 inches) to the monitor arm. The mount supports standard VESA patterns (75x75mm and 100x100mm). Secure the monitor using the provided screws.

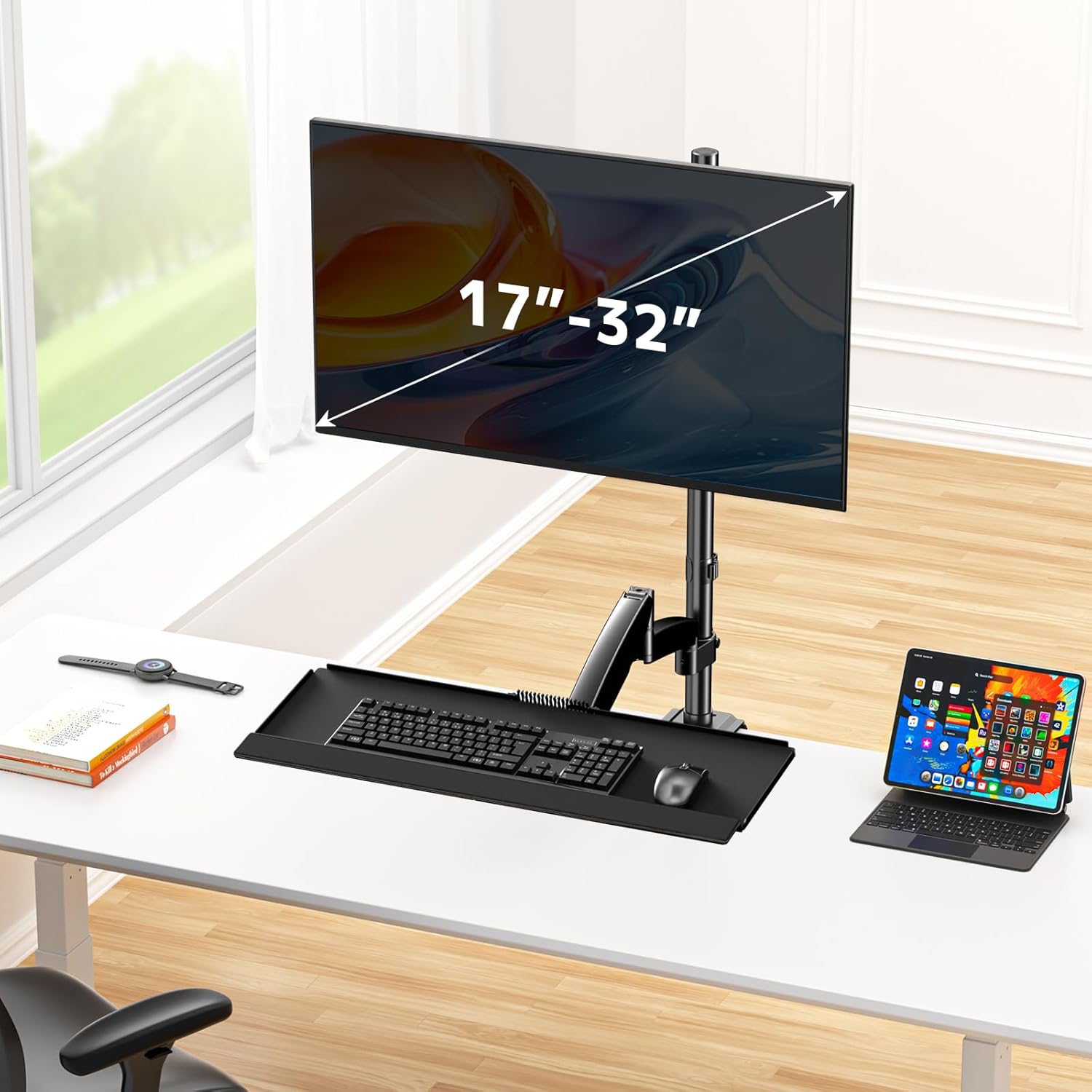

Image: A monitor ranging from 17 to 32 inches attached to the desk mount, positioned above the keyboard tray.
Step 3: Attach the Keyboard Tray
Connect the keyboard tray to the lower articulating arm. Ensure it is firmly attached. The tray features wire management, ample space for a keyboard and mouse, and a padded wrist rest.

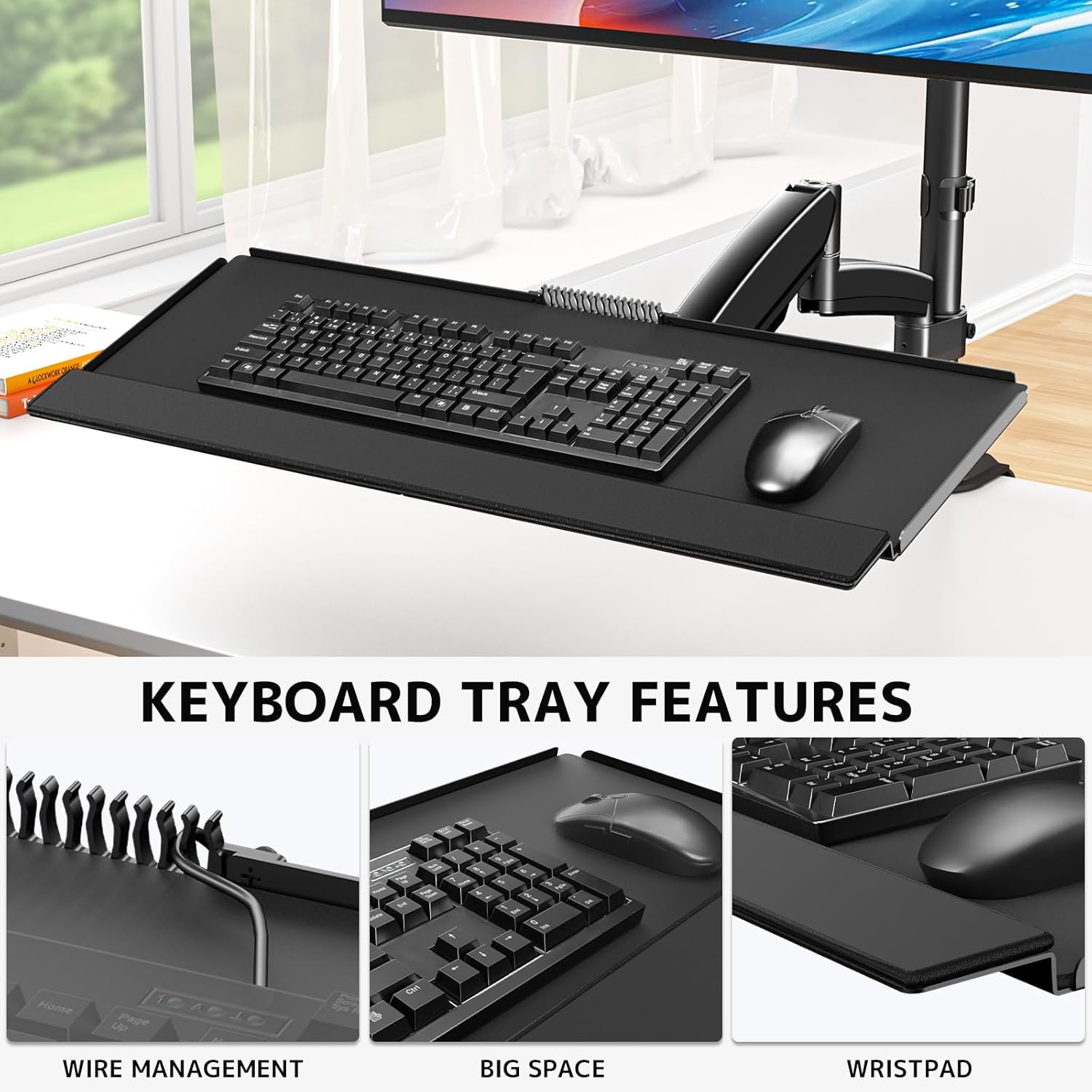

Image: Close-up view of the keyboard tray highlighting its features: integrated wire management, spacious surface for keyboard and mouse, and a comfortable wristpad.
Step 4: Cable Management
Utilize the integrated cable management system along the arm and pole to keep your wires organized and out of sight. This helps maintain a clean and organized workspace.
Image: Demonstrates the pneumatic lift mechanism and the cable management clips along the arm and pole, showing how wires are neatly routed.
Operating Instructions
The PUTORSEN Sit-Stand Monitor Desk Mount offers full adjustability for optimal ergonomic positioning.
Height Adjustment (Sit-Stand Function)
The deluxe pneumatic spring technology allows for smooth and quick height adjustments. Gently push or pull the monitor and keyboard tray to your desired sitting or standing height. The gas spring will hold the position securely.

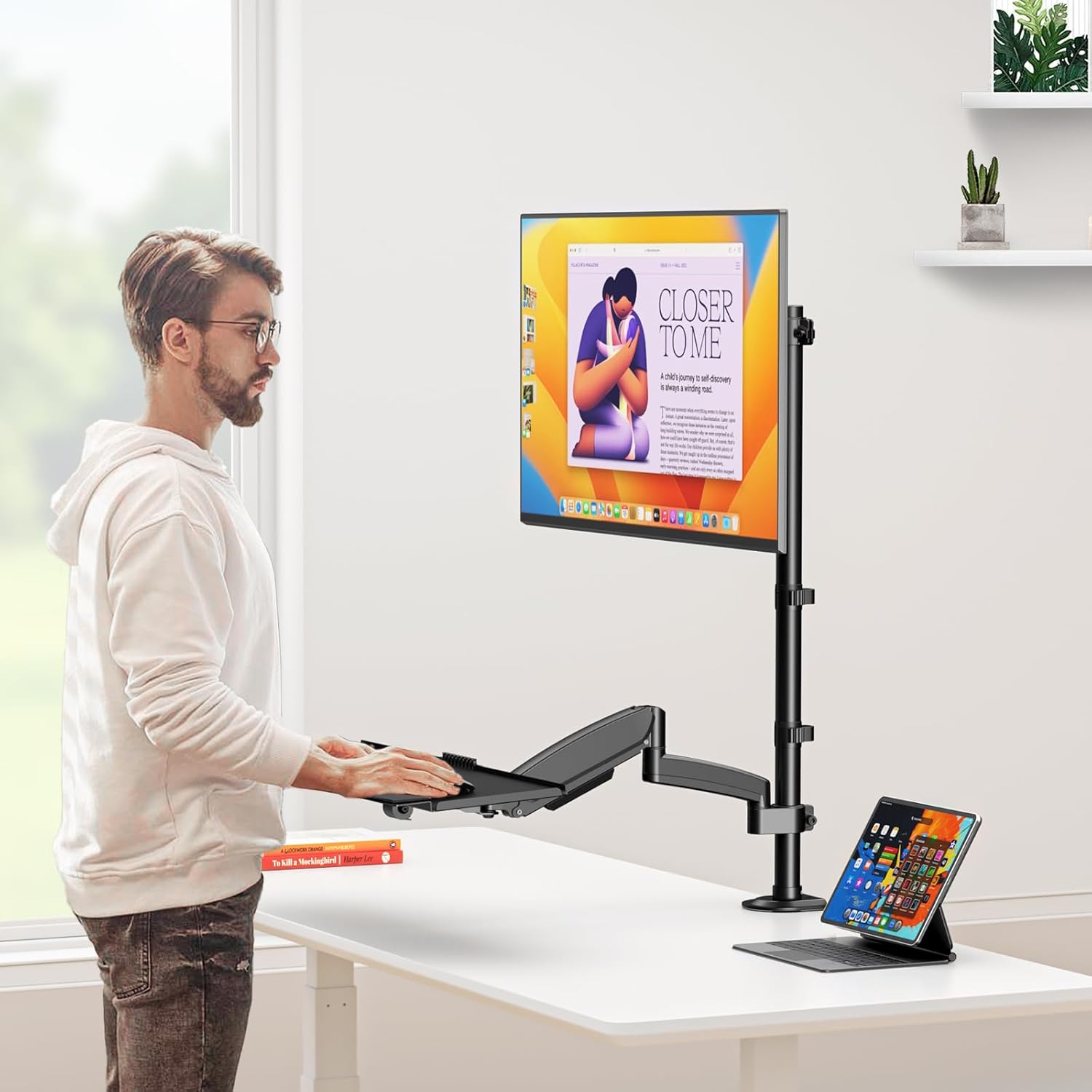

Image: A person demonstrating the sit-stand functionality of the desk mount, showing comfortable positions for both sitting and standing work.
Monitor and Keyboard Tray Adjustments
Both the monitor arm and keyboard tray offer extensive movement capabilities:
Image: Diagram illustrating the full range of motion, including tilt (±35°), swivel (180°), and rotation (360°) for both the monitor and keyboard tray.
- Tilt: Adjust the monitor tilt from -35° to +35° to reduce glare and find your optimal viewing angle.
- Swivel: Swivel the monitor arm 180° to share your screen with others or adjust your viewing direction.
- Rotation: Rotate the monitor 360° to switch between landscape and portrait orientations.
- Keyboard Tray Tilt: The keyboard tray can also be tilted for ergonomic typing comfort.
Maintenance
To ensure the longevity and proper function of your desk mount, follow these maintenance guidelines:
- Cleaning: Wipe the surfaces with a soft, damp cloth. Avoid abrasive cleaners or solvents.
- Check Connections: Periodically inspect all screws and bolts to ensure they remain tight. Re-tighten if necessary.
- Lubrication: The pneumatic spring mechanism is designed for maintenance-free operation. Do not attempt to lubricate internal components.
Troubleshooting
If you encounter issues with your PUTORSEN Sit-Stand Monitor Desk Mount, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Mount is unstable or wobbles | Loose clamp/grommet base; uneven desk surface; monitor/keyboard too heavy. | Ensure clamp/grommet base is securely tightened. Check desk for stability. Verify monitor and keyboard tray weights are within limits. |
| Difficulty adjusting height | Monitor/keyboard weight is too low or too high for the gas spring tension. | Adjust the gas spring tension screw (usually located on the arm joint) according to the instructions in the assembly guide. |
| Monitor does not tilt/swivel/rotate freely | Joints are too tight. | Loosen the corresponding adjustment screws on the monitor arm joints slightly. |
Specifications
Image: Detailed dimensional drawing of the PUTORSEN Sit-Stand Monitor Desk Mount, showing various measurements in inches and millimeters.
- Brand: PUTORSEN
- Model: B0DRJ8YDRH
- Material: Iron
- Color: Black
- Compatible Monitor Size: 17-32 inches
- Monitor Load Capacity: Up to 19.8 lbs (9 kg)
- Keyboard Tray Load Capacity: Up to 2.2 lbs (1 kg)
- Mounting Type: Tabletop (C-Clamp or Grommet)
- C-Clamp Desk Thickness: 0.39 - 3.15 inches (10-80mm)
- Grommet Base Desk Thickness: Up to 1.97 inches (50mm)
- Movement Type: Articulating, Full-Motion
- Monitor Tilt Angle: -35° to +35°
- Monitor Swivel Angle: 180°
- Monitor Rotation: 360°
- Product Weight (approximate): 20 pounds (package weight)
Warranty and Support
PUTORSEN is committed to providing high-quality products and customer satisfaction. If you have any questions, concerns, or require assistance with your product, please do not hesitate to contact our professional service team. We are available 7 days a week, 24 hours a day, to assist you.
Please refer to your purchase documentation or the PUTORSEN official website for specific warranty details and contact information.
