1. Introduction and Overview
The EAFC 12V 6A Smart Battery Charger is an advanced, automatic battery maintainer designed for various 12V battery types, including lead-acid, start-stop, and LiFePO4 batteries. It features a large color screen for clear display of charging status, voltage, and current. With its intelligent charging capabilities, it ensures optimal battery health and extends battery life by preventing overcharging and providing multiple protection features.
This charger is suitable for batteries ranging from 2AH to 150AH, making it versatile for cars, motorcycles, and other vehicles. Its compact and lightweight design ensures portability and ease of storage.
Figure 1.1: EAFC 12V 6A Smart Battery Charger with its red and black battery clamps.
2. Safety Information
Please read and understand all safety instructions before using the charger. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Indoor Use Only: This charger is designed for indoor use. Do not expose it to rain, snow, or excessive moisture.
- Ventilation: Ensure adequate ventilation during charging. Do not cover the charger or battery.
- Battery Type: Only use this charger with 12V lead-acid (conventional, AGM, Gel, EFB) and LiFePO4 batteries within the specified capacity range (2AH-150AH). Do not attempt to charge non-rechargeable batteries.
- Connection Order: Always connect the charger to the battery terminals first, then plug the charger into the AC power outlet. Disconnect in reverse order.
- Polarity: Ensure correct polarity (+ to + and - to -). The charger has reverse connection protection, but always double-check.
- Sparks: Avoid creating sparks near the battery, especially when connecting or disconnecting. Batteries can produce explosive gases.
- Damaged Cables: Do not operate the charger with damaged cords or clamps. Contact customer support for replacement.
- Children and Pets: Keep the charger and battery out of reach of children and pets.
- Disassembly: Do not attempt to disassemble or modify the charger. This will void the warranty and may cause harm.
3. Product Features
The EAFC Smart Battery Charger incorporates several key features for efficient and safe battery maintenance:
- Large Color Screen Display: Provides real-time information on voltage, current, charging status (CHARGING, POWER, FULL), and selected mode.
- Smart & Automatic Charging: Automatically detects battery type and condition, adjusting charging parameters for optimal performance.
- Multi-Mode Selection: Dedicated modes for Car (conventional lead-acid), AGM/LiFePO4, Motorcycle, and Repair (desulfation).
- Overcharge Protection: Automatically stops charging when the battery is full, preventing damage from overcharging.
- Reverse Connection Protection: Prevents equipment damage if battery clamps are connected incorrectly.
- Overheat Protection: Built-in temperature sensor automatically shuts down the unit if internal temperature becomes too high, extending service life.
- Short Circuit Protection: Safeguards against damage from short circuits.
- Lightweight and Portable Design: Compact size for easy carrying and storage.

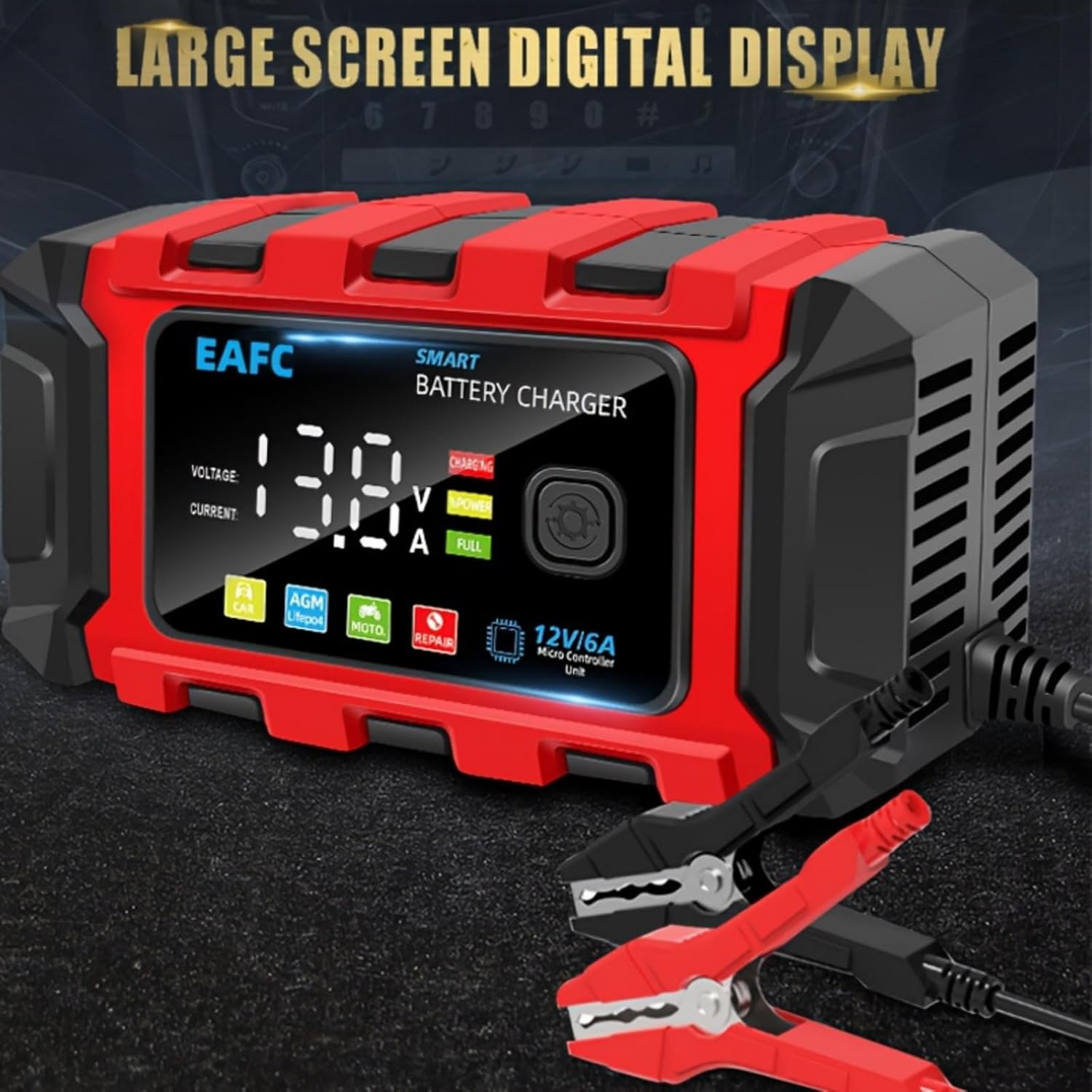

Figure 3.1: The large color screen provides clear digital display of charging parameters.
4. Package Contents
Please check the package contents upon unboxing:
- 1 x EAFC 12V 6A Smart Battery Charger Unit
- 1 x User Manual (this document)
5. Setup
Follow these steps to set up your EAFC Smart Battery Charger:
- Prepare the Battery: Ensure the battery terminals are clean and free of corrosion. If necessary, clean them with a wire brush.
- Connect to Battery:
- Connect the red (+) clamp of the charger to the positive (+) terminal of the battery.
- Connect the black (-) clamp of the charger to the negative (-) terminal of the battery.
- Ensure a secure connection. The charger has reverse polarity protection, but correct connection is always recommended.
- Connect to Power: Plug the charger's AC power cord into a standard 100-240V AC wall outlet. The charger display will illuminate.
Figure 5.1: Proper connection of the charger clamps to a battery.
6. Operating Instructions
Once connected, the charger will automatically detect the battery voltage and display it. Follow these steps to begin charging:
- Mode Selection: Press the "MODE" button (usually a circular button on the display) to cycle through the available charging modes:
- CAR Mode: For conventional 12V lead-acid batteries (dry battery, water battery, lead-acid, maintenance-free battery).
- AGM/LiFePO4 Mode: For AGM/EFB batteries and LiFePO4 batteries. This mode is optimized for these battery types, offering 3-5 times the lifespan of a regular battery.
- MOTO Mode: For small capacity 12V lead-acid batteries typically found in motorcycles.
- REPAIR Mode: For activating or repairing deeply discharged or sulfated batteries. This mode uses pulse repair technology to address battery feeding inability or high internal resistance.
Figure 6.1: The charger offers multiple modes for different battery types and conditions.
- Charging Process: Once a mode is selected, the charger will automatically begin the charging process. The display will show the current voltage, current, and the "CHARGING" indicator will be lit.
- Charging Completion: When the battery is fully charged, the display will show "FULL" and the charger will automatically switch to trickle charge or maintenance mode to prevent overcharging. The "FULL" indicator will be lit.
- Disconnecting:
- First, unplug the charger from the AC power outlet.
- Then, disconnect the black (-) clamp from the negative battery terminal.
- Finally, disconnect the red (+) clamp from the positive battery terminal.
7. Maintenance
Proper maintenance ensures the longevity and optimal performance of your EAFC Smart Battery Charger:
- Cleaning: Disconnect the charger from all power sources and batteries before cleaning. Wipe the exterior with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
- Cable Inspection: Regularly inspect the AC power cord and battery clamps for any signs of damage, fraying, or corrosion. Do not use the charger if any part is damaged.
- Storage: Store the charger in a cool, dry place away from direct sunlight and extreme temperatures. Ensure cables are neatly coiled and not kinked.
- Ventilation: Keep the charger's ventilation slots clear of dust and debris to ensure proper cooling.
8. Troubleshooting
If you encounter issues with your EAFC Smart Battery Charger, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Charger display does not light up. | No AC power; loose connection; charger malfunction. | Check AC outlet and power cord connection. Ensure outlet is live. |
| "FULL" indicator is lit immediately after connecting. | Battery is already fully charged; battery voltage is too high for charging. | No action needed if battery is full. If not, check battery voltage. |
| "CHARGING" indicator does not light up. | Incorrect battery connection (reverse polarity); battery voltage too low; battery severely damaged. | Check battery clamp connections. Ensure battery voltage is above 7.0V. If battery is severely damaged, it may not accept a charge. Try REPAIR mode if applicable. |
| Charger gets hot and shuts down. | Overheat protection activated; poor ventilation. | Allow charger to cool down. Ensure adequate ventilation around the charger. Do not cover it. |
| Display shows an error code (if applicable). | Specific error condition (e.g., short circuit, open circuit). | Refer to the charger's specific error code meanings (if provided on device or in a more detailed manual). Disconnect and reconnect. |
If the problem persists after trying these solutions, please contact EAFC customer support.
9. Specifications
Detailed technical specifications for the EAFC 12V 6A Smart Battery Charger:
- Type: Smart & Automatic Battery Charger
- Output Voltage: 12V
- AC Input: 100-240V (50/60HZ)
- Output Current: 6A
- Input Power With Load: Max. 96W
- Input Power Under No Load: 2.6W
- Minimum Start Volt: Battery Voltage > 7.0V
- Scope of Application: 12V 2AH-150AH lead-acid battery / start-stop battery / LiFePO4 battery
- Product Dimensions: 9.05 x 2.75 x 4.52 inches (230 x 70 x 115 mm)
- Item Weight: 1.33 pounds (0.6 kg)
- Color: Red
- Manufacturer: EAFCAuto
- Safety Standard: UL (Specification Met)
Figure 9.1: Product dimensions of the EAFC Smart Battery Charger.
10. Warranty and Support
EAFCAuto stands behind the quality of its products. For warranty information, technical support, or any inquiries regarding your EAFC 12V 6A Smart Battery Charger, please refer to the contact information provided on the product packaging or the official EAFCAuto website.
Please retain your proof of purchase for warranty claims.
