1. Introduction
This manual provides essential information for the safe and effective use, installation, maintenance, and troubleshooting of your Elito 38B20R Automotive Battery. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.

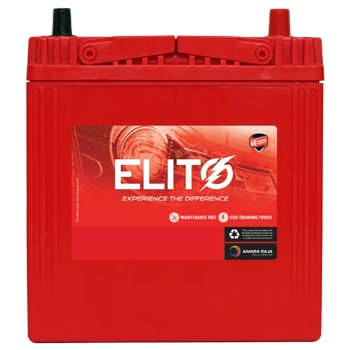

Figure 1: A red Elito 38B20R automotive battery with black terminals visible on top. The front label displays 'ELITO' and 'EXPERIENCE THE DIFFERENCE', along with 'MAINTENANCE FREE' and 'HIGH CRANKING POWER' indicators.
2. Product Overview
The Elito 38B20R Automotive Battery is a high-quality lead-acid flooded battery designed to provide reliable starting power and consistent performance for your vehicle. It is engineered for durability and efficiency, ensuring an uninterrupted and smooth operation.
Key Features:
- Type: Elito 38B20R Automotive Battery
- Capacity: 38B20R/12V
- Construction: Lead Acid Flooded Battery
- Designed for high cranking power
- Engineered for long-lasting performance
3. Setup and Installation
Safety First: Always wear appropriate personal protective equipment (PPE) including safety glasses and gloves when handling batteries. Ensure the vehicle is turned off and the ignition key is removed. Avoid contact with battery acid.
Installation Steps:
- Prepare the Vehicle: Park the vehicle on a level surface, engage the parking brake, and turn off the engine and all electrical accessories.
- Disconnect Old Battery (if applicable): Using a wrench, first disconnect the negative (-) terminal (usually black cable), then the positive (+) terminal (usually red cable). Remove any hold-down clamps.
- Remove Old Battery: Carefully lift the old battery out of the battery tray. Batteries are heavy, so lift with care.
- Clean Battery Tray and Terminals: Clean any corrosion from the battery tray and terminal clamps using a wire brush and a baking soda/water solution. Rinse with clean water and dry thoroughly.
- Place New Battery: Carefully place the Elito 38B20R battery into the battery tray, ensuring it is seated securely.
- Connect New Battery: First, connect the positive (+) terminal (red cable) to the positive post of the new battery. Tighten securely. Then, connect the negative (-) terminal (black cable) to the negative post. Tighten securely.
- Secure Battery: Reinstall any hold-down clamps to prevent the battery from moving during vehicle operation.
- Apply Anti-Corrosion Grease: Apply a thin layer of anti-corrosion grease to the terminals to prevent future corrosion.
- Dispose of Old Battery: Recycle your old battery responsibly at an authorized battery recycling center.
4. Operating the Battery
The Elito 38B20R battery is designed to operate automatically as part of your vehicle's electrical system. It provides power for starting the engine and running electrical components when the engine is off. The vehicle's alternator recharges the battery during operation.
Important Considerations:
- Avoid deep discharges: Repeatedly draining the battery completely can shorten its lifespan.
- Ensure proper charging: A healthy charging system in your vehicle is crucial for battery longevity.
- Extreme temperatures: Both very high and very low temperatures can affect battery performance and lifespan.
5. Maintenance
Regular maintenance helps extend the life and ensure the reliability of your Elito 38B20R Automotive Battery.
Recommended Maintenance Schedule:
- Monthly:
- Visually inspect the battery for any signs of damage, cracks, or bulging.
- Check battery terminals for corrosion. If present, clean them using a wire brush and a baking soda/water solution. Rinse and dry.
- Ensure battery cables are securely connected to the terminals.
- Every 3-6 Months:
- Check the battery's charge level using a voltmeter. A fully charged 12V battery should read around 12.6V or higher.
- For flooded batteries, if applicable and accessible, check electrolyte levels. If low, add distilled water to the appropriate level (do not overfill).
- Ensure the battery hold-down clamp is tight to prevent vibration damage.
6. Troubleshooting
If you experience issues with your Elito 38B20R battery, refer to the common problems and solutions below. For persistent issues, consult a qualified mechanic or contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine cranks slowly or not at all | Low battery charge; corroded terminals; faulty starter motor | Charge the battery; clean terminals; have starter motor checked by a professional. |
| Headlights are dim | Low battery charge; faulty alternator | Charge the battery; have alternator checked by a professional. |
| Battery light on dashboard | Charging system issue (alternator, voltage regulator) | Have the vehicle's charging system inspected immediately by a professional. |
| Battery leaks or smells like rotten eggs | Overcharging; internal damage | Disconnect battery immediately and seek professional assistance. This indicates a serious issue. |
7. Specifications
| Attribute | Detail |
|---|---|
| Brand | ELITO |
| Model | Elito 38B20R Automotive Battery |
| Item Part Number | AET-RR-00038B20R |
| Battery Type | Lead Acid Flooded Battery |
| Capacity | 38B20R/12V |
| Manufacturer | Amara Raja Energy & Mobility Limited, ELITO |
| Country of Origin | India |
| Contents | 1 Battery |
8. Warranty Information
The Elito 38B20R Automotive Battery comes with a comprehensive 60-month warranty. This warranty is structured as follows:
- 30 Months Free Replacement: For the first 30 months from the date of purchase, if the battery is found to be defective due to manufacturing faults, it will be replaced free of charge.
- 30 Months Pro-Rata Warranty: Following the initial 30 months, for the subsequent 30 months, a pro-rata warranty applies. Under this scheme, if the battery fails, a replacement will be provided at a discounted price based on the remaining warranty period.
Please retain your purchase receipt as proof of purchase for warranty claims. The warranty does not cover damage due to misuse, improper installation, neglect, or normal wear and tear.
9. Support and Contact
For any questions, technical assistance, or warranty claims regarding your Elito 38B20R Automotive Battery, please contact the manufacturer or your authorized dealer. Refer to your purchase documentation for specific contact details.
When contacting support, please have the following information ready:
- Product Model: Elito 38B20R Automotive Battery
- Item Part Number: AET-RR-00038B20R
- Date of Purchase
- Description of the issue
