Introduction
Thank you for choosing the ONEVAN Electric Pruning Shears. This cordless garden tool is designed for efficient and precise pruning of branches up to 1.6 inches (40mm) in diameter. Featuring an SK5 carbon steel blade, a powerful brushless motor, and an LCD display for battery level and cut count, this tool aims to simplify your gardening tasks. Please read this manual thoroughly before operation to ensure safe and optimal performance.
Safety Instructions
Always prioritize safety when operating power tools. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.
- Read All Instructions: Familiarize yourself with the tool's operation and safety guidelines before use.
- Personal Protective Equipment: Always wear safety glasses, gloves, and appropriate clothing to protect against flying debris and sharp blades.
- Work Area Safety: Keep the work area clean and well-lit. Do not operate in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
- Electrical Safety: Avoid body contact with earthed or grounded surfaces. Do not expose power tools to rain or wet conditions.
- Tool Operation: Keep hands and body away from the cutting blade. Ensure the safety switch is engaged when not in use or during maintenance.
- Battery Safety: Use only the specified charger for the battery pack. Do not incinerate or expose battery packs to high temperatures.
- Maintenance: Disconnect the battery pack before making any adjustments, changing accessories, or storing the tool.
Product Components
The ONEVAN Electric Pruning Shears package includes the following items:
Image: Overview of the ONEVAN Electric Pruning Shears kit, including the shears, two 2000mAh batteries, charger, carrying case, and maintenance tools.
- Electric Pruning Shears Unit
- 2 x 2000mAh Lithium-Ion Batteries
- Battery Charger
- SK5 Replacement Blades (if included in specific package)
- Wrench and Hex Keys for maintenance
- Lubricating Oil Bottle
- Carrying Case
Specifications
| Brand | ONEVAN |
| Model Number | Electric Pruning Shears |
| Max Cutting Capacity | 1.6 inches (40 mm) |
| Blade Material | SK5 High-Carbon Steel |
| Motor Type | Brushless Motor |
| Max Motor Speed | 21000 RPM/Min |
| Output Power | 500W |
| Battery Type | Lithium-Ion |
| Battery Voltage | 20V |
| Battery Capacity | 2000mAh (per battery) |
| Item Weight | Approximately 4 pounds |
| Handle Material | Plastic, Nylon, Rubber, Silicone |
Image: Diagram illustrating the internal components of a high-performance brushless motor, highlighting its 500W power and 21000 RPM speed.

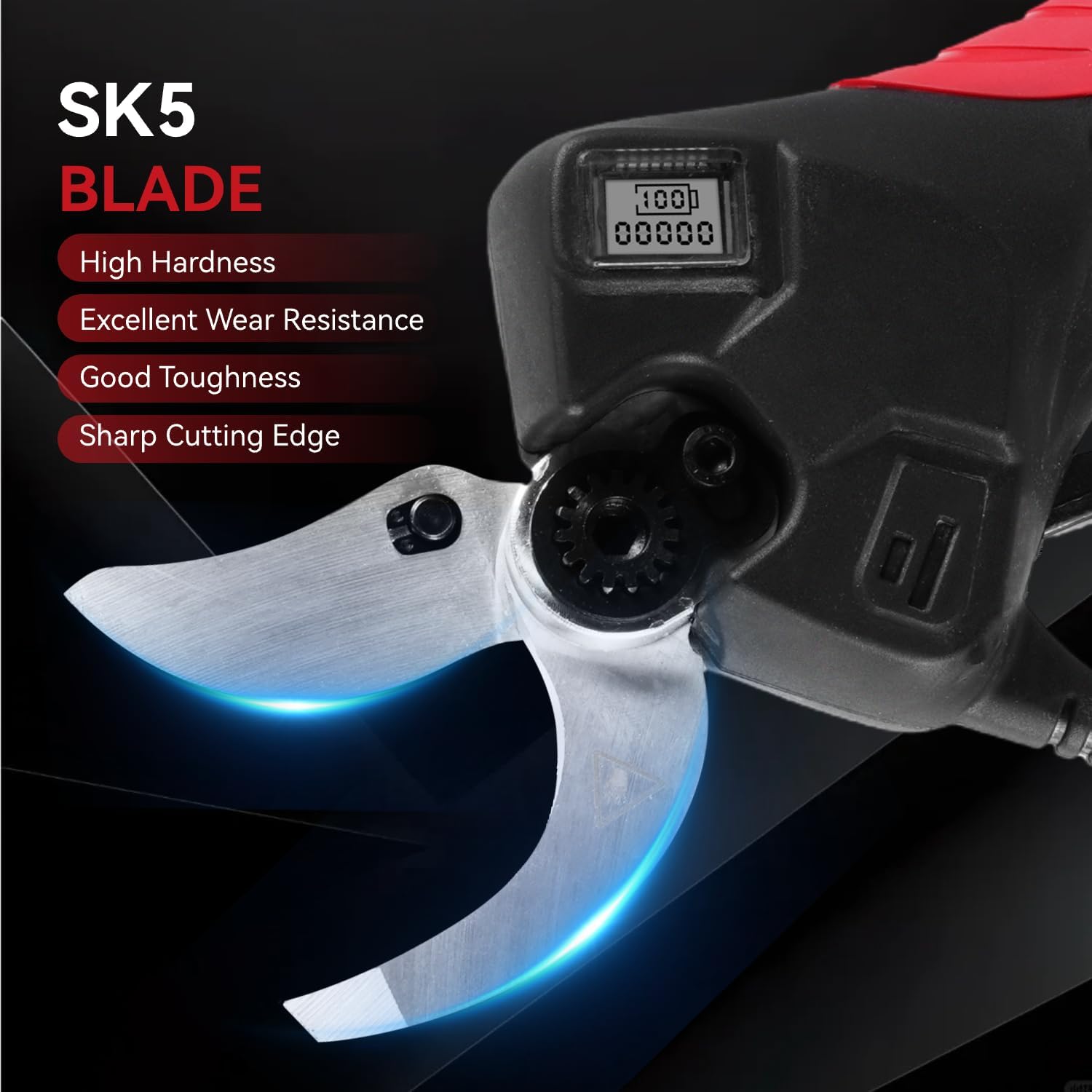

Image: Close-up view of the SK5 high-carbon steel blade, emphasizing its sharpness, hardness, and wear resistance.
Setup
- Charge Batteries:
Before first use, fully charge both 2000mAh lithium-ion batteries. Connect the charger to a power outlet and insert the battery. The indicator light on the charger will show charging status (typically red for charging, green for fully charged).
- Install Battery:
Once charged, slide a battery pack into the base of the pruning shears until it clicks securely into place. Ensure it is firmly seated to prevent accidental disconnection during operation.
- Inspect Blades:
Before each use, inspect the SK5 blades for any damage, dullness, or debris. Ensure they are clean and properly aligned. Refer to the Maintenance section for cleaning instructions.
Operating Instructions
- Powering On:
To power on the shears, press the main power button (usually located near the battery) and then quickly press the trigger twice in a row. This upgraded safety switch mechanism prevents accidental activation. The blades will open to their maximum capacity.
- Checking LCD Display:
The integrated LCD display will show the current battery level and the total number of cuts made. Monitor the battery level to ensure uninterrupted work.
Image: Close-up of the pruning shears' LCD display, clearly showing the battery power percentage and the cumulative cutting times.
- Cutting Procedure:
Position the open blades around the branch you intend to cut. Ensure the branch diameter does not exceed 1.6 inches (40mm). Press the trigger firmly to close the blades and make the cut. Release the trigger to open the blades for the next cut.

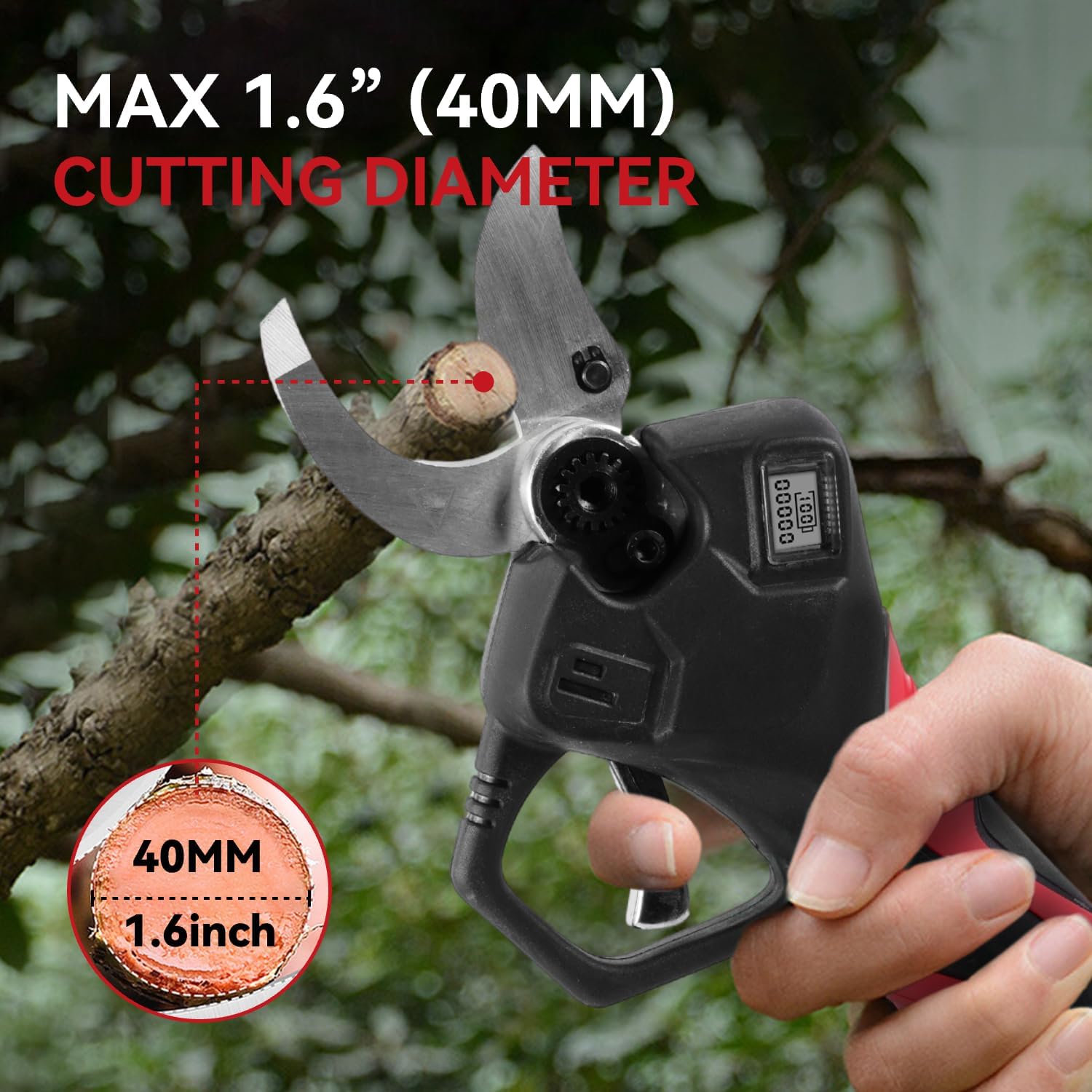

Image: The electric pruning shears in action, demonstrating its maximum cutting capacity of 1.6 inches (40mm) on a tree branch.
Image: A user demonstrating the lightweight design and ease of one-hand operation while pruning a small branch.
Image: A collage showcasing the electric pruning shears being used to cut various types and sizes of branches, illustrating its versatility.
- Powering Off:
To turn off the shears, press and hold the main power button until the tool powers down. Always ensure the blades are closed and the safety switch is engaged before storing.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your pruning shears.
- Blade Cleaning: After each use, disconnect the battery and carefully clean the blades with a damp cloth to remove sap, dirt, and debris. For stubborn residue, use a mild solvent.
- Blade Lubrication: Apply a few drops of lubricating oil (provided) to the pivot point and cutting edges of the blades regularly to ensure smooth operation and prevent rust.
- Blade Sharpening/Replacement: If the blades become dull, they can be sharpened using a fine-grit sharpening stone. If severely damaged or worn, replace them with genuine SK5 replacement blades. Refer to the included tools for blade replacement.
- Battery Care: Store batteries in a cool, dry place away from direct sunlight. Do not store fully discharged batteries for extended periods. Recharge them periodically if not in use.
- General Cleaning: Wipe down the body of the shears with a dry or slightly damp cloth. Do not use harsh chemicals or immerse the tool in water.
- Storage: Store the pruning shears in its carrying case in a dry, secure location, out of reach of children. Ensure the battery is removed before storage.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Shears do not power on. | Battery not charged or improperly installed. Safety switch not activated correctly. | Ensure battery is fully charged and securely installed. Press power button, then trigger twice quickly. |
| Blades do not cut cleanly. | Dull or dirty blades. Branch too thick. | Clean and lubricate blades. Sharpen or replace blades if necessary. Ensure branch diameter is within 1.6 inches (40mm). |
| Tool stops during operation. | Battery low or overheated. Overload protection activated. | Check LCD for battery level and recharge if needed. Allow tool to cool down. Avoid cutting branches exceeding maximum capacity. |
| Unusual noise or vibration. | Loose components or debris in mechanism. | Disconnect battery and inspect for loose parts or obstructions. If problem persists, contact customer support. |
Warranty and Support
For warranty information, please refer to the documentation provided with your purchase or contact the retailer. If you encounter any issues not covered in this manual or require further assistance, please contact ONEVAN customer support through your purchase platform or the official brand website.
Please have your model number (Electric Pruning Shears) and purchase date available when contacting support.
