1. Introduction
This manual provides detailed instructions for the assembly, safe operation, and proper maintenance of your Petony Outdoor Dog Kennel, Model 118"W x 118"D x 72.5"H. Please read this manual thoroughly before beginning assembly or use to ensure correct installation and to maximize the lifespan of your product. Retain this manual for future reference.
Image 1.1: The Petony Outdoor Dog Kennel, featuring a spacious enclosure with a protective roof, suitable for medium to large dogs.
2. Safety Information
Always prioritize safety during assembly and use. Failure to follow these instructions may result in injury or damage to the product.
- Ensure all components are securely fastened before placing a pet inside.
- Regularly inspect the kennel for any signs of wear, damage, or loose parts.
- Do not allow children to play unsupervised near or inside the kennel.
- Position the kennel on a level, stable surface to prevent tipping.
- Secure the kennel to the ground using the provided ground nails for added stability, especially in windy conditions.
- The roof provides shade and rain protection; however, do not rely on it for extreme weather conditions.
3. Package Contents and Components
Before assembly, verify that all parts listed below are present and undamaged. If any parts are missing or damaged, contact customer support.
Image 3.1: Key components of the kennel construction, including galvanized wire mesh panels, connection points, galvanized metal pipes, and ground nails for securing the structure.
- Galvanized Wire Mesh Panels (various sizes for walls and door)
- Galvanized Metal Pipes (for frame and roof support)
- Connectors (for joining panels and frame)
- Door Panel with Double Locks
- Ground Nails
- Rubber Ropes (for securing roof cover)
- Weather-Resistant Roof Cover
- Assembly Hardware (bolts, nuts, washers, hex bit)
- Instruction Manual (this document)
4. Setup and Assembly
Assembly typically requires two people and approximately 2-6 hours, depending on experience. A power drill with a hex bit is recommended for faster assembly.
4.1 Site Preparation
- Choose a level, clear area for installation.
- Ensure adequate drainage to prevent water accumulation.
- Consider proximity to shade or shelter, in addition to the kennel's roof.
4.2 Assembly Steps
- Unpack Components: Carefully remove all parts from the packaging and lay them out. Refer to the parts list to ensure everything is present.
- Assemble Base Panels: Connect the galvanized wire mesh panels to form the base perimeter of the kennel. Use the provided connectors, bolts, and nuts. Ensure all connections are secure but do not fully tighten until the entire frame is assembled.
- Install Door Panel: Integrate the door panel into the desired position within the perimeter. Ensure the hinges operate smoothly and the double locks align correctly.
- Attach Roof Frame: Assemble the galvanized metal pipes to create the roof support structure. Attach this frame to the top of the assembled wall panels using the appropriate connectors.
- Secure Roof Cover: Drape the weather-resistant roof cover over the roof frame. Use the rubber ropes to secure the cover tightly to the frame, ensuring it is taut to prevent water pooling.
- Final Tightening: Once the entire structure is assembled and aligned, systematically tighten all bolts and nuts.
- Ground Anchoring: Insert the ground nails through the designated holes at the base of the kennel into the ground. This step is crucial for stability and preventing movement, especially in adverse weather.
Image 4.1: Details of the kennel's security and connection features, including the robust door lock, solid panel connections, and the rubber rope system for securing the roof cover.
5. Operation
The Petony Outdoor Dog Kennel is designed for secure and comfortable outdoor housing for your pet.
- Access: Use the hinged door for pet entry and exit. Always ensure both locks are engaged when the pet is inside.
- Security: The dual-lock system provides enhanced security, preventing accidental escapes.
- Weather Protection: The roof cover offers protection from sun and rain. In severe weather, additional shelter or relocation of the pet may be necessary.
- Space: The 118"W x 118"D x 72.5"H dimensions provide ample space for medium to small dogs to move comfortably.

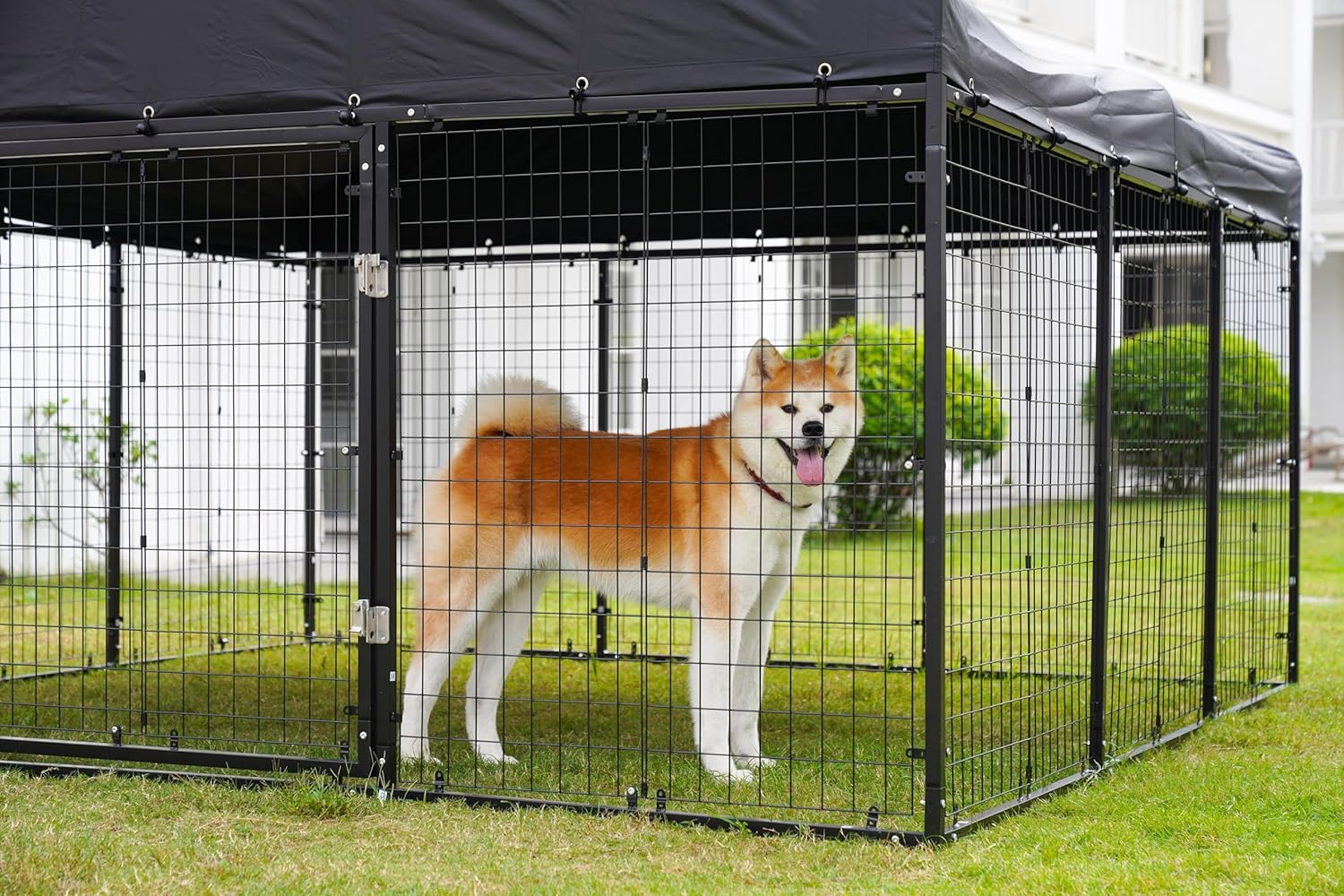

Image 5.1: An Akita dog inside the kennel, illustrating the generous space available for pets.
6. Maintenance
Regular maintenance ensures the longevity and safety of your kennel.
- Cleaning: The smooth surfaces of the kennel are easy to clean. Use mild soap and water to wipe down panels and the roof cover. Rinse thoroughly.
- Inspection: Periodically check all bolts, nuts, and connectors for tightness. Re-tighten as necessary.
- Rust Prevention: While the kennel features an anti-rust coating, inspect for any scratches or chips that could expose metal to moisture. Touch up with rust-inhibiting paint if needed.
- Roof Cover Care: Ensure the roof cover remains taut to prevent water accumulation. Clean off any debris (leaves, snow) promptly.
- Ground Anchors: Verify that ground nails remain firmly in place.
Image 6.1: The kennel's roof cover, designed to provide waterproof and UV protection for pets.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Kennel feels unstable or wobbly. | Loose connections; uneven ground; insufficient ground anchoring. | Ensure all bolts are tightened. Relocate to a level surface. Re-insert or add more ground nails. |
| Door does not close or lock properly. | Misaligned panels; debris in latch mechanism. | Check panel alignment and adjust if necessary. Clear any obstructions from the lock. |
| Water pooling on roof cover. | Roof cover not taut; improper installation. | Re-secure rubber ropes to ensure the cover is stretched tightly. Adjust roof frame if possible. |
| Rust spots appearing on metal. | Surface scratches exposing metal; prolonged exposure to moisture. | Clean affected area, sand lightly, and apply rust-inhibiting paint. Ensure proper drainage around the kennel. |
8. Specifications
- Brand: Petony
- Model: 118"W x 118"D x 72.5"H (Approx. 10x10x6 FT)
- Material: Galvanized Steel (with anti-rust coating)
- Color: Black
- Product Dimensions (L x W x H): 118 x 118 x 72.5 inches (299.7 x 299.7 x 184.15 cm)
- Target Audience: Dogs (All Breed Sizes recommended)
- Special Feature: Durable, Weather Resistant, Double Locks
- Specific Uses: Outdoor
Image 8.1: Dimensional overview of the Petony Outdoor Dog Kennel, indicating its width, depth, and overall height.
9. Warranty and Support
For warranty information, missing parts, or technical support, please contact Petony customer service. Refer to your purchase documentation for specific warranty terms and contact details.
Manufacturer: Petony
ASIN: B0DR5PPVNX
Date First Available: December 21, 2024
