UOFKIPBA DT-8820 Multifunctional Environmental Tester Instruction Manual

1. Introduction

The UOFKIPBA DT-8820 is a multifunctional environmental tester designed to measure various environmental parameters. This instrument integrates capabilities for measuring noise levels, brightness (illumination), temperature, and humidity. It is suitable for a wide range of applications, including environmental monitoring, industrial safety, and quality control. This manual provides detailed instructions for the safe and effective operation, maintenance, and troubleshooting of your DT-8820 device.

2. Safety Information

Please read and understand all safety instructions before operating the DT-8820. Failure to follow these instructions may result in injury or damage to the device.

• Do not attempt to open or modify the device. Internal components are not user-serviceable.
• Keep the device away from water, moisture, and extreme temperatures.
• Avoid dropping the device or subjecting it to strong impacts.
• Use only the specified battery type. Ensure correct polarity when installing batteries.
• Clean the device with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Dispose of batteries and the device according to local regulations.
• Do not point the light sensor directly at strong light sources for extended periods, as this may damage the sensor.

3. Product Overview

The DT-8820 is a compact and robust environmental tester. Familiarize yourself with its components and controls:

Figure 3.1: Front view of the DT-8820 Environmental Tester, showing the display, control buttons, and attached sensors.

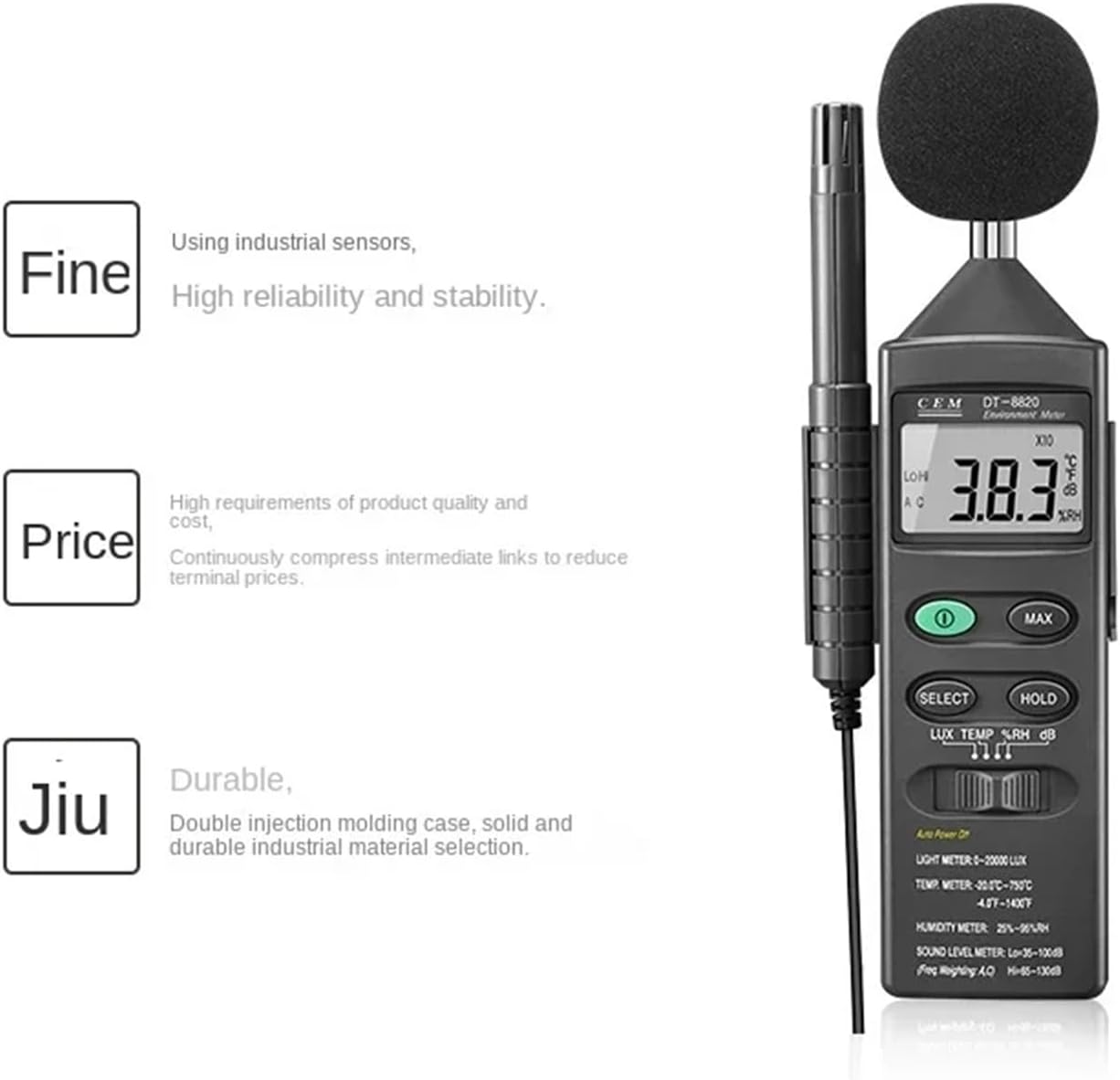

Figure 3.2: DT-8820 Environmental Tester highlighting its industrial sensors, reliability, and durable construction.

3.1 Key Components:

• LCD Display: Shows measurement readings, units, and status indicators.
• Light Sensor: Located at the top left, used for illumination measurements.
• Microphone (Sound Level Sensor): Covered by a foam ball, used for noise level measurements.
• Temperature/Humidity Sensor: Protruding probe on the left side.
• Power Button (ⓘ): Turns the device on or off.
• MAX Button: Displays the maximum measured value.
• SELECT Button: Cycles through measurement modes (LUX, TEMP, %RH, dB).
• HOLD Button: Freezes the current reading on the display.
• Unit Switch: A physical switch to select between different units (e.g., °C/°F, LUX/FC).

4. Setup

4.1 Battery Installation

1. Locate the battery compartment cover on the back of the device.
2. Open the cover by sliding or unscrewing it (refer to the diagram on the device if available).
3. Insert the required batteries (typically 9V or AA, check the compartment for specifics) ensuring correct polarity (+/-).
4. Close the battery compartment cover securely.

4.2 Initial Power On

Press the Power button (ⓘ) to turn on the device. The LCD display will illuminate and show the default measurement mode.

5. Operating Instructions

5.1 Mode Selection

After powering on, press the SELECT button to cycle through the available measurement modes:

• LUX/FC (Brightness/Illumination): For measuring light intensity.
• TEMP (°C/°F - Temperature): For measuring ambient temperature.
• %RH (Relative Humidity): For measuring air humidity.
• dB (Sound Level/Noise): For measuring sound pressure levels.

5.2 Taking Measurements

1. For Illumination (LUX/FC): Point the light sensor towards the light source or area to be measured. Ensure no obstructions block the sensor.
2. For Temperature (°C/°F) and Humidity (%RH): Position the temperature/humidity probe in the environment to be measured. Allow a few moments for the reading to stabilize.
3. For Sound Level (dB): Point the microphone towards the sound source. Ensure the foam ball is properly attached to minimize wind noise.

5.3 HOLD Function

Press the HOLD button to freeze the current reading on the display. Press it again to release the hold and resume live measurements.

5.4 MAX Function

Press the MAX button to display the maximum value recorded since the device was powered on or the MAX function was reset. Press it again to exit MAX mode.

5.5 Unit Selection

Use the physical unit switch (often labeled °C/°F or LUX/FC) to toggle between different measurement units for temperature and illumination, respectively.

5.6 Auto Power Off

The device features an auto power-off function to conserve battery life. If no buttons are pressed for a certain period (e.g., 15 minutes), the device will automatically shut down. Press the Power button to restart.

6. Maintenance

6.1 Cleaning

Wipe the device casing with a soft, dry cloth. Do not use liquid cleaners or solvents. Ensure the sensors (light, microphone, temperature/humidity probe) are kept clean and free from dust or debris for accurate readings.

6.2 Battery Replacement

When the low battery indicator appears on the display, replace the batteries as described in Section 4.1. Remove batteries if the device will not be used for an extended period to prevent leakage.

6.3 Storage

Store the device in a cool, dry place, away from direct sunlight and extreme temperatures. Keep it in its original packaging or a protective case when not in use.

7. Troubleshooting

8. Specifications

Note: Specifications are subject to change without notice. Refer to the device markings for the most accurate ranges.

9. Warranty and Support

For warranty information or technical support, please contact your retailer or the manufacturer directly. Keep your purchase receipt as proof of purchase.

Manufacturer: UOFKIPBA
