ZEBRONICS Groot Wireless Mouse User Manual

1. Introduction

Thank you for choosing the ZEBRONICS Groot Wireless Mouse. This manual provides detailed instructions for setting up, operating, and maintaining your new wireless mouse. The Zeb-Groot offers versatile connectivity with both 2.4GHz and Bluetooth modes, silent operation, and an ergonomic design for comfortable use.

Image: The ZEBRONICS Groot Wireless Mouse in blue, shown alongside its compact USB nano receiver.

2. What's in the Box

Please check the package contents:

• Mouse - 1 unit
• Nano Receiver - 1 unit
• Quick User Guide - 1 unit

3. Product Overview

Familiarize yourself with the components of your ZEBRONICS Groot Wireless Mouse.

Image: Top view of the mouse highlighting the Left Button, Right Button, and Scroll Wheel.

Image: Underside of the mouse, indicating the AA battery slot, On/Off switch, Bluetooth receiver indicator, Nano receiver indicator, and the storage slot for the USB nano receiver.

1. Left Button: Standard left-click function.
2. Right Button: Standard right-click function.
3. Scroll Wheel: For scrolling and middle-click function.
4. On/Off Switch: Located on the bottom of the mouse to conserve battery.
5. Mode Switch Button: This button, often integrated with the power switch or a separate button on the underside, allows switching between 2.4GHz and Bluetooth modes.
6. AA Battery Compartment: For inserting the required AA battery.
7. USB Nano Receiver Storage: Slot for storing the 2.4GHz USB receiver when not in use.

4. Setup Instructions

4.1. Installing the Battery

1. Open the battery compartment cover on the underside of the mouse.
2. Insert one AA battery, ensuring correct polarity (+/-).
3. Close the battery compartment cover.

4.2. Connecting via 2.4GHz Wireless (USB Nano Receiver)

1. Remove the USB nano receiver from its storage slot on the bottom of the mouse.
2. Plug the USB nano receiver into an available USB port on your computer.
3. Turn on the mouse using the On/Off switch on the bottom.
4. The mouse should automatically connect. If not, ensure the mouse is in 2.4GHz mode (check indicator light if available).

Image: A user inserting the USB nano receiver into a laptop's USB port for 2.4GHz wireless connection.

4.3. Connecting via Bluetooth

1. Turn on the mouse using the On/Off switch.
2. Switch the mouse to Bluetooth mode. This is typically done by pressing and holding a button on the mouse (often the mode switch button on the bottom or a dedicated button) until the Bluetooth indicator light starts blinking.
3. On your computer or device, go to Bluetooth settings.
4. Search for new devices and select "ZEB-Groot" (or similar) from the list.
5. Follow any on-screen prompts to complete the pairing process. The indicator light will become solid once connected.

Tip: If you experience issues, ensure your device's Bluetooth is enabled and the mouse is in pairing mode (blinking indicator).

5. Operating Instructions

5.1. Dual Mode Functionality

The ZEBRONICS Groot mouse supports both 2.4GHz wireless and Bluetooth connectivity, allowing you to switch between two devices seamlessly.

• 2.4GHz Mode: Use with the USB nano receiver for a stable, plug-and-play connection.
• Bluetooth Mode: Connect wirelessly to Bluetooth-enabled devices without needing a USB port.

To switch between modes, locate the mode switch button (often on the bottom of the mouse) and press it. An indicator light will typically show the active mode.

Image: The ZEBRONICS Groot mouse positioned next to a laptop, emphasizing its dual mode capability for uninterrupted work via 2.4GHz and Bluetooth connections.

5.2. DPI Adjustment (1600 DPI)

The mouse operates at 1600 DPI (Dots Per Inch), providing smooth and precise cursor movements. This fixed DPI setting is optimized for general use, offering a balance between speed and accuracy.

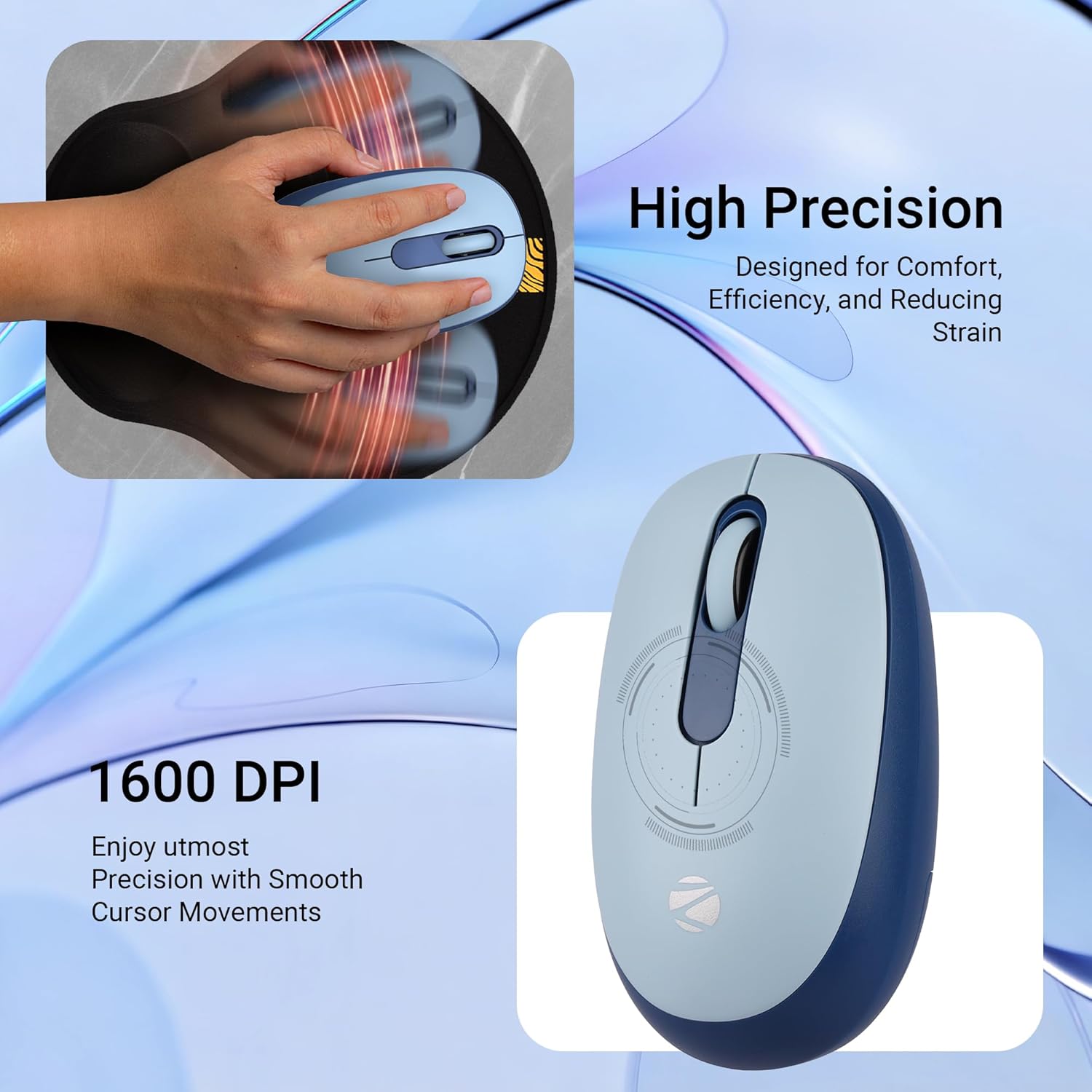

Image: A detailed view of the mouse highlighting its 1600 DPI capability for high precision and smooth cursor movements.

5.3. Silent Operation

The ZEBRONICS Groot mouse features silent click buttons, reducing noise during use. This is ideal for quiet environments such as libraries, offices, or late-night work sessions.

Image: A user operating the mouse silently next to a laptop, with a cat sleeping peacefully in the background, demonstrating the silent click feature.

5.4. Power Management

Use the On/Off switch on the bottom of the mouse to conserve battery life when not in use. The mouse also features an automatic sleep mode to save power during periods of inactivity.

6. Maintenance

• Cleaning: Use a soft, dry cloth to clean the mouse. Avoid using harsh chemicals or abrasive materials.
• Battery Replacement: Replace the AA battery when the mouse performance degrades or the indicator light (if present) signals low battery.
• Storage: When transporting or storing the mouse, ensure the USB nano receiver is securely placed in its storage slot to prevent loss. Turn off the mouse to save battery.

7. Troubleshooting

8. Specifications

9. Warranty and Support

9.1. Warranty Information

The ZEBRONICS Groot Wireless Mouse comes with a 2-year warranty from the date of purchase. This warranty covers manufacturing defects and ensures efficient working of the product. Please retain your purchase receipt for warranty claims.

9.2. Customer Support

For any technical assistance, troubleshooting, or warranty-related queries, please contact ZEBRONICS customer support:

• Manufacturer: Zebronics India Private Limited
• Address: No.13/7, Smith Road, Royapettah, Chennai - 600 002
• Website: www.zebronics.com (Please visit the official website for the latest contact information and support resources.)

When contacting support, please have your product model (Zeb-Groot) and proof of purchase ready.
