1. Introduction
Welcome to the user manual for your new M-Wave SP110-ADJ Height-Adjustable Seatpost. This manual provides essential information for the proper installation, operation, and maintenance of your seatpost. Please read it thoroughly before use to ensure safe and optimal performance.
Product Overview
The M-Wave SP110-ADJ is a high-quality aluminum seatpost designed for quick and convenient height adjustment while riding. It features a handlebar-mounted lever for easy control and offers three distinct height levels: 0mm, 45mm, and 110mm of drop. Its robust construction ensures durability and reliable performance for your cycling needs.
2. Product Components
Your M-Wave SP110-ADJ seatpost package includes the following main components:
- M-Wave SP110-ADJ Height-Adjustable Seatpost
- Handlebar-mounted control lever
- Control cable
Figure 2.1: Main view of the M-Wave SP110-ADJ Height-Adjustable Seatpost.

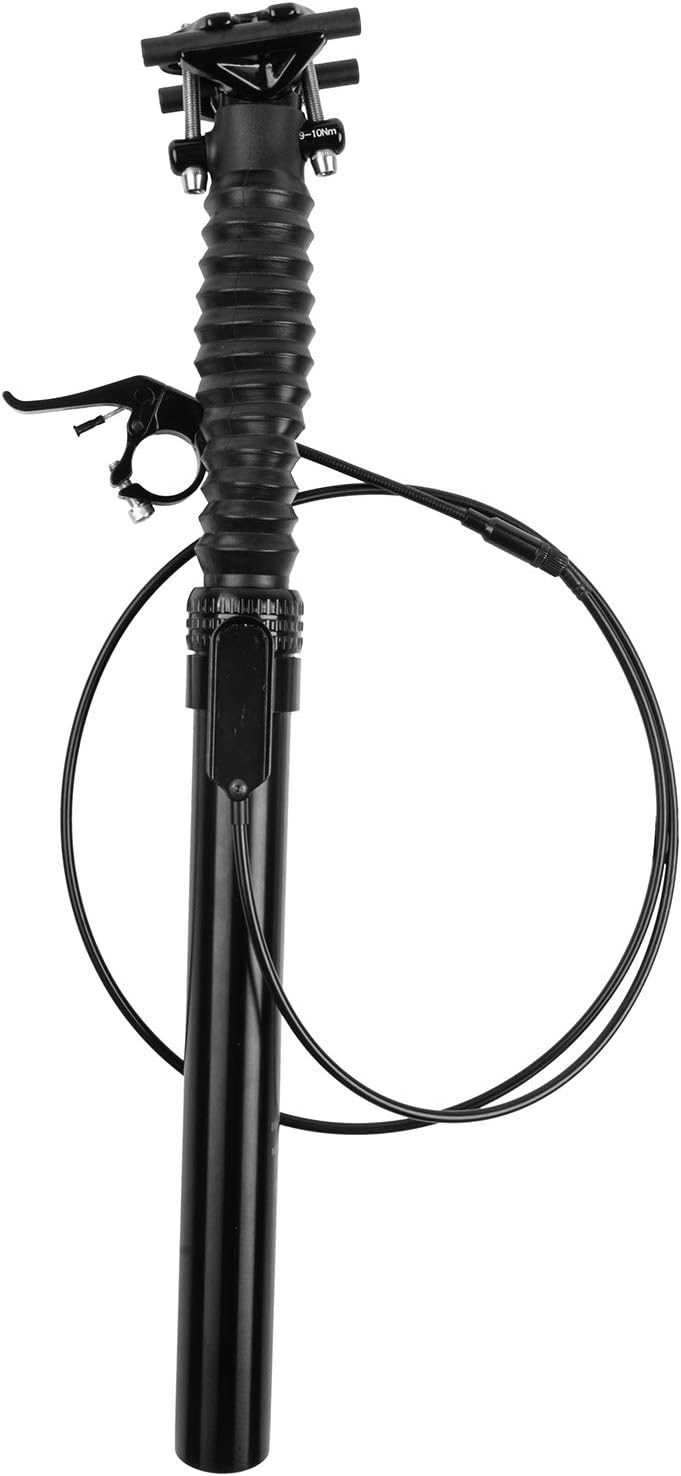

Figure 2.2: The seatpost showing the attached control cable.
Figure 2.3: The handlebar-mounted control lever for quick height adjustments.

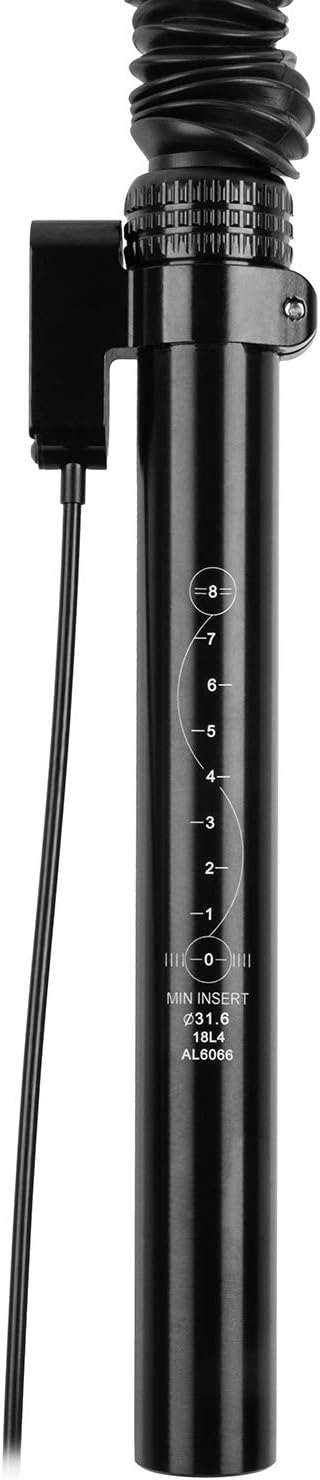

Figure 2.4: The seatpost featuring a clear measurement scale for precise insertion depth.
3. Setup and Installation
3.1 Before Installation
- Ensure your bicycle frame's seat tube inner diameter matches the seatpost's diameter (Ø 27.2 mm).
- Clean the inside of the seat tube to remove any dirt or debris.
- Apply a thin layer of grease to the seatpost's insertion area to prevent seizing and facilitate future adjustments.
3.2 Installation Steps
- Insert Seatpost: Carefully slide the seatpost into the bicycle's seat tube. Ensure the minimum insertion mark on the seatpost is not visible above the seat tube.
- Secure Seatpost: Tighten the seatpost clamp bolt to the manufacturer's recommended torque specifications. Overtightening can damage the seatpost or frame; undertightening can lead to slippage.
- Mount Lever: Attach the handlebar control lever to your desired position on the handlebar, ensuring it does not interfere with braking or shifting. Tighten the lever clamp securely.
- Connect Cable: Route the control cable from the seatpost to the handlebar lever, ensuring it has smooth bends and no kinks. Secure the cable housing with zip ties or cable guides on your frame. Connect the cable to both the seatpost mechanism and the lever according to the instructions provided with the cable.
- Adjust Saddle: Install your saddle onto the seatpost clamp. Adjust the saddle's angle and fore-aft position for your comfort and riding style. Tighten the saddle clamp bolts securely.
4. Operation
Adjusting Seat Height
The M-Wave SP110-ADJ seatpost offers three distinct height levels for quick adjustment:
- Full Extension (0mm drop): This is the highest position, ideal for efficient pedaling on flat terrain or climbs.
- Mid-Position (45mm drop): Provides a moderate drop, suitable for technical riding or slight descents where more control is needed.
- Full Drop (110mm drop): The lowest position, perfect for steep descents, jumps, or highly technical terrain, allowing maximum body movement over the bike.
To adjust the seat height:
- While riding or stationary, press the handlebar-mounted control lever.
- To lower the seatpost, apply weight to the saddle while pressing the lever. Release the lever at your desired height.
- To raise the seatpost, unweight the saddle (stand up slightly) while pressing the lever. The seatpost will extend to the next available height level. Release the lever to lock it in place.
Safety Note: Always ensure the seatpost is fully locked into one of the three positions before applying full weight or riding aggressively. Avoid adjusting the seatpost in situations where it could distract you from controlling your bicycle.
5. Maintenance
Regular maintenance will prolong the life and ensure the smooth operation of your M-Wave SP110-ADJ seatpost.
5.1 Cleaning
- Wipe down the exposed parts of the seatpost, especially the stanchion (upper, moving part) and the dust seal, with a clean, damp cloth after each ride.
- Avoid using high-pressure washers directly on the seatpost seals.
5.2 Lubrication
- Periodically apply a small amount of suspension-specific lubricant or silicone spray to the stanchion just above the dust seal. Cycle the seatpost through its travel a few times to distribute the lubricant.
- Check the control cable for smooth operation. If it feels stiff, lubricate the cable and housing with a suitable cable lubricant.
5.3 Inspection
- Regularly inspect the seatpost for any signs of damage, such as dents, scratches, or cracks.
- Check the dust seal for tears or excessive wear. A damaged seal can allow dirt and moisture into the internal mechanism.
- Ensure all bolts (saddle clamp, seatpost clamp, lever clamp) are tightened to their correct torque specifications.
- Verify that the control cable is not frayed or damaged and that the lever operates smoothly.
6. Troubleshooting
If you encounter issues with your M-Wave SP110-ADJ seatpost, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Seatpost does not lock at highest level. | Cable tension too loose or too tight; internal mechanism issue; damaged locking pin. | Check cable tension and adjust if necessary. Ensure the cable is not binding. If the issue persists, professional inspection may be required. |
| Difficulty adjusting height. | Insufficient lubrication; dirty stanchion/seal; cable friction. | Clean and lubricate the stanchion and dust seal. Check cable routing and lubricate the cable if stiff. |
| Seatpost slips down during riding. | Seatpost clamp not tight enough; incorrect seatpost diameter; internal mechanism failure. | Ensure seatpost clamp is tightened to correct torque. Verify seatpost diameter matches frame. If problem persists, seek professional assistance. |
| Control lever feels stiff or unresponsive. | Cable housing kinked or damaged; dirty or corroded cable; lever mechanism dirty. | Inspect cable housing for damage. Clean and lubricate the cable. Clean the lever mechanism. Replace cable and housing if necessary. |
If you are unable to resolve an issue using the troubleshooting guide, please contact M-Wave customer support or consult a qualified bicycle mechanic.
7. Specifications
| Feature | Specification |
|---|---|
| Model Name | SP110-ADJ |
| Part Number | 252147 |
| Diameter | Ø 27.2 mm |
| Length | 445 mm |
| Height Adjustment Levels | 3 levels (0mm, 45mm, 110mm drop) |
| Material | Aluminum |
| Color | Black |
| Item Dimensions (LxWxH) | 1.07 x 1.07 x 17.52 inches (approx.) |
| Package Weight | 0.64 Kilograms (approx.) |
| Suggested Users | Unisex – Adults |
8. Warranty and Support
M-Wave products are manufactured to high standards and undergo strict quality control. For information regarding warranty coverage, terms, and conditions, please refer to the warranty card included with your product or visit the official M-Wave website.
Customer Support
If you have any questions, require technical assistance, or need to report a defect, please contact M-Wave customer support through the retailer where you purchased the product or via the contact information provided on the official M-Wave website. Please have your product model number (SP110-ADJ) and part number (252147) ready when contacting support.
