ZMH G-Shape Wireless LED Table Lamp User Manual

1. Important Safety Instructions

Please read these instructions carefully before using the ZMH G-Shape Wireless LED Table Lamp. Keep this manual for future reference.

• Do not expose the lamp to water or excessive moisture.
• Avoid disassembling or modifying the lamp, as this may void the warranty and pose safety risks.
• Use only the provided USB-C cable for charging.
• Keep the lamp away from direct heat sources or open flames.
• This lamp is designed for indoor use only (IP20 rating).

2. Product Overview

The ZMH G-Shape Wireless LED Table Lamp is a modern, portable lighting solution featuring a unique G-shaped design. It offers adjustable brightness and color temperature, controlled by an intuitive touch switch. With its built-in rechargeable battery and USB-C charging, it provides convenient wireless operation for various indoor settings.

Key Features:

• Unique Design: Inspired by the classic G-clef musical symbol, offering a modern aesthetic.
• Wireless & Portable: Integrated rechargeable battery allows for use without a power outlet.
• Smart Touch Control: Easily adjust brightness and color temperature with a simple touch.
• Dimmable Brightness: Long press the touch switch to smoothly adjust light intensity from soft to bright.
• Adjustable Color Temperature: Tap the touch switch to cycle through 3000K (warm white), 4500K (neutral white), and 6000K (cool white).
• Eye Protection: Designed to provide soft, non-harsh illumination for comfortable viewing.
• USB-C Charging: Convenient and fast charging via a Type-C port.

Image: The ZMH G-Shape Wireless LED Table Lamp, showcasing its elegant design and the included USB-C charging cable.

3. Package Contents

Please check the box for the following items:

• 1 x ZMH G-Shape Wireless LED Table Lamp
• 1 x USB-C Charging Cable
• 1 x User Manual (this document)

4. Setup

4.1 Unpacking

Carefully remove all components from the packaging. Inspect the lamp for any signs of damage. If any damage is found, do not use the product and contact customer support.

4.2 Charging the Lamp

Before first use, fully charge the lamp. Connect the provided USB-C cable to the charging port on the lamp's base and the other end to a standard USB power adapter (not included) or a computer USB port. The charging indicator (if present) will show charging status.

Image: A close-up view of the lamp's base, highlighting the touch control button and the USB-C charging port.

4.3 Placement

Place the lamp on a stable, flat surface. Its wireless design allows for flexible placement in various indoor environments, such as bedside tables, desks, living room side tables, or dining areas.

Image: The ZMH lamp positioned on a piano, demonstrating its decorative appeal in a musical setting.

Image: Two ZMH lamps providing ambient lighting on tables in a bar or restaurant environment.

5. Operating Instructions

5.1 Power On/Off

To turn the lamp on or off, simply tap the touch control button located on the base of the lamp.

5.2 Adjusting Brightness (Dimming)

To adjust the brightness, press and hold the touch control button. The light intensity will gradually change. Release the button when the desired brightness level is reached. The lamp supports continuous dimming.

Image: Illustrations of the ZMH lamp at different brightness levels: 30%, 50%, and 100% illumination.

5.3 Adjusting Color Temperature

To change the color temperature, tap the touch control button repeatedly. The lamp will cycle through three color temperature settings: 3000K (warm white), 4500K (neutral white), and 6000K (cool white).

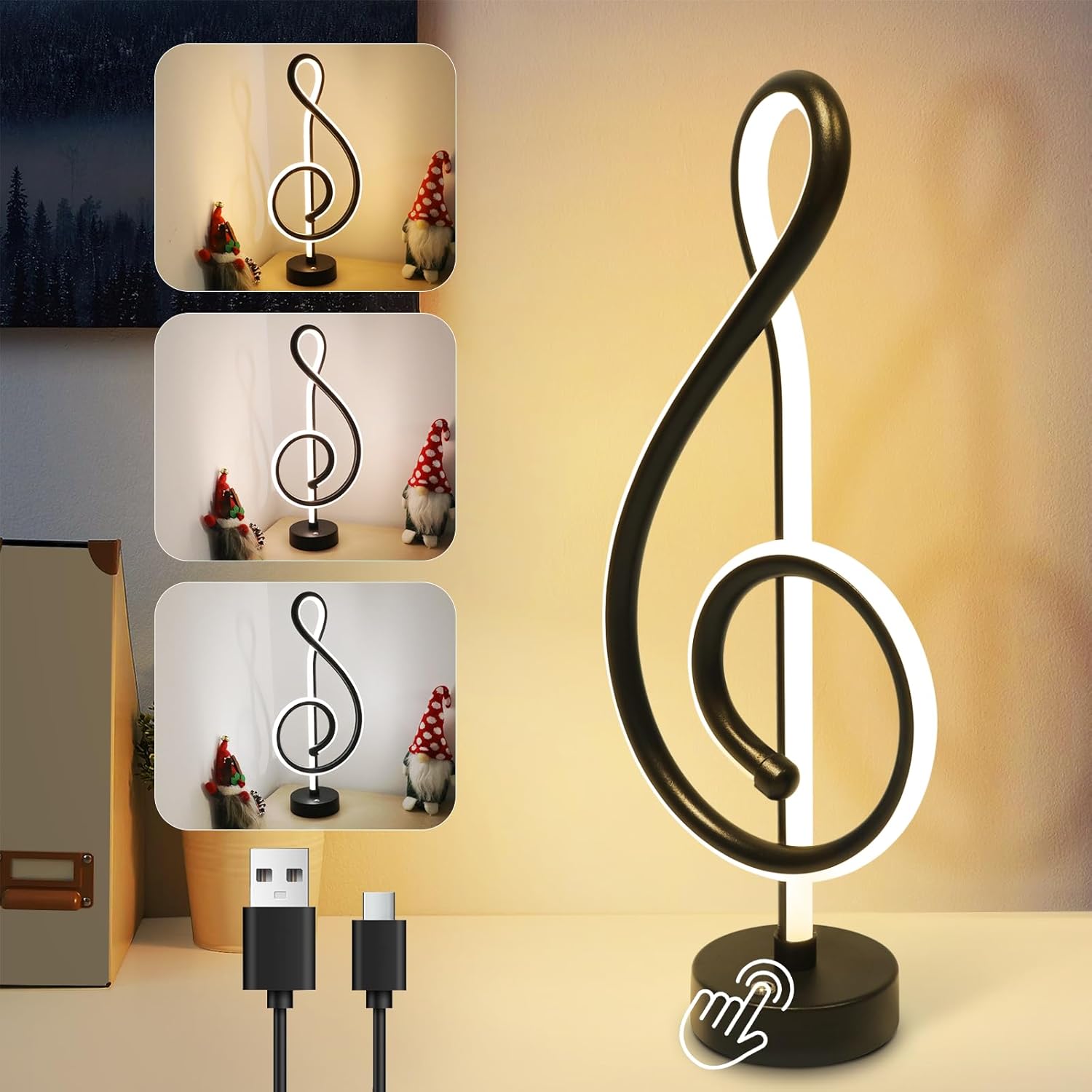

Image: The ZMH lamp displaying three distinct color temperatures: 3000K (warm), 4500K (neutral), and 6500K (cool), along with the touch control switch.

5.4 Wireless and Wired Usage

The lamp can be used wirelessly after charging, providing portability. For continuous use or when the battery is low, connect the USB-C cable to a power source for wired operation.

Image: A visual comparison showing the ZMH lamp being used in both wired (connected to power) and wireless (battery-powered) modes, illustrating its versatility.

Image: The ZMH lamp emitting a warm, soft light on a bedside table, suitable for a relaxing sleep environment.

6. Maintenance

6.1 Cleaning

To clean the lamp, ensure it is turned off and disconnected from any power source. Wipe the surface with a soft, dry cloth. Do not use abrasive cleaners, solvents, or excessive moisture, as these can damage the finish or internal components.

6.2 Battery Care

To prolong the life of the integrated rechargeable battery:

• Avoid completely draining the battery frequently.
• Charge the lamp regularly, even if not in constant use.
• Store the lamp in a cool, dry place if not used for extended periods.

7. Troubleshooting

• Lamp does not turn on:
  Ensure the lamp is charged. Connect it to a USB power source using the provided cable and allow it to charge for at least 30 minutes before attempting to turn it on again.
• Lamp does not charge:
  Check if the USB-C cable is securely connected to both the lamp and the power adapter. Try using a different USB power adapter or a different USB port.
• Brightness or color temperature adjustment is not working:
  Ensure you are using the correct touch gesture (tap for color temperature, press and hold for brightness). Clean the touch control area to ensure no obstructions.
• Light flickers or is unstable:
  This could indicate a low battery. Recharge the lamp fully. If the issue persists, contact customer support.

8. Specifications

Image: Detailed view of the ZMH lamp, illustrating its dimensions (38.5 x 16.5 x 2.5 cm), LED light source, Type-C connector, and iron material.

Image: The energy efficiency label for the ZMH G-Shape LED Table Lamp, indicating an 'E' rating.

For more details, refer to the EPREL database.

9. Warranty and Support

ZMH products are manufactured to high-quality standards. This product comes with a standard manufacturer's warranty against defects in materials and workmanship. Please retain your proof of purchase for warranty claims.

For technical support, warranty inquiries, or any questions regarding your ZMH G-Shape Wireless LED Table Lamp, please contact your retailer or visit the official ZMH website for contact information.
