Soohow Oversized Power Lift Recliner Chair User Manual

1. Important Safety Instructions

Please read and understand all instructions before using your Soohow Power Lift Recliner Chair. Retain this manual for future reference.

• Weight Capacity: Do not exceed the maximum weight capacity of 330 pounds.
• Assembly: Ensure the chair is fully assembled and all connections are secure before use.
• Children and Pets: Keep children and pets away from the chair when it is in operation to prevent injury.
• Power Cord: Do not place the power cord under the chair or in a position where it could be pinched or damaged.
• Liquid Spills: Avoid spilling liquids on the chair, especially near electrical components.
• Unplug When Not in Use: Always unplug the chair from the power outlet when not in use or before cleaning.

2. Product Overview

The Soohow Oversized Power Lift Recliner Chair is designed for comfort and convenience, especially for individuals seeking enhanced mobility support. It features a robust power lift mechanism, soothing massage and heating functions, and practical amenities.

Figure 2.1: Soohow Power Lift Recliner Chair in blue fabric.

Key Features:

• Power Lift Mechanism: Smoothly lifts the chair to assist users in standing up or sitting down, ideal for seniors or those with mobility challenges.
• Massage & Heating Function: Integrated remote-controlled massage with 5 modes and 8 points, plus lumbar heating to relieve muscle tension and improve circulation.
• Oversized Design: An extra-wide 27.4-inch seat provides ample space and support.
• Convenient Amenities: Includes built-in USB charging ports, two cup holders, and side pockets for storage.

Figure 2.2: The recliner is suitable for the elderly, individuals with limited mobility, post-surgery patients, and pregnant women.

3. Assembly Instructions

The Soohow Power Lift Recliner Chair is designed for straightforward assembly, typically requiring no additional tools. The main components slide and connect together easily.

Assembly Steps:

1. Unpack Components: Carefully remove all parts from the packaging. Ensure all components are present and undamaged.
2. Attach Backrest: Slide the backrest onto the base of the chair. Ensure the metal brackets align and securely lock into place.
3. Connect Wiring: Locate the color-coded wires extending from the backrest and seat base. Connect them according to their matching colors.
4. Attach Side Panels: Slide the armrest side panels onto the corresponding slots on the chair base. Ensure they click firmly into position.
5. Connect Power: Plug the power adapter into the chair's power input, then plug the adapter into a wall outlet.
6. Test Functions: Use the remote control to test the recline, lift, massage, and heat functions to ensure proper operation.

4. Operating Instructions

Your recliner chair comes with a remote control to manage all its functions.

Figure 4.1: Remote control for massage and heat functions.

4.1 Power Lift and Recline:

• To Recline: Use the appropriate buttons on the remote to smoothly adjust the backrest and footrest to your desired reclining position.
• To Lift: Press the lift button on the remote. The chair will gently tilt forward and lift, assisting you to a standing position.
• To Return to Upright: Use the remote to bring the chair back to its standard upright sitting position.

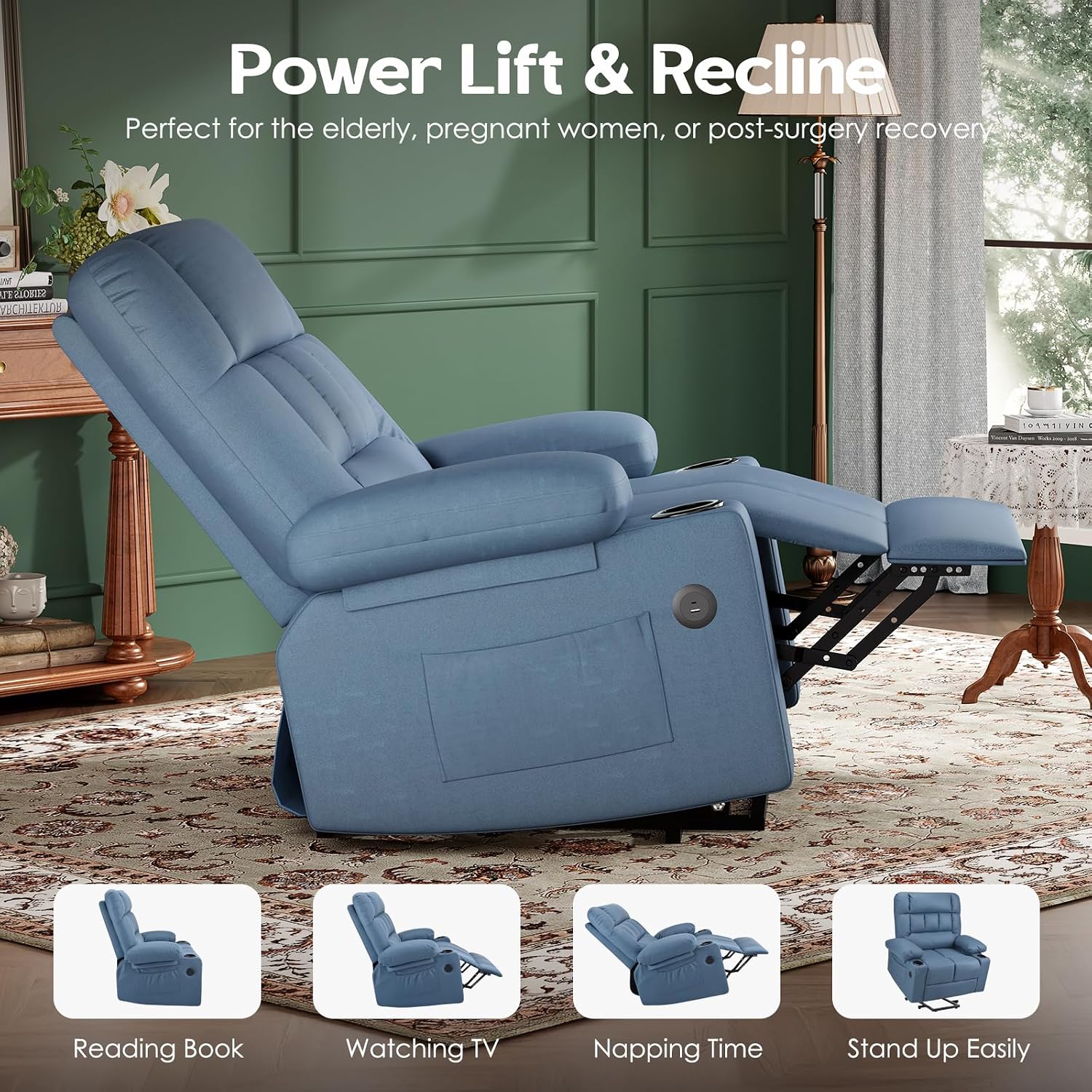

Figure 4.2: The chair offers multiple positions for reading, watching TV, napping, and easy standing.

4.2 Massage and Heat Functions:

• Activate: Use the dedicated remote control for massage and heat functions.
• Massage Modes: Select from 5 different massage modes and target 8 massage points across the chair.
• Heat Function: Activate the lumbar heat function for added comfort and muscle relaxation.

4.3 USB Charging Ports:

• Locate the built-in USB ports on the side of the chair.
• Plug in your mobile devices to charge them conveniently while relaxing.

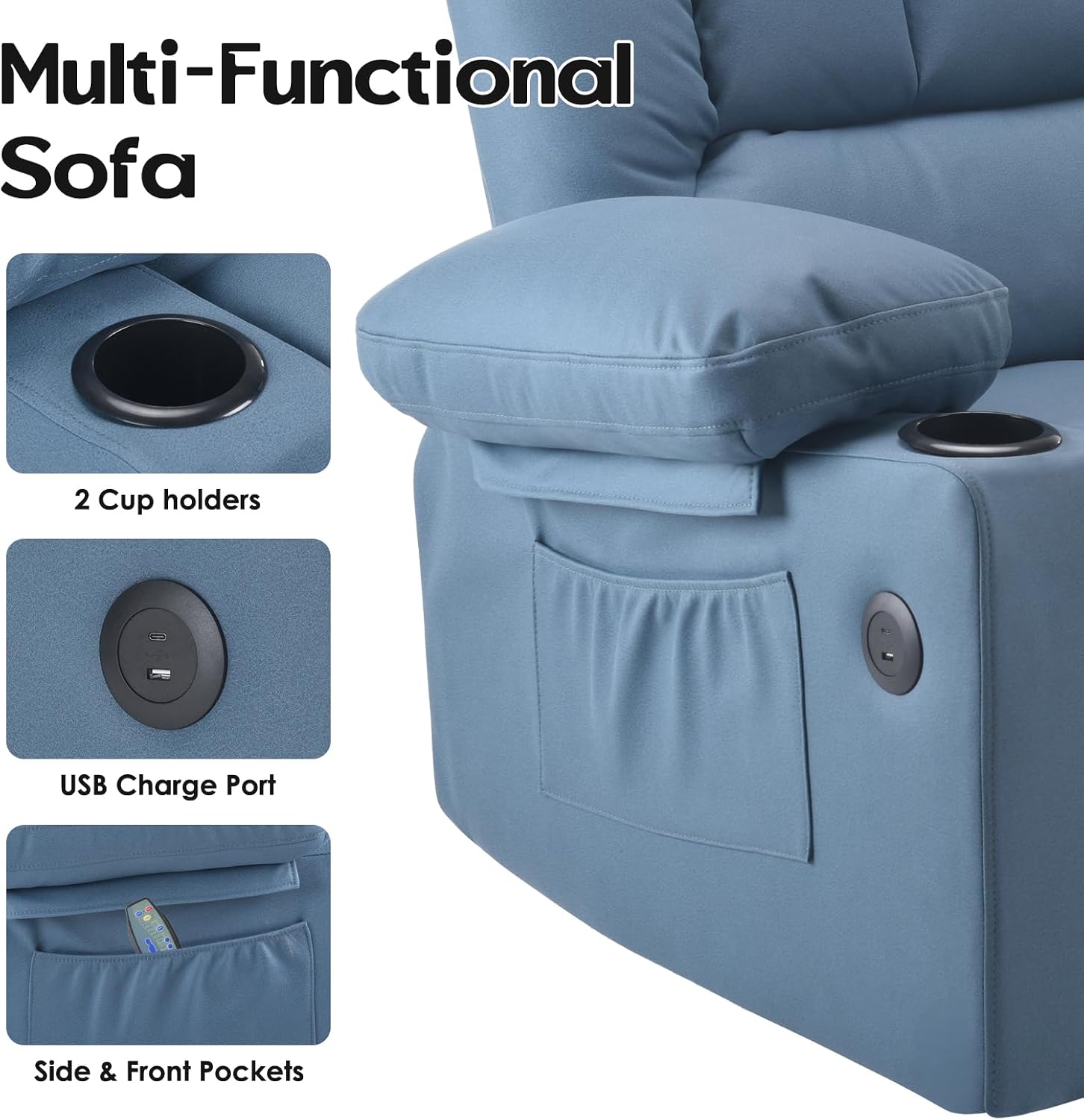

Figure 4.3: Integrated USB charging port, cup holders, and side pockets for convenience.

5. Care and Maintenance

Proper care will extend the life and appearance of your recliner.

• Cleaning: For fabric upholstery, use a soft, damp cloth with mild soap for spot cleaning. Avoid harsh chemicals.
• Spills: Blot spills immediately with a clean, dry cloth. Do not rub.
• Vacuuming: Regularly vacuum the chair to remove dust and debris.
• Inspection: Periodically check all connections and fasteners to ensure they are tight.
• Sunlight: Avoid prolonged exposure to direct sunlight to prevent fading.

6. Troubleshooting

If you encounter any issues with your recliner, refer to the following common solutions:

• Chair Not Responding:
  • Check if the power cord is securely plugged into both the chair and the wall outlet.
  • Ensure the wall outlet is functional by testing it with another appliance.
  • Verify all internal wiring connections are properly seated.
• Massage/Heat Not Working:
  • Confirm the massage/heat remote is connected and powered on.
  • Check for any visible damage to the remote or its cable.
• Unusual Noises:
  • Ensure no objects are obstructing the chair's mechanism.
  • Check for loose bolts or connections and tighten if necessary.

If the issue persists, please contact customer support.

7. Specifications

Figure 7.1: Detailed product dimensions.

8. Warranty and Support

Soohow is committed to providing quality products and excellent customer service.

• Missing Parts: If any parts are missing upon receipt of your product, please contact us immediately. We will assist you in resolving the issue.
• Customer Service: For any questions, concerns, or support needs, please reach out to our customer service team. We strive to ensure a positive shopping experience and product satisfaction.
