Lifan M25 Industrial Grade OHV Gasoline Engine User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Lifan M25 Industrial Grade OHV Gasoline Engine (Model 152F-3 2.5HP). Please read this manual thoroughly before operating the engine to ensure proper use and to prevent damage or injury. Keep this manual for future reference.

2. Key Features

• 2.5 HP, 79cc Industrial Grade OHV Gasoline Engine: Designed for robust performance in various applications.
• 16 mm or 5/8'' Horizontal Keyway Output Shaft: Ensures compatibility with a wide range of equipment.
• Environmental Standards Compliance: The M25 meets or exceeds environmental standards, making it a responsible choice.
• Versatile Replacement: Can replace original engines on certain water pumps, pressure washers, and other machinery.
• Recoil Starting System: Provides reliable manual starting.
• Low-Oil Shutoff: Automatically protects the engine by shutting it down when oil levels are critically low.
• 1.3L Fuel Tank Capacity: Allows for extended operation.
• Lightweight Design: Dry weight of 9 kg (19.8 lbs) for easier handling and installation.

This visual presents three different perspectives of the Lifan engine, illustrating its recoil starting system and the integrated low-oil shutoff feature, along with its 1.3L fuel tank capacity and dry weight.

3. Setup and Installation

3.1 Unpacking and Inspection

Carefully remove the engine from its packaging. Inspect for any signs of shipping damage. Report any damage to your dealer immediately. Ensure all components listed in the packing list are present.

3.2 Engine Placement

Place the engine on a firm, level surface. Ensure adequate ventilation around the engine for proper cooling. Avoid enclosed spaces where exhaust fumes can accumulate.

3.3 Fuel and Oil Filling

Engine Oil: Before first use, fill the engine crankcase with the recommended engine oil (refer to specifications for type and capacity). Do not overfill. The low-oil shutoff system will prevent starting if oil is insufficient.

Fuel: Fill the fuel tank with clean, fresh gasoline. Do not use old or contaminated fuel. Ensure the fuel cap is securely tightened after filling.

A detailed view of the Lifan 152F-3 engine, emphasizing the 16 mm or 5/8-inch horizontal keyway output shaft and indicating a displacement of 79.5 CC. This shaft is crucial for connecting the engine to various applications.

4. Operating Instructions

4.1 Pre-Operation Checklist

• Check engine oil level.
• Check fuel level.
• Ensure air filter is clean and properly installed.
• Verify all connections are secure.

4.2 Starting the Engine (Recoil Start)

1. Turn the fuel valve to the 'ON' position.
2. Move the choke lever to the 'CHOKE' position (if engine is cold).
3. Move the throttle lever to the 'FAST' position.
4. Grasp the recoil starter handle firmly and pull slowly until resistance is felt, then pull quickly and smoothly.
5. Once the engine starts, gradually move the choke lever to the 'RUN' position.
6. Allow the engine to warm up for a few minutes before applying load.

4.3 Stopping the Engine

1. Move the throttle lever to the 'SLOW' or 'IDLE' position.
2. Turn the engine switch to the 'OFF' position.
3. Turn the fuel valve to the 'OFF' position for storage or extended periods of non-use.

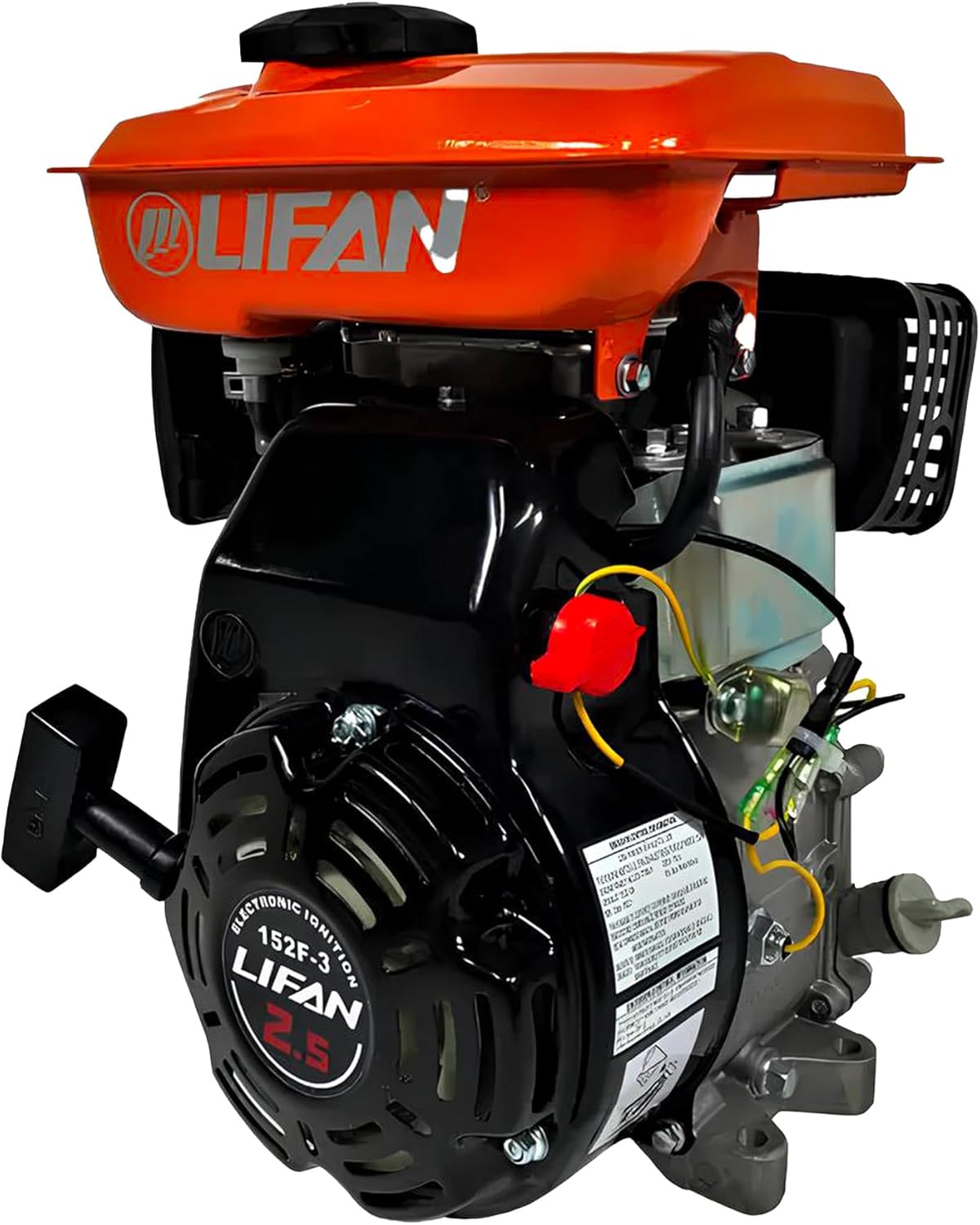

This image displays the Lifan M25 Industrial Grade OHV Gasoline Engine, highlighting its compact design and key components such as the recoil starter and fuel tank, essential for operation.

5. Maintenance

Regular maintenance is crucial for the longevity and optimal performance of your Lifan engine. Always ensure the engine is off and cooled down before performing any maintenance.

5.1 Engine Oil Change

Change the engine oil after the first 20 hours of operation, and then every 50 hours or annually, whichever comes first. Use recommended oil type and capacity.

5.2 Air Filter Cleaning/Replacement

Inspect the air filter every 25 hours or more frequently in dusty conditions. Clean or replace as necessary to ensure proper airflow and prevent engine damage.

5.3 Spark Plug Inspection

Inspect the spark plug every 100 hours. Clean or replace if fouled or worn. Ensure proper gap setting.

5.4 Fuel System Maintenance

Periodically check fuel lines for cracks or leaks. Clean the fuel filter if equipped. For long-term storage, drain the fuel tank and carburetor or use a fuel stabilizer.

6. Troubleshooting

This section provides solutions for common issues you might encounter with your engine. For problems not listed here, or if solutions do not resolve the issue, contact qualified service personnel.

7. Specifications

The following table outlines the technical specifications for the Lifan M25 Industrial Grade OHV Gasoline Engine:

A clear table outlining the technical specifications of the Lifan 152F-3 engine, including its 1-cylinder 4-stroke OHV engine type, 79.5 cc displacement, recoil starting system, 5/8 crankshaft diameter, and 9 kg (19.8 lbs) dry weight.

8. Warranty Information

The Lifan M25 Industrial Grade OHV Gasoline Engine comes with a 1 Year Warranty. This warranty covers defects in materials and workmanship under normal use and service. Please retain your proof of purchase for warranty claims. For full warranty terms and conditions, refer to the documentation included with your product or contact Lifan customer support.

9. Support and Contact

For technical assistance, parts, or service inquiries, please contact Lifan customer support. When contacting support, please have your engine model number (152F-3 2.5HP) and serial number ready.

Lifan North America
(Specific contact details such as phone number or website URL would be provided here by the manufacturer.)

This image conveys that the M25 engine complies with or surpasses environmental standards, and can serve as a replacement engine for various applications like water pumps and pressure washers, highlighting its versatility.
