1. Important Safety Information
Before using this product, please read all contents of this instruction manual carefully and follow the instructions for installing the machine. Pay attention to this manual. If you distribute the product to a third party for use, please attach this instruction manual with the machine. Any operation not in accordance with the instructions may cause product damage or serious personal injury. This product is suitable only for conventional household use; it is not suitable for industrial or outdoor use.
Image: Top view of the product packaging, displaying the brand name CONOPU and the model DH-CS12.
- Before use, check that the applied voltage matches the adapter label.
- DO NOT turn on the machine if the cable is damaged; seek customer service assistance.
- Keep away from obstacles to prevent any blockage of air inlet or outlet.
- DO NOT use in flammable, explosive environments or temperatures above 40°C/104°F.
- Ideal operating environment: Temp: 8°C-40°C (47°F-104°F).
- Please turn off and unplug the machine if not in use.
- DO NOT twist or pull the cable.
- DO NOT use the dehumidifier in a tilted position with an angle greater than 10 degrees.
- DO NOT cover the machine to prevent overheating.
- DO NOT use the dehumidifier in low temperature conditions, dusty places, or where acid, alkali, and oil volatiles are present.
- DO NOT touch the plug with wet hands to avoid electric shock.
- DO NOT put any objects into the dehumidifier while it is operating.
- This appliance can be used by children aged 8 years and above under supervision.
- This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- The surface of the machine can be cleaned with a soft cloth and neutral detergent instead of petroleum, alcohol, and other organic agents.
- DO NOT use an unmatched adapter.
- DO NOT disassemble the product or its components yourself.
- It is normal for the adapter to heat up (not more than 80°C or 176°F) during operation.
- DO NOT come into contact with moving parts.
- DO NOT use outdoors.
- For a portable appliance: To reduce the risk of electric shock, do not place the dehumidifier in water or other liquid. Do not place or store the appliance where it can fall or be pulled into a sink.
2. Product Overview
The CONOPU DH-CS12 Dehumidifier is designed to effectively remove excess moisture from indoor environments, creating a cooler and drier atmosphere. It utilizes dual semiconductor technology and a dual fan design to enhance dehumidification efficiency, capable of removing up to 800ml of moisture daily. This model is ideal for rooms up to 20 square meters.
Image: The CONOPU 2.7L Dehumidifier shown alongside its reusable dehumidifier box accessory.
Key Features:
- Powerful Dehumidification: Dual semiconductor technology and dual fan design remove up to 800ml of moisture per day.
- Versatile Design: Includes two reusable dehumidifier boxes suitable for small, enclosed spaces like wardrobes.
- Large Capacity Tank: Features a 2700ml water tank, reducing the frequency of emptying.
- Quiet Operation: Operates at a low noise level of 30dB in sleep mode.
- Smart Defrost Function: Automatically activates in cold weather to prevent frost buildup.
- User-Friendly: Three-color indicator lights for status monitoring and a transparent water tank for easy level checking.
- Timer Function: Adjustable timer for 6, 12, or 24 hours.
Image: An illustration highlighting various issues caused by high humidity, such as sticky clothing, foggy mirrors, and mold, indicating how the dehumidifier provides a solution.
Image: A visual comparison demonstrating the dehumidifier's effectiveness, showing a reduction from 80% humidity to 50% humidity.
3. Setup
Unpacking and Initial Preparation:
Upon unpacking the dehumidifier, open the water tank and remove any accessories stored inside. Ensure all components are present and intact before re-installing the water tank.
Image: A step-by-step diagram illustrating the unpacking process, including removing the water tank and internal accessories.
Placement Guidelines:
- Ensure the adapter's voltage matches your power supply.
- Place the dehumidifier in a room between 5 to 20 square meters.
- Maintain a minimum distance of 1 meter (approximately 3 feet) from walls or other obstructions to ensure proper airflow and optimal performance.
- The ideal operating temperature range is 8°C to 40°C (46.4°F to 104°F).
- Do not rinse the machine directly with water.
- Do not heat or microwave the reusable dehumidifier box.
4. Operation
Powering On/Off:
Connect the power adapter to a suitable electrical outlet and to the dehumidifier. Press the power button to turn the unit on or off.
Operating Modes:
- Standard Dehumidification: The unit will operate to remove moisture from the air.
- Sleep Mode: In this mode, the dehumidifier operates at a reduced noise level of approximately 30dB, and all indicator lights are turned off for undisturbed rest.
- Dry Mode (for Reusable Boxes): This mode is used to reactivate the reusable dehumidifier boxes. When the beads inside the box turn green, place the box back into the dehumidifier and run the dry mode for 3 hours to restore its moisture-absorbing efficiency.

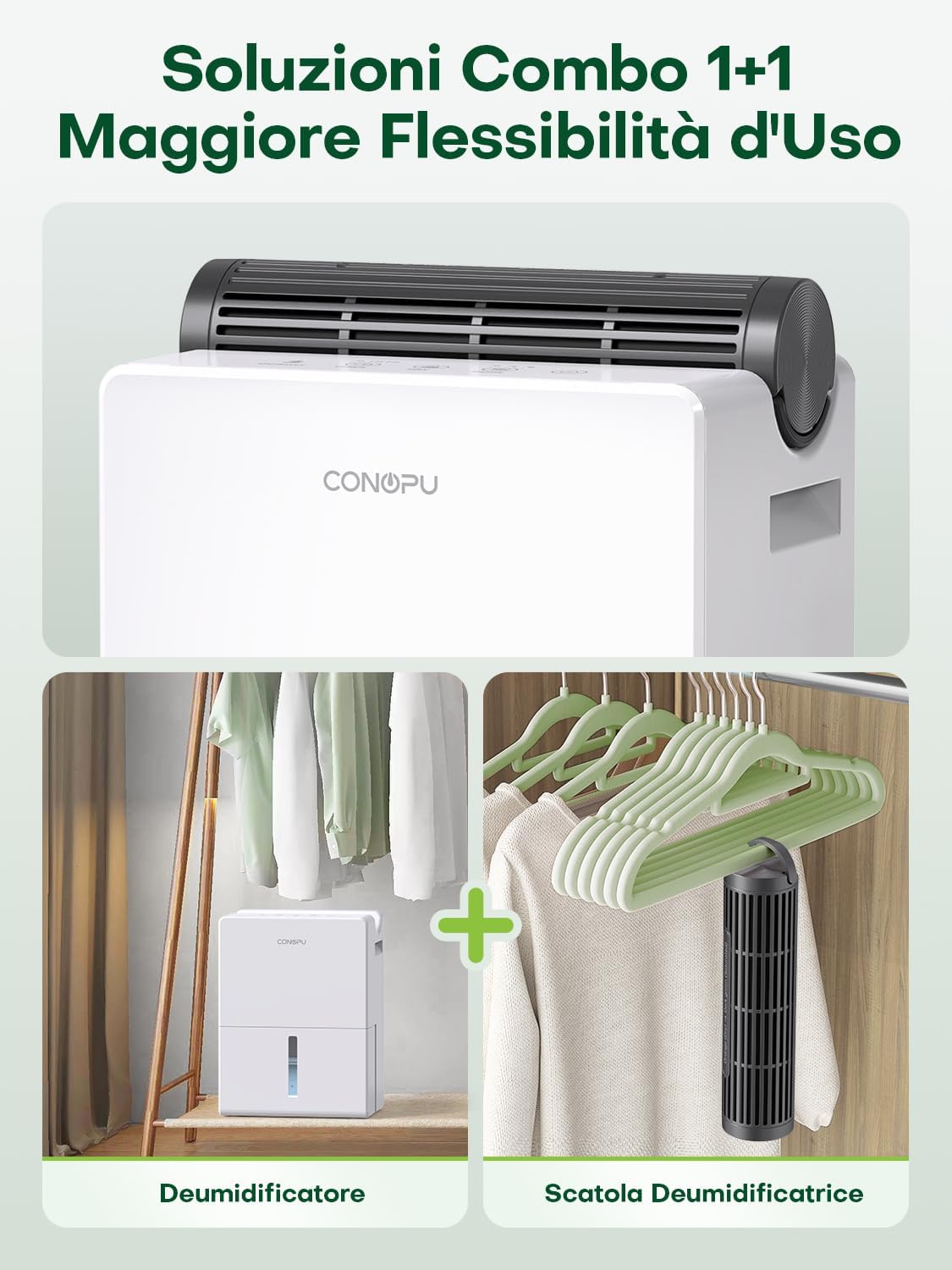

Image: The dehumidifier and its accompanying reusable dehumidifier box, highlighting their combined utility.
Image: A visual representation of the reusable dehumidifier box being recharged by the main unit, with status indicators for its readiness.
Timer Function:
The dehumidifier features a timer that can be set for 6, 12, or 24 hours, allowing for convenient operation even when you are away.
Automatic Features:
- Auto Shut-off: The unit will automatically turn off when the 2700ml water tank is full or if the device is moved, preventing overflow. A red light will illuminate to indicate this status.
- Smart Defrost: During colder conditions, the dehumidifier automatically activates its defrost function to prevent ice formation and ensure stable operation, extending the product's lifespan.
Image: The dehumidifier positioned in a living space, illustrating its coverage area of 20 square meters and its 2700ml water tank with automatic shut-off.
Image: The dehumidifier in a bedroom setting, demonstrating its quiet operation at 30dB in sleep mode, suitable for nighttime use.
Image: A transparent view of the dehumidifier's internal structure, illustrating the smart defrost mechanism in a cold environment.
5. Maintenance
Water Tank Cleaning:
The 2700ml water tank is easily removable for cleaning. Regularly empty and clean the tank to prevent mold or bacterial growth and ensure optimal performance.
Surface Cleaning:
Clean the exterior surface of the dehumidifier with a soft cloth and a neutral detergent. Avoid using petroleum-based cleaners, alcohol, or other organic agents, as these may damage the unit.
Reusable Dehumidifier Box Maintenance:
When the moisture-absorbing beads in the reusable box turn green, it indicates saturation. Place the box back into the dehumidifier and activate the dry mode for 3 hours to reactivate the beads for continued use.
6. Troubleshooting
Common Issues and Solutions:
- Unit Not Turning On:
- Check if the power cable is securely connected and undamaged. If damaged, contact customer service.
- Ensure the adapter is the correct one provided with the unit.
- Poor Dehumidification Performance:
- Verify the room size is within the recommended 5-20 square meters.
- Ensure the operating temperature is within 8°C-40°C.
- Check that the unit is placed at least 1 meter away from walls or obstructions to allow for proper airflow.
- Ensure the water tank is not full. The unit will automatically shut off and display a red light if the tank is full.
- Unusual Noise:
- Some operational noise is normal. For quieter operation, activate Sleep Mode (approx. 30dB).
- Ensure the unit is on a stable, flat surface and not tilted more than 10 degrees.
- Red Indicator Light On:
- This indicates the water tank is full or the unit has been moved. Empty the tank and ensure the unit is stable.
7. Specifications
| Brand | CONOPU |
| Model Number | DH-CS12 |
| Color | White |
| Product Dimensions (L x W x H) | 18.3 x 38.5 x 26 cm |
| Item Weight | 3.66 Kilograms |
| Water Tank Capacity | 2.7 Liters (2700 ml) |
| Recommended Floor Area | Up to 20 square meters |
| Automatic Shut-off | Yes |
| Special Features | Timer, Smart Defrost |
| Operating Mode | Intermittent |
| First Available Date | January 20, 2025 |
8. Warranty and Support
Warranty Information:
This CONOPU Dehumidifier comes with a 1-Year Warranty from the date of purchase. Please retain your proof of purchase for warranty claims.

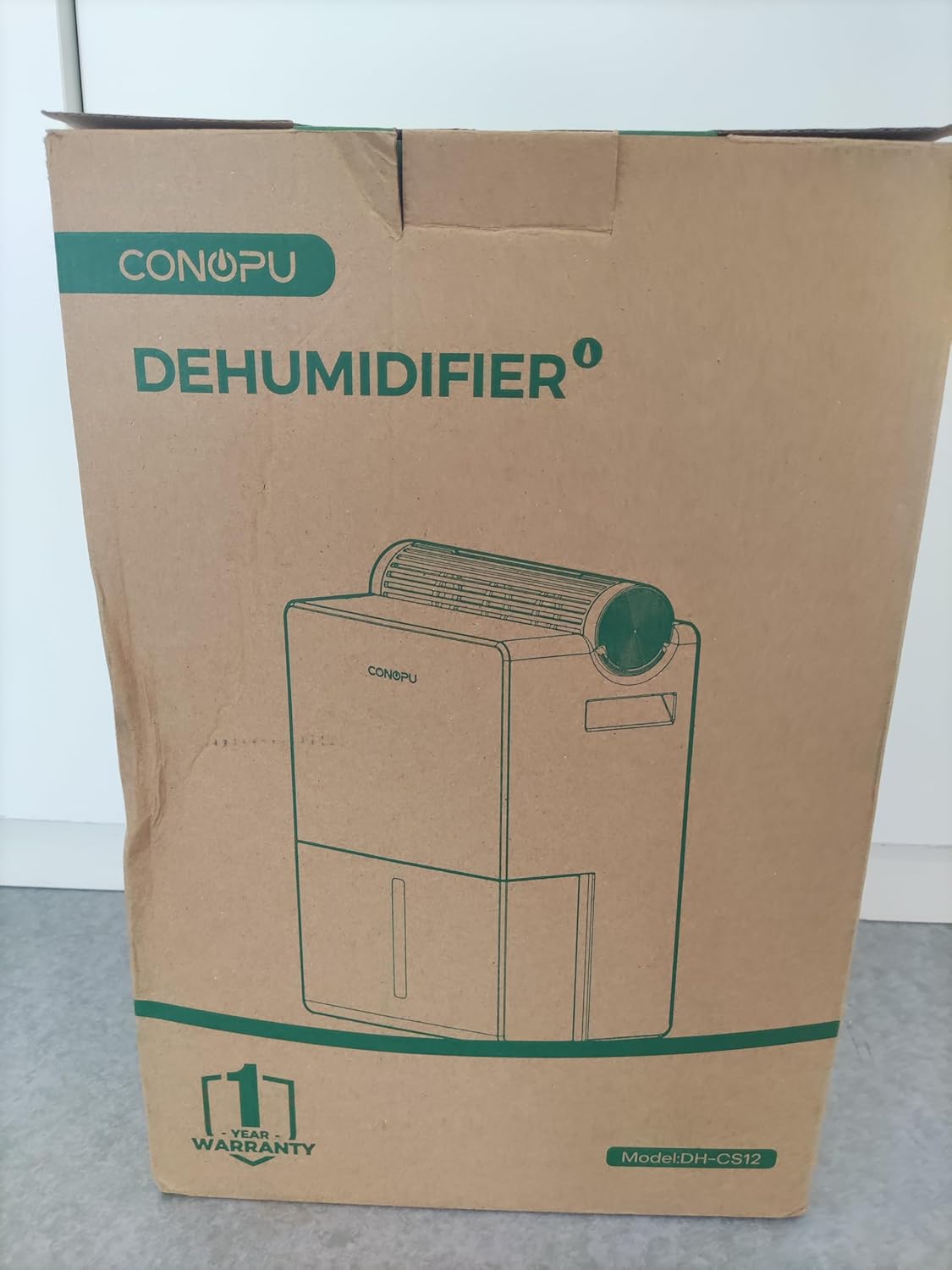

Image: The front of the product packaging, clearly indicating a 1-year warranty.
Customer Support:
For any questions, technical assistance, or warranty claims, please contact CONOPU customer service. Refer to the product packaging or official website for contact details.
