RHYTHM TESTAMENT Carburetor Instruction Manual

Introduction

This instruction manual provides detailed guidance for the installation, operation, and maintenance of the RHYTHM TESTAMENT replacement carburetor kit for the WEN PW28 2800 PSI Pressure Washer. This kit is designed to restore optimal fuel delivery and engine performance, ensuring your pressure washer operates efficiently. Please read this manual thoroughly before beginning any installation or maintenance procedures.

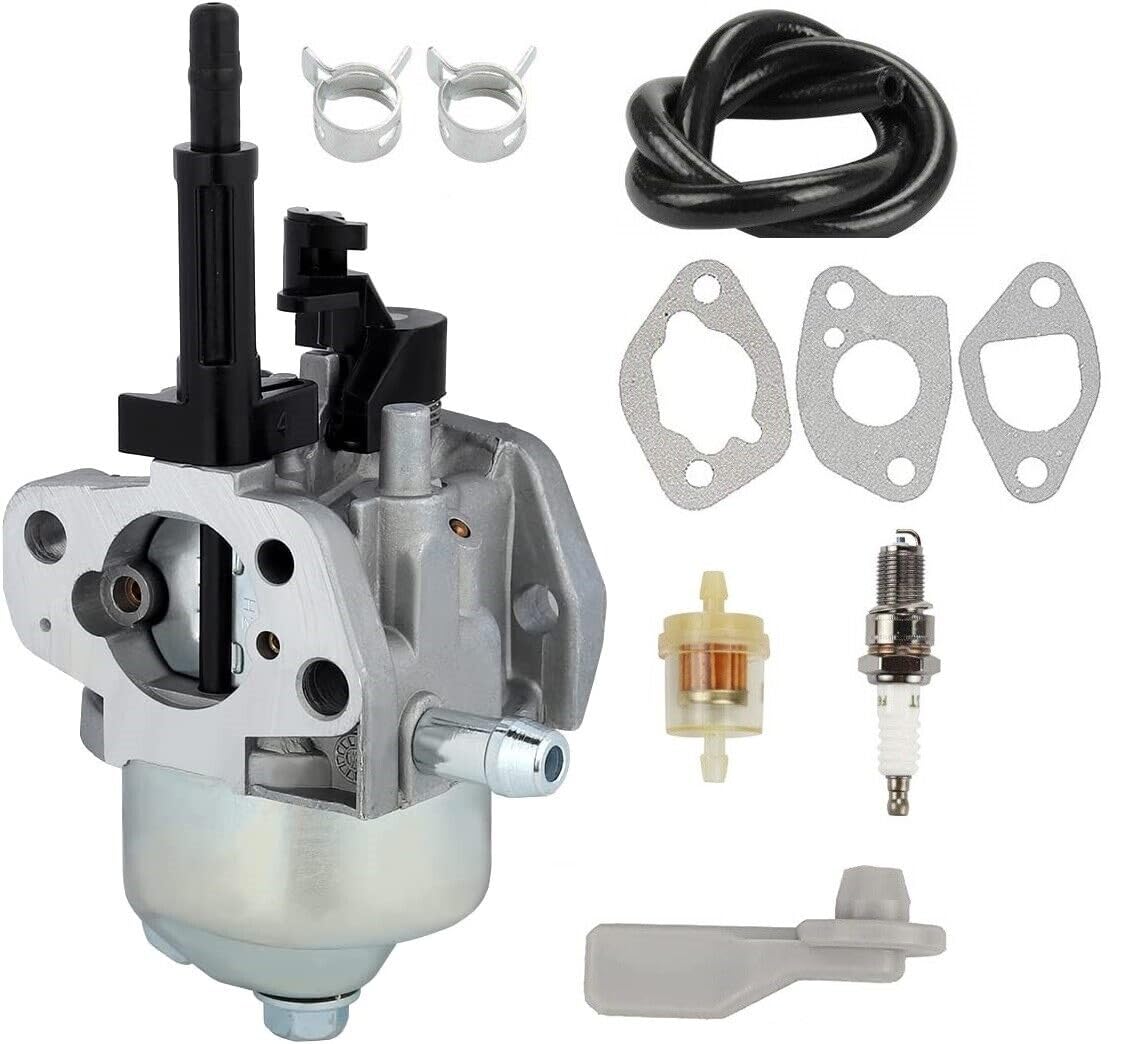

Image: The RHYTHM TESTAMENT replacement carburetor, showing its main body and choke lever mechanism.

Safety Information

Always prioritize safety when working with fuel systems and power equipment. Failure to follow safety instructions can result in serious injury or property damage.

• Ensure the pressure washer engine is completely off and cool before starting any work.
• Disconnect the spark plug wire to prevent accidental starting.
• Work in a well-ventilated area to avoid inhaling fuel fumes.
• Wear appropriate personal protective equipment, including gloves and eye protection.
• Handle gasoline with extreme care. It is highly flammable.
• Keep fire extinguishers readily available.
• Refer to your WEN PW28 pressure washer's original manual for additional safety guidelines.

Package Contents

Verify that all components listed below are present in your kit before beginning installation.

• 1x Carburetor
• 1x Spark Plug
• 1x Fuel Filter
• 1x Fuel Line
• 2x Hose Clamps
• 3x Gaskets (various types for proper sealing)
• 1x Choke Lever (pre-installed on carburetor)

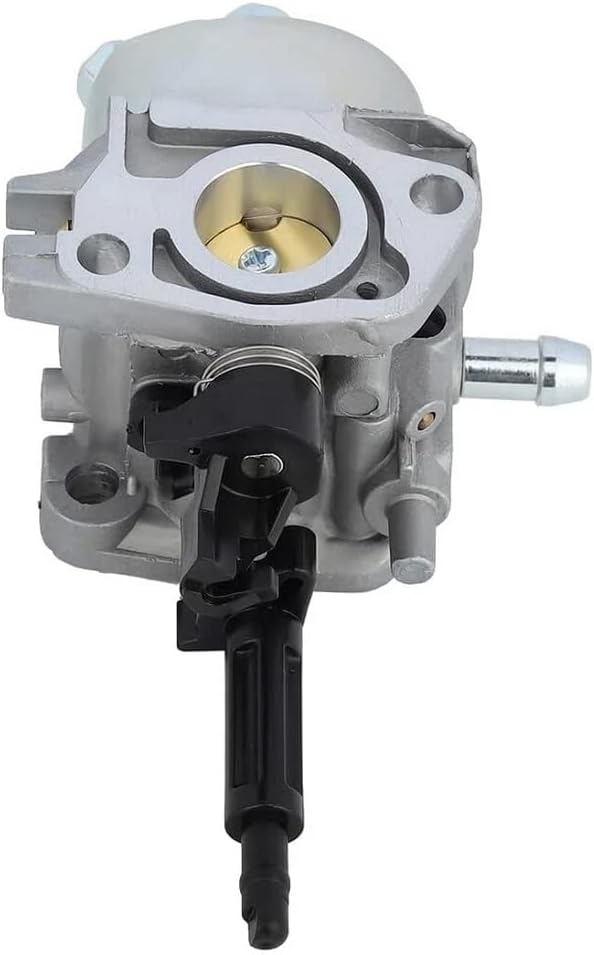

Image: Front view of the carburetor, showing the air intake and fuel inlet.

Image: Side view of the carburetor, displaying the "huayi" manufacturer marking and fuel bowl.

Image: Opposite side view of the carburetor, showing additional linkages and adjustment screws.

Image: Bottom view of the carburetor, highlighting the choke lever and fuel bowl drain.

Setup and Installation

This section outlines the general steps for replacing the carburetor on your WEN PW28 2800 PSI Pressure Washer. Specific procedures may vary slightly depending on your exact pressure washer configuration. Always refer to your pressure washer's service manual for detailed instructions.

1. Preparation:
   • Turn off the pressure washer engine and allow it to cool completely.
   • Disconnect the spark plug wire.
   • Close the fuel valve (if equipped) and drain any fuel from the fuel tank into an approved container.
   • Remove the air filter housing and air filter.
2. Remove Old Carburetor:
   • Carefully disconnect the fuel line from the old carburetor. Be prepared for residual fuel.
   • Disconnect any throttle linkages or choke rods attached to the carburetor. Note their positions for reassembly.
   • Unbolt the carburetor from the engine intake manifold. There are typically two nuts holding it in place.
   • Remove the old carburetor and any old gaskets. Dispose of old gaskets properly.
3. Install New Carburetor:
   • Ensure the engine mounting surface is clean and free of debris.
   • Place the new gaskets in their correct positions between the engine, carburetor, and air filter housing. Refer to your pressure washer's diagram if unsure.
   • Mount the new carburetor onto the engine intake manifold, aligning it with the bolt holes.
   • Secure the carburetor with the bolts, tightening them evenly to prevent air leaks. Do not overtighten.
   • Reconnect the throttle linkages and choke rods to the new carburetor. Ensure they move freely.
   • Install the new fuel line and secure it with the provided hose clamps.
   • Install the new fuel filter into the fuel line, ensuring the flow direction is correct (if applicable).
   • Replace the spark plug with the new one provided in the kit. Gap the spark plug according to your engine's specifications if necessary.
4. Final Steps:
   • Reinstall the air filter and air filter housing.
   • Refill the fuel tank with fresh, clean gasoline.
   • Open the fuel valve.
   • Reconnect the spark plug wire.

Operating with New Carburetor

After installing the new carburetor, follow these general guidelines for starting and operating your WEN PW28 pressure washer.

• Initial Start-up: The engine may require a few extra pulls to prime the fuel system after a carburetor replacement. Ensure the choke is set correctly for a cold start.
• Fuel Quality: Always use fresh, clean, unleaded gasoline with the recommended octane rating for your pressure washer engine. Stale fuel can cause carburetor issues.
• Choke Operation: Use the choke for cold starts. Once the engine warms up, gradually move the choke to the "run" position.
• Engine Speed: Allow the engine to warm up for a few minutes before applying full load.

Maintenance

Regular maintenance helps ensure the longevity and optimal performance of your carburetor and pressure washer.

• Fuel System Cleanliness: Regularly check and clean the fuel filter. Replace it if it appears clogged or damaged.
• Fuel Storage: When storing the pressure washer for extended periods, drain the fuel tank and carburetor bowl, or use a fuel stabilizer to prevent fuel degradation and gumming.
• Air Filter: Keep the air filter clean to ensure proper air-fuel mixture. A dirty air filter can affect carburetor performance.
• Spark Plug: Inspect the spark plug periodically. Clean or replace it as needed to ensure reliable ignition. The kit includes a new spark plug for immediate replacement.

Troubleshooting

If you encounter issues after carburetor installation, consider the following common troubleshooting steps:

If problems persist, consult a qualified service technician or refer to your pressure washer's original service manual.

Specifications

Warranty and Support

For warranty information or technical support regarding your RHYTHM TESTAMENT carburetor, please contact the manufacturer directly. Keep your purchase receipt as proof of purchase.

Manufacturer: RHYTHM TESTAMENT

(Contact information such as website or customer service number would typically be provided here by the manufacturer.)
