Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your Zevemomo Twin Daybed with Pop Up Trundle. This versatile daybed is designed to maximize space, offering comfortable seating during the day and extra sleeping capacity at night. It features integrated LED lighting and a convenient charging station. Please read these instructions carefully before assembly and use to ensure safe and proper operation.
Safety Information
WARNING: Do not use the trundle bed as a standalone bed for children under 6 years old to prevent entrapment. Do not exceed the weight capacity of 400 lbs for the main daybed and 300 lbs for the trundle to ensure stability. Be cautious of sharp edges during assembly and use. Always follow the assembly instructions carefully to prevent instability or collapse.
Package Contents
Before beginning assembly, ensure all parts listed below are present and undamaged:
- Daybed Frame Components
- Pop-Up Trundle Bed Components
- LED Light Strips
- Charging Station Unit
- Hardware Pack (screws, bolts, tools)
- Installation Manual
If any parts are missing or damaged, please contact Zevemomo customer support immediately.
Specifications
| Feature | Detail |
|---|---|
| Model Number | Daybed 3 |
| Size | Twin |
| Material | Metal with Upholstery |
| Product Dimensions (L x W x H) | 77.4" x 40" x 37.9" |
| Item Weight | 53 Pounds |
| Maximum Weight Recommendation (Daybed) | 400 Pounds |
| Maximum Weight Recommendation (Trundle) | 300 Pounds |
| Compatible Mattress Size | Twin (39" x 75") |
| Recommended Mattress Height | 6-8 inches |
| Charging Station | 3 USB ports, 1 Type-C port |
| LED Lighting | RGB, App-controlled (no remote) |
Image: Detailed product dimensions for the Zevemomo Twin Daybed and its trundle. The main daybed measures 77.4 inches long, 40 inches wide, and 37.9 inches high. The trundle measures 71.06 inches long and 40.15 inches wide. The main daybed has a weight capacity of 400 lbs, and the trundle has a weight capacity of 300 lbs.
Setup and Assembly
The Zevemomo Twin Daybed is designed for hassle-free setup. Clear and easy-to-follow assembly instructions are provided in the included manual. All necessary tools and labeled parts are included to facilitate a smooth assembly process.
- Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, soft surface to prevent scratches. Verify all components listed in the "Package Contents" section are present.
- Follow Manual Instructions: Refer to the dedicated installation manual for step-by-step assembly instructions. Ensure all screws and bolts are tightened securely.
- Mattress Placement: This daybed does not include a mattress. It is compatible with a standard twin-size mattress (39" x 75"). A mattress height of 6-8 inches is recommended for optimal fit and trundle operation. Mattresses thicker than 8 inches may make trundle storage difficult.
- Estimated Assembly Time: Assembly typically takes approximately 1.5 hours for two people.

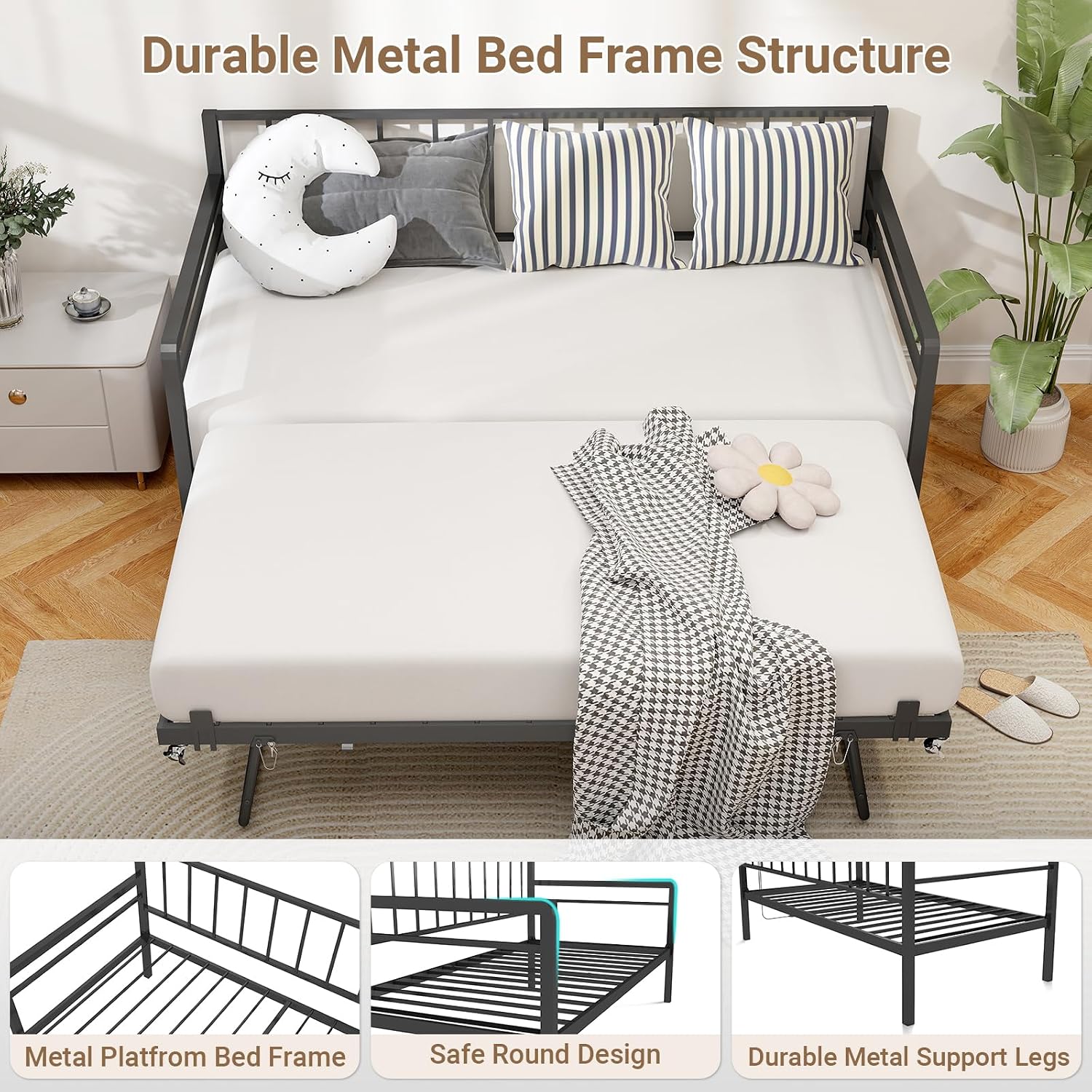

Image: Close-up views of the durable metal bed frame structure, highlighting the metal platform, safe round design, and sturdy metal support legs.
Operating Instructions
1. Trundle Bed Operation
The daybed features a pop-up trundle with locking wheels for easy deployment and storage.
- To Extend: Gently pull the trundle bed out from under the main daybed. The locking wheels allow for smooth movement. Once fully extended, lift the trundle frame until it locks into the elevated position.
- To Retract: Unlock the trundle frame from its elevated position and carefully lower it. Push the trundle back under the main daybed until it is fully stored.
- Configuration Options: The trundle can be used as a separate twin bed or positioned alongside the main daybed to create a larger sleeping surface, similar to a king-sized bed.
Image: The metal daybed with the trundle partially pulled out, showing the four wheels for easy movement and the mechanism to pull out and open the stand.
Image: The daybed shown in two configurations: as a daybed with a person sleeping, and as a sofa with a person sitting.
2. RGB LED Lighting
The headboard features a built-in smart RGB LED strip for customizable lighting.
- Control: The LED strip is controlled via a dedicated mobile application. Please download the app using the QR code provided in the assembly manual or search for the specified app name in your device's app store.
- Features: The app allows access to over 60,000 colors and various preset lighting effects, including Mic Mode, Music Mode, and Timing Mode.
- Note: A physical remote control is not included. All lighting functions are managed through the mobile application.
Image: The daybed with the headboard LED lights illuminated, showing the "Adjustable RGB LED Light" feature with icons for "Over 60000 Colors", "Mic Mode", "Music Mode", and "Timing Mode", along with a smartphone displaying the control app interface.
3. Built-in Charging Station
The daybed frame includes a built-in power outlet with multiple ports for convenient device charging.
- Ports: The charging station is equipped with 3 USB ports and 1 Type-C port.
- Usage: Connect your electronic devices to the available ports for charging. Ensure the daybed is plugged into a functional power outlet.
Image: A close-up of the built-in charging station on the daybed, showing a tablet charging via a USB port. The image highlights the 3 USB ports and 1 Type-C port.
Maintenance
Proper maintenance will extend the life and appearance of your Zevemomo Daybed.
- Cleaning: Wipe the metal frame with a dry cloth to remove dust. For more stubborn marks, use a slightly damp cloth and dry immediately.
- Vacuuming: Regularly vacuum any upholstered sections or areas where dust may accumulate.
- Hardware Check: Periodically check all screws and bolts to ensure they remain tight. Retighten as necessary to maintain structural integrity.
- Avoid Harsh Chemicals: Do not use abrasive cleaners or harsh chemicals, as these can damage the finish of the metal frame or upholstery.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| LED lights not working or falling off | Loose connection; improper adhesion; app not connected. | Ensure LED strip is securely attached to the headboard. Check power connection. Verify the mobile app is correctly paired and functioning. |
| Trundle bed difficult to pull out/push in or leg won't stay up | Obstruction; wheels locked; leg mechanism not engaged; mattress too thick. | Check for any obstructions. Ensure trundle wheels are unlocked. Verify the pop-up leg mechanism is fully engaged. Ensure mattress height is within the recommended 6-8 inches. |
| Daybed/Trundle feels unstable or makes noise | Loose hardware; uneven floor; exceeding weight capacity; improperly seated slats. | Retighten all screws and bolts. Ensure the daybed is on a level surface. Do not exceed the stated weight capacities (400 lbs for daybed, 300 lbs for trundle). Verify all bed slats are properly seated and secured. |
| Charging station not functioning | Daybed not plugged in; power outage; faulty device cable. | Ensure the daybed's power cord is securely plugged into a working wall outlet. Check if the outlet has power. Try a different charging cable or device to rule out cable/device issues. |
Warranty and Support
For warranty information, specific product support, or to order replacement parts, please contact Zevemomo customer support. Refer to the contact details provided in your purchase documentation or visit the official Zevemomo website.
