1. Introduction
Thank you for choosing the SEAFLO 360° Rotating Remote Control LED Searchlight. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your searchlight. Please read these instructions thoroughly before use and retain them for future reference.
2. Safety Information
- Electrical Safety: Ensure the power supply is within the specified 10-30V DC range. Incorrect voltage can damage the unit and pose a safety risk.
- Installation: All electrical connections should be performed by a qualified professional to prevent electrical shock or fire.
- Eye Protection: Do not stare directly into the LED light source when it is active, as it can cause eye damage.
- Waterproof Rating: The unit is IP65 rated, meaning it is protected against dust ingress and low-pressure water jets from any direction. It is not designed for submersion.
- Mounting: Securely mount the searchlight to a stable surface to prevent movement or detachment during operation or in harsh conditions.
- Heat: The searchlight may become warm during prolonged use. Ensure adequate ventilation and avoid touching the housing immediately after operation.
3. Product Overview
The SEAFLO 360° Rotating Remote Control LED Searchlight is designed for marine, vehicle, and outdoor applications, offering powerful illumination and versatile control.
Key Features:
- Wide Voltage Range: Operates on 10-30V DC power systems.
- High Brightness: 2700 Lumens LED light source.
- Extensive Coverage: 360° horizontal rotation and 60° vertical sweep.
- Durable Construction: Made from ASA plastic, offering corrosion and oxidation resistance.
- Weatherproof: IP65 waterproof rating for reliable outdoor performance.

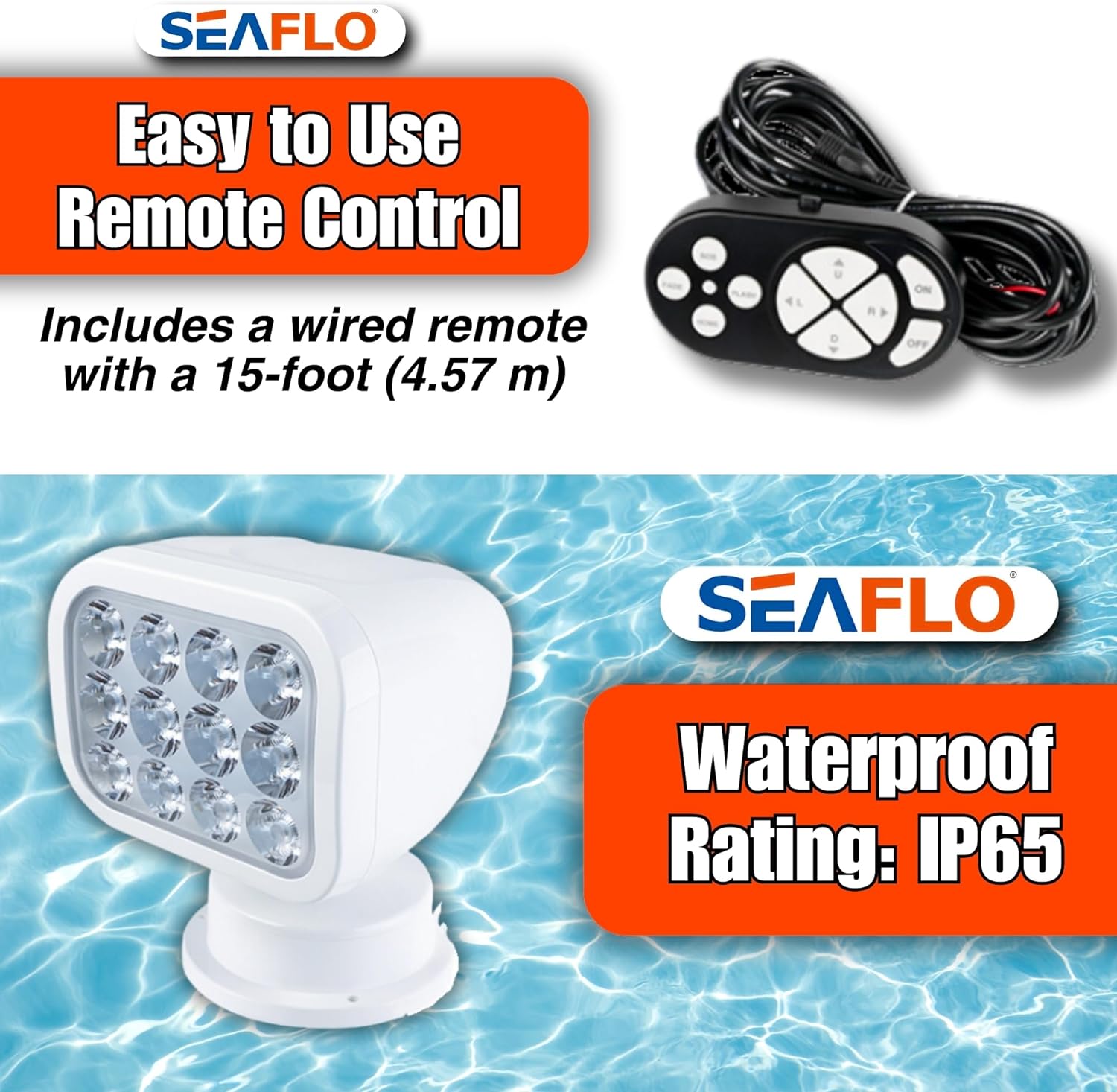

- Remote Control: Includes a wired remote with a 15 ft (4.57 m) cable for convenient operation.
- Auto-Reset Function: Automatically returns to a home position.
Product Images:
4. Setup and Installation
The SEAFLO searchlight is designed for quick and simple installation. Follow these steps for proper setup:
- Mounting Location: Choose a stable, flat surface on your boat, RV, truck, or other vehicle. Ensure the location allows for the full 360° rotation and 60° vertical sweep without obstruction.
- Cable Routing: The searchlight's power cable exits from the bottom of the unit. For a flush mount, a hole must be drilled through the mounting surface to accommodate the cable and its plug. Ensure the hole is large enough for the plug to pass through.
- Secure Mounting: Use appropriate fasteners (not included) to securely attach the searchlight base to the chosen surface.
- Wiring: Connect the searchlight to a 10-30V DC power source. Ensure correct polarity (red wire to positive, black wire to negative). It is recommended to install an inline fuse (not included) appropriate for the searchlight's 28W power consumption (e.g., a 3A fuse for 12V systems).
- Remote Control Connection: Connect the wired remote control to the designated port on the searchlight's power cable.
- Initial Test: After installation, perform a functional test to ensure all movements and light functions operate correctly before final use.
5. Operating Instructions
The searchlight is operated using the included wired remote control. Familiarize yourself with the remote's buttons and functions:
- ON/OFF: Press the 'ON' button to turn the light on, and 'OFF' to turn it off.
- Directional Arrows (U/D/L/R): Use the Up (U), Down (D), Left (L), and Right (R) arrows to control the searchlight's movement.
- FLASH: Activates a flashing light mode.
- FADE: Activates a fading light mode.
- SOS: Activates an SOS signal mode.
- HOME: Press this button to return the searchlight to its default center position.
Operation Demonstration Video:
Video 5.1: A demonstration of the SEAFLO LED Searchlight's remote control functions, including directional movement, flash, fade, SOS, and home position recall. The video showcases both the warm white (2700K) and white (5500K) light versions, as well as the black exterior model.
6. Maintenance
To ensure the longevity and optimal performance of your SEAFLO searchlight, follow these maintenance guidelines:
- Regular Cleaning: Clean the exterior housing and lens with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the finish or lens.
- Inspect Wiring: Periodically check all wiring and connections for signs of wear, corrosion, or damage. Ensure connections are secure.
- Lubrication: The internal mechanisms are factory-lubricated and generally do not require additional lubrication. If movement becomes stiff, contact customer support.
- Storage: If the searchlight will not be used for an extended period, ensure it is clean and stored in a dry, protected environment.
7. Troubleshooting
If you encounter issues with your SEAFLO searchlight, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Searchlight does not turn on. | No power, incorrect wiring, blown fuse, faulty remote. | Check power connections, verify voltage (10-30V DC), inspect fuse, ensure remote is connected and functional. |
| Searchlight does not move or moves erratically. | Loose connection, motor obstruction, remote control issue. | Check remote connection, ensure no physical obstructions, try the 'HOME' button to reset position. |
| Light output is dim or inconsistent. | Low voltage, dirty lens, internal fault. | Verify power supply voltage, clean the lens, contact support if problem persists. |
| Remote control is unresponsive. | Loose cable, damaged remote. | Ensure the wired remote cable is securely connected. If using a wireless remote (optional), check batteries. |
If you are unable to resolve an issue using these steps, please contact SEAFLO customer support for assistance.
8. Specifications
| Specification | Value |
|---|---|
| Model Number | SFSL-2700W-01W |
| Voltage | 10-30V DC |
| Power | 28W |
| Brightness | 2700 Lumens |
| Color Temperature | 5500K (White Light) |
| Beam Distance | 984–1,312 feet (300–400 m) |
| Housing Material | ASA plastic (corrosion and oxidation-resistant) |
| Waterproof Rating | IP65 |
| Control Type | Wired remote with 15 ft. (4.57 m) cable |
| Horizontal Rotation | 360° |
| Vertical Sweep | 60° |
| Item Weight | 4.5 Pounds |
| Product Dimensions | 7.4"L x 6.7"W x 8.3"H |
9. Warranty and Support
The SEAFLO 360° Rotating Remote Control LED Searchlight is backed by SEAFLO's 4-Year Limited Warranty. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.
For technical support, warranty service, or any questions regarding your product, please contact SEAFLO customer service through their official website or the retailer where the product was purchased.
