Zojirushi Pressure IH Rice Cooker

1. Introduction

Thank you for purchasing the Zojirushi NP-RU05-BZ Pressure IH Rice Cooker. This appliance is designed to provide perfectly cooked rice with ease. Please read this instruction manual thoroughly before use to ensure safe and optimal operation. Keep this manual for future reference.

2. Safety Precautions

To prevent injury, electric shock, fire, or damage to the product, always follow these basic safety precautions:

• Do not immerse the main unit in water or other liquids.
• Ensure the power cord is not damaged, pinched, or placed near hot surfaces.
• Use only the power supply specified for this appliance.
• Keep out of reach of children.
• Do not block the steam vent during operation.
• Always unplug the rice cooker when not in use or before cleaning.
• Do not attempt to repair or modify the appliance yourself. Contact authorized service personnel.

3. Product Overview

Familiarize yourself with the components of your Zojirushi NP-RU05-BZ rice cooker.

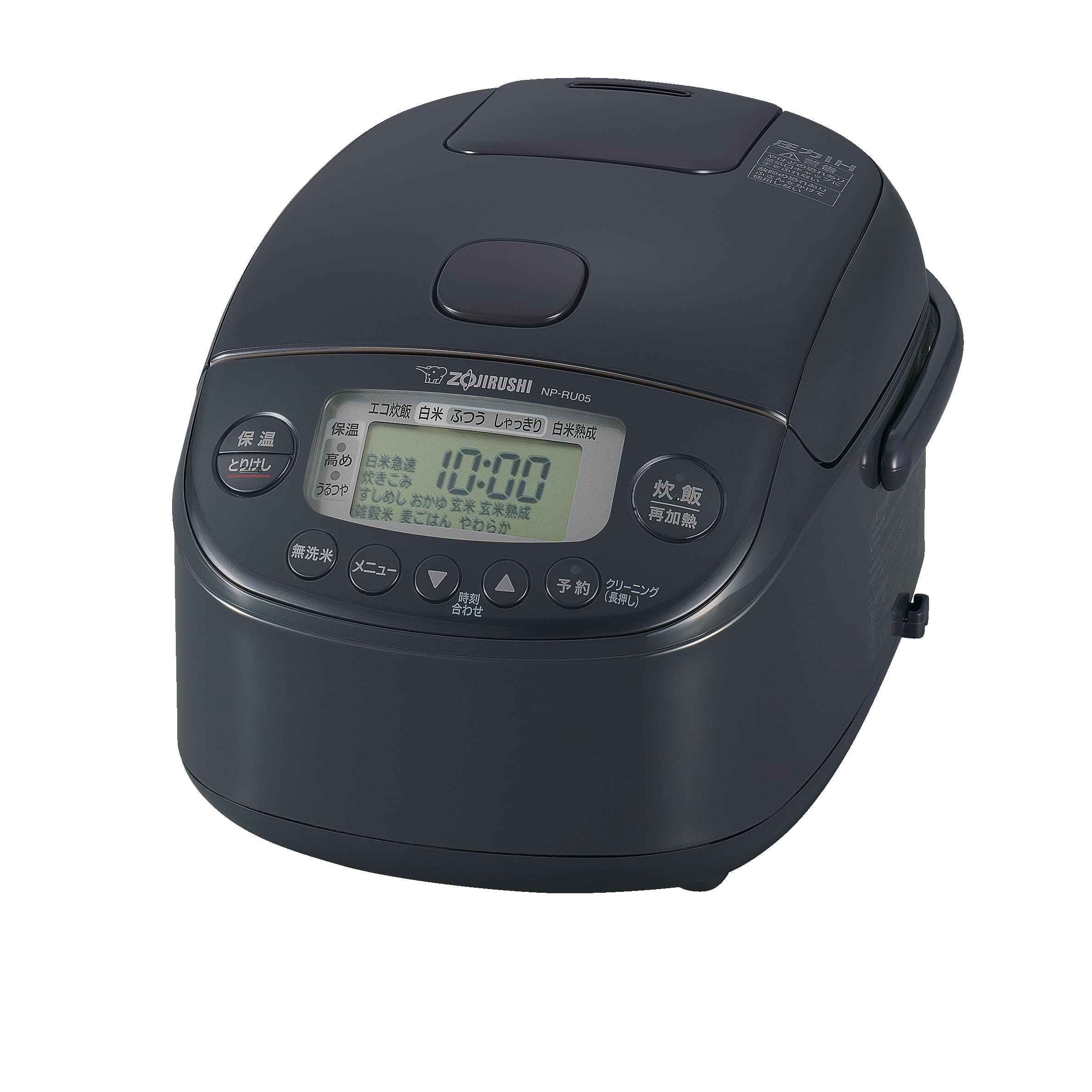

Figure 1: Zojirushi NP-RU05-BZ Rice Cooker (Slate Black) with approximate dimensions: 23cm (width) x 32cm (depth) x 19.5cm (height when closed), 36.5cm (height when open).

Included Accessories:

Figure 2: The rice cooker comes with a measuring cup, a rice scoop (with Ag+ antibacterial processing), and an instruction manual.

• Main Unit: The rice cooker body.
• Inner Pot: The non-stick cooking pot.
• Inner Lid: Detachable for easy cleaning.
• Measuring Cup: For accurate rice measurement.
• Rice Scoop: For serving cooked rice.
• Power Cord: Detachable power supply.

4. Setup

1. Unpack: Carefully remove all packaging materials and accessories from the box.
2. Clean: Wash the inner pot, inner lid, measuring cup, and rice scoop with mild dish soap and warm water. Rinse thoroughly and dry. Wipe the exterior of the main unit with a damp cloth.
3. Placement: Place the rice cooker on a stable, flat, heat-resistant surface, away from direct sunlight and heat sources. Ensure adequate ventilation around the unit.
4. Connect Power: Insert the power cord securely into the rice cooker's power inlet, then plug it into a suitable electrical outlet.

5. Operating Instructions

Follow these steps for basic rice cooking:

1. Measure Rice: Use the provided measuring cup to measure the desired amount of rice. For this 3-cup model, you can cook up to 3 cups of uncooked rice.
2. Wash Rice: Wash the rice gently in a separate bowl until the water runs clear. Drain thoroughly.
3. Add Rice and Water: Place the washed rice into the inner pot. Add water up to the corresponding water level mark inside the inner pot for the type and amount of rice you are cooking. For example, for 3 cups of white rice, fill to the '3' mark for white rice.
4. Place Inner Pot: Ensure the inner pot is dry on the outside, then place it into the main unit. Close the outer lid securely.
5. Select Cooking Menu: Press the 'Menu' button to select your desired cooking program (e.g., White Rice, Quick Cook).
6. Start Cooking: Press the 'Start' button to begin the cooking process. The rice cooker will automatically adjust cooking time and temperature.
7. Keep Warm: Once cooking is complete, the rice cooker will automatically switch to the 'Keep Warm' function.
8. Serve: Open the lid, fluff the rice with the rice scoop, and serve.

6. Cooking Technology and Capacity

This model utilizes Pressure IH (Induction Heating) technology for efficient and even cooking, ensuring delicious results.

Figure 3: Pressure IH cooking involves pressure and full-surface heating from the lid, sides, and bottom for optimal rice texture.

Capacity Guide:

Figure 4: This 3-cup model is ideal for 1-2 people, yielding approximately 6 bowls of rice. For larger households or frequent cooking of larger quantities, consider models with higher capacities.

7. Care and Maintenance

Regular cleaning ensures hygiene and extends the life of your rice cooker.

1. Unplug: Always unplug the rice cooker and allow it to cool completely before cleaning.
2. Inner Pot and Inner Lid: Wash the inner pot and inner lid by hand with mild dish soap and a soft sponge. Do not use abrasive cleaners or scrubbers that could damage the non-stick coating. Rinse thoroughly and dry completely.
3. Main Unit Exterior: Wipe the exterior of the main unit with a soft, damp cloth. Do not use harsh chemicals or immerse the unit in water.
4. Steam Vent: Periodically check and clean the steam vent to ensure it is free from blockages.
5. Storage: Store the rice cooker in a clean, dry place when not in use.

8. Troubleshooting

If you encounter issues, refer to the following common troubleshooting tips:

If the problem persists after trying these solutions, please contact customer support.

9. Specifications

10. Warranty and Support

This Zojirushi rice cooker comes with a 1-year manufacturer's warranty from the date of purchase. The warranty covers defects in materials and workmanship under normal use.

The non-stick coating of the inner pot is guaranteed for 3 years under normal use. Misuse or failure to follow care instructions may void this guarantee.

For warranty claims, technical support, or service inquiries, please contact your local Zojirushi customer service or the retailer where you purchased the product. Please have your model number (NP-RU05-BZ) and proof of purchase ready.

For more information, visit the official Zojirushi website: www.zojirushi.com
