VilroCaz Multi-Function Twin Size Murphy Bed Wall Bed Instruction Manual

Introduction

Thank you for choosing the VilroCaz Multi-Function Twin Size Murphy Bed Wall Bed. This innovative furniture piece is designed to maximize space in your home, offering a comfortable sleeping solution, integrated storage, and a functional pull-out desk. Please read this manual thoroughly before assembly and use to ensure safe operation and proper maintenance of your new Murphy bed.

This product combines a twin-size bed, a closet, drawers, and a pull-out desk into a single, space-saving unit. Its versatile design makes it ideal for guest rooms, home offices, or any area where maximizing floor space is essential.

Safety Information

• Wall Mounting: This Murphy bed must be securely anchored to a solid wall structure (e.g., wood studs or concrete) using appropriate hardware. Failure to properly anchor the unit can result in serious injury or property damage. Consult a professional if you are unsure about your wall type or installation method.
• Weight Capacity: The bed has a weight capacity of 600 lbs. Do not exceed this limit.
• Mattress Thickness: Use a mattress with a recommended thickness of 8-10 inches. Using a mattress outside this range may affect the bed's folding mechanism.
• Clearance: Ensure adequate clearance around the bed when folding and unfolding. Keep children and pets away from the mechanism during operation.
• Moving Parts: Be aware of pinch points when operating the bed and desk mechanisms.
• Children: This product is recommended for ages 12 and above. Children should be supervised when near or operating the bed.

Setup and Assembly

Assembly of this multi-functional unit requires careful attention to detail and adherence to the provided step-by-step instructions. It is highly recommended to have at least two adults for assembly. While power tools can assist, ensure they are used correctly to avoid damaging components. All parts are designed to fit together precisely; do not force components.

Required Tools (Not Included):

• Phillips Head Screwdriver
• Hammer
• Measuring Tape
• Level
• Drill (for wall mounting)
• Stud Finder (for wall mounting)

General Assembly Steps:

1. Unpack and Identify Parts: Carefully unpack all boxes and lay out components. Verify all parts against the included parts list. If any parts are missing or damaged, contact customer support immediately.
2. Assemble Main Bed Frame: Follow the instructions to construct the primary bed frame and its folding mechanism. Pay close attention to the orientation of each piece.
3. Assemble Storage Units: Construct the side wardrobe, drawers, and top shelves. Note that the wardrobe and drawers can be installed on either side of the bed for customizable configuration.
4. Integrate Desk Unit: Assemble the pull-out desk and attach it to the main structure as per the instructions.
5. Wall Mounting: This is a critical step. Locate wall studs using a stud finder. Securely attach the entire unit to the wall using the provided anchoring hardware. Ensure the unit is level and stable before proceeding.
6. Final Adjustments: Test all moving parts (bed, desk, drawers) to ensure smooth operation. Make any necessary adjustments.

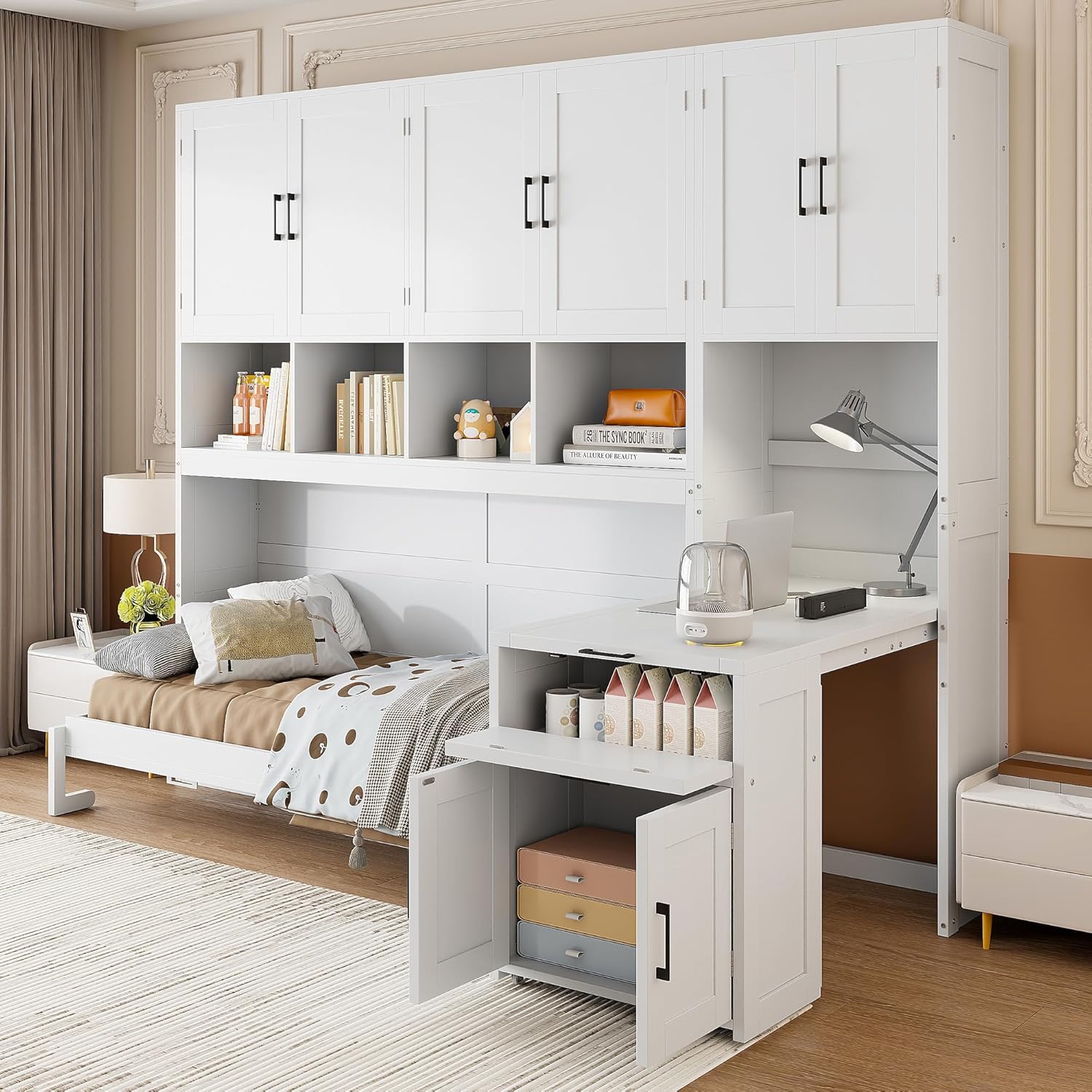

Image: The VilroCaz Multi-Function Twin Size Murphy Bed Wall Bed in an open configuration, showing the bed deployed and the pull-out desk extended. The unit features overhead cabinets and side storage.

Image: The VilroCaz Multi-Function Twin Size Murphy Bed Wall Bed in a closed configuration, with the bed folded up and the pull-out desk extended. This view highlights the space-saving design.

Operating Instructions

Folding and Unfolding the Bed:

1. To Unfold: Ensure the area in front of the bed is clear. Gently pull the bed panel downwards from the top handle. The gas spring mechanism will assist in a controlled descent. Guide the bed until it is fully horizontal and the support legs are extended.
2. To Fold: Remove any bedding or items from the bed. Lift the bed panel upwards from the bottom. The gas spring mechanism will assist in lifting the bed. Guide it smoothly until it is fully vertical and securely latched into the wall unit.

Using the Pull-Out Desk:

1. To Extend: Locate the handle on the desk unit. Gently pull the desk outwards until it is fully extended and stable.
2. To Retract: Push the desk back into its housing until it is flush with the main unit.

Using Storage (Closet and Drawers):

• The integrated side wardrobe and overhead cabinets provide shelving for various items.
• The two storage drawers are designed for smaller items. Ensure drawers are closed completely before folding the bed or moving the desk.

Image: A detailed view of the pull-out desk and the lower cabinet with a drawer, showcasing the integrated workspace and storage.

Image: A close-up view of an open drawer and the cabinet below it, illustrating the internal storage capacity.

Maintenance and Care

• Cleaning: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that could damage the finish.
• Hardware Check: Periodically inspect all screws, bolts, and connections to ensure they are tight. Re-tighten as necessary.
• Mechanism Inspection: Check the folding mechanism and gas springs for any signs of wear or damage. If the bed becomes difficult to operate or makes unusual noises, discontinue use and contact customer support.
• Avoid Overloading: Do not place excessive weight on shelves, in drawers, or on the desk.

Troubleshooting

• Bed is difficult to fold/unfold:
  • Ensure no items are obstructing the mechanism or caught between the bed frame and the wall unit.
  • Verify that the gas springs are correctly installed and functioning. If they appear faulty, contact customer support for replacements.
  • Check that the mattress thickness is within the recommended 8-10 inch range.
• Desk or drawers do not slide smoothly:
  • Inspect tracks for debris or obstructions.
  • Ensure all screws securing the slides are tight.
• Unit feels unstable or wobbly:
  • Re-check all wall anchors to ensure they are securely fastened to wall studs.
  • Verify all assembly hardware is tightened.
• Missing or damaged parts during assembly:
  • Carefully review the parts list and assembly instructions.
  • Contact the retailer or manufacturer's customer service with your purchase details and a description of the missing/damaged parts.

Product Specifications

Image: Detailed dimensional drawing of the Murphy bed unit, showing height, width, and depth measurements for various sections.

Image: An alternative perspective of the VilroCaz Multi-Function Twin Size Murphy Bed Wall Bed, with the bed open and desk extended, highlighting its integration into a room setting.

Warranty and Support

For specific warranty information regarding your VilroCaz Multi-Function Twin Size Murphy Bed Wall Bed, please refer to the documentation provided at the time of purchase or contact your retailer. Warranty terms typically cover manufacturing defects for a limited period.

If you require assistance with assembly, have questions about operation, or need to report missing/damaged parts, please contact the customer support team of your retailer or the manufacturer, VilroCaz. Have your purchase receipt and product model information ready to expedite service.
