Product Overview
The Kohree 12V Dual Cylinder Air Compressor is engineered for rapid and efficient tire inflation, delivering a powerful 12.35 ft³/min (350L/min) airflow with a maximum pressure of 150 PSI. Its robust construction and dual-cylinder design make it ideal for heavy-duty applications, including off-road trucks, RVs, and 4x4 vehicles. Designed for stability and safety, it features a durable metal shell, aluminum cylinders for heat dissipation, and rubber feet to minimize vibration during operation.
Image: The Kohree 12V Dual Cylinder Air Compressor in use, connected to an off-road vehicle's tire for inflation.
Image: Visual representation of the types of vehicles the compressor is suitable for, including SUVs, 4x4s, and RVs.
What's in the Box
- 1x Air Compressor
- 1x 26ft Rubber Air Hose with Pressure Gauge
- 1x 6.5ft Power Cord with Battery Clamps
- 3x Nozzle Adapters
- 1x Thumb Lock Adapter
- 1x Nylon Storage Bag
Specifications

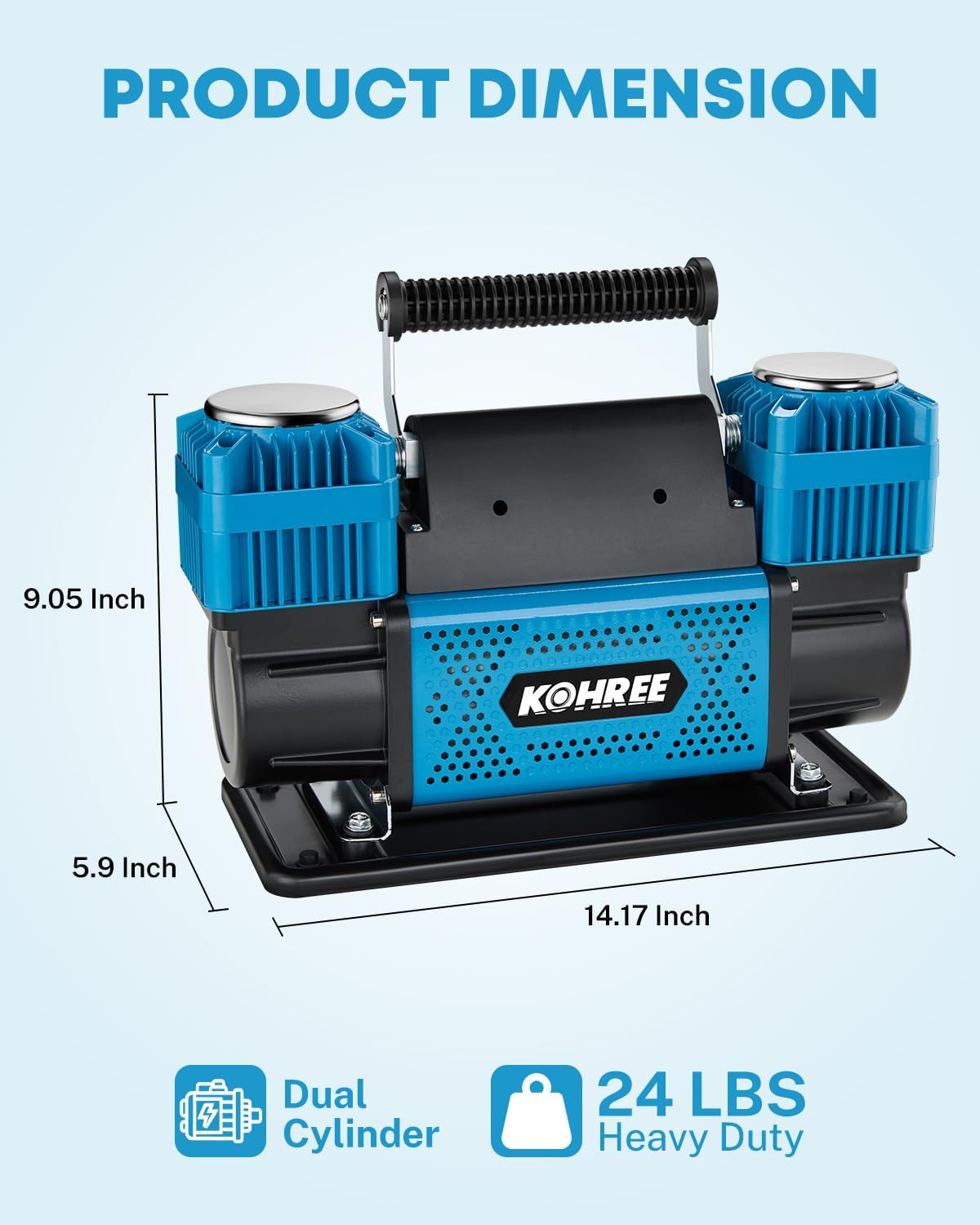

Image: Detailed dimensions of the air compressor unit.
| Feature | Specification |
|---|---|
| Brand | Kohree |
| Model Name | 12V Dual Cylinder Air Compressor |
| Model Number | KR4133 |
| Air Flow Capacity | 350 Liters Per Minute (12.35 ft³/Min) |
| Maximum Operating Pressure | 150 PSI |
| Voltage | 12 Volts |
| Power Source | Corded Electric (Battery Clamps) |
| Noise Level | 70 Decibels |
| Hose Length | 26.24 Feet (Rubber Air Hose) |
| Power Cord Length | 6.5 Feet |
| Item Weight | 24 Pounds |
| Product Dimensions | 14.17"L x 5.9"W x 9.05"H |
| Material | Aluminum, Metal |
| Special Features | Automatic Shut-Off, Double Cylinder, Heavy Duty, Overheating Protection |
Safety Instructions
- Always operate the compressor in a well-ventilated area.
- Ensure the vehicle engine is running before connecting the compressor to the battery to prevent battery drain.
- Wear appropriate eye protection during operation.
- Do not touch hot parts of the compressor during or immediately after use. The unit can become very hot.
- Keep children and pets away from the compressor during operation.
- Do not exceed the maximum PSI rating of the tire or the compressor.
- The compressor features an auto-thermal cut-off switch and overheating protection. If the unit stops, allow it to cool down before resuming use.
Setup
- Prepare the Compressor: Place the compressor on a stable, flat surface near the tire to be inflated. Ensure the vehicle engine is running.
- Connect to Vehicle Battery: Connect the red clamp of the power cord to the positive (+) terminal of your vehicle's 12V battery and the black clamp to the negative (-) terminal.
- Connect Air Hose: Connect the quick-connect fitting of the 26ft rubber air hose to the compressor's air outlet.
- Attach to Tire Valve: Securely attach the thumb lock adapter of the air hose to the tire's valve stem. Ensure a tight seal to prevent air leakage.
Image: The air compressor's power cord connected to a 12V car battery, illustrating the power source setup.
Video: A demonstration of the Kohree Dual Cylinder Compressor, highlighting its features and setup process. This video compares it to another model, showcasing its efficiency and ease of use.
Operating Instructions
- Turn On: Locate the power switch on the compressor and turn it to the 'ON' position. The compressor will begin to inflate the tire.
- Monitor Pressure: Observe the integrated pressure gauge on the air hose to monitor the tire pressure.
- Reach Desired PSI: Once the desired tire pressure is reached, turn the compressor off.
- Release Excess Air (if needed): If the tire is over-inflated, press the button on the back of the pressure gauge to release excess air until the correct PSI is achieved.
- Disconnect: Disconnect the thumb lock adapter from the tire valve stem and then disconnect the air hose from the compressor. Finally, disconnect the battery clamps from the vehicle battery.
Image: The compressor showing its tire pressure gauge and the air release mechanism for precise inflation control.
Image: A visual guide detailing the easy steps to use the compressor, from connecting to the battery to inflating the tire.
Video: A short demonstration of the Kohree Fast Air Compressor in action, showcasing its speed and efficiency in inflating heavy-duty tires.
Maintenance
- Cleaning: After each use, wipe down the compressor with a damp cloth to remove dirt and debris. Ensure the unit is completely dry before storing.
- Air Filter: Regularly check the air filter for cleanliness. Clean or replace if necessary to maintain optimal performance.
- Storage: Store the compressor and all accessories in the provided nylon storage bag in a cool, dry place away from direct sunlight and extreme temperatures.
- Cable and Hose Inspection: Periodically inspect the power cord, air hose, and connections for any signs of wear, damage, or kinks. Replace damaged components immediately.
Image: A close-up view of the air filter, emphasizing the importance of regular inspection and cleaning for optimal performance.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Compressor does not turn on | Loose battery connection, blown fuse, power switch off | Check battery clamps for secure connection. Inspect and replace the fuse if blown. Ensure power switch is in 'ON' position. |
| Slow inflation | Air leakage from hose/valve, clogged air filter, low vehicle battery voltage | Ensure all connections are tight. Clean or replace air filter. Ensure vehicle engine is running to provide adequate power. |
| Compressor overheats and shuts off | Extended continuous use, high ambient temperature | Allow the compressor to cool down for at least 15-20 minutes before resuming operation. The auto-thermal cut-off is a safety feature. |
Warranty & Support
The Kohree 12V Dual Cylinder Air Compressor comes with a 2-Year Manufacturer Service. For any questions, concerns, or technical assistance, please contact Kohree Customer Service Support, available 24 hours a day.
For further assistance, please refer to the official Kohree website or contact their customer support directly.
