1. Introduction
Thank you for choosing the Godrej Smart Choice 10 Kg Fully Automatic Top Load Washing Machine. This manual provides essential information for the safe and efficient use of your appliance. Please read it thoroughly before installation and operation, and keep it for future reference.
2. Safety Instructions
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury.
- Ensure the washing machine is properly grounded.
- Do not operate the machine with a damaged power cord or plug.
- Keep children away from the appliance during operation.
- Do not wash items that are soiled with flammable liquids.
- Unplug the machine before cleaning or performing any maintenance.
- Do not wash the control panel with running water.
3. Setup and Installation
3.1 Unpacking
Carefully remove all packaging materials. Ensure all included components are present.
3.2 Included Components
- 1 Washing Machine
- Drain Hose (1 quantity)
- Intake Hose (1 quantity)
- Safety Cover
- User Manual
- Rat Mesh (1 quantity)
Image: All components included with the washing machine, such as the drain hose, intake hose, safety cover, user manual, and rat mesh.
3.3 Placement
Place the washing machine on a firm, level surface. Ensure there is adequate space around the unit for ventilation and access. The installation type is freestanding.
3.4 Water Connection
Connect the intake hose to a water supply tap and the machine's water inlet. Ensure connections are secure to prevent leaks. The machine features Zero Pressure Technology, allowing it to fill the tub even at very low water pressure (0.02 MPa).
3.5 Drain Connection
Attach the drain hose to the machine's drain outlet and direct it into a suitable drain pipe or sink, ensuring it is properly secured to prevent dislodgement during operation.
3.6 Power Connection
Plug the washing machine into a grounded 230 Volt electrical outlet. Do not use extension cords or adapters.
4. Operating Instructions
4.1 Control Panel Overview
The washing machine features a touch control panel with a 2-digit 7-segment LED display to indicate remaining time and error codes.

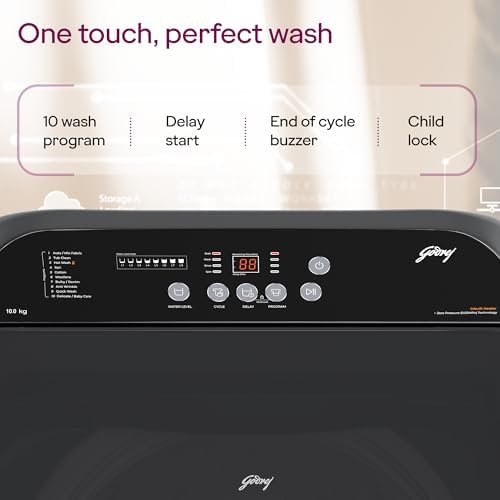

Image: Detailed view of the washing machine's control panel, highlighting buttons for various functions like power, water level, cycle selection, delay start, program selection, and start/pause.
4.2 Loading Laundry
Open the soft-close lid and load clothes into the Acu Wash Drum. The drum's contours are designed for effective scrubbing. Do not overload the machine beyond its 10 kg capacity.
Image: Close-up of the Acu Wash Drum, showing its unique contours designed for gentle yet effective scrubbing of clothes.
Image: The Qudra steel pulsator with four spines, located at the base of the drum, designed for deep cleaning action.
4.3 Adding Detergent
Add the appropriate amount of detergent to the detergent box. The machine also has a fabric softener dispenser.
4.4 Selecting a Wash Program
The machine offers 10 wash programs to suit various fabric types and laundry needs. Use the Program button to select your desired cycle.
- Auto / Mix Fabric: For mixed loads.
- Tub Clean: For cleaning the washing machine tub.
- Hot Wash: Utilizes the inbuilt heater for enhanced cleaning and hygiene.
- Saree: Specialized program for sarees.
- Steam: For steam-assisted washing.
- Woolens: Gentle wash for woolen items.
- Daily / Delicate: For everyday delicate items.
- Anti Wrinkle: Helps reduce wrinkles in clothes.
- Quick Wash: For lightly soiled items requiring a fast cycle.
- D-Delicate / Baby Care: Extra care for delicate items or baby clothes.
Image: The control panel displaying the list of 10 available wash programs, including Auto/Mix Fabric, Tub Clean, Hot Wash, Saree, Steam, Woolens, Daily/Delicate, Anti Wrinkle, Quick Wash, and D-Delicate/Baby Care.
4.5 Special Features
- AI Tech: Intelligently optimizes wash, rinse, and energy consumption by sensing cloth load and adjusting water levels. It also self-diagnoses and flashes error codes, and has memory backup for auto-resume after power outages.
- Inbuilt Heater: Delivers 60°C hot wash for added hygiene and better dirt removal.
- Zero Pressure Technology: Fills the tub effectively even at very low water pressure (0.02 MPa).
- In-built Soak Technology: Pulsator movement mimics hand-scrubbing to loosen tough stains.

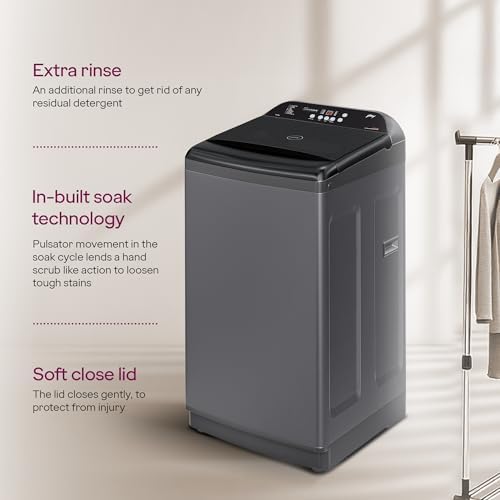

- Extra Rinse: An additional rinse cycle to ensure removal of residual detergent.
- Delay Start: Schedule your wash cycle with a delay of 1 to 9 hours.
- Child Lock: Prevents accidental setting changes by children. Activate by pressing PROGRAM & DELAY buttons simultaneously for 3 seconds.
- Soft Close Lid: The lid closes gently to prevent injury.
- Auto Restart: Machine resumes operation from where it left off after a power cut.
- Unbalance Detection & Correction: Automatically detects and corrects unbalanced loads during the spin cycle.
- Auto Power Off: Machine automatically turns off after a cycle is complete.
- Cycle End Buzzer: Alerts you when the wash cycle is finished.
Image: Washing machine with an overlay graphic indicating AI technology, which intelligently optimizes wash, rinse, and energy consumption based on load sensing and water level adjustment.
Image: A water pressure gauge next to text explaining Zero Pressure Technology, which allows the tub to fill even at very low water pressure (0.02 MPa).
4.6 Starting the Wash
Press the Start/Pause button to begin the selected wash cycle. The machine will automatically detect the load and adjust water levels if AI Tech is enabled.
5. Maintenance
Regular maintenance ensures optimal performance and longevity of your washing machine.
Image: A visual guide outlining recommended 'Do's' and 'Don'ts' for washing machine maintenance, including cleaning filters, wiping surfaces, and avoiding harsh chemicals.
5.1 Do's
- Clean the lint filter after every wash.
- Check and clean the water inlet filter periodically.
- Wipe the body and control panel with a soft, damp cloth.
- Switch off and unplug before maintenance.
- Use mild detergent for tough stains on the exterior.
5.2 Don'ts
- Do not use benzene, thinner, or harsh chemicals.
- Do not wash the control panel with running water.
- Do not operate the machine with a clogged lint filter.
- Do not pull out the lint filter forcefully.
- Do not keep the machine plugged in during cleaning.
5.3 Tub Clean Program
Regularly use the 'Tub Clean' program to maintain the cleanliness and hygiene of the washing machine drum.
6. Troubleshooting
If you encounter issues, refer to the following common troubleshooting steps. For problems not listed here, contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not start | Power cord unplugged, power outage, lid not closed properly, Start/Pause button not pressed. | Check power connection, ensure lid is closed, press Start/Pause. |
| No water filling | Water supply off, intake hose kinked, water inlet filter clogged. | Check water supply, straighten hose, clean inlet filter. |
| Excessive vibration/noise | Machine not level, shipping bolts not removed, unbalanced load. | Adjust leveling feet, remove shipping bolts (if applicable), redistribute laundry. |
| Water not draining | Drain hose kinked or clogged, drain pump filter clogged. | Check and clear drain hose, clean drain pump filter. |
| Error code displayed | Specific malfunction detected by AI Tech. | Refer to the user manual for specific error code meanings or contact customer support. |
7. Specifications
| Feature | Description |
|---|---|
| Brand | Godrej |
| Model Number | WTEON ADA 10 5.0 FEFH GLGR |
| Capacity | 10 kg |
| Product Dimensions (D x W x H) | 60.5D x 62W x 103H Centimeters |
| Item Weight | 40.5 Kilograms |
| Energy Star Rating | 5 Star |
| Access Location | Top Load |
| Operation Mode | Fully Automatic |
| Controls Type | Touch |
| Number of Standard Cycles | 10 |
| Voltage | 230 Volts |
| Drum Material | Steel (Acu Wash Drum) |
| Pulsator Type | Qudra Steel Pulsator |
| Special Features | AI Tech, Inbuilt Heater, Zero Pressure Technology (0.02 MPa), Acu Wash Drum, Power Wash Technology, Special Sari Wash, In-built Soak Technology, Extra Rinse, Delay Start, Child Lock, Soft Close Lid, Auto Restart, Unbalance Detection & Correction, Auto Power Off, Cycle End Buzzer, Hot Wash, Tub Clean |
| Water Consumption | 23 L/Kg/Cycle |
| Spin Speed | 650 RPM |
| Color | Glacial Grey |

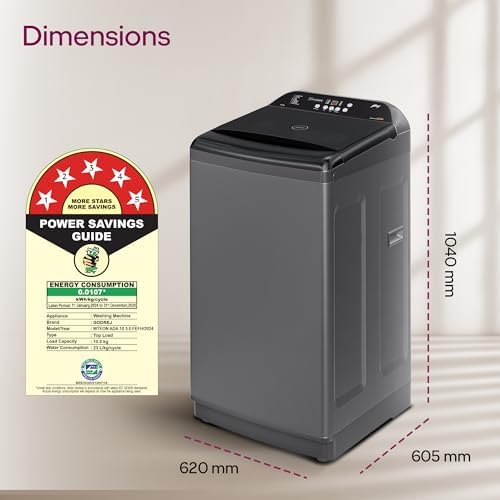

Image: The washing machine with its dimensions (60.5D x 62W x 103H cm) and the 5-star energy savings guide label, indicating high energy efficiency.
8. Warranty
Your Godrej Smart Choice Washing Machine comes with a 5-YEARS FREE COMPREHENSIVE WARRANTY, applicable on purchases from April 1, 2026 (until withdrawn at the sole discretion of the Company). Additionally, there is a 10-year motor warranty.
To avail the warranty, you must register on the Godrej brand website within 30 days of purchase. Please retain your Amazon invoice as proof of purchase.
Image: Graphic indicating the warranty coverage: 10 years for the motor and 2 years comprehensive warranty for the appliance.
9. Customer Support
For any queries, assistance, or service requests, please contact Godrej customer support:
- Telephone: 080-67436743
- WhatsApp: Send 'Hi' to 9321665511
- Email: smartcare@godrej.com
Manufacturer Address: Godrej & Boyce Mfg. Co. Ltd., Pirojshanagar, Vikhroli (W), Mumbai - 400 079.
