Modway Nolan Arched Storage Display Cabinet Instruction Manual

1. Product Overview

The Modway Nolan Arched Storage Display Cabinet is designed for functional storage and display in living rooms, dining rooms, or hallways. It features a wood grain laminate finish, an elegantly rounded arched top shelf, and tapered wood legs. The cabinet includes two tempered glass doors, two adjustable shelves, one fixed shelf, and two full-glide drawers.

Key features include:

• Adjustable Shelves: Two adjustable shelves provide flexible storage options for various item sizes.
• Full-Glide Drawers: Two spacious drawers with full-glide mechanisms for smooth operation.
• Tempered Glass Doors: Two doors with tempered glass panels allow for display of items while providing protection.
• Soft-Close Hinges: Doors are equipped with soft-close hinges for quiet and gentle closing.
• Non-Marking Foot Pads: Integrated foot pads protect flooring surfaces.

Figure 1: Front view of the Modway Nolan Arched Storage Display Cabinet in Ivory Oak.

2. Safety Information

Please read and understand all instructions before beginning assembly and use. Failure to follow these instructions may result in injury or product damage.

• Assembly: Assembly is required. Ensure all parts are accounted for and undamaged before starting. Use only the provided tools and hardware.
• Weight Capacity: Do not exceed the specified weight capacities for shelves and drawers to prevent structural damage or collapse.
  • Arched Shelf: 88 lbs (40 kg)
  • Adjustable Shelves: 70 lbs (31.7 kg) each
  • Fixed Shelf: 62 lbs (28 kg)
  • Drawers: 22 lbs (10 kg) each
• Stability: Place the cabinet on a level, stable surface. Consider using wall anchor kits (not included) for added stability, especially in homes with children or pets.
• Glass Components: Handle tempered glass doors with care. In case of breakage, tempered glass shatters into small, relatively harmless pieces.
• Chemical Odor: Some new furniture may emit a temporary odor. Ensure adequate ventilation during and after assembly.

3. Package Contents

Before beginning assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, contact Modway customer support.

• Cabinet Panels (Top, Bottom, Sides, Back)
• Arched Top Piece
• Adjustable Shelves (2)
• Fixed Shelf (1)
• Drawer Components (Fronts, Sides, Backs, Bottoms)
• Tempered Glass Doors (2)
• Hardware Pack (Screws, dowels, cam locks, hinges, drawer glides, handles, foot pads)
• Assembly Tools (e.g., Allen wrench, if required)

Note: The cabinet typically arrives in multiple boxes. Ensure all boxes are received before unpacking.

4. Assembly Instructions

Assembly is required for this product. It is recommended to have at least two people for assembly due to the size and weight of some components. Clear a spacious area for assembly and lay out all parts on a soft, clean surface to prevent scratches.

4.1 General Assembly Guidelines

• Read the entire instruction manual carefully before starting.
• Identify and sort all hardware components by their labels (usually letters) and wooden panels by their numbers.
• Use a manual screwdriver for most fasteners to avoid overtightening, which can damage the wood. An electric drill with adjustable torque can be used on a low setting with caution.
• Ensure all connections are secure but do not overtighten.
• Periodically check and tighten hardware after initial assembly and during use.

4.2 Step-by-Step Assembly (General Sequence)

1. Prepare Components: Unpack all parts and verify against the parts list.
2. Assemble Base: Attach the tapered wood legs to the bottom panel.
3. Construct Main Frame: Connect side panels to the bottom panel, then attach the fixed shelf and any internal support beams.
4. Install Drawer Glides: Secure drawer glides to the interior side panels of the cabinet.
5. Assemble Drawers: Construct the drawers by attaching sides, backs, and bottoms to the drawer fronts. Install drawer glides onto the assembled drawers.
6. Install Back Panel: Secure the back panel to the main frame. This often involves small fasteners or screws.
7. Attach Top Panel and Arched Piece: Secure the top panel, then carefully attach the arched top piece.
8. Install Doors: Attach hinges to the tempered glass doors, then mount the doors to the cabinet frame. Adjust hinges for proper alignment.
9. Insert Adjustable Shelves: Place shelf pins into desired holes and rest the adjustable shelves on them.
10. Attach Handles: Secure the metal ring pull handles to the doors and drawers.
11. Final Check: Ensure all connections are tight and the cabinet is stable.

Figure 2: Cabinet dimensions: 39.4" L x 16.6" W x 74.1" H.

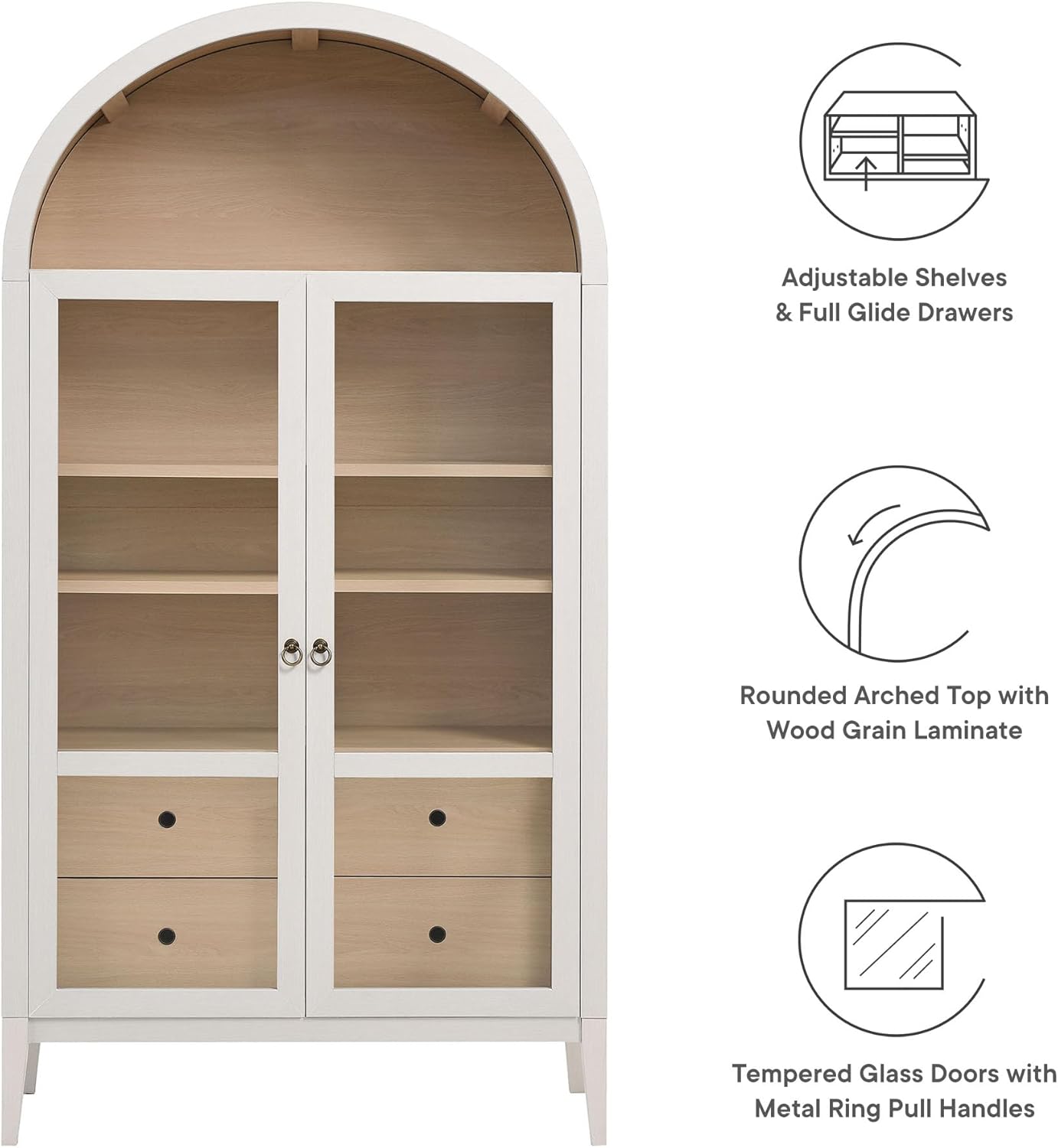

Figure 3: Key features including adjustable shelves, rounded arched top, and tempered glass doors.

5. Operating Instructions

5.1 Adjusting Shelves

The cabinet features two adjustable shelves. To adjust their height:

1. Remove all items from the shelf you wish to adjust.
2. Carefully lift the shelf and remove the four shelf pins from their current holes.
3. Insert the shelf pins into the desired new holes, ensuring they are level.
4. Place the shelf back onto the pins, ensuring it is securely seated.

5.2 Using Doors and Drawers

• Doors: Open and close the tempered glass doors using the metal ring pull handles. The soft-close hinges will ensure a gentle closing action. Avoid forcing the doors.
• Drawers: Pull the drawers open using the integrated handles. The full-glide mechanism allows for smooth extension. Push firmly to close.

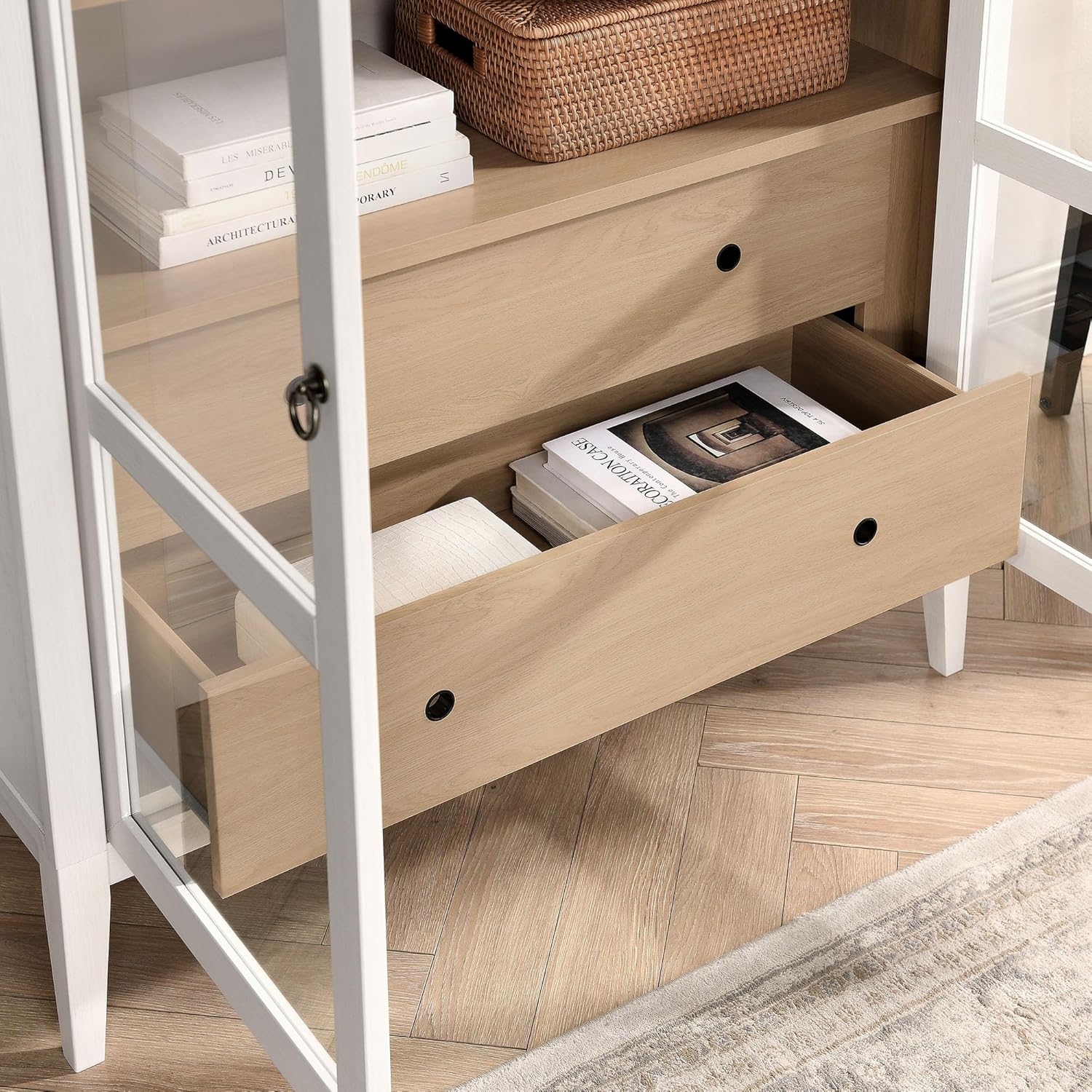

Figure 4: Detail of an open drawer, showcasing the full-glide mechanism.

6. Maintenance and Care

• Cleaning: Wipe surfaces with a soft, damp cloth. Avoid abrasive cleaners, harsh chemicals, or excessive moisture, which can damage the finish.
• Dusting: Regularly dust with a dry, soft cloth.
• Spills: Clean spills immediately to prevent staining or damage to the wood laminate.
• Hardware: Periodically check all screws and fasteners to ensure they remain tight. Retighten as necessary to maintain structural integrity.
• Sunlight Exposure: Avoid prolonged exposure to direct sunlight to prevent fading or discoloration of the finish.
• Heat and Moisture: Keep the cabinet away from direct heat sources and areas of high humidity.

7. Troubleshooting

8. Specifications

9. Warranty and Support

For warranty information, missing parts, or technical assistance, please contact Modway customer support directly. Keep your purchase receipt and model number (EEI-7168-IVO-OAK) handy for faster service.

Visit the official Modway website for contact details and further product information: Modway Store
