1. Product Overview
The Alpicool GE40 is a versatile 37-liter portable compressor car refrigerator designed for travel, camping, and outdoor activities. It offers efficient cooling and freezing capabilities, operating on both 12/24V DC and 100-240V AC power sources. Key features include rapid cooling, a 3-stage battery protection system, and a durable design suitable for various environments.
Figure 1: Alpicool GE40 with key features highlighted, including interior LED light, LED display, anti-slip cup holder, car/home use port, durable door latch, recessed handle, drain plug, refrigerator fixed slot, reversible door, and bottle opener.
Key Features:
- 37-Liter Capacity: Accommodates up to 54 cans (355ml) or various food and beverage items.
- Rapid Cooling: Equipped with a turbo cooling compressor, capable of reaching temperatures as low as -20°C (-4°F).
- Dual Power Supply: Operates on 12/24V DC for vehicles and 100-240V AC for home use.
- 3-Stage Battery Protection: Automatically adjusts power consumption to prevent vehicle battery discharge.
- 40° Dynamic Tilt Technology: Maintains cooling performance even on uneven surfaces or during movement.
- Multi-functional Lid: Features two leak-proof cup holders, a measuring ruler, and an integrated bottle opener.
- Low Noise Operation: Designed for quiet performance, typically below 45dB.
- Reversible Door: Allows for flexible opening direction, installable on the left or right side.
2. Setup and Installation
2.1 Unpacking
Carefully remove the refrigerator from its packaging. Inspect the unit for any signs of damage during transit. Retain all packaging materials for future transport or return if necessary.
Figure 2: Included items: 1 Car Fridge, 1 DC Power Cord (12/24V), 1 AC Adapter (100-240V), and 1 User Manual.
2.2 Power Connection
The Alpicool GE40 can be powered by two methods:
- DC Power (12V/24V): Use the provided DC power cord to connect the refrigerator to your vehicle's 12V or 24V power outlet (cigarette lighter socket). Ensure the connection is secure.
- AC Power (100-240V): Use the provided AC adapter to connect the refrigerator to a standard household electrical outlet.
Before connecting, ensure the power source voltage matches the refrigerator's requirements. The unit is designed for portability and can be used in cars, trucks, or indoors.
Figure 3: Power connection options for various uses: car, truck, and indoor.
2.3 Reversible Door Installation
The refrigerator's door can be configured to open from either the left or right side to suit your preference and installation space. Refer to the detailed instructions in the included user manual for specific steps on how to reverse the door's opening direction.
Figure 4: The reversible door feature allows for flexible installation.
3. Operation
3.1 Control Panel and Display
The refrigerator features an intuitive LED display and control buttons for adjusting settings. The display shows the current internal temperature and selected mode.
Figure 5: Product details showing the lid display and other functional components.
3.2 Temperature Setting and Cooling Modes
The Alpicool GE40 offers a wide cooling range from -20°C to 20°C (-4°F to 68°F). You can select between two cooling modes:
- MAX Mode (60W): Provides fast and powerful freezing for quick temperature reduction.
- ECO Mode (45W): Offers low energy consumption for extended operation, ideal when power efficiency is critical.
Adjust the temperature using the '+' and '-' buttons on the control panel. Press the mode button to switch between MAX and ECO modes.
Figure 6: Recommended temperatures for various items, demonstrating the wide cooling range.

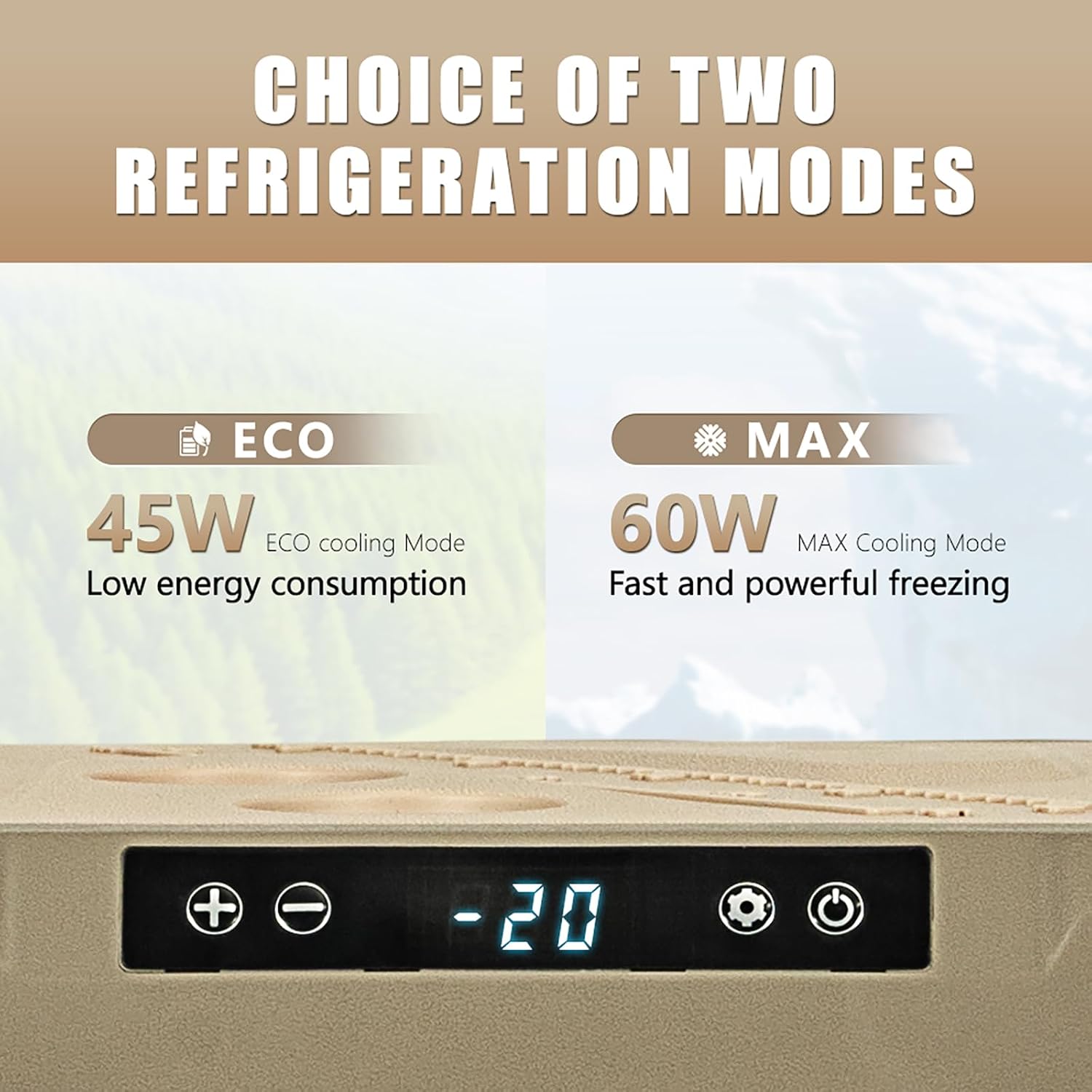

Figure 7: ECO (45W) for low energy consumption and MAX (60W) for fast cooling.
3.3 Battery Protection System
The refrigerator includes a 3-level battery protection system (High, Medium, Low) to prevent your vehicle's battery from fully discharging. This system automatically monitors the input voltage and shuts off the compressor if the voltage drops below a set threshold. You can select the desired protection level based on your vehicle's battery type and usage.
Figure 8: Overview of key features including the 3-level battery protection mode.
3.4 Smart App Control
The Alpicool GE40 can be controlled via a smartphone application. This allows you to monitor and adjust the temperature, change cooling modes, and check battery status remotely. Refer to the separate app instructions for pairing and usage.
3.5 Low Noise Operation
The compressor is designed to operate quietly, typically producing noise levels below 45dB. This ensures minimal disturbance during use, whether in a vehicle or indoors.
Figure 9: Noise level comparison, highlighting the refrigerator's quiet operation.
4. Maintenance
4.1 Cleaning
Regular cleaning helps maintain the refrigerator's efficiency and hygiene.
- Interior: Disconnect power before cleaning. Use a soft cloth dampened with mild detergent and warm water to wipe the interior surfaces. Rinse with a clean, damp cloth and dry thoroughly. The interior is designed for easy cleaning.
- Exterior: Wipe the exterior with a soft, damp cloth. Avoid abrasive cleaners or solvents.
- Drain Plug: The unit includes a drain plug for easy water removal during cleaning or defrosting. Open the plug to drain any accumulated water.
4.2 Defrosting
If ice accumulates inside the unit, disconnect power and allow the ice to melt naturally. Use the drain plug to remove water. Do not use sharp objects to remove ice, as this can damage the cooling system.
4.3 Storage
When storing the refrigerator for an extended period, ensure it is clean and dry. Leave the lid slightly ajar to prevent odors and mold growth. Store in a dry, well-ventilated area.
5. Troubleshooting
Before contacting support, please review the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|
| Refrigerator does not turn on. | No power supply; loose connection; blown fuse in vehicle. | Check power cord connection. Ensure power outlet is functional. Check vehicle's fuse box. Try a different power source (AC vs. DC). |
| Refrigerator is not cooling sufficiently. | Temperature setting too high; ventilation blocked; excessive items inside; door not sealed properly; ambient temperature too high. | Lower the temperature setting. Ensure proper ventilation around the unit. Do not overfill. Check door seal for obstructions. Operate in MAX mode for faster cooling. |
| Display shows an error code. | Internal fault; sensor issue. | Refer to the full user manual for specific error code meanings. Try restarting the unit. If the problem persists, contact customer support. |
| Excessive noise during operation. | Unit not level; fan obstruction; normal compressor operation. | Ensure the refrigerator is on a stable, level surface. Check for any objects obstructing the fan. Some compressor noise is normal, especially in MAX mode. |
| Vehicle battery drains quickly. | Battery protection level set too low; prolonged use with engine off. | Adjust the battery protection level to a higher setting (e.g., 'High'). Avoid extended use when the vehicle engine is off. |
6. Technical Specifications
Figure 10: External dimensions (61.4cm x 36.5cm x 44.4cm) and internal capacity (37L, holding 54x 355ml cans, 29x 500ml bottles, or 16x 750ml bottles).
| Feature | Detail |
|---|
| Model Name | GE40 |
| Brand | Alpicool |
| Capacity | 37 Liters |
| Cooling Range | -20°C to 20°C (-4°F to 68°F) |
| Power Source | 12V/24V DC, 100-240V AC |
| Rated Power | 60W |
| Product Dimensions (D x W x H) | 36.5 cm x 61.4 cm x 44.4 cm (14.4 in x 24.2 in x 17.5 in) |
| Net Weight | 12.9 kg (28.4 lbs) |
| Noise Level | ≤45 dB |
| Refrigerant | R-600A |
| Defrost System | Manual |
| Special Features | Advanced Cooling Technology, Tilt Sensor (40°), Fast Cooling, 3-Stage Battery Protection, Smart App Control |
7. Warranty Information
The Alpicool GE40 portable refrigerator comes with a comprehensive warranty:
- Compressor: 3-year warranty from the date of purchase.
- Other Parts: 1-year warranty on all other parts of the refrigerator from the date of purchase.
Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects and malfunctions under normal use. It does not cover damage caused by misuse, accidents, unauthorized repairs, or normal wear and tear.
8. Customer Support
For technical assistance, warranty claims, or any questions regarding your Alpicool GE40 portable refrigerator, please contact Alpicool customer service. Refer to the contact information provided in your product packaging or visit the official Alpicool website for support details.
