IKT Hot and Cold Water Cooler Dispenser with Ice Maker User Manual

1. Introduction

Thank you for choosing the IKT Hot and Cold Water Cooler Dispenser with Ice Maker. This versatile 3-in-1 appliance is designed to provide convenient access to hot, cold, and room-temperature water, along with automatic ice production. It is an essential addition to any home or office setting, ensuring refreshing beverages are always at hand.

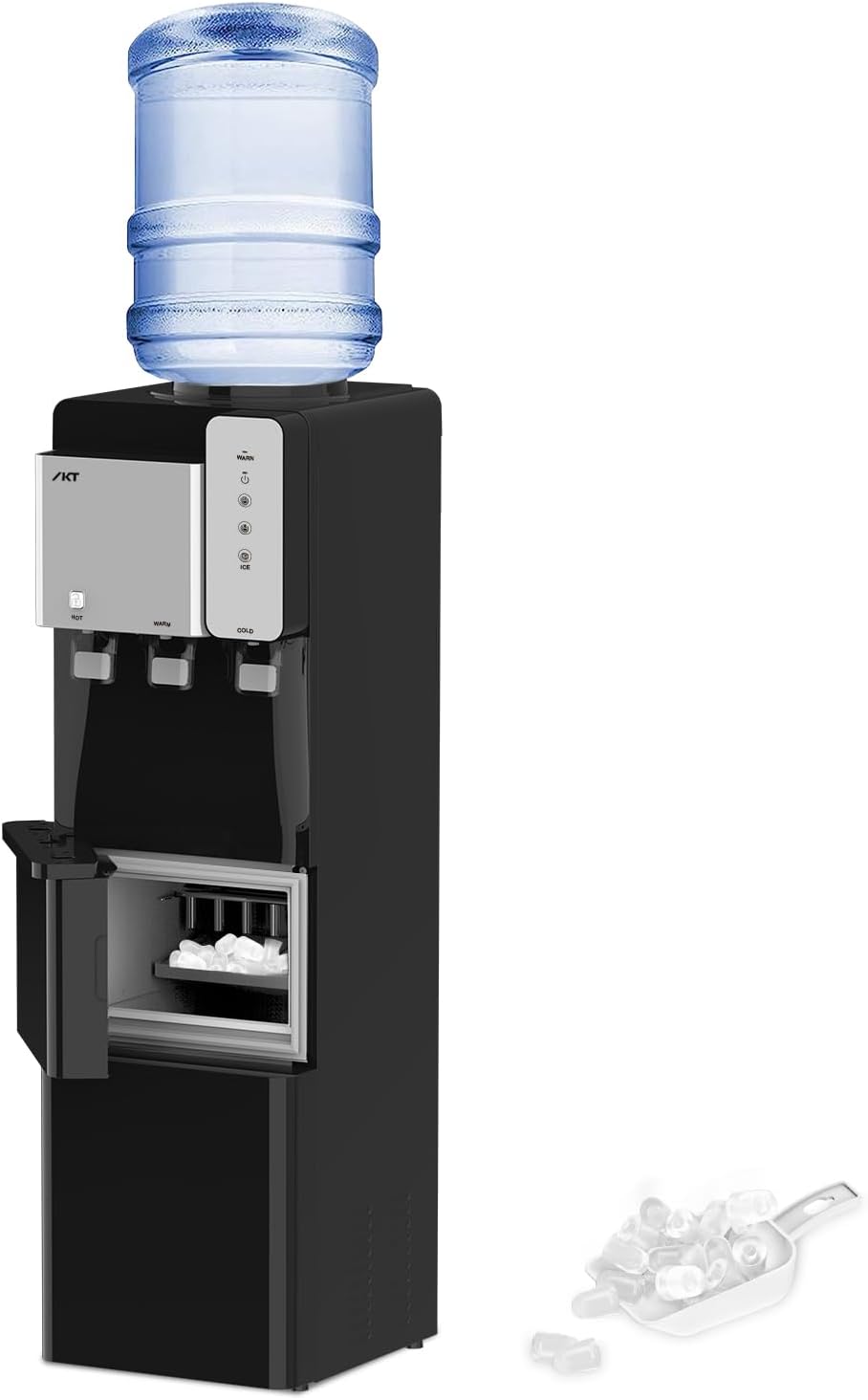

The IKT Hot and Cold Water Cooler Dispenser with Ice Maker, showcasing its sleek black design and top-loading water bottle.

2. Safety Information

Please read all safety instructions carefully before operating the appliance to ensure safe and proper use.

• Always ensure the hot water dispenser's child safety lock is engaged to prevent accidental burns, especially in households with children.
• Do not operate the appliance if the power cord or plug is damaged. Contact customer support immediately.
• Keep the appliance away from direct sunlight, heat sources, and flammable materials.
• Ensure adequate ventilation around the unit by maintaining a minimum distance of 4 inches from walls or other objects.
• Do not immerse the appliance, cord, or plug in water or other liquids.
• Unplug the unit before cleaning or performing any maintenance.

The hot water dispenser features a child safety lock for enhanced user protection.

3. Product Components

Familiarize yourself with the main components of your water cooler dispenser:

• Top-loading water bottle receptacle
• Hot water dispenser with child safety lock
• Warm water dispenser
• Cold water dispenser
• Ice maker compartment with ice bin
• Removable drip tray
• Intuitive touch screen control panel
• Integrated night light

Overview of the IKT water dispenser, highlighting its compact dimensions of 14.1 inches deep, 12.2 inches wide, and 41.4 inches high.

4. Setup Instructions

4.1 Unpacking and Placement

1. Carefully remove all packaging materials from the unit.
2. Place the water cooler dispenser on a flat, stable, and level surface. Ensure it is away from direct sunlight, heat sources, and areas with high humidity.
3. Allow the unit to stand upright for at least 30 minutes before plugging it in. This allows the refrigerant to settle, ensuring optimal performance.

4.2 Drip Tray and Water Bottle Installation

1. Insert the removable drip tray into its designated slot below the dispensing nozzles.
2. Clean the smart water barrel seat on top of the unit.
3. Carefully place a standard 5-gallon water bottle onto the top-loading receptacle. Ensure it is seated firmly and the water flows into the unit.

4.3 Initial Power-Up

1. Plug the unit into a grounded electrical outlet.
2. Allow the unit to cool and heat water for approximately 15-20 minutes before initial use.

5. Operating Instructions

5.1 Water Dispensing

The intuitive touch screen control panel allows for easy selection of water temperature:

• Cold Water: Press the cold water paddle. The cooling capacity is ≤10°C (50°F) at 3 liters per hour.
• Hot Water: For safety, engage the child safety lock first, then press the hot water paddle. The heating capacity is ≥90°C (194°F) at 5 liters per hour.
• Room Temperature Water: Press the room temperature water paddle for unchilled and unheated water.

5.2 Ice Making Function

Your IKT dispenser features an automatic ice maker:

• To start ice production, press the dedicated 'ICE' button on the control panel.
• The unit produces 9 bullet-shaped ice cubes per cycle, with each cycle taking approximately 5-7 minutes.
• The daily ice production capacity is up to 27 lbs.
• Important Note: This ice maker does not keep ice frozen automatically. To prevent melting, it is highly recommended to transfer the newly made ice to a freezer for long-term storage.

Details on the ice making process, showing 8 minutes for fast ice-making, 9 pieces per cycle, and a 27 lbs daily capacity. Note: Does not keep ice frozen.

5.3 Additional Features

• Night Light: An integrated night light provides soft illumination, making it easy to dispense water or ice in low-light conditions.
• Automatic Shut-Off System: The machine is equipped with an auto shut-off system. It will stop working if there is insufficient water in the reservoir or when the ice bin is full.

The IKT water dispenser features an integrated nightlight for convenient use in the dark.

6. Maintenance

Regular maintenance ensures the longevity and hygienic operation of your water cooler dispenser.

• Exterior Cleaning: Wipe the exterior surfaces with a soft, damp cloth. Avoid abrasive cleaners or solvents.
• Drip Tray Cleaning: The removable drip tray should be cleaned frequently to prevent water overflow and maintain hygiene. Simply slide it out, empty, wash with mild soap and water, and reinsert.
• Internal Cleaning (Plastic Taste): As with most new appliances, a plastic taste may be present upon initial start-up. To remove this, clean the water cooler with citric acid solution and completely drain the unit with no water source attached after the citric solution.
• Stainless Steel Tank: The durable stainless steel weld tank is designed for long-lasting performance and prevents overheating.

Illustration of the removable drip tray, designed for easy cleaning.

7. Troubleshooting

Refer to the following common issues and their solutions:

Q: The machine was damaged.

A: Please send photos of the damaged water cooler and shipping label to customer support for a replacement.

Q: The machine doesn't keep ice frozen.

A: This unit does not keep ice cold. It is designed to make ice, which should then be transferred to a freezer for long-term storage. The unit will produce a full bin of ice and then shut off, making more as the ice melts.

Q: The water has a plastic taste.

A: As with most new appliances, an initial plastic taste can occur. Clean the water cooler with citric acid and completely drain it without a water source attached after the citric solution. If the taste persists, please contact customer support for further assistance.

Q: The water cooler didn't work.

A: Please specify the exact issue. If the machine is defective, we will provide a pre-paid return label. Providing photos or videos of the issue can help expedite the process.

Q: I want to return the item.

A: Please inform us of the return reason and specify the issue. A pre-paid return label will be provided if the machine is defective.

8. Specifications

9. Warranty and Support

Your IKT Hot and Cold Water Cooler Dispenser with Ice Maker is backed by a 1-year warranty, ensuring quality and reliability. Additionally, a 30-day return policy is in place for your peace of mind.

Should you encounter any issues or have questions regarding your water cooler, please do not hesitate to contact IKT-US customer support. We are committed to providing assistance and resolving any concerns you may have.
