1. Introduction
The Generic XB-8505 2D Desktop Barcode Scanner is an ideal solution for organizations requiring fast and accurate scanning of both 1D and 2D barcodes. This device features a sleek design combining black and gray colors, offering a wider reading range and higher speed compared to traditional scanning technologies. When a barcode passes in front of the scanning window, the device automatically recognizes it, supporting omnidirectional reading mode.

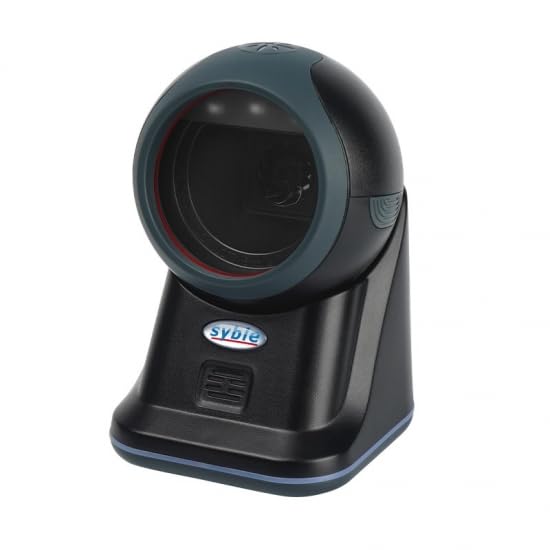

Image 1.1: The Generic XB-8505 2D Desktop Barcode Scanner, showcasing its compact design and scanning window.
2. Product Features
- Omnidirectional Reading: Supports reading barcodes from multiple angles, increasing work efficiency.
- Sleek and Durable Design: Constructed from ABS+PC materials, ensuring device durability and a modern aesthetic.
- High Scan Speed: Offers higher scan speed than traditional laser technologies, optimizing workflow.
- Automatic Recognition: Automatically recognizes barcodes when they pass in front of the scanning window, enabling hands-free operation.
- Multi-OS Compatible: Supports Windows, Mac, and Linux operating systems for broad compatibility.
3. Setup Guide
- Unpack the Scanner: Carefully remove the XB-8505 2D scanner and its USB cable from the packaging.
- Connect the USB Cable: Insert the USB cable into the designated port on the scanner.
- Connect to Computer: Plug the other end of the USB cable into an available USB port on your desktop computer.
- Driver Installation: The scanner is typically plug-and-play (HID device) and drivers will install automatically. Wait for your operating system to confirm successful device installation.
- Placement: Position the scanner on a stable, flat surface, ensuring the scanning window is clear and accessible.
4. Operating Instructions
The XB-8505 2D scanner operates in an automatic, omnidirectional mode, simplifying the scanning process.
- Power On: Once connected via USB, the scanner will power on automatically. A light indicator may confirm it is ready.
- Scanning a Barcode: Present the barcode (1D or 2D) in front of the scanner's window. The scanner will automatically detect and read the barcode from various angles.
- Successful Scan Indication: A successful scan is typically indicated by an audible beep and/or a visual confirmation light. The scanned data will be transmitted to your connected computer as keyboard input.
- Supported Barcode Types: This scanner supports a wide range of 1D and 2D barcode symbologies.
5. Maintenance
Proper maintenance ensures the longevity and optimal performance of your scanner.
- Cleaning the Scanning Window: Regularly clean the scanning window with a soft, lint-free cloth. For stubborn smudges, dampen the cloth slightly with water or a mild, non-abrasive cleaner. Avoid harsh chemicals or abrasive materials.
- General Cleaning: Wipe the exterior of the scanner with a dry or slightly damp cloth to remove dust and dirt.
- Avoid Drops and Impacts: While durable, avoid dropping the scanner or subjecting it to strong impacts, which can damage internal components.
- Storage: Store the scanner in a cool, dry place away from direct sunlight and extreme temperatures when not in use.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Scanner not recognized by computer | Loose USB connection, faulty USB port, driver issue | Ensure USB cable is securely connected. Try a different USB port. Restart your computer. |
| Barcode not scanning | Barcode damaged/unreadable, incorrect distance/angle, dirty scanning window | Ensure barcode is clear and undamaged. Adjust distance and angle. Clean the scanning window. |
| Slow scanning response | Software conflict, system resources | Close unnecessary applications. Ensure your computer meets minimum system requirements. |
| No data output after scanning | Application not in focus, incorrect keyboard layout | Ensure the target application (e.g., notepad, spreadsheet) is active. Check computer's keyboard language settings. |
7. Specifications
- Model Number: XB-8505 2D
- Brand: Generic
- Manufacturer: Saybel
- Connectivity Technology: USB
- Compatible Devices: Desktop computer
- Power Source: Corded Electric
- Item Weight: 315 grams
- Effective Viewing Angle: 45 degrees
- True Viewing Angle: 45 degrees
- Number of Units: 1 Count
- Number of Pieces: 1
8. Warranty and Support
This Generic XB-8505 2D Desktop Barcode Scanner comes with a 14-day warranty from the date of purchase. This warranty covers manufacturing defects under normal use.
For technical support, troubleshooting assistance, or warranty claims, please contact your retailer or the manufacturer directly. Please have your purchase receipt and product model number (XB-8505 2D) available when seeking support.
