GZYF BC-DLN-NBL

GZYF Steel Bobbin Case Instruction Manual

For JUKI DLN-412/415/415H and Brother DP2-B771/772/791 Sewing Machines

1. Introduction

This instruction manual provides essential information for the proper installation, operation, and maintenance of your new GZYF Steel Bobbin Case. Designed for industrial single-needle sewing machines, this bobbin case features a specialized anti-spin mechanism to enhance sewing performance and prevent common thread issues. Please read this manual thoroughly before use to ensure optimal functionality and longevity of the product.

Four GZYF steel bobbin cases, top view

Image 1.1: Four GZYF Steel Bobbin Cases. These durable steel bobbin cases are designed for industrial sewing machine applications.

2. Product Compatibility

The GZYF Steel Bobbin Case (Part Number: BC-DLN-NBL) is compatible with a wide range of industrial sewing machines. Verify your machine model against the list below:

  • For ALFA: 127, 157, 201, 209, 214, 217
  • For ADLER: 196
  • For ARTISAN: 518, 518-2
  • For Brother: DP2-B771, DP2-B772, DP2-B791
  • For Consew: 310, 315RDURKOPP
  • For JUKI: DLN-41, DLN-41-2, DLN-41H, DDL-412, DLN-412, DLN-412-2, DLN-415, DLN-415-2, DLN-415-4, DLN-415-5, DLN-415H, DLN-415H-2, DLN-415H-4, DLN-415L
  • For SINGER: 251, 281-22, 281-24, 281-81, 291U, 400W, 451K, 491D200GB, 491D200GG, 491D300GB, 491D300GG, 600W, 660A
  • For SunStar: KM-235B
  • For Toyota: AD340, -620, -B, 345-620, AD-352, AD-700, D2432

3. Features

  • Durable Construction: Manufactured from high-quality steel for long-lasting performance and stability in industrial environments.
  • Anti-Spin Spring Mechanism: A special anti-spin spring is integrated into the bobbin case assembly. This feature prevents the bobbin from spinning freely when the sewing machine stops suddenly.
  • Prevents Thread Snapping: By stabilizing the bobbin thread, the anti-spin spring significantly reduces the likelihood of a single loop of thread falling out of the bobbin case, which can cause thread breakage when sewing resumes.
  • Optimized for Trimmer Mechanisms: No Back Lash Bobbin Cases are often required for machines equipped with bobbin thread undertrimmers, as the anti-spin spring provides slight additional tension for precise trimming.

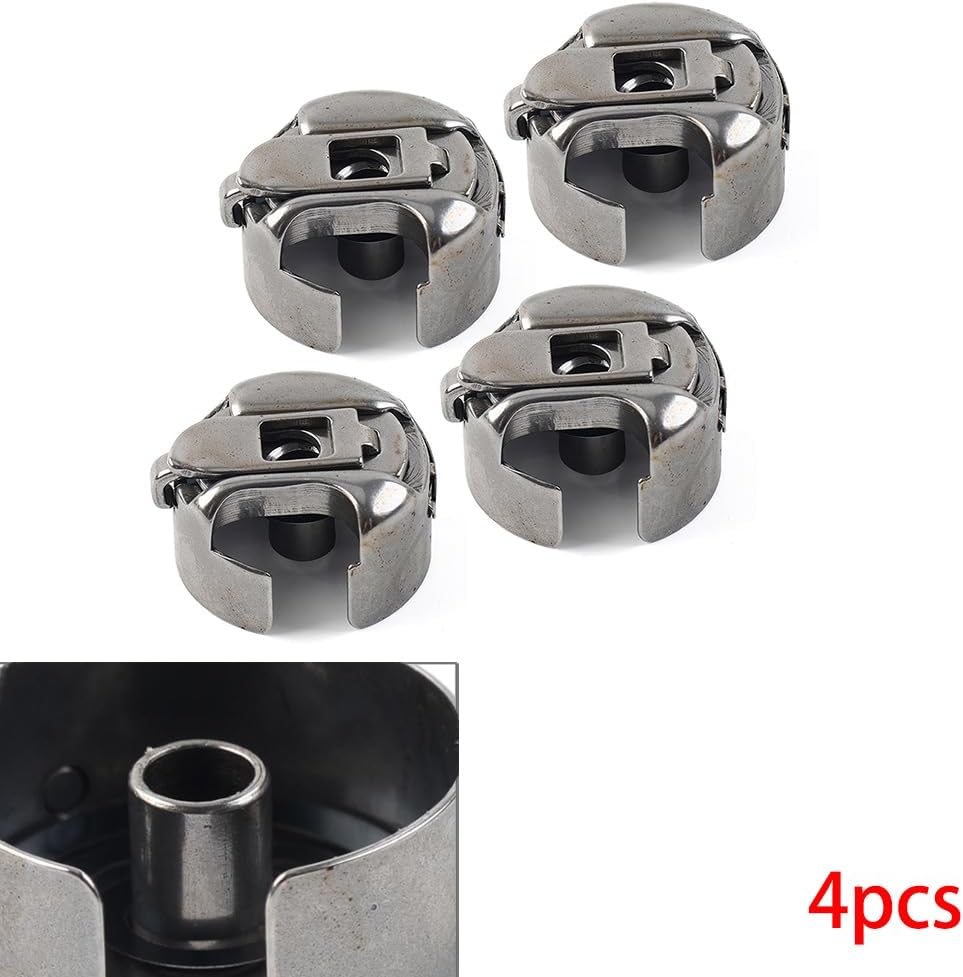

Four GZYF steel bobbin cases with a close-up of the internal mechanism

Image 3.1: GZYF Steel Bobbin Cases with internal view. The close-up highlights the internal structure, including the anti-spin spring mechanism.

4. Setup and Installation

Installing the GZYF Steel Bobbin Case is a straightforward process. Follow these steps:

  1. Locate the Shuttle Box: Identify the shuttle box area of your industrial sewing machine. This is where the bobbin case is housed.
  2. Remove Existing Bobbin Case: Carefully open the shuttle box cover and remove the old bobbin case. Refer to your sewing machine's manual if you are unsure about this step.
  3. Insert New Bobbin Case: Place the GZYF Steel Bobbin Case into the shuttle box. Ensure it is seated correctly and securely. The design allows for easy replacement, saving time and effort.
  4. Close Shuttle Box: Close the shuttle box cover.
  5. Test Functionality: Perform a few test stitches to confirm proper installation and smooth operation.
Four GZYF steel bobbin cases from a slightly angled perspective

Image 4.1: Angled view of four GZYF Steel Bobbin Cases. This view shows the latch mechanism for easy insertion and removal.

5. Operating Principles

The primary operational benefit of this bobbin case lies in its integrated anti-spin spring. During sewing, when the machine abruptly stops, the spring engages to prevent the bobbin from continuing to spin due to inertia. This controlled stop ensures that the bobbin thread remains properly tensioned and positioned within the bobbin case, preventing unwanted thread loops from forming that could lead to breakage upon restarting the machine.

6. Maintenance

To ensure the longevity and optimal performance of your GZYF Steel Bobbin Case, consider the following maintenance tips:

  • Regular Cleaning: Periodically remove the bobbin case and clean any lint, dust, or thread fragments that may accumulate inside or around it. Use a small brush or compressed air.
  • Lubrication: Apply a small drop of sewing machine oil to the moving parts of the bobbin case, particularly where the bobbin rotates, as recommended by your sewing machine's manufacturer.
  • Inspection: Regularly inspect the bobbin case for any signs of wear, damage, or deformation. Ensure the anti-spin spring is functioning correctly and not bent or broken.
  • Storage: When not in use, store the bobbin cases in a clean, dry environment to prevent rust or damage.

7. Troubleshooting

If you experience issues with thread breakage or inconsistent stitching, consider the following:

  • Thread Snapping After Stop: If the thread snaps immediately after the machine starts sewing again following a stop, it is likely due to the bobbin spinning when the machine stopped. Ensure the anti-spin spring in the bobbin case is intact and functioning. A damaged or missing anti-spin spring can cause a loop of thread to fall out, leading to breakage.
  • Incorrect Installation: Verify that the bobbin case is correctly seated in the shuttle box as described in Section 4. An improperly installed bobbin case can lead to tension issues or thread jams.
  • Lint Accumulation: Excessive lint or debris within the bobbin case or shuttle area can impede bobbin rotation and thread flow. Clean the area thoroughly.

8. Specifications

AttributeDetail
Part NumberBC-DLN-NBL
MaterialSteel
ColorSilver
TypeBobbin Case
Product Dimensions0.12 x 0.24 x 0.2 inches
Item Weight3.17 ounces (for the package of 4)
ManufacturerGZYF

9. Package Contents

Each package contains the following items:

  • 4 x GZYF Steel Bobbin Cases (Part Number: BC-DLN-NBL)
Eight GZYF steel bobbin cases displayed together

Image 9.1: Multiple GZYF Steel Bobbin Cases. This image shows a larger quantity, illustrating the typical packaging of multiple units.

10. Warranty and Support

Information regarding specific warranty terms for the GZYF Steel Bobbin Case is not provided in this manual. For warranty inquiries or technical support, please contact your retailer or the manufacturer directly through their official channels.

© 2024 GZYF. All rights reserved.
