Raysfung 10' x 30' Party Tent Instruction Manual

1. Important Safety Information

Please read and understand all instructions and safety warnings before assembling or using this product. Failure to follow these instructions may result in product damage, personal injury, or property damage.

• Weather Conditions: Do not use this tent in harsh weather conditions, including strong winds, blizzards, or storms. High winds can cause the tent to collapse or become airborne, leading to severe damage or injury.
• Snow Accumulation: In winter, clear any accumulated snow from the tent canopy promptly to prevent structural collapse due to excessive weight.
• Stability: For long-term use and enhanced safety, always ensure the tent is securely anchored. Utilize all provided ropes, ground stakes, and sandbags.
• Permanent Installation: If placing the tent on grass for an extended period, consider pouring cement around the leg bases and securing them with expansion screws (expansion screws are not included and must be purchased separately).
• Assembly Personnel: Assembly typically requires two or more adults. Do not attempt to assemble alone.

2. Product Overview

The Raysfung 10' x 30' Party Tent is designed for temporary outdoor events, offering shelter and space. It features a robust frame and versatile sidewalls.

Key Features:

• Upgraded Galvanized Frame: Constructed from powder-coated galvanized steel, resistant to rust and designed for durability.
• Ventilated Design: Includes two zippered doors that can be rolled up or removed for optimal airflow. Sidewalls are also removable.
• Enhanced Stability: Equipped with strong grips, ropes, and a triangular frame structure at the top for increased stability.
• Weather Protection: The canopy fabric is waterproof and provides UV protection.
• Removable Sidewalls: Features transparent PVC windows to allow natural light.
• Convenient Fasteners: Includes elastic ball straps for securing the canopy and dual smooth zippers for doors.

Image 2.1: Detailed view of tent features, including windows, doors, and fasteners.

Image 2.2: Visual representation of the tent's waterproof and UV-protective canopy.

3. Setup Instructions

This tent is packaged in multiple boxes (typically 4). Detailed installation instructions are included within the packaging. The following is a general guide; always refer to the specific instructions provided with your product.

Preparation:

1. Choose a flat, level area for assembly, clear of overhead obstructions and sharp objects.
2. Unpack all boxes and verify that all components are present according to the parts list in your manual.
3. Lay out all poles and connectors in an organized manner to facilitate assembly.

Assembly Steps (General):

1. Assemble the Roof Frame: Connect the roof poles and connectors as per the diagram in your manual. Ensure all connections are secure.
2. Attach the Canopy: Carefully drape the main canopy cover over the assembled roof frame. Ensure it is centered and aligned correctly.
3. Assemble the Leg Poles: Attach the leg poles to the roof frame, lifting the structure as you go. This step often requires multiple people.
4. Secure the Frame: Ensure all frame connections are tight and stable. The galvanized steel tubes and solid connecting points contribute to the tent's structural integrity.
5. Install Sidewalls and Doors: Attach the sidewalls and zippered doors using the elastic ball straps and other fasteners.
6. Anchor the Tent: This is a critical step for safety. Use all provided ropes, ground stakes, and sandbags to firmly anchor the tent to the ground. Refer to the stability image for proper anchoring techniques.

Image 3.1: Galvanized steel tubes and solid connectors for frame assembly.

Image 3.2: Methods for enhancing tent stability, including anchoring accessories.

4. Operating Guidelines

The Raysfung Party Tent offers flexibility in its configuration to suit various event needs.

Sidewall and Door Management:

• Opening Doors: Unzip the dual smooth zippers and roll up the door panels, securing them with the integrated buckles or ties.
• Removing Sidewalls: The sidewalls are attached with elastic ball straps. To remove, unfasten these straps from the frame poles.
• Ventilation: For optimal airflow on warm days, roll up the zipper doors or remove some sidewalls.
• Privacy/Protection: For full enclosure, ensure all sidewalls are attached and doors are zipped closed.

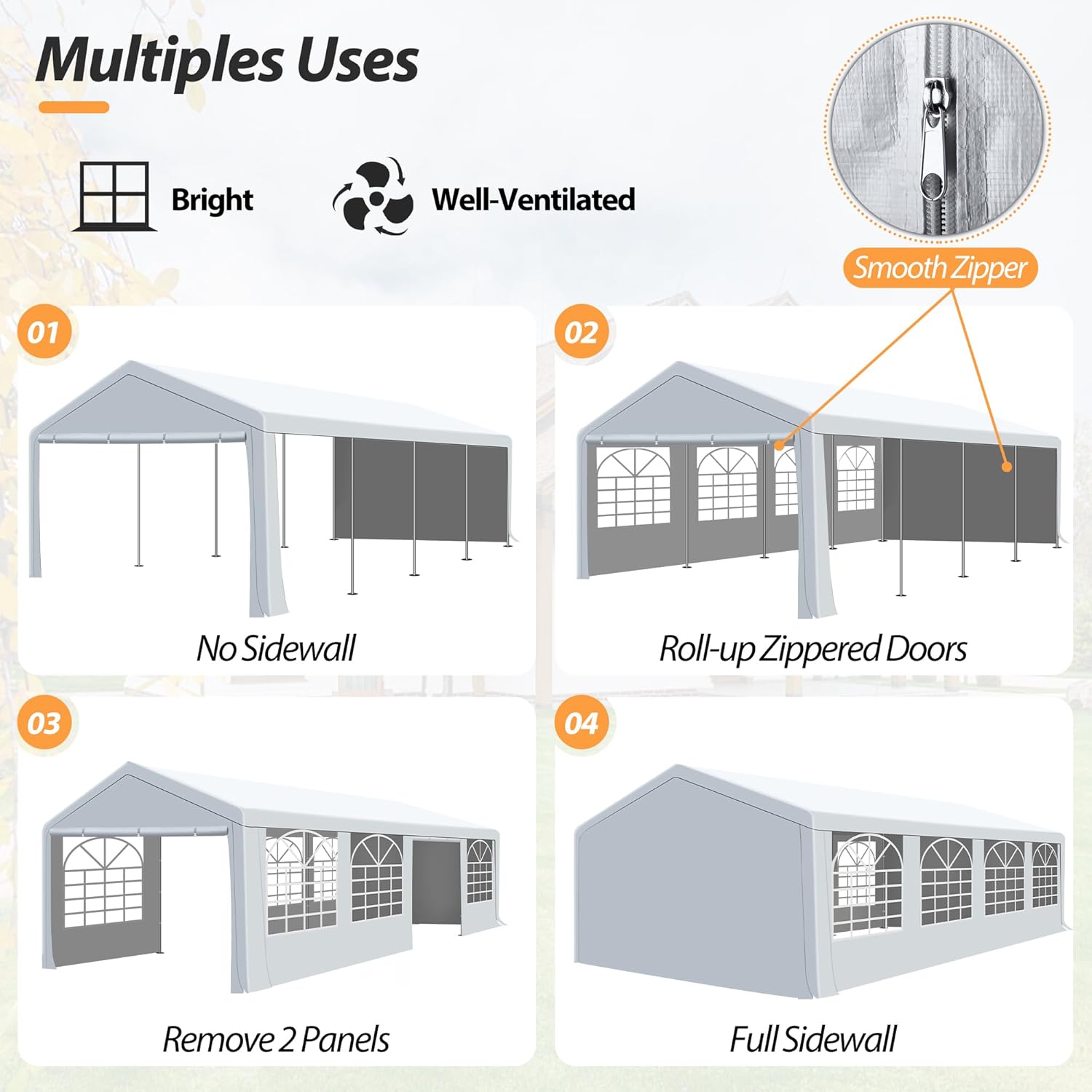

Image 4.1: Various configurations of the tent, demonstrating sidewall and door flexibility.

5. Maintenance

Proper maintenance will extend the lifespan of your Raysfung Party Tent.

• Cleaning: Clean the canopy and sidewalls with a mild soap and water solution. Avoid harsh chemicals or abrasive cleaners that could damage the fabric. Rinse thoroughly and allow to air dry completely before storage.
• Frame Inspection: Periodically inspect the galvanized steel frame for any signs of rust, bending, or damage. Address any issues promptly to maintain structural integrity.
• Storage: When not in use, disassemble the tent and store all components in a dry, cool place, away from direct sunlight and extreme temperatures. Ensure the canopy and sidewalls are completely dry to prevent mold and mildew.
• Anchoring Accessories: Check ropes, stakes, and sandbags for wear and tear. Replace damaged items as needed.

6. Troubleshooting

This section addresses common issues you might encounter.

• Tent Instability: Ensure all anchoring points (ropes, stakes, sandbags) are properly secured. Verify that all frame connections are tight. Do not use in high winds.
• Water Leakage: While the canopy is waterproof, prolonged heavy rain or improper setup can sometimes lead to leaks. Check that the canopy is taut and properly positioned over the frame, allowing water to run off. Inspect seams for any damage.
• Missing Parts: If you find any parts missing upon unpacking, please contact customer support immediately.
• Difficulty Assembling: Ensure you are following the detailed instructions provided in the box. Verify that poles and connectors are correctly oriented. Assembly often requires two or more people.

7. Specifications

Image 7.1: Dimensional specifications of the Raysfung 10' x 30' Party Tent.

8. Warranty and Support

Your Raysfung 10' x 30' Party Tent is designed for quality and durability. For any questions, concerns, or assistance with your product, please contact Raysfung customer service.

The product is typically shipped in multiple boxes. If you have any questions regarding the contents or assembly, please reach out to us for a prompt response.

For specific warranty details, please refer to the documentation included with your purchase or contact Raysfung customer support directly.
