CNCEST Safety Barrier Gate Instruction Manual

1. Introduction

This manual provides essential instructions for the safe and effective use of your CNCEST Expandable Barricade Gate. Please read this manual thoroughly before assembly and operation, and retain it for future reference. This gate is designed for use as a space divider or safety barrier in various indoor and outdoor environments.

2. Safety Information

• Ensure all components are securely fastened before use.
• Do not allow children to climb on or play with the gate.
• Regularly inspect the gate for any signs of wear or damage. Discontinue use if damage is found.
• Place the gate on a stable, level surface to prevent tipping.
• This gate is intended as a barrier and not a substitute for adult supervision.

3. Package Contents

Verify that all items listed below are present in your package:

• 1x Safety Barrier Gate (Main Assembly)
• All Needed Accessories (e.g., screws, feet pads)

4. Specifications

5. Setup and Assembly

The CNCEST Safety Barrier Gate requires minimal assembly. Follow these steps:

1. Unpack Components: Carefully remove all parts from the packaging.
2. Attach Feet Pads: Ensure the non-slip feet pads are securely attached to the bottom of the gate's bases. These pads help maintain stability and prevent floor scratches.
3. Position the Gate: Place the folded gate in the desired location.
4. Expand the Gate: Gently pull the gate outwards from both ends to expand it to the desired width. The accordion-style mechanism allows for flexible adjustment.
5. Secure the Gate (Optional): If permanent or semi-permanent installation is desired, use the provided accessories to secure the gate to a wall or post. Refer to the "Strong Structure" and "Quickly Lock Down" features for guidance on securing.

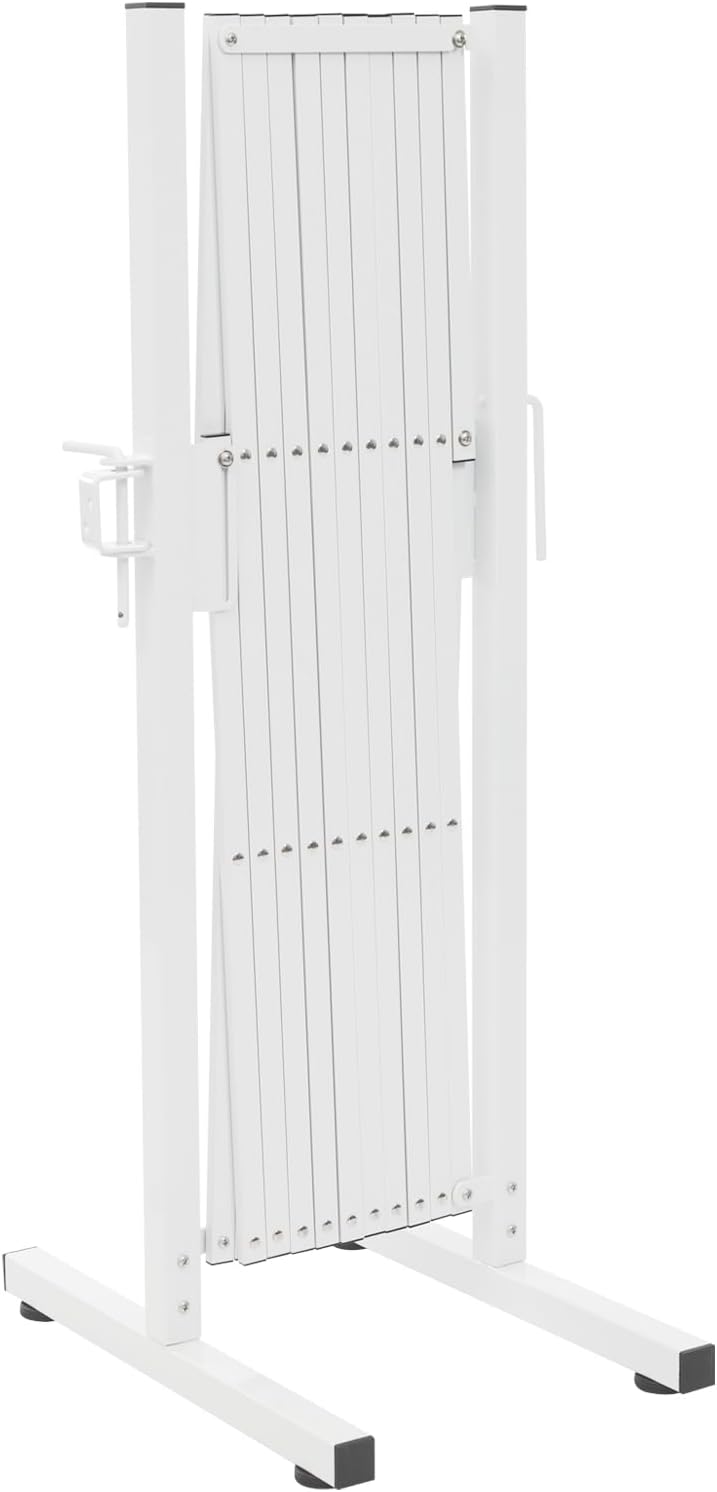

Image 1: The gate in its folded state, ready for expansion. This image shows the compact form factor, ideal for storage or narrow spaces.

Image 2: Dimensional diagram illustrating the gate's size when folded (39cm/15.4in width) and fully unfolded (330cm/130in width), both at 95cm/37.4in height.

6. Operation

The CNCEST Safety Barrier Gate is designed for flexible use as a temporary or semi-permanent barrier.

• Expanding the Gate: Hold the top rail of the gate and gently pull it horizontally to extend it to the desired length. The accordion design allows for smooth expansion.
• Folding the Gate: Push the gate horizontally from both ends towards the center until it is fully collapsed. This compact form facilitates easy storage.
• Securing the Gate: The gate can be positioned freestanding on its T-shaped bases. For enhanced stability or to lock down an area, utilize the integrated locking mechanism on the side posts. This mechanism allows for quick securing in place.
• Combining Multiple Gates: For wider areas, multiple gates can be combined. The thoughtful design includes features that allow for connecting units to create a longer barrier.

Image 3: The gate fully expanded, demonstrating its use as a barrier in an outdoor setting.

Image 4: Detail of the locking mechanism, showing how to secure the gate in position.

7. Maintenance

Proper maintenance ensures the longevity and optimal performance of your safety barrier gate.

• Cleaning: Wipe the gate with a soft, damp cloth and mild detergent. Avoid abrasive cleaners or solvents that could damage the finish.
• Inspection: Periodically check all screws and connections to ensure they are tight. Inspect the accordion mechanism for smooth operation and any signs of wear.
• Storage: When not in use, fold the gate to its compact size and store it in a dry, protected area to prevent exposure to harsh weather conditions.

Image 5: Detail of the protecting cap on the tube ends, designed to keep dirt and rainwater out, extending the product's lifespan.

Image 6: Detail of the non-slip feet pads, which provide stability and protect floor surfaces.

8. Troubleshooting

If you encounter any issues with your CNCEST Safety Barrier Gate, refer to the following common problems and solutions:

• Gate is unstable: Ensure the gate is placed on a flat, level surface. Check that the feet pads are properly installed and the T-shaped bases are fully extended.
• Difficulty expanding/folding: Inspect the accordion mechanism for any obstructions or debris. Apply a silicone-based lubricant to the moving joints if necessary, avoiding oil-based lubricants that can attract dirt.
• Gate does not stay in position: Verify that the locking mechanism is engaged correctly. If using for temporary barricading, ensure the bases are positioned to provide maximum stability.

9. Warranty and Support

For warranty information or technical support, please contact CNCEST customer service through the retailer where the product was purchased. Please have your purchase receipt and product model number (Expandable Barricade Gate) available when contacting support.

You can also visit the official CNCEST store for more information: CNCEST Store
