Introduction
Thank you for choosing the Bmax B3 Pro Mini PC. This compact and powerful desktop computer is designed for a wide range of applications, from office work and multimedia entertainment to light gaming and educational use. Featuring an Intel N5095 processor, 8GB LPDDR4 RAM, and a 256GB SSD, it offers efficient performance and versatile connectivity. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your device.
Image: The Bmax B3 Pro Mini PC, showcasing its compact design and various ports on the side and front.
Package Contents
Upon opening the package, please verify that all items are present and in good condition:
- 1 x B3 Pro Mini PC
- 1 x VESA Mount and Screws
- 1 x User Manual
- 1 x 59-inch HDMI Cable
- 1 x Power Adapter (EU Plug)
Image: Contents of the Bmax B3 Pro Mini PC package, including the mini PC, VESA mount, user manual, HDMI cable, and power adapter.
Setup
Connecting Peripherals
- Connect to Display: Use the provided HDMI cable to connect the Mini PC to your monitor or TV. The B3 Pro supports dual 4K 60Hz display output via its two HDMI 2.0 ports.
- Connect Keyboard and Mouse: Plug your USB keyboard and mouse into the available USB 2.0 or USB 3.0 ports. Alternatively, connect Bluetooth peripherals after initial setup.
- Connect to Network: For wired internet access, connect an Ethernet cable to the RJ45 port. For wireless access, the device supports Wi-Fi 5.
- Connect Power: Plug the power adapter into the DC12V/2A port on the Mini PC, then connect it to a power outlet.
Image: Detailed view of the Bmax B3 Pro Mini PC's multi-expansion interface, showing the DC12V/2A power input, RJ45 Ethernet port, USB 2.0 ports, HDMI 2.0 ports, 3.5mm audio jack, USB 3.0 ports, and power button.
Initial Power On and OS Setup
Press the power button on the front of the Mini PC. The device comes with an operating system pre-installed. Follow the on-screen instructions to complete the initial setup, including language selection, network configuration, and user account creation.
Image: The Bmax B3 Pro Mini PC connected to a network, illustrating its pre-installed operating system and readiness for use.
Operating
Basic Usage
Once the initial setup is complete, your Bmax B3 Pro Mini PC is ready for use. You can perform various tasks such as web browsing, document editing, media playback, and more. The Intel N5095 processor provides efficient performance for daily computing needs.
Image: A user engaged in office work using the Bmax B3 Pro Mini PC, demonstrating its suitability for productivity tasks.
Dual Screen Display
The B3 Pro supports dual 4K 60Hz display output, allowing for an extended workspace or multi-tasking. Connect two monitors to the HDMI ports and configure your display settings within the operating system.

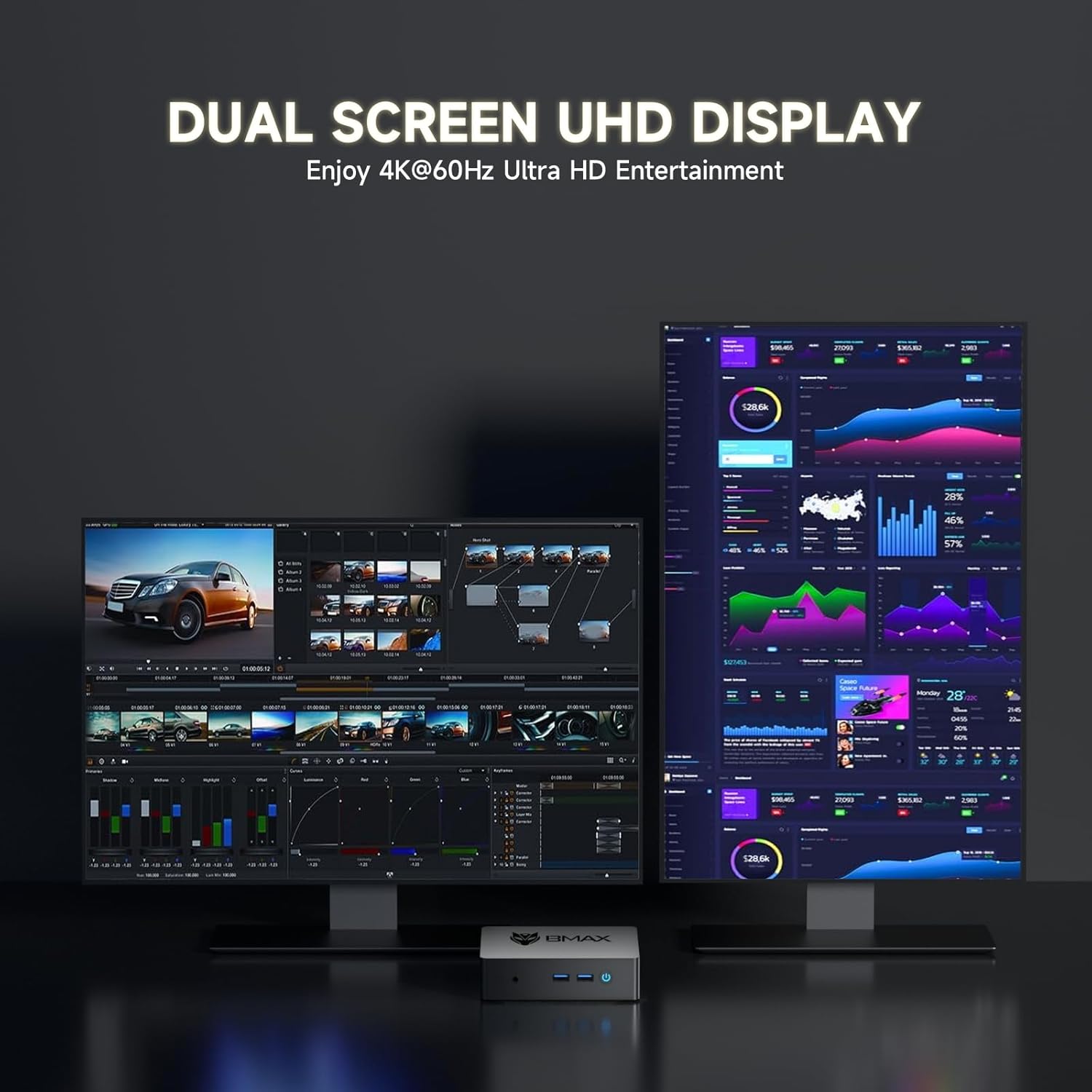

Image: The Bmax B3 Pro Mini PC connected to two monitors, showcasing its dual 4K UHD display capability for enhanced productivity and entertainment.
Storage Expansion
The Mini PC includes a 256GB M.2 SATA SSD. For additional storage, the device supports DIY expansion with more than 1TB SSD (not included). It features a dual SSD slot, supporting M.2_SATA_2280 x1 and M.2_2280_PCI-e4.0x4 (NVMe) x1.
Image: An exploded view of the Bmax B3 Pro Mini PC, highlighting the 256GB M.2 2280 SSD and 8GB LPDDR4 RAM, along with the cooling fan.
Maintenance
General Care
- Keep the device in a clean, dry environment, away from direct sunlight and extreme temperatures.
- Ensure proper ventilation. The built-in smart quiet fan helps with heat dissipation.
- Clean the exterior with a soft, dry cloth. Avoid liquid cleaners.
Image: An illustration of the Bmax B3 Pro Mini PC's built-in smart cooling fan, demonstrating its efficient and quiet heat dissipation mechanism.
Software Updates
Regularly check for and install operating system updates to ensure optimal performance and security. Ensure a stable network connection during updates, preferably wired.
One-Click Recovery
The Bmax Mini PC features a one-click smart recovery function, allowing you to quickly restore the system to factory settings. This is useful for comprehensive resets, reinstalls, or updates. Ensure the computer is connected to a stable power source before initiating recovery, as this process will erase all data.
Image: The Bmax Smart Recovery Environment screen, offering options for factory reset or exiting to the operating system.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No power/Does not turn on | Power adapter not connected or faulty; Power outlet issue | Ensure power adapter is securely connected to both the PC and a working power outlet. Try a different outlet. |
| No display on monitor | HDMI cable loose or faulty; Incorrect input selected on monitor | Check HDMI cable connections. Ensure monitor is set to the correct HDMI input. Test with another HDMI cable or monitor if possible. |
| Wi-Fi connection unstable or not found | Router issues; Driver issues; Interference | Restart your router and the Mini PC. Check Wi-Fi drivers in Device Manager. Move the PC closer to the router or reduce interference. |
| Slow performance | Too many applications running; Low disk space; Overheating | Close unnecessary applications. Free up disk space. Ensure proper ventilation and check for dust buildup. |
| No audio | Incorrect audio output selected; Driver issues; Faulty cable/speakers | Check audio output settings in the operating system. Ensure speakers/headphones are properly connected. Update audio drivers. |
Specifications
| Feature | Detail |
|---|---|
| Processor | Intel Jasper Lake N5095 (4 Cores/4 Threads, up to 2.9GHz) |
| Graphics | Intel UHD Graphics (up to 750 MHz) |
| RAM | 8GB LPDDR4 |
| Storage | 256GB M.2 SATA SSD (Expandable with M.2_SATA_2280 x1, M.2_2280_PCI-e4.0x4 NVMe x1) |
| Operating System | Pre-installed OS (Supports Linux, Ubuntu) |
| Video Output | 2 x HDMI 2.0 (Supports 4K@60Hz Dual Screen Display) |
| USB Ports | 2 x USB 3.0, 2 x USB 2.0 |
| Network | RJ45 Ethernet x1, Wi-Fi 5 |
| Bluetooth | Bluetooth 5.0 (Range up to 8 meters) |
| Audio | 3.5mm Audio Interface x1 |
| Card Reader | Micro SD Card Reader x1 |
| Dimensions | 4.9 x 4.4 x 1.73 inches (approx.) |
| Weight | 1.5 pounds (approx.) |
Image: Diagram illustrating the 11th Gen Intel Jasper Lake N5095 processor, highlighting its 4 cores, 4 threads, and key features like Intel UHD Graphics, 8GB LPDDR4, 256GB SSD, Wi-Fi 5, and Bluetooth 5.0.
Warranty and Support
Bmax provides comprehensive support for your Mini PC:
- Warranty: 12 months warranty or replacement for quality defects.
- Returns: 30-day free return policy.
- Technical Support: Lifetime technical support is available.
- Customer Service: 7x24 hours one-to-one customer service.
For inquiries, system updates, or troubleshooting assistance, please contact our IT team. You can also reach customer service by logging into your Amazon account, navigating to 'Your Account', then 'Your Orders', and selecting 'Ask Product Question' for the Bmax B3 Pro Mini PC.
Image: Information regarding Bmax after-sales support, including warranty, return policy, and contact methods.
