Introduction
Thank you for choosing the HOMSHADE 10ft Solar Lights Offset Cantilever Patio Umbrella. This manual provides essential information for the safe and efficient use, assembly, and maintenance of your new patio umbrella. Designed to enhance your outdoor living space, this umbrella features integrated solar-powered LED lights, UPF50+ UV protection, and a robust construction for durability and ease of use.
Safety Information
- Always close the umbrella during strong winds, heavy rain, or when not in use to prevent damage and ensure safety.
- Ensure the umbrella base is adequately weighted to prevent tipping. (Weight base not included, refer to recommended accessories).
- Keep children and pets away from the umbrella during opening and closing operations.
- Do not hang objects from the umbrella frame or canopy.
- Regularly inspect all parts for wear and tear. Replace damaged components immediately.
Package Contents
Please verify that all components are present before beginning assembly:
- Umbrella Canopy with Integrated LED Lights
- Offset Pole Assembly
- Cross Base (Weight base not included)
- Solar Panel (Pre-installed on top of the pole)
- Crank Handle
- Instruction Manual
Setup
1. Base Installation
Place the cross base on a flat, stable surface. It is crucial to secure the umbrella with appropriate patio weights (not included) to ensure stability. Search for B0CNCY282R for compatible weight bases.
2. Pole Assembly
Insert the main pole into the center of the cross base. Secure it according to the included hardware instructions. Ensure all connections are tight and stable.
3. Solar Panel Connection
Image: Detailed steps for connecting the solar panel. Step 1: Unscrew the solar panel. Step 2: Connect the wires. Step 3: Screw on the solar panel.
Before initial use of the solar lights, locate the solar panel on top of the umbrella. Unscrew the solar panel, connect the internal wires, and then securely screw the solar panel back into place. This activates the solar charging function.
Operating Instructions
Opening and Closing the Umbrella

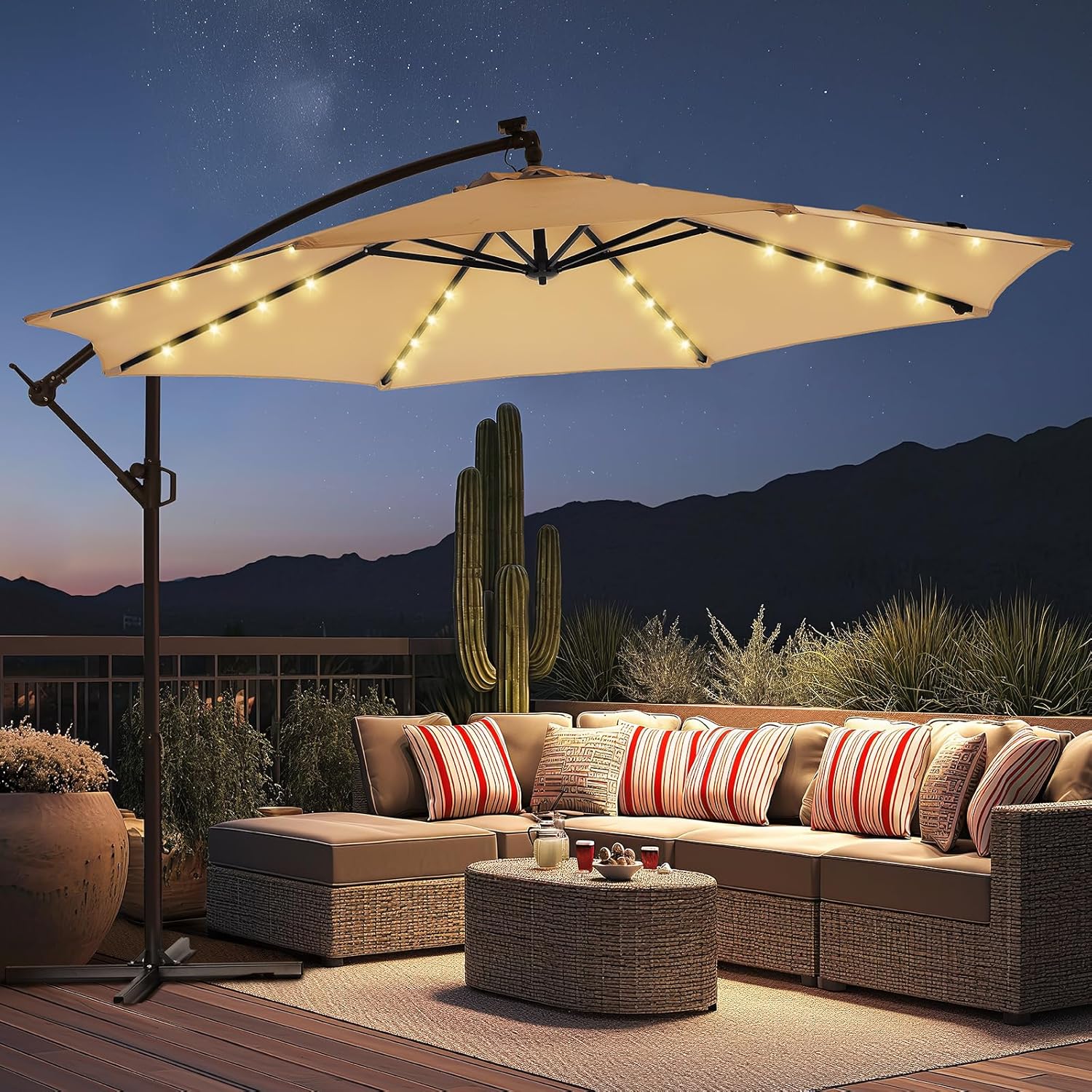

Image: The 10ft offset patio umbrella fully open with its solar LED lights illuminated at dusk, providing ambient lighting over an outdoor seating area.
To open the umbrella, turn the crank handle clockwise until the canopy is fully extended. To close, turn the crank handle counter-clockwise until the canopy is completely folded. The smooth crank system allows for easy operation.
Adjusting the Tilt
Image: An illustration demonstrating the umbrella's infinite tilt mechanism, which allows the canopy to be angled up to 45 degrees for optimal shade throughout the day.
The umbrella features an infinite tilt adjustment mechanism, allowing you to angle the canopy up to 45 degrees. This ensures the shadow is always in the desired position, providing continuous shade as the sun moves. Locate the tilt lock on the pole and adjust as needed.
Solar LED Lights Operation
Image: A detailed view of the solar panel and integrated LED lights, highlighting the 32 light beads, 10-hour running time, and 1800mAh solar panel capacity.
The 32 LED lamp beads are powered by a high-efficiency 1800 mAh rechargeable solar panel. Ensure the solar panel is exposed to direct sunlight during the day for optimal charging. The lights are designed to illuminate automatically at dusk, providing perfect lighting and a comfortable atmosphere for up to 10 hours.
Maintenance
Cleaning the Canopy
To clean the 220gsm solution-dyed fabric canopy, use a mild soap and water solution. Gently scrub with a soft brush or cloth. Rinse thoroughly with clean water and allow the canopy to air dry completely before closing or storing.
Frame Care
The durable 8-rib steel alloy frame features a double powder-coated surface for excellent rust resistance. Wipe down the frame with a damp cloth periodically to remove dirt and debris. Avoid using abrasive cleaners that could damage the finish.
Storage
When not in use, especially during extreme weather conditions such as strong winds or heavy snow, close the patio umbrella and secure it with the integrated ties. For long-term storage, it is recommended to cover the umbrella with a protective cover (not included) and store it in a dry, sheltered area to extend its service life.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Solar lights not turning on at night. |
|
|
| Umbrella is unstable or tips over. |
|
|
| Crank mechanism is stiff or not working smoothly. |
|
|
Specifications
| Brand | HOMSHADE |
| Model Number | HY21L |
| Dimensions | 10ft Diameter (Canopy), 63.4 x 12.2 x 5.7 inches (Product Package) |
| Item Weight | 33.1 pounds |
| Color | Beige |
| Material | Metal (Frame), 220gsm Solution-Dyed Fabric (Canopy) |
| Power Source | Solar Powered |
| UV Protection | UPF50+ (99.9% UV-resistant) |
| Wind Resistance | Up to 30 MPH |
| Solar Panel | 1800 mAh rechargeable |
| LED Lights | 32 lamp beads |
Warranty and Support
HOMSHADE products are designed for quality and durability. For specific warranty details regarding your 10ft Solar Lights Offset Cantilever Patio Umbrella, please refer to the warranty card included in your product packaging or visit the official HOMSHADE website. For technical support, replacement parts, or any inquiries, please contact HOMSHADE customer service through the contact information provided on the product packaging or their official website.
The canopy fabric is designed to be 3-year fade-resistant, 99.9% UV-resistant, and water-repellant, ensuring long-lasting performance.
