MELLCOM Folding Sewing and Craft Table User Manual

1. Product Overview

The MELLCOM Folding Sewing and Craft Table is designed to provide a versatile and adjustable workspace for various crafting activities, including sewing and fabric cutting. This table features a height-adjustable design, allowing users to customize the working height between 33 and 39.75 inches (84 to 102 cm) to promote ergonomic comfort. Its folding side panels enable compact storage when not in use, making it suitable for spaces where flexibility is key. Integrated storage shelves beneath the central panel offer convenient access to tools and supplies. Lockable casters ensure easy mobility and stability during use.

Image 1.1: The MELLCOM Folding Sewing and Craft Table shown fully extended, ready for use with an iron and various craft supplies on its surface and shelves.

2. Safety Instructions

• Read all instructions carefully before assembly and use.
• Ensure all components are present and undamaged before beginning assembly.
• Assemble the table on a soft, clean surface to prevent scratches.
• Tighten all screws and bolts securely, but do not overtighten. Periodically check and retighten fasteners as needed.
• Do not exceed the maximum weight recommendation of 30 kilograms (66 pounds) on the tabletop.
• Always lock the casters when the table is in use to prevent accidental movement.
• Keep small parts away from children during assembly.
• Use caution when adjusting the table height or folding/unfolding the panels to avoid pinching fingers.

3. Package Contents

Verify that all parts are included in your package. If any parts are missing or damaged, please contact customer support.

• Main Tabletop Panel (Center)
• Folding Side Panels (2)
• Adjustable Leg Assemblies (4)
• Storage Shelf Units (2)
• Lockable Casters (6)
• Assembly Hardware (screws, bolts, washers, etc.)
• Assembly Guide

4. Assembly Instructions

This product requires assembly. Please refer to the included Assembly Guide for detailed, step-by-step instructions specific to your model. The following provides a general overview:

1. Unpack all components and lay them out on a protected surface.
2. Attach the casters to the bottom of the leg assemblies. Ensure they are securely fastened.
3. Assemble the central frame structure, including the storage shelves, according to the diagrams in the Assembly Guide.
4. Attach the main tabletop panel to the central frame.
5. Connect the folding side panels to the main tabletop using the provided hinges.
6. Insert the adjustable leg assemblies into their designated slots and secure them at your desired initial height.
7. Ensure all connections are tight and the table is stable before use.

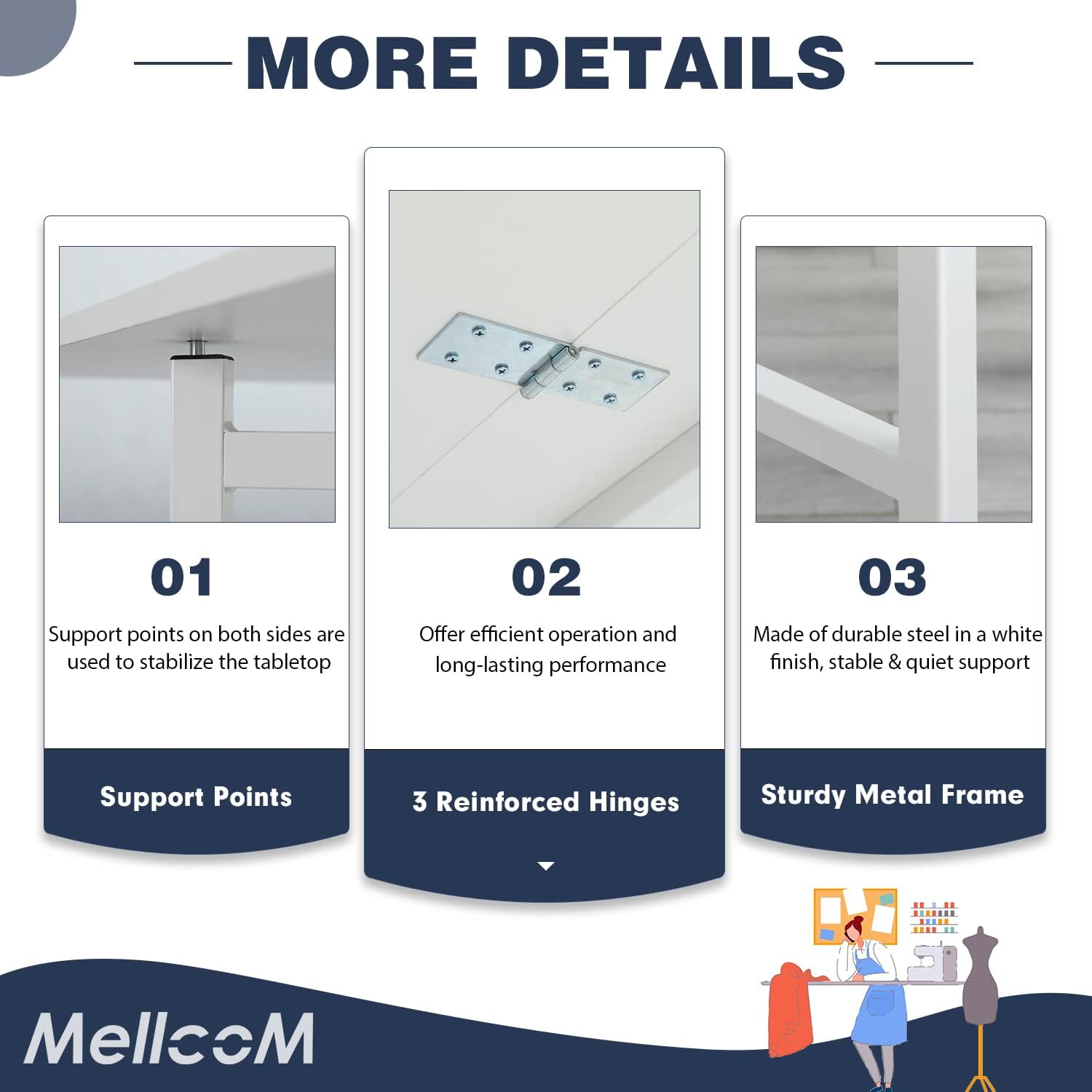

Image 4.1: Close-up views illustrating the table's construction, including support points for stability, reinforced hinges for folding panels, and the sturdy metal frame.

5. Operating Instructions

5.1 Height Adjustment

The table's height can be adjusted to seven different positions, ranging from approximately 33 inches (84 cm) to 39.75 inches (102 cm). To adjust the height:

1. Ensure the table is empty and the casters are unlocked.
2. Locate the adjustment pins or screws on each leg assembly.
3. Carefully lift the table slightly and remove the pins/loosen the screws on all four legs.
4. Adjust each leg to the desired height setting, aligning the holes.
5. Reinsert the pins/retighten the screws securely on all legs. Ensure all legs are set to the same height for stability.

Image 5.1: This image highlights key features including the height adjustment mechanism on the table legs, the lockable casters for mobility, and the bottom shelves for storage.

5.2 Folding and Unfolding the Table

The side panels of the table can be folded down for compact storage or extended to create a larger workspace.

• To Unfold: Gently lift a side panel until it is level with the main tabletop. Ensure the support legs underneath are fully extended and locked into place. Repeat for the other side panel if desired.
• To Fold: Clear any items from the side panel. Release the support legs underneath and carefully lower the side panel until it rests vertically against the central unit.

Image 5.2: A diagram detailing the table's dimensions and demonstrating its versatile folding capabilities, from fully extended to a compact, folded state.

Image 5.3: The MELLCOM table shown in its fully folded configuration, demonstrating its compact footprint suitable for storage or use as a narrow console.

5.3 Using Casters and Storage Shelves

• Casters: The table is equipped with lockable casters for easy movement. To move the table, unlock all casters. To secure the table in place, press down on the locking mechanism on each caster until it clicks.
• Storage Shelves: The two shelves located under the central tabletop provide convenient storage for craft supplies, tools, and accessories. The shelves feature raised edges to prevent items from falling off during movement.

Image 5.4: A detailed view of the table's storage shelves, emphasizing the raised edges that help keep items securely in place.

6. Maintenance

• Cleaning: Wipe the table surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
• Fasteners: Periodically check all screws and bolts to ensure they remain tight. Retighten as necessary to maintain stability.
• Casters: Keep casters free of debris to ensure smooth movement.
• Storage: When folding the table for storage, ensure it is clean and dry. Store in a cool, dry place away from direct sunlight or extreme temperatures.

7. Troubleshooting

• Table is wobbly:
  • Ensure all assembly screws and bolts are securely tightened.
  • Verify that all four legs are set to the same height.
  • Check that the casters are locked when the table is stationary.
• Difficulty folding/unfolding panels:
  • Ensure no items are obstructing the folding mechanism.
  • Check that the support legs are properly released or extended.
  • Inspect hinges for any damage or debris.
• Casters not rolling smoothly or locking:
  • Remove any hair or debris caught in the caster wheels.
  • Ensure the locking mechanism is fully engaged or disengaged.

8. Specifications

9. Warranty and Support

For warranty information, missing parts, or any questions regarding the assembly or operation of your MELLCOM Folding Sewing and Craft Table, please contact MELLCOM customer support. Refer to your purchase documentation for specific contact details or visit the official MELLCOM website.
