INKBIRD Ink-RD3 Portable Radon Detector User Manual

1. Introduction

The INKBIRD Ink-RD3 Portable Radon Detector is designed to accurately measure radon levels in your home, providing essential information for maintaining a healthy indoor environment. Equipped with an alpha spectrometer sensor and an E-Ink display, this device offers both long-term and short-term monitoring capabilities with a long-lasting battery life.

Radon is a naturally occurring radioactive gas that can accumulate in homes and is a leading cause of lung cancer. Regular monitoring with the Ink-RD3 helps safeguard your family's health by providing timely and precise radon level indications.

2. Product Overview and Features

Figure 2.1: The INKBIRD Ink-RD3 Portable Radon Detector, a compact device for continuous radon monitoring.

Key Features:

• Professional & Precise: Utilizes an alpha spectrometer sensor for accurate radon detection.
• Long & Short Term Monitoring: Tracks 1-year average and provides 24-hour updates (refreshed hourly).
• Eye-Friendly E-Ink Display: Ensures clear readability in various lighting conditions with low power consumption.
• 2-Year Battery Life: Powered by 3 AAA batteries (included) for extended, maintenance-free operation.
• Unit Switchable: Easily switch between Bq/m³ and pCi/L units.
• Portable Design: Lightweight and compact for flexible placement.

What's in the Box:

• INKBIRD Ink-RD3 Radon Detector
• 3 x AAA Batteries
• Instruction Manual
• Reset/Mode Pin

3. Setup

1. Battery Installation:

   The Ink-RD3 comes with 3 AAA batteries. To activate the device, locate the battery compartment on the back. Remove the clear plastic gasket from the battery compartment to establish contact and power on the device.



   Figure 3.1: Remove the clear plastic gasket from the battery compartment to activate the device.

2. Initial Calibration and Placement:

   Upon first use, the device will enter a "DATA COLLECTING" phase and requires approximately 24 hours to calibrate and display initial readings. During this period, it is crucial not to move the unit to ensure accurate calibration.

   For optimal accuracy, place the detector:

   • At least 20 inches (50 cm) above the ground.
   • At least 60 inches (150 cm) away from windows, doors, or vents.
   • In a major room where you spend significant time (e.g., living room, bedroom, basement). Avoid hallways or areas with high airflow.
   • Do not expose the monitor to direct sunlight or moisture.

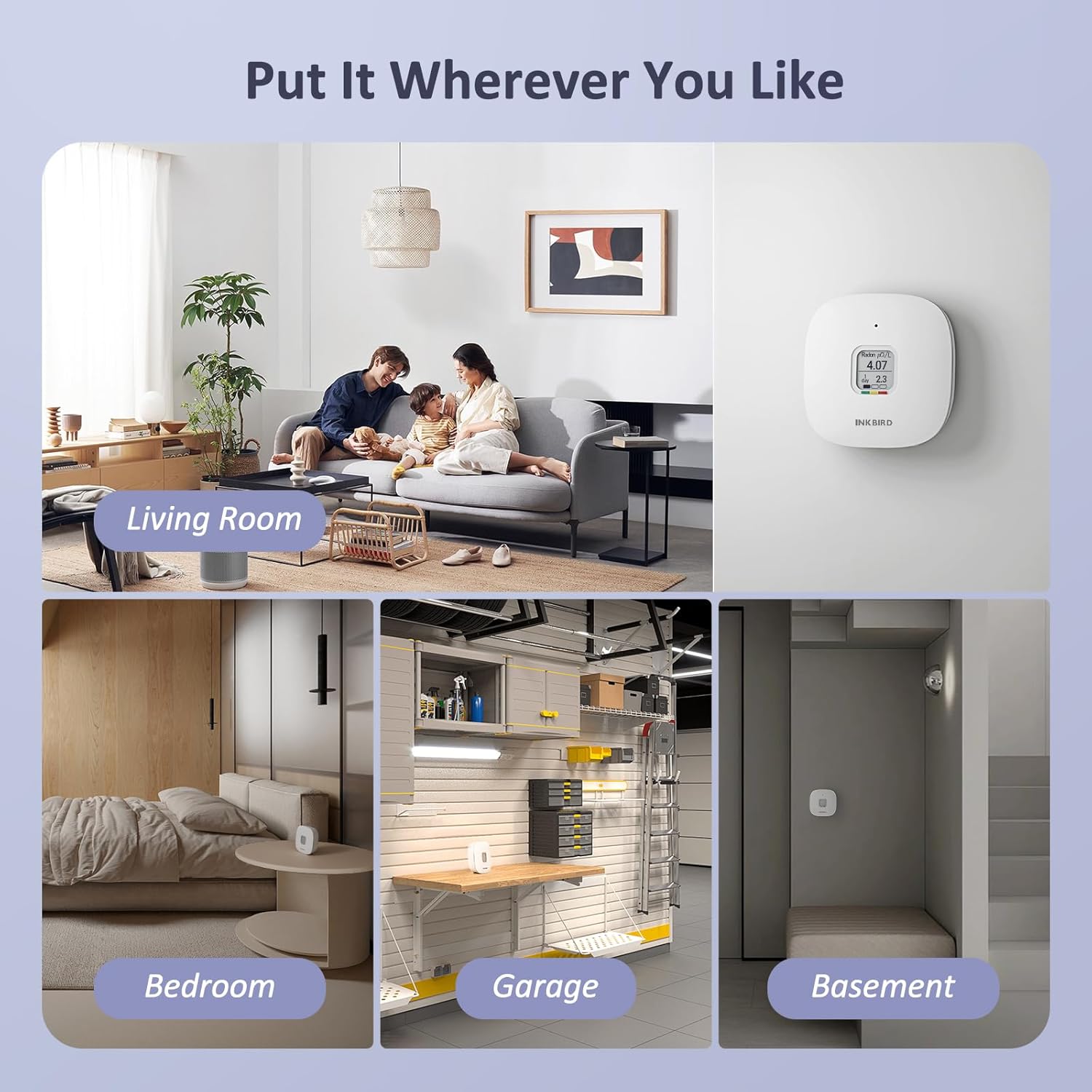

   Figure 3.2: Examples of suitable placement locations for the radon detector within a home.



   Figure 3.3: Correct placement (away from windows) vs. incorrect placement (near a window).

4. Operating Instructions

Display Information:

The E-Ink display provides clear, easy-to-read information on radon levels. It shows:

• Current Radon Level: The average radon value for the ongoing measurement (updated once every 24 hours).
• Short-Term Average: The radon value over the last hour (updated once every hour).
• Radon Threshold LED Indication Light: A colored LED light indicates the current risk level (Green: < 2.7 pCi/L, Yellow: 2.7~3.9 pCi/L, Red: ≥ 4 pCi/L).
• Low Battery Indicator: Alerts you when batteries need replacement.

Figure 4.1: The E-Ink display showing radon levels and the data collection process.

Figure 4.2: Radon level indications with corresponding color codes (Green, Yellow, Red) for quick assessment.

Changing Measurement Units (pCi/L or Bq/m³):

To switch between pCi/L and Bq/m³ units:

1. Use the provided pin to long-press the "MODE" button (located on the back of the device) for more than 1 second to enter the setting mode.
2. Press the "MODE" button once to toggle between "pCi/L ?" and "Bq/m³ ?".
3. Long-press the "MODE" button again for more than 1 second to confirm your selection.
4. The device will return to normal display with the selected unit.

Checking Measurement Days:

To check the number of days the device has been measuring since its first activation or the last reset:

• Use the provided pin to press the "MODE" button once. The display will show "MEASUREMENT DAYS" and the number of days.
• Press the "MODE" button again to cycle through other information, such as firmware version, before returning to the main display.

5. Maintenance

Battery Replacement:

The Ink-RD3 is designed for a 2-year battery life using the included 3 AAA alkaline batteries. When the low battery indicator appears on the display, replace all three batteries with new ones. Ensure correct polarity during installation.

General Care:

• Keep the device clean and dry.
• Avoid exposing it to extreme temperatures or humidity.
• Do not disassemble the device, as this may void the warranty and affect accuracy.

6. Troubleshooting

Device Not Displaying Readings / Malfunction:

If the device is not displaying readings after the initial 24-hour calibration period, or if it appears to be malfunctioning:

1. Check Batteries: Ensure the batteries are correctly installed and not depleted. Replace if necessary.
2. Reset Device: Use the provided pin to long-press the "RESET" button (located on the back of the device). This will restart the device and initiate a new 24-hour calibration period.
3. Verify Placement: Confirm the device is placed according to the guidelines in Section 3.

Figure 6.1: Back of the device showing the Reset and Mode buttons, and battery compartment.

If issues persist after performing these steps, please contact INKBIRD customer support for further assistance.

7. Specifications

8. Warranty and Support

For warranty information and customer support, please refer to the official INKBIRD website or contact their customer service directly. Keep your purchase receipt for warranty claims.

For additional resources and FAQs, visit the Inkbird Store on Amazon.
