Gaabor Mini Blender Pocket FP03T-WH01A User Manual

1. Introduction

Thank you for choosing the Gaabor Mini Blender Pocket FP03T-WH01A. This portable blender is designed for convenience, allowing you to prepare fresh beverages on the go. It features a compact design, USB charging, and comes with two cups for versatile use. Please read this manual carefully before operating the appliance to ensure safe and optimal performance.

2. Safety Instructions

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and personal injury.

• Read all instructions before use.
• Keep the blender out of reach of children.
• Do not immerse the motor base in water or other liquids. Clean with a damp cloth only.
• Ensure the cup is securely attached to the motor base before operating.
• Avoid touching moving parts, especially the blades, during operation.
• Do not operate the blender if the blades are damaged or if the appliance malfunctions.
• Do not overfill the cup. Observe the maximum fill line.
• Only use the provided USB cable for charging.
• Do not blend hot liquids, as pressure buildup can cause injury.
• Cut ingredients into small pieces (approximately 1-2 cm) before blending to prevent blade obstruction and ensure smooth operation.
• Unplug the blender before cleaning or when not in use.

3. Product Components

The Gaabor Mini Blender Pocket FP03T-WH01A includes the following components:

• Motor Base with Blade Assembly
• Blending Cup (350ml capacity)
• Additional Cup (280ml capacity)
• Lid with Handle
• USB Charging Cable
• User Manual

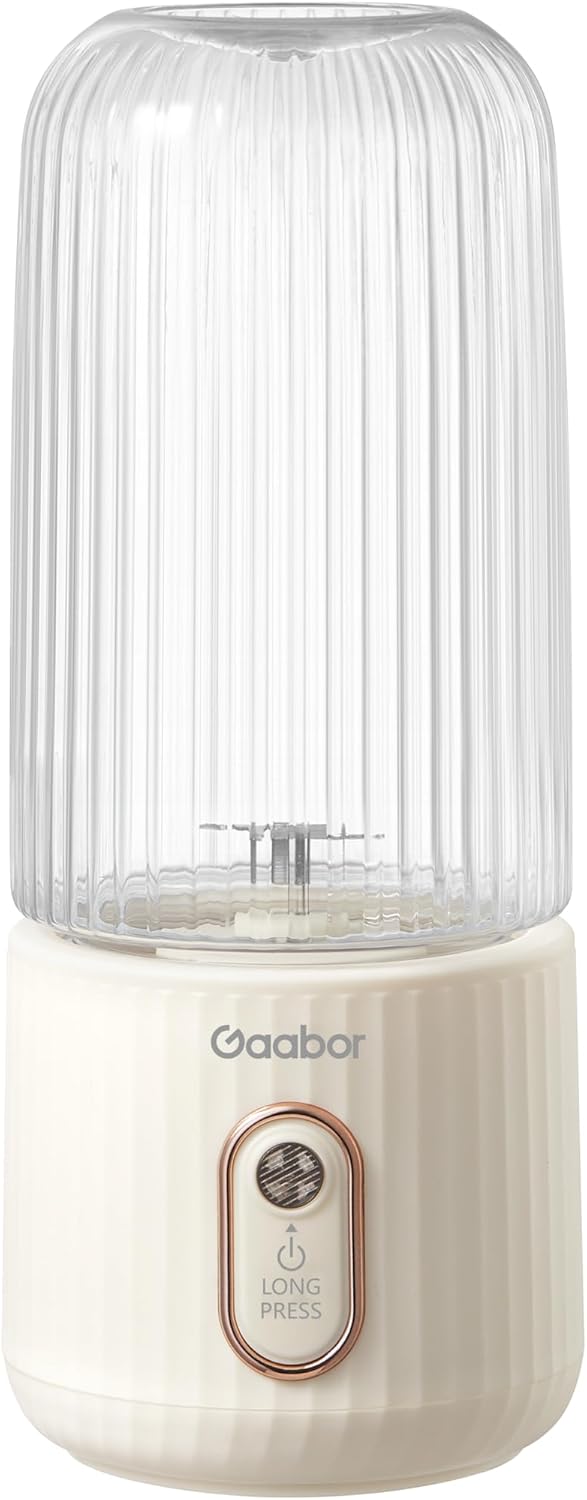

Image: Main blender unit showing the motor base, blade assembly, and blending cup.

Image: An additional blending cup with its lid and integrated handle.

4. Setup and Charging

4.1 Initial Charge

Before first use, fully charge the blender. Connect the provided USB charging cable to the charging port on the motor base and plug the other end into a compatible USB power source (e.g., computer, wall adapter). The charging indicator light will show the charging status. A full charge typically takes 4-6 hours and provides up to 60 minutes of continuous use.

Image: The mini blender being charged via its USB cable, connected to a power bank.

4.2 Assembly

1. Ensure the motor base is clean and dry.
2. Place your desired ingredients into one of the blending cups. Do not exceed the maximum fill line.
3. Align the blending cup with the motor base and twist clockwise until it is securely locked into place. The blender will not operate if the cup is not properly secured.

5. Operating Instructions

Follow these steps to operate your Gaabor Mini Blender:

1. Prepare your ingredients: Cut fruits and vegetables into small pieces (approx. 1-2 cm). Add liquid (water, milk, juice) to help with blending.
2. Assemble the blender as described in Section 4.2.
3. To start blending, press and hold the power button on the motor base for approximately 2 seconds. The blades will begin to rotate.
4. Blend until desired consistency is achieved. For best results, gently shake the blender during operation to ensure all ingredients are processed.
5. To stop blending, press the power button once. The blender will also automatically stop after a preset cycle or if the battery is low.
6. Once blending is complete, carefully unscrew the cup from the motor base. You can replace the blade assembly with the included lid for drinking or storage.

Image: A user holding the mini blender, filled with chopped fruit, demonstrating readiness for operation.

Image: The mini blender displayed with a cup of freshly blended juice and various fresh fruits, illustrating its use.

6. Cleaning and Maintenance

Proper cleaning and maintenance will extend the life of your blender.

• Before Cleaning: Always ensure the blender is turned off and disconnected from any charging source.
• Cups and Lid: The blending cups and lid are dishwasher safe (top rack only) or can be washed by hand with warm, soapy water. Rinse thoroughly.
• Blade Assembly: Exercise extreme caution when cleaning the blades as they are sharp. You can rinse the blade assembly under running water. For a quick clean, add a small amount of water and a drop of dish soap to the cup, reattach to the motor base, and run for a few seconds. Rinse thoroughly.
• Motor Base: Wipe the motor base with a damp cloth. Do not immerse the motor base in water or any other liquid.
• Storage: Store the blender in a clean, dry place when not in use.

7. Troubleshooting

8. Specifications

• Model: FP03T-WH01A
• Brand: Gaabor
• Power: 30 Watts
• Power Source: DC (Battery operated)
• Battery Type: Lithium-ion
• Continuous Use Time: Up to 60 minutes (on full charge)
• Cup Capacity: 350 ml and 280 ml
• Blades: 4 stainless steel blades
• Material: Plastic
• Dimensions: 20.5 x 10 x 18.5 cm
• Weight: 250 g
• Charging: Micro USB

9. Warranty and Support

Gaabor products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your purchase or contact Gaabor customer support. Keep your purchase receipt as proof of purchase for any warranty claims.

For technical support or service inquiries, please visit the official Gaabor website or contact their customer service department.
