ROCAM Digital Alarm Clock User Manual

Introduction

Welcome to your new ROCAM Digital Alarm Clock. This manual provides detailed instructions for setting up, operating, and maintaining your alarm clock to ensure optimal performance and longevity.

Image: Front view of the ROCAM Digital Alarm Clock, displaying the time 10:28 AM and Monday.

Product Features

Large, easy-to-read digital display with adjustable brightness.
User-friendly design for simple setup and operation.
Dual alarms with customizable weekday/weekend modes.
Soft night light with three adjustable brightness levels.
Battery backup for time memory during power outages.
USB and Type-C charging ports.
Snooze function for additional rest.
12-hour/24-hour time format and DST (Daylight Saving Time) function.

ROCAM Digital Alarm Clock with 7.5 inch display measurement

Image: The alarm clock display showing its 7.5-inch width and 1.85-inch height, highlighting its clear and bold numbers.

Setup

Powering On

Connect the alarm clock to a power source using the provided USB cable and a compatible power adapter (not included).

Battery Backup Installation

For power-off memory, insert 3 AAA batteries (not included) into the battery compartment located at the bottom of the clock. This will maintain time and alarm settings during power outages.

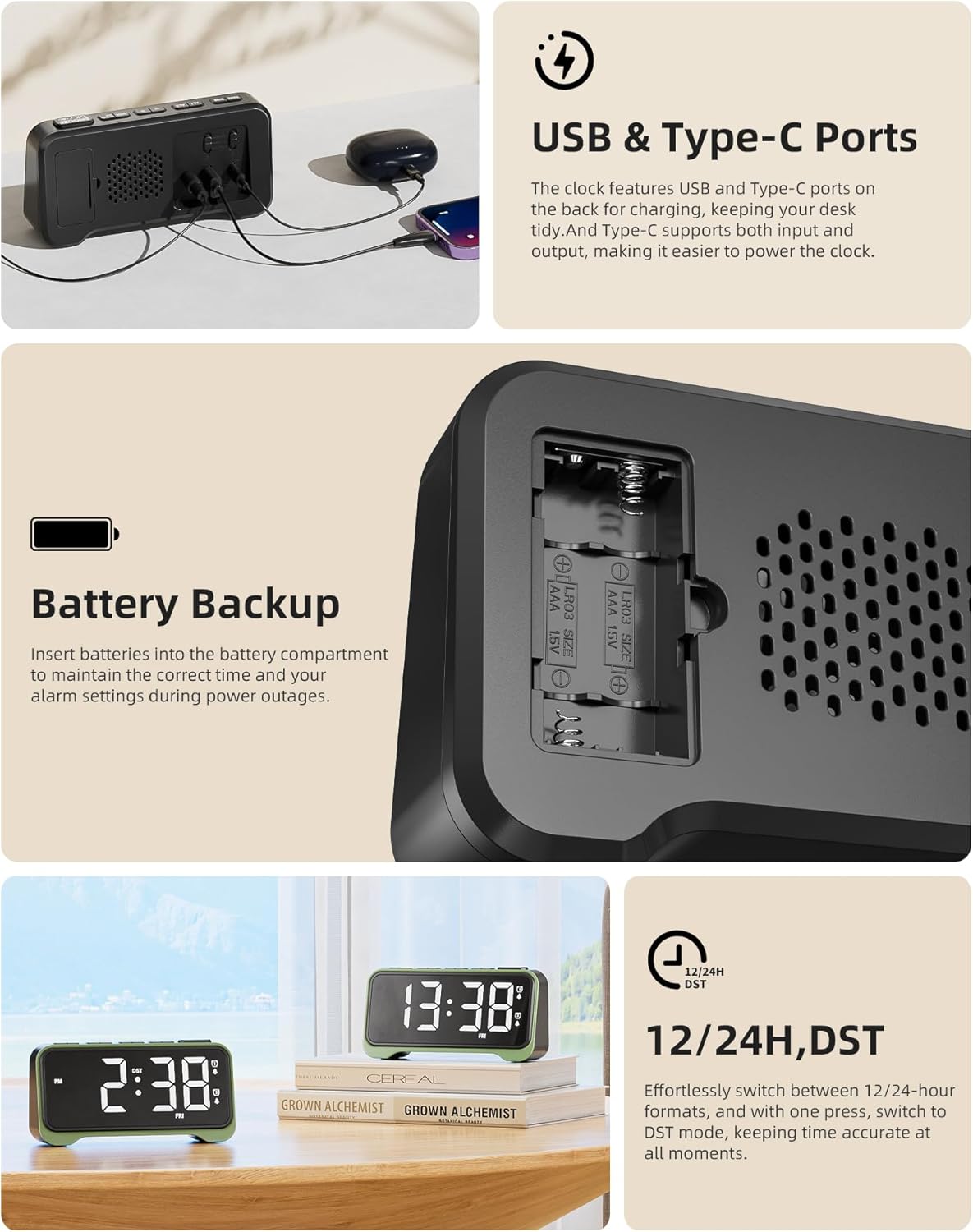

ROCAM Digital Alarm Clock with USB ports and battery compartment

Image: Close-up of the back of the alarm clock showing the USB and Type-C charging ports, and the battery compartment for AAA batteries.

Operating Instructions

Setting the Time

Press the TIME SET button. The hour digits will flash.
Use the + or - buttons to adjust the hour.
Press TIME SET again to confirm the hour and move to minute setting.
Use the + or - buttons to adjust the minutes.
Press TIME SET to save the time.

12/24 Hour Format and DST

Press the 12/24H DST button to switch between 12-hour and 24-hour time formats. Press and hold the 12/24H DST button to activate or deactivate Daylight Saving Time (DST).

Setting Alarms

This clock features dual alarms (Alarm 1 and Alarm 2).

Press the AL1 button to set Alarm 1. The hour digits will flash.
Use the + or - buttons to adjust the alarm hour.
Press AL1 again to confirm the hour and move to minute setting.
Use the + or - buttons to adjust the alarm minutes.
Press AL1 to save the alarm time.
Repeat for Alarm 2 using the AL2 button.

Weekday/Weekend Alarm Mode

On the side of the clock, there are switches to set the alarm mode for Alarm 1 and Alarm 2:

MON-FRI: Alarm sounds only on weekdays.
SAT-SUN: Alarm sounds only on weekends.
MON-SUN: Alarm sounds every day.

ROCAM Digital Alarm Clock showing dual alarm settings and weekday/weekend switches

Image: The alarm clock display with two example alarm times (7:30 AM and 9:30 AM) and close-ups of the physical switches for setting weekday/weekend alarm modes.

Snooze Function

When the alarm sounds, press the large SNOOZE/OK button to activate the snooze function. The alarm will temporarily stop and sound again after a few minutes.

Adjusting Display Brightness

Press the DIM button to cycle through different brightness levels for the display. There is also a low-light mode for night.

Night Light Function

Press the SNOOZE/OK button (when not snoozing) to turn on/off the warm night light. Press and hold the SNOOZE/OK button to adjust the night light brightness through three levels.

ROCAM Digital Alarm Clock with warm night light activated

Image: Two ROCAM Digital Alarm Clocks on a nightstand, one with the warm night light illuminated, demonstrating its soft glow.

Adjusting Alarm Volume

Use the VOL + or VOL - buttons to adjust the alarm volume. There are 5 volume levels, from soft to 110 dB.

ROCAM Digital Alarm Clock with sound waves indicating loud alarm

Image: The alarm clock with visual sound waves emanating from it, illustrating its loud alarm feature suitable for heavy sleepers.

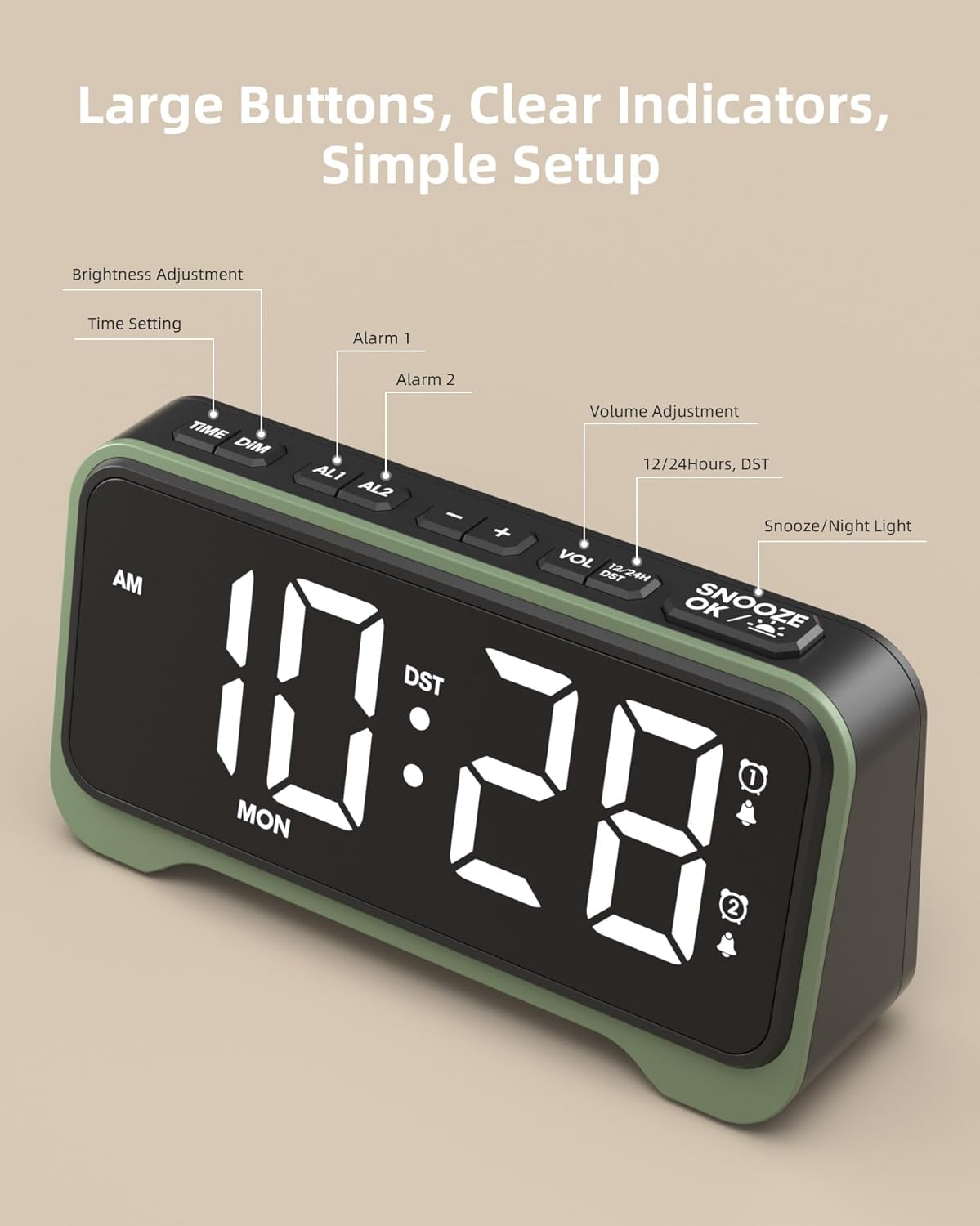

ROCAM Digital Alarm Clock with labeled buttons

Image: An angled view of the alarm clock, with labels pointing to the "TIME DIM", "AL1", "AL2", "+", "-", "VOL", "12/24H DST", and "SNOOZE OK / Night Light" buttons, indicating their functions.

Maintenance

Clean the clock surface with a soft, dry cloth.
Do not use abrasive cleaners or solvents.
Keep the clock away from water and high humidity.
If not in use for an extended period, remove the backup batteries.

Troubleshooting

Problem	Solution
Clock display is blank.	Ensure the USB power cable is securely connected to a power source and the clock. Check if the power adapter is working.
Alarm does not sound.	Verify that the alarm is set and activated. Check the alarm volume level. Ensure the weekday/weekend mode switch is set correctly.
Time is incorrect after power outage.	Ensure backup batteries are installed and have sufficient charge. Reset the time if necessary.
Display is too bright/dim.	Press the DIM button to adjust display brightness.

Specifications

Brand: ROCAM
Color: Green
Product Dimensions: 16.9W x 8.6H centimeters (approx. 16.9 x 3.81 x 8.6 cm; 300 g)
Display Type: Digital
Special Features: Loud Alarm, Large Display, Adjustable Brightness, Night Mode, Charging Port
Item Weight: 300 g
Power Source: USB (DC 5V), 3x AAA batteries for backup (not included)

Warranty and Support

For warranty information and customer support, please refer to the product packaging or contact ROCAM customer service directly.

For common questions and further assistance, visit the ROCAM official website or contact their support team.
