CHUWELL 9-Drawer Double Dresser User Manual

1. Important Safety Information

Please read and understand all instructions before assembling and using this product. Keep this manual for future reference.

• Anti-Tip Device: This dresser includes an anti-tip device. It is crucial to install this device securely to a wall to prevent the dresser from tipping over, which can cause serious injury or death.
• Weight Limits: Do not exceed the maximum weight capacity for the top surface (150 lbs) or individual drawers (40 lbs). Overloading can compromise stability and structural integrity.
• Children Safety: Never allow children to climb on or play with the dresser. Keep heavy items in lower drawers.
• Assembly: Assembly should be performed by two adults. Ensure all parts are correctly aligned and fasteners are tightened before use.
• Placement: Place the dresser on a flat, level surface. Uneven surfaces can affect stability.

Image: Illustration demonstrating the importance of the anti-tip device. The left side shows a child pulling on a dresser with the device installed, preventing it from tipping. The right side shows a child pulling on a dresser without the device, causing it to tip over, with a warning sign.

2. Product Specifications

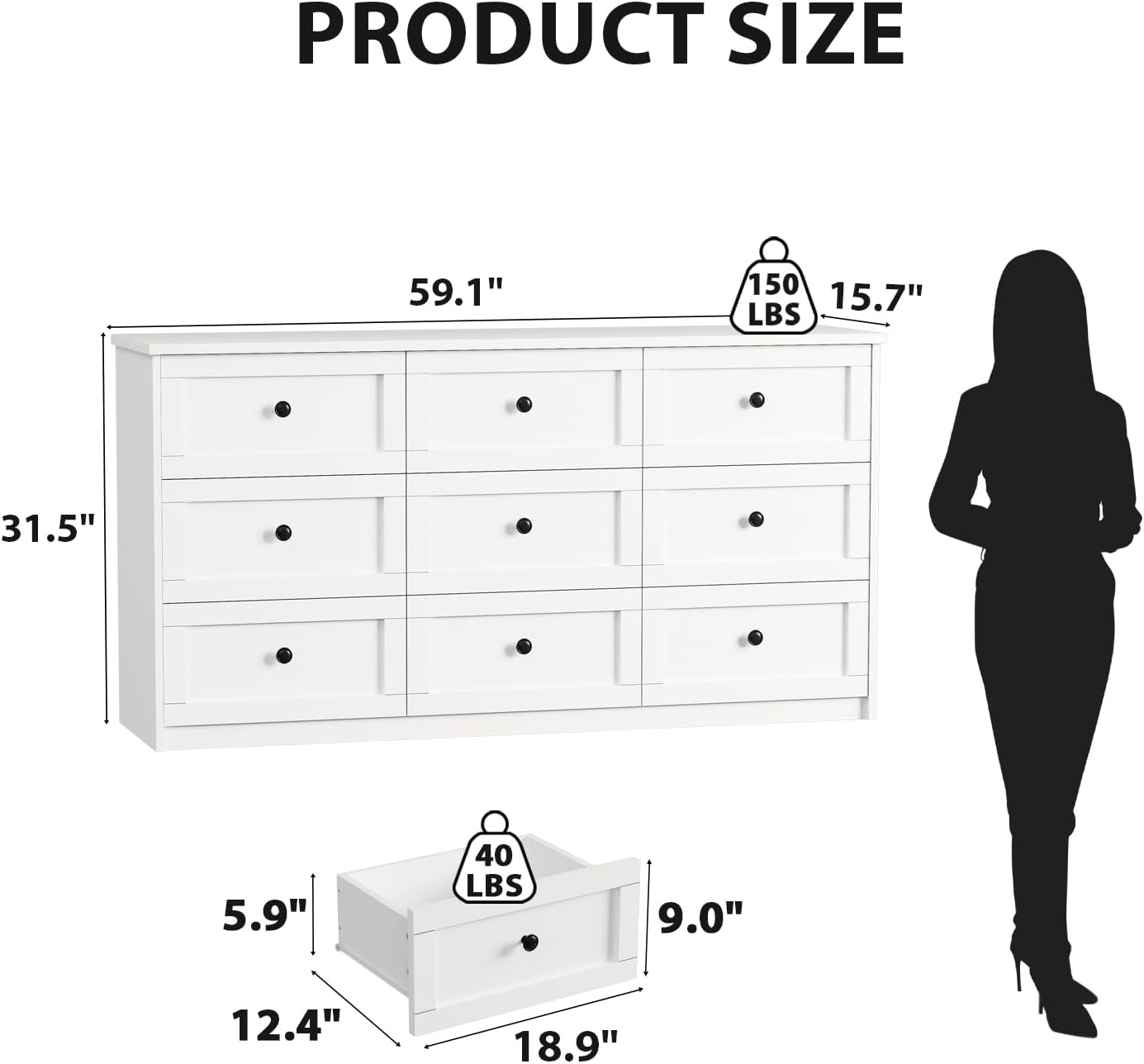

Image: Detailed product size diagram for the CHUWELL 9-Drawer Double Dresser. The main dresser body is shown with overall dimensions of 59.1" wide, 31.5" high, and 15.7" deep. The maximum weight capacity for the top surface is indicated as 150 lbs. A single drawer is also depicted with dimensions of 18.9" wide, 12.4" deep, and 5.9" high, with a maximum weight capacity of 40 lbs.

3. Assembly Instructions

This dresser is designed for easy assembly. All parts are individually packaged and labeled. We recommend two people for assembly to ensure a smoother experience.

Before You Begin:

• Clear a spacious area for assembly.
• Verify all parts and hardware are present against the included parts list.
• Gather necessary tools (e.g., screwdriver, hammer).

Assembly Steps:

1. Assemble the Main Frame: Attach the side panels to the bottom and top panels using the provided fasteners. Ensure all connections are secure.
2. Install Back Panels: Secure the back panels to the main frame.
3. Assemble Drawers: For each of the nine drawers, assemble the front, back, and side panels. Insert the bottom panel and secure it. Attach the metal drawer slides to the sides of each drawer.
4. Install Drawer Slides to Frame: Attach the corresponding metal drawer slides to the inside of the dresser frame.
5. Insert Drawers: Carefully slide each assembled drawer into its designated slot in the dresser frame.
6. Attach Handles: Secure the black metal handles to the front of each drawer.
7. Install Anti-Tip Device: Follow the specific instructions provided with the anti-tip kit to securely attach the device to the back of the dresser and to a wall stud. This step is critical for safety.

4. Operating Instructions

The CHUWELL 9-Drawer Double Dresser is designed for convenient storage and display.

• Drawer Usage: Gently pull and push drawers using the handles. The metal slide rails ensure smooth operation. Avoid forcing drawers open or closed.
• Storage Capacity: Utilize the nine spacious drawers to organize clothing, linens, toys, or other personal items. Distribute weight evenly within drawers.
• Top Surface: The wide top tabletop can be used to display decorations, photo frames, plants, or as a surface for a television, provided the weight limit is respected.

Image: The CHUWELL 9-Drawer Double Dresser with multiple drawers partially open, showcasing its large storage capacity. Various items like clothes, bags, and towels are neatly stored within the drawers. The top surface is decorated with a picture frame and other small items.

5. Maintenance and Care

Proper care will extend the life and appearance of your dresser.

• Cleaning: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that can damage the finish.
• Spills: Immediately wipe up any spills, especially on the waterproof tabletop, to prevent water damage or staining.
• Inspection: Periodically check all fasteners and connections to ensure they remain tight. Retighten if necessary.
• Drawer Slides: If drawers become stiff, a small amount of silicone lubricant can be applied to the metal slides.
• Sunlight: Avoid prolonged exposure to direct sunlight to prevent fading or discoloration of the finish.

Image: A composite image highlighting key features. Top left shows water droplets on the dresser's waterproof tabletop. Top right shows the dresser with drawers open, indicating ample storage. Bottom left is a close-up of a black metal drawer handle. Bottom right shows a close-up of a smooth metal drawer glide, emphasizing durability and ease of use.

6. Troubleshooting

Refer to this section for common issues and their solutions.

• Dresser is wobbly:
  • Ensure the dresser is on a level surface. Adjust if necessary.
  • Check all assembly fasteners and tighten any loose screws.
• Drawers do not slide smoothly:
  • Verify that the drawer slides on both the drawer and the frame are correctly aligned and installed.
  • Ensure drawers are not overloaded.
  • Apply a small amount of silicone lubricant to the metal slides.
• Drawer front is loose:
  • Check the screws attaching the drawer front to the drawer box and tighten them.
• Missing or damaged parts:
  • Do not attempt to assemble with missing or damaged parts. Contact customer support immediately for replacements.

7. Warranty and Support

CHUWELL is committed to providing quality products. If you encounter any issues with assembly, parts, or the product itself, please contact our customer support team.

• Customer Support: For assistance, please refer to the contact information provided with your purchase or visit the official CHUWELL website.
• Response Time: We aim to provide a solution to your inquiries within 24 hours.
