1. Introduction
This manual provides essential instructions for the assembly, operation, and maintenance of your WKM 12x14 FT Outdoor Metal Storage Shed. Please read this manual thoroughly before beginning assembly or using the shed to ensure safe and correct usage. Retain this manual for future reference.
The WKM 12x14 FT Outdoor Metal Storage Shed is designed to provide a spacious and secure solution for storing garden tools, lawn equipment, outdoor furniture, and other household items. Its robust metal construction and updated frame structure offer durability and protection against various weather conditions.

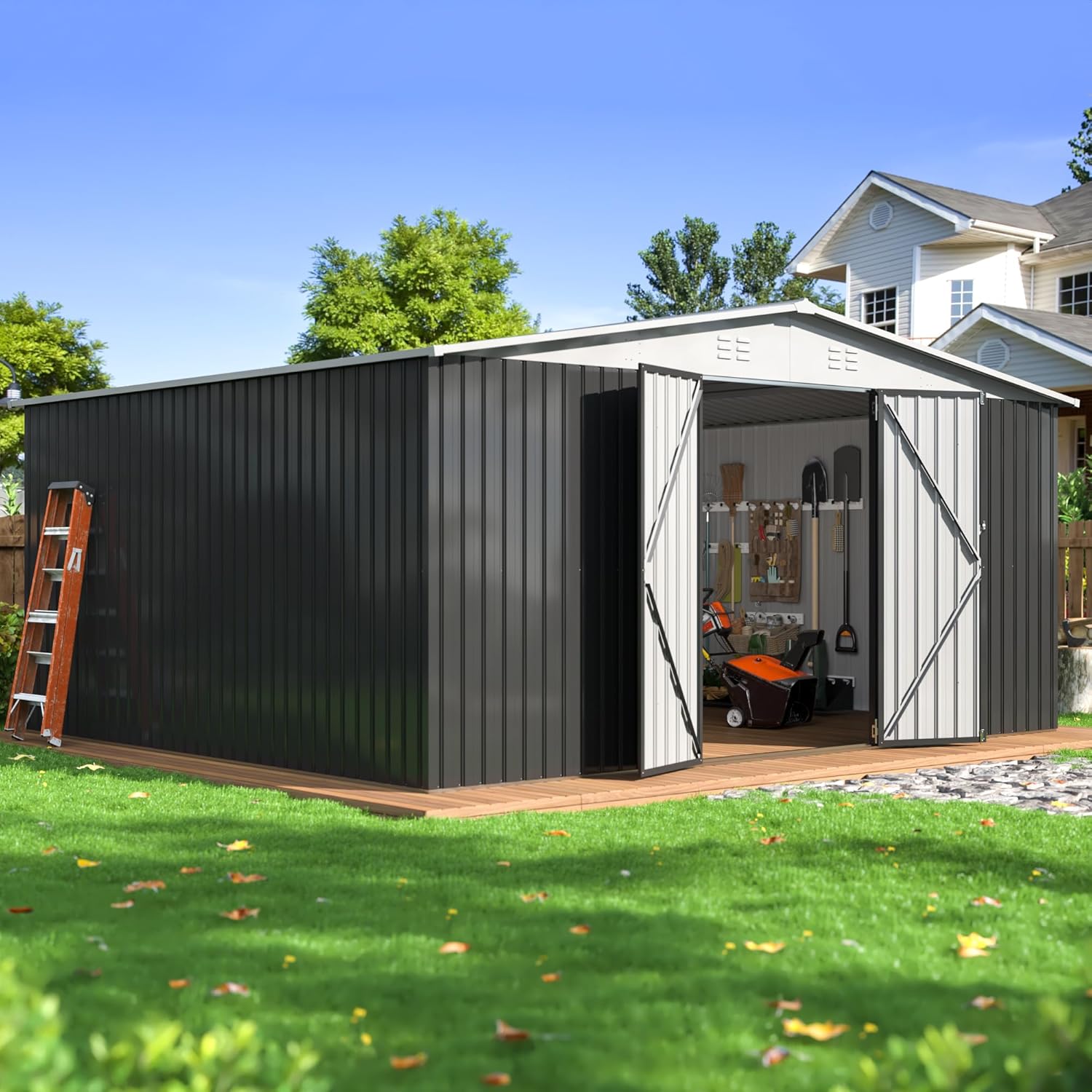

Image 1.1: The WKM 12x14 FT Outdoor Metal Storage Shed in a typical outdoor environment.
2. Safety Information
WARNING: Failure to follow these safety instructions may result in serious injury or property damage.
- Assembly Safety: Always wear appropriate personal protective equipment, including heavy-duty gloves and eye protection, during assembly. Metal edges can be sharp.
- Two-Person Assembly: Assembly requires at least two adults. Some steps may require three people for stability and ease of installation.
- Location: Choose a level, stable surface for installation. Ensure adequate clearance around the shed for assembly and future access. Avoid installing near power lines or gas pipes.
- Anchoring: Securely anchor the shed to the ground or a concrete slab to prevent wind damage.
- Ventilation: The shed is equipped with vents. Do not block these vents, as proper airflow is essential to prevent moisture buildup.
- Snow Load: While designed for durability, heavy snow accumulation can stress the roof structure. In areas with significant snowfall, regularly clear snow from the roof to prevent collapse.
- Children and Pets: Keep children and pets away from the assembly area. Do not allow them to play inside or around the shed unsupervised.
- Flammable Materials: Do not store flammable liquids, gases, or other hazardous materials inside the shed.
3. Package Contents
Before beginning assembly, verify that all parts are present and undamaged. Refer to the packing list included with your shed for a complete inventory. The package typically includes:
- Metal wall panels
- Roof panels
- Frame components (beams, supports)
- Door assembly with lockable mechanism
- Hardware kit (screws, nuts, washers, etc.)
- Corner guards
- Assembly instructions
- Gloves (2 pairs)
- Typically shipped in 3 cartons
Image 3.1: Visual representation of shed dimensions and included accessories.
4. Setup and Assembly Instructions
Assembly of the WKM 12x14 FT Outdoor Metal Storage Shed requires careful attention to detail and adherence to the provided step-by-step guide. It is highly recommended to have at least two people for assembly, with three people being ideal for certain stages.
- Site Preparation: Select a flat, level, and well-drained area for your shed. Clear any debris, rocks, or vegetation. A concrete slab or a sturdy wooden foundation is recommended for optimal stability and longevity.
- Unpacking and Inspection: Carefully unpack all components. Note that many metal panels may have a protective plastic film that needs to be peeled off. This process can be time-consuming. Inspect all parts for damage before proceeding.
- Base Assembly: Assemble the base frame according to the detailed diagrams in your separate assembly guide. Ensure all connections are secure and the frame is square.
- Wall Panel Installation: Attach the wall panels to the base frame, following the numerical sequence provided in the assembly guide. Ensure panels are correctly oriented and securely fastened. The shed features overlapping wall panels for added thickness and strength.
- Frame Structure: Install the internal reinforced metal beams and other frame components. These provide enhanced stability and support for the shed structure.
- Roof Assembly: Assemble and attach the sloped roof panels. Ensure proper alignment for effective water runoff and weather resistance.
- Door Installation: Install the lockable doors. Adjust hinges as necessary to ensure smooth operation and a secure closure. Attach the durable corner guards.
- Ventilation: Confirm that the 4 vents are clear and unobstructed to allow for smoother airflow.
- Final Checks and Anchoring: Double-check all screws and fasteners for tightness. Securely anchor the shed to your chosen foundation using appropriate anchoring hardware (not always included).
Image 4.1: Key structural and functional features of the WKM Storage Shed.
5. Operating Instructions
Using your WKM Outdoor Metal Storage Shed is straightforward, focusing on secure storage and proper ventilation.
- Access: The shed features large, lockable doors for easy access to your stored items. Open both doors fully when moving large equipment in or out.
- Security: Utilize the integrated lockable door mechanism to secure your belongings. For enhanced security, consider adding an external padlock (not included).
- Ventilation: The shed is designed with 4 vents to facilitate air circulation. This helps to reduce condensation and maintain a suitable environment for stored items. Ensure these vents remain unobstructed.
- Storage Capacity: The 12x14 FT dimensions provide ample space for various items, from garden tools and lawnmowers to sports equipment and general household overflow. Organize items efficiently using shelving or hooks as needed.
Image 5.1: Interior view showcasing the spacious storage capacity for various items.
6. Maintenance
Regular maintenance will ensure the longevity and optimal performance of your WKM Outdoor Metal Storage Shed.
- Cleaning: Periodically clean the exterior of the shed with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the metal finish.
- Inspection: Annually inspect all fasteners, bolts, and connections to ensure they remain tight. Re-tighten any loose hardware. Check for any signs of rust or corrosion, especially at joints and seams.
- Snow Removal: In regions prone to heavy snowfall, regularly remove accumulated snow from the roof to prevent excessive weight and potential structural damage.
- Ventilation Check: Ensure the vents are free from obstructions (e.g., leaves, dirt, insect nests) to maintain proper airflow.
- Door Operation: Lubricate door hinges and the lock mechanism annually with a silicone-based lubricant to ensure smooth operation.
- Drainage: Ensure the area around the shed has good drainage to prevent water from pooling at the base, which can lead to corrosion.
Image 6.1: The shed's design for all-season weather versatility.
7. Troubleshooting
This section addresses common issues you might encounter with your storage shed.
| Problem | Possible Cause | Solution |
|---|---|---|
| Difficulty during assembly | Missing parts, unclear instructions, bent panels, plastic film. | Refer to the detailed assembly guide. Contact customer support for missing parts. Carefully straighten slightly bent panels. Ensure all protective plastic film is removed. Work with at least two people. |
| Shed feels unstable or wobbly | Improperly tightened fasteners, uneven ground, insufficient anchoring. | Ensure all screws and bolts are securely tightened. Verify the shed is on a level surface. Securely anchor the shed to the ground or foundation. Consider additional reinforcement in high-wind areas. |
| Doors do not close or lock properly | Misaligned frame, bent door panels, obstructed hinges, faulty lock. | Check if the shed frame is square. Adjust door hinges. Clear any obstructions. Inspect the lock mechanism for damage; contact support if faulty. |
| Water leakage inside the shed | Improperly sealed seams, damaged roof panels, blocked vents. | Inspect roof and wall panels for damage. Apply silicone sealant to any gaps or unsealed seams. Ensure roof panels are correctly overlapped. Clear all vents. |
| Roof damage after snow/wind | Excessive snow load, strong winds, insufficient reinforcement. | Regularly clear snow from the roof. Ensure the shed is properly anchored. In areas with extreme weather, consider adding additional internal bracing or rivets for enhanced structural integrity. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | WKM |
| Model Number | WMS1214-White |
| Color | White |
| Material | Aluminum, Metal (Alloy Steel Frame) |
| Product Dimensions (D x W x H) | 163"D x 167.7"W x 81.5"H (Approximately 13.58 ft D x 13.97 ft W x 6.79 ft H) |
| Item Weight | 72.6 pounds |
| Water Resistance Level | Water Resistant |
| Door Style | Single/Double Hinged Doors |
| Assembly Required | Yes |
| Ventilation | 4 Vents |
9. Warranty and Support
WKM provides customer support for their products. For any questions, concerns, or assistance with your Metal Storage Room, please contact the manufacturer directly.
- Customer Support: 24/7 round-the-clock customer support is available. Refer to your purchase documentation or the WKM official website for contact information.
- Returns: A 30-day easy return policy may apply. Please check the terms and conditions of your purchase.
- Warranty: Specific warranty details are provided by the manufacturer. Please consult the warranty card included with your product or contact WKM customer service for information regarding warranty coverage and claims.
