1. Product Overview
This manual provides instructions for the RBROHANT RWSTT81005 Matte Black 3-Function Exposed Shower System. This system features a 10-inch rain shower head, a handheld shower, and a tub spout, designed for wall-mounted installation.
Key Features:
- 10-inch Thickened High-Pressure Shower Head: Utilizes Air-in technology to mix water with air, providing a full-body shower experience with high pressure while conserving water by at least 30%.
- Length Adjustable Shower Pipe: The exposed shower pipe (slide bar) can be adjusted between 85cm-120cm (33 1/2” - 47 1/4”) to accommodate different user heights.
- Angle Adjustable Tub Spout: Features a NEOPERL aerator for quick, quiet bathtub filling with minimal splash. The angle is adjustable for flexible use.
- Solid Brass 3-Functional Shower Valve: Allows selection between the overhead rain shower, handheld sprayer (with 59-inch hose), and tub spout.
- Durable Materials: 10-inch rain shower head, shower pipe, and 59-inch shower hose are made of 304SUS stainless steel. The shower valve, trim kit, and handheld are brass. The handheld holder is ABS, and handles are zinc alloy.
- Certifications: This shower set has passed CEC and cUPC certification, ensuring safety and durability.
2. Safety Information
Please read all instructions carefully before installation and use. Failure to follow these instructions may result in personal injury or property damage.
- Always turn off the main water supply before beginning any plumbing work.
- Ensure all connections are secure to prevent leaks.
- Do not overtighten components, as this may cause damage.
- If you are unsure about any part of the installation, consult a qualified plumber.
- Protect the finish of the product during installation to avoid scratches.
3. Installation Guide
This section provides a general guide for installing the RBROHANT Exposed Shower System. A detailed installation guide and necessary tools are included with the product. Standard US 1/2'' NPT connection is required.
Installation Steps:
- Prepare the Wall Connections: Ensure your wall has standard 1/2'' NPT hot and cold water inlets at the correct distance for the shower system.
Image: The complete RBROHANT Matte Black Exposed Shower System mounted on a bathroom wall.
- Install Offset Connectors: Screw the offset connectors into the decorative covers, then insert the rubber rings into the main body. Screw the offset connectors into the main body.
Video: Step-by-step installation guide for the RBROHANT Exposed Shower System. This video demonstrates the installation process using a brushed gold variant of the system.
- Fix Main Body to Wall: Secure the main body to the wall and connect the water inlet pipes.
Image: The main control valve of the shower system, showing the temperature and function controls.
- Install Switch Handle: Install the switch handle onto the main body and tighten it with a hexagon key.
- Install Top Spray Shower Rod: Attach the top spray shower rod to the main body and secure it with the fixing seat.
- Install Top Spray and Hand Shower: Connect the top spray shower head and the handheld shower to their respective connections. Ensure all connections are tight.
Image: A diagram illustrating the adjustable height feature of the shower pipe, ranging from 33.46" to 47.74".
4. Operating Instructions
The RBROHANT 3-Function Exposed Shower System offers versatile showering options.
- Temperature Control: Use the main lever on the valve to adjust water temperature from cold to hot.
- Function Selection: The diverter knob on the main valve allows you to switch between the three functions:
- Rain Shower Head: Provides a wide, overhead spray. The 10-inch head is rotatable 360 degrees and swivels 15 degrees for angle adjustment.
- Handheld Shower: Ideal for targeted rinsing or cleaning. The handheld holder can be adjusted up and down on the slide bar.

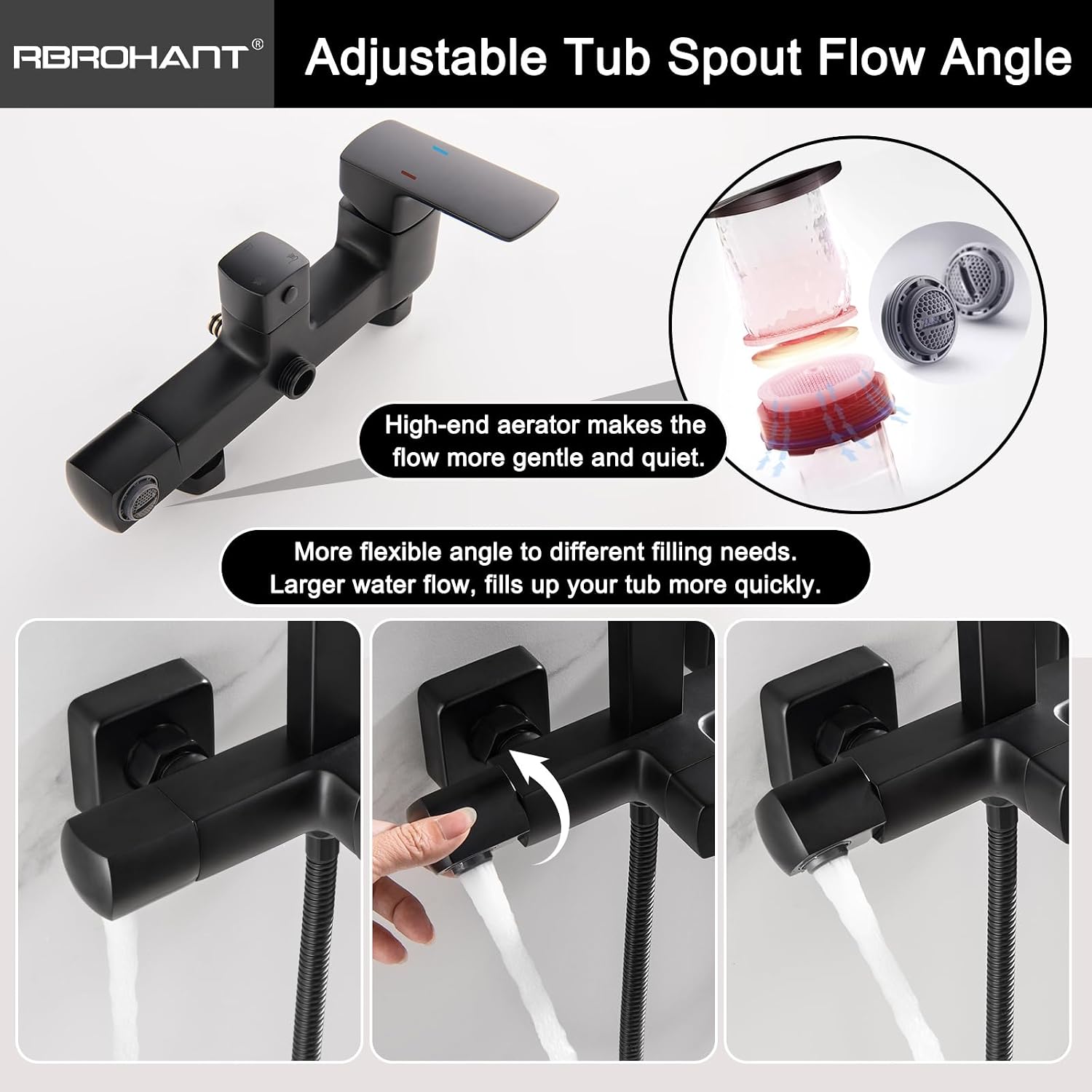

- Tub Spout: For filling a bathtub. The spout angle is adjustable.
Image: The 3-functional valve illustrating the selection points for tub spout, hand shower, and rain shower.
- Height Adjustment: The shower pipe's height can be adjusted to suit individual preferences. Loosen the fixing seat, adjust the height, and then re-tighten.
Image: Instructions on how to adjust the height of both the rain shower and handheld shower components.
5. Maintenance
Regular cleaning and maintenance will ensure the longevity and optimal performance of your shower system.
- Cleaning the Finish: Use a soft cloth and mild soap or a non-abrasive cleaner specifically designed for bathroom fixtures. Avoid harsh chemicals, abrasive cleaners, or scouring pads, as these can damage the matte black finish.
- Cleaning Nozzles: The rain shower head features soft silicone nozzles. If mineral deposits build up, gently rub them with your finger to remove scale.
Image: Detail of the rain shower head, showing its rotatable connection and easy-to-clean silicone nozzles.
- Check for Leaks: Periodically inspect all connections for any signs of leaks and tighten if necessary.
6. Troubleshooting
If you encounter issues with your shower system, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Pressure | Clogged shower head nozzles or mineral buildup. | Clean the silicone nozzles by rubbing them. Check water supply valves for full opening. |
| Leaks from Connections | Loose connections or worn washers. | Ensure all connections are tightened properly. Replace washers if they appear worn. |
| Water Temperature Issues | Incorrect setting on the mixing valve or issues with water heater. | Adjust the main lever on the valve. Check your home's water heater settings. |
| Diverter Not Switching Functions | Internal mechanism obstruction or wear. | Ensure the diverter knob is fully rotated to the desired position. If the issue persists, contact customer support. |
7. Specifications
| Feature | Detail |
|---|---|
| Brand | RBROHANT |
| Model Number | RWSTT81005 |
| Color | Matte Black |
| Material | Brass, Stainless Steel, Zinc, ABS |
| Finish Type | Painted |
| Number of Handles | 1 |
| Item Weight | 11.5 Pounds |
| Mounting Type | Wall Mount |
| Included Components | Comes as a Combo Set |
| Head Size | 10 inches |
| Product Dimensions | 35.8 x 16.9 x 4.1 inches |
| Connection Size | US 1/2'' NPT Standard |
| Shower Pipe Adjustable Length | 85cm-120cm (33 1/2” - 47 1/4”) |
| Shower Hose Length | 59 inches |
8. Warranty and Support
RBROHANT offers a lifetime warranty for all of its bathroom shower fixtures. If you encounter any problems with this exposed shower faucet set, please contact customer service. They commit to replying within 12 hours and will resend free new replacement parts if necessary.
For support, please refer to the contact information provided with your product packaging or visit the official RBROHANT website.
