1. Introduction
Thank you for choosing the Bmax B3Pro Mini PC. This compact and powerful desktop computer is designed to provide seamless performance for work, entertainment, and various multimedia applications. Featuring an 11th Gen Intel Jasper Lake N5095 processor, 8GB of LPDDR4 RAM, and a 256GB SSD, the B3Pro delivers a swift and efficient computing experience. Its versatile connectivity options and dual 4K display support make it an ideal solution for both home and office environments.
Image: The Bmax B3Pro Mini PC, showcasing its compact design and sleek appearance.
Image: The Bmax B3Pro Mini PC highlighting its thin and portable design, suitable for various settings.
2. Package Contents
Please verify that all items are present in the package:
- 1 x BMAX B3Pro 8GB+256GB Mini PC
- 1 x HDMI Cable
- 1 x US Power Adapter
- 1 x VESA Mount with Screws
- 1 x User Manual
Image: An illustration of the Bmax B3Pro Mini PC and its included accessories: HDMI cable, power adapter, VESA mount, and user manual.
3. Setup Guide
3.1 Physical Connections
- Connect to Power: Plug the US Power Adapter into the DC12V/2A port on the Mini PC and then into a power outlet.
- Connect to Display: Use the provided HDMI cable to connect the Mini PC to your monitor or TV. The B3Pro supports dual 4K 60Hz displays via its two HDMI ports.
- Connect Peripherals: Connect your keyboard and mouse to the available USB 3.0 (x2) or USB 2.0 (x2) ports.
- Network Connection: For a wired connection, plug an Ethernet cable into the RJ45 port. For wireless, the device supports WiFi 5.
- Audio: Connect headphones or speakers to the 3.5mm audio jack if needed.

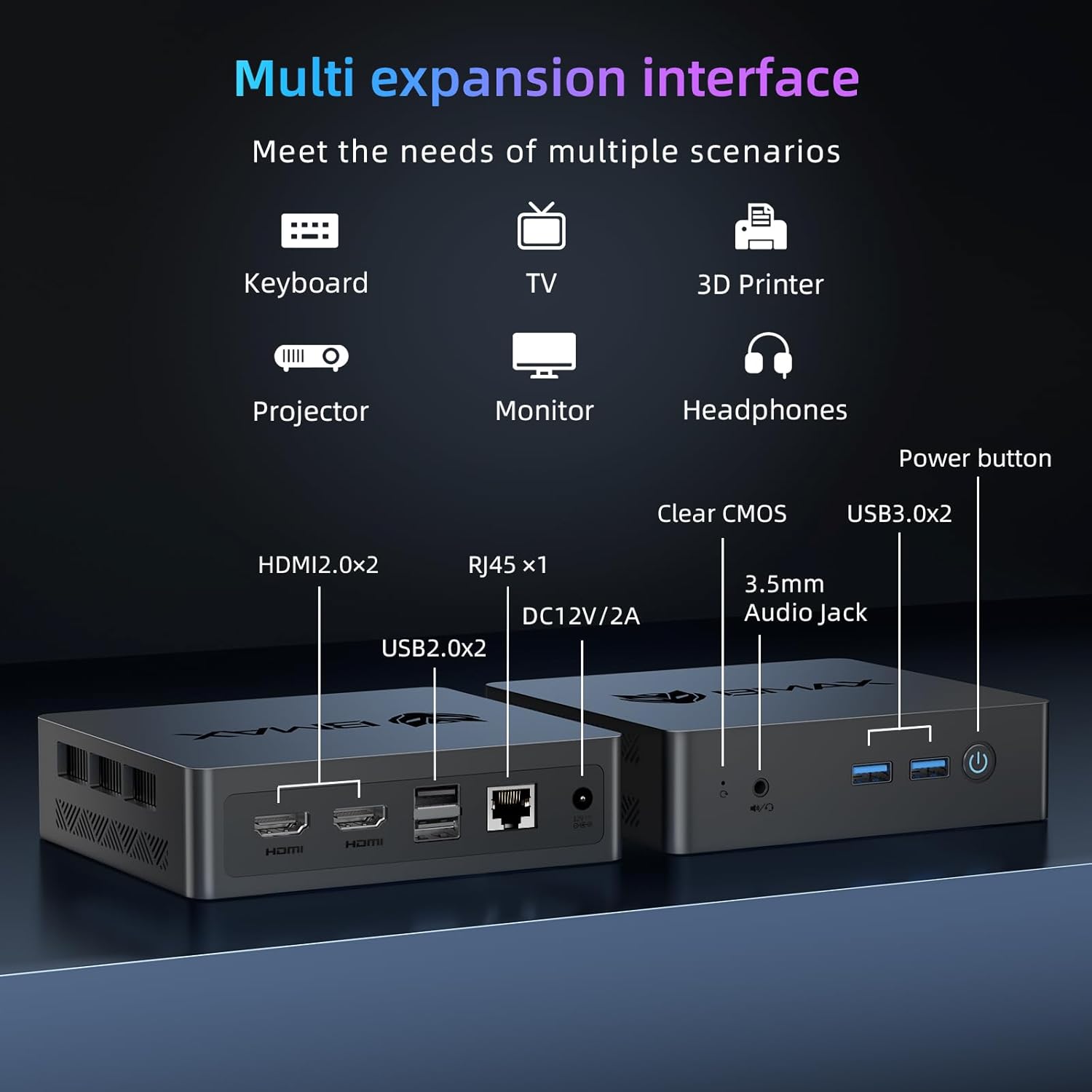

Image: A detailed view of the Bmax B3Pro Mini PC's multi-expansion interfaces, including HDMI, USB, RJ45, and audio ports.
Image: An overview of the Bmax B3Pro Mini PC's various ports and their compatibility with different devices like monitors, projectors, and printers.
3.2 Initial Boot
Press the power button located on the front of the Mini PC. The system will boot up, and you will be guided through the initial operating system setup process.
3.3 VESA Mounting
The B3Pro includes a VESA mount, allowing you to attach it to the back of a compatible monitor or wall, saving desk space. Use the provided screws to secure the mount to the Mini PC and then to the VESA holes on your monitor or wall bracket.
Image: Demonstrates how the Bmax B3Pro Mini PC can be mounted behind a monitor or placed on a desk to save space.
4. Operating Instructions
4.1 Power On/Off
- Power On: Press the power button once.
- Power Off: Access the operating system's shutdown menu or press and hold the power button for 5 seconds.
4.2 Performance and Storage
The B3Pro is equipped with an 11th Gen Intel Jasper Lake N5095 processor (2.0GHz base, up to 2.9GHz burst), 8GB LPDDR4 RAM, and a 256GB SSD. This configuration ensures smooth multitasking and quick application loading. The SSD offers read speeds exceeding 500MB/s, enhancing overall system responsiveness. The 256GB SSD is upgradeable up to 2TB (SSD not included).
Image: Details of the 11th Gen Intel Jasper Lake N5095 processor, highlighting its 4 cores, 2.9GHz burst frequency, 2.0GHz base frequency, 8GB LPDDR4 RAM, and 256GB SSD.
Image: Performance benchmarks for the 11th Gen Intel Jasper Lake N5095 processor, showing its specifications and a PassMark score comparison.
4.3 Wireless Connectivity
- WiFi 5: Connect to wireless networks for internet access.
- Bluetooth 5.0: Pair with various wireless devices such as headphones, speakers, or game controllers.
Image: The Bmax B3Pro Mini PC connected to an Ethernet cable, illustrating its capability for high-speed internet surfing at 1000 Mbps.
4.4 Dual Screen Display
Leverage the Intel UHD graphics to connect two monitors simultaneously, supporting resolutions up to 4K at 60Hz. This feature is ideal for enhanced productivity and immersive multimedia experiences.
Image: A setup showing the Bmax B3Pro Mini PC connected to two monitors, demonstrating its dual 4K display capability for various tasks.
Image: A home office setup featuring the Bmax B3Pro Mini PC connected to two monitors, illustrating its suitability for productivity.
4.5 Usage Scenarios
Image: Various applications of the Bmax B3Pro Mini PC, including online conferencing, office work, home theater, and graphic design.
Image: A collage demonstrating the Bmax B3Pro Mini PC's versatility across different environments, such as meetings, online education, photo design, home theater, and daily work.
5. Maintenance
5.1 Cooling System
The B3Pro features a built-in smart cooling fan designed for efficient, quiet, and reliable heat dissipation, ensuring stable performance even under load.
Image: An internal view of the Bmax B3Pro Mini PC, highlighting the built-in smart cooling fan and its airflow path.
Image: A diagram illustrating the efficient heat dissipation process within the Bmax B3Pro Mini PC, contributing to a silent working environment.
5.2 Cleaning
To maintain optimal performance, regularly clean the exterior of the Mini PC with a soft, dry cloth. Ensure ventilation openings are free from dust accumulation. Do not use liquid cleaners directly on the device.
5.3 Software Updates
Keep your operating system and drivers updated to ensure system stability, security, and optimal performance. Refer to your operating system's documentation for update procedures.
6. Troubleshooting
6.1 Common Issues and Solutions
- No Power: Ensure the power adapter is securely connected to both the Mini PC and a working power outlet.
- No Display: Check HDMI cable connections to both the Mini PC and the monitor. Ensure the monitor is set to the correct input source.
- No Internet Connection: For wired connections, check the Ethernet cable. For WiFi, ensure the WiFi adapter is enabled and connected to the correct network.
- Slow Performance: Close unnecessary applications, check for background processes, and ensure sufficient free storage space.
6.2 One-Click Smart Recovery
The BMAX Mini-PCs offer a one-click smart recovery feature. This allows for a swift return to production within minutes, providing a comprehensive reset (restore/reinstall/update) option for your system. Consult the operating system's recovery options for detailed instructions.
7. Specifications
| Feature | Specification |
|---|---|
| Brand | Bmax |
| Model | B3 Pro |
| Processor | 11th Gen Intel Jasper Lake N5095 (2.0GHz base, up to 2.9GHz) |
| Cores/Threads | 4 Cores / 4 Threads |
| RAM | 8GB LPDDR4 |
| Storage | 256GB SSD (upgradeable up to 2TB SSD) |
| Graphics | Intel UHD Graphics |
| Display Output | Dual HDMI 4K @ 60Hz |
| USB Ports | 2 x USB 3.0, 2 x USB 2.0 |
| Network | RJ45 (Ethernet 10/100/1000), WiFi 5 |
| Wireless | Bluetooth 5.0 |
| Audio Interface | 1 x 3.5mm Audio Jack |
| Operating System | OS (Pre-installed) |
| Item Weight | 1.5 pounds |
| Dimensions | 11.1 x 6.1 x 2.95 inches (Package) |
Image: The compact dimensions of the Bmax B3Pro Mini PC (4.9 inch x 4.4 inch x 1.3 inch) compared to a smartphone and a traditional desktop PC.
Image: A visual comparison of the B3Pro Mini PC's size against a mobile phone and a standard desktop PC, emphasizing its compact nature.
Image: An exploded view of the Bmax B3Pro Mini PC, showing its internal components including the Intel Celeron N5095 processor, 256GB M.2 2280 SSD, 8GB LPDDR4 RAM, and cooling fan.
8. Warranty and Support
BMAX Mini-PCs come with a 12-month warranty from the date of purchase. We also offer a 30-day no-questions-asked return policy. For any issues or inquiries, our customer service team is available 7 days a week, 24 hours a day. Please contact us via email for assistance.
