1. Introduction
The SNOPPA ATOM2 is a revolutionary 3-axis smartphone gimbal designed for stable and professional-grade video recording and photography. It features a world-first automatic opening and closing mechanism, a compact foldable design, and an integrated tripod and selfie stick, making it highly portable and versatile. This manual provides detailed instructions for setting up, operating, and maintaining your ATOM2 gimbal.
2. Product Overview
2.1 Package Contents
- SNOPPA ATOM2 Main Unit
- USB-C Charging Cable
- Quick Start Guide
- Warranty Card

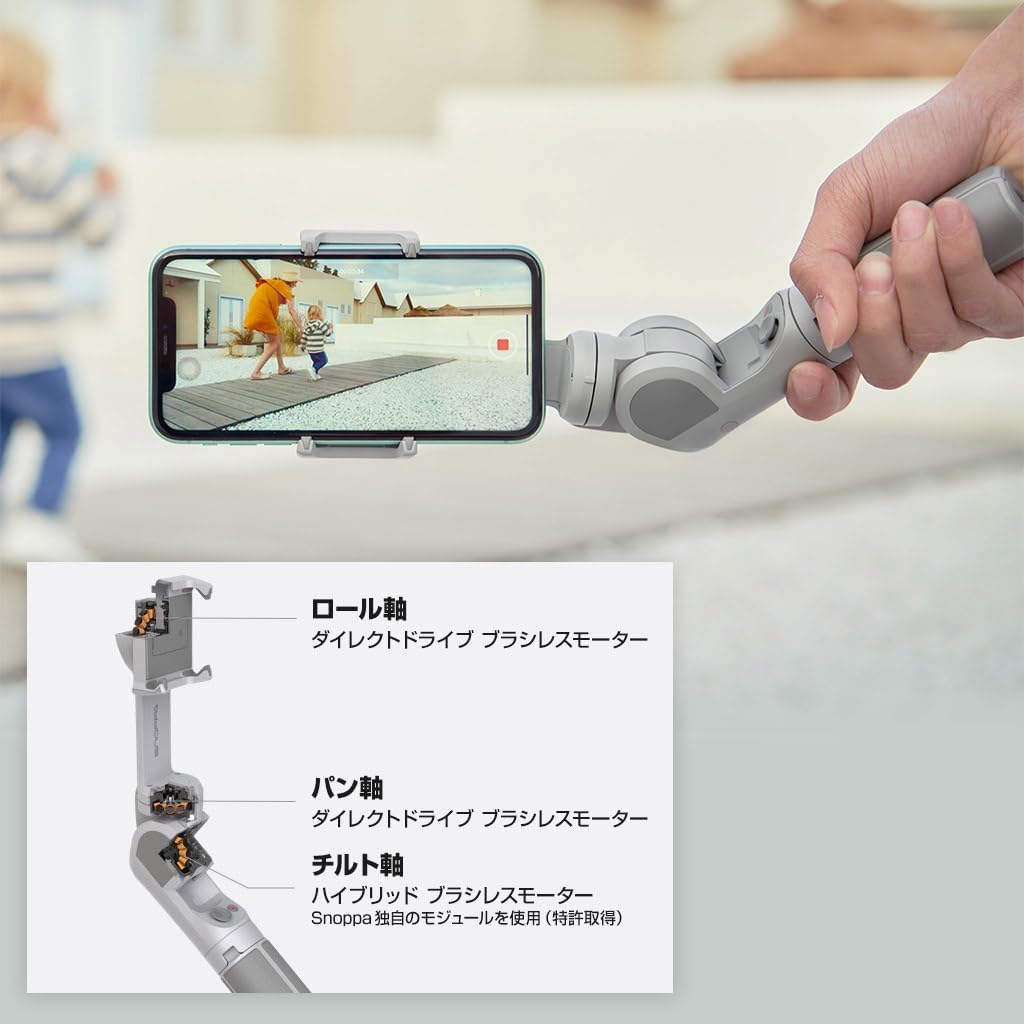

2.2 Gimbal Components
Familiarize yourself with the various parts of your SNOPPA ATOM2 gimbal.
3. Setup
3.1 Charging the Gimbal
Before first use, fully charge the ATOM2. The gimbal supports rapid charging.
- Connect the included USB-C cable to the gimbal's charging port and a USB power adapter (not included).
- A full charge takes approximately 1 hour (80% in 40 minutes) with a 12W input.
- The indicator light will show charging status.
3.2 Mounting Your Smartphone
The ATOM2 features an automatic opening/closing mechanism for quick setup.
- Gently pull the smartphone clamp open. The gimbal will automatically unfold and prepare for use.
- Insert your smartphone into the clamp, ensuring it is centered and securely held.
- The gimbal supports smartphones with a width of 50-90mm, thickness of 6.5-10mm, and a maximum weight of 230g.
- The built-in smartphone mounting sensor prevents accidental operation when no phone is detected.
3.3 App Installation
For full functionality and advanced features, download the dedicated SNOPPA app.
- Search for "SNOPPA" in the Google Play Store (for Android) or Apple App Store (for iOS).
- Install the app and follow the on-screen instructions to connect your gimbal via Bluetooth.
4. Operating Instructions
4.1 Power On/Off
- To power on: Press and hold the power button until the indicator lights illuminate.
- To power off: Press and hold the power button until the indicator lights turn off.
4.2 Gimbal Modes and Control
The ATOM2 offers intuitive control via its joystick and function buttons.
- Joystick: Control camera direction (pan and tilt), zoom in/out, and navigate app menus.
- Shutter/Function Button: Press to take photos or start/stop video recording. Long press for other functions as defined in the app.

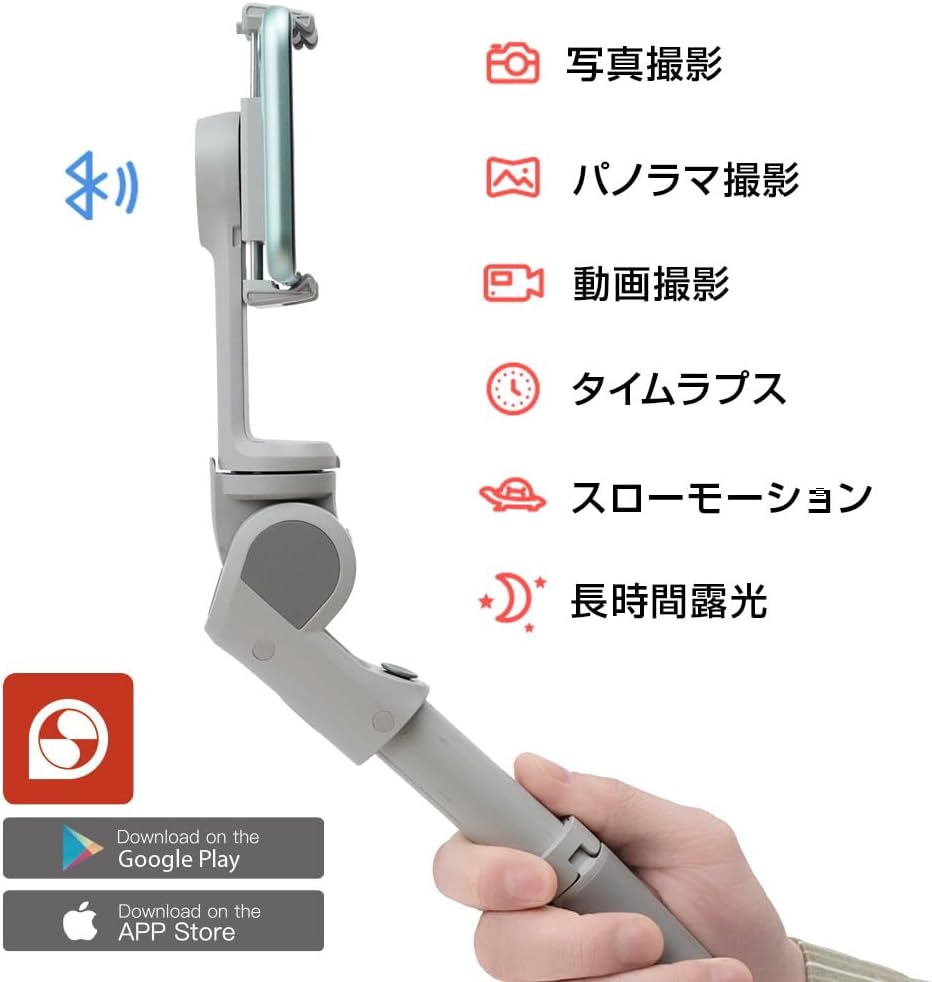

- Mode Switching: Use the app or specific button combinations (refer to Quick Start Guide) to switch between various shooting modes like photo, video, panorama, time-lapse, slow motion, and long exposure.
- Vertical/Horizontal Switching: Easily switch between portrait and landscape orientations for your smartphone.
5. Maintenance
Proper maintenance ensures the longevity and performance of your SNOPPA ATOM2 gimbal.
- Cleaning: Use a soft, dry cloth to clean the gimbal. Do not use liquid cleaners or solvents.
- Storage: Store the gimbal in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure it is folded into its compact state for protection.
- Battery Care: For long-term storage, charge the battery to about 50-60% every three months to prevent deep discharge.
- Avoid Impact: Protect the gimbal from drops and impacts, which can damage the precision motors and internal components.
6. Troubleshooting
If you encounter issues with your SNOPPA ATOM2, refer to the following common problems and solutions.
- Gimbal not powering on: Ensure the battery is charged. Connect to a charger and try again.
- Gimbal not stabilizing: Ensure the smartphone is properly mounted and balanced. Recalibrate the gimbal via the app if necessary.
- Bluetooth connection issues: Ensure Bluetooth is enabled on your smartphone. Restart both the gimbal and your phone. Try re-pairing the devices in the app.
- App not responding: Close and restart the app. Ensure your app version is up to date.
- Unusual motor noise: Check for any obstructions around the gimbal motors. Ensure the smartphone is within the supported weight and size limits.
For persistent issues, please contact SNOPPA customer support.
7. Specifications
| Feature | Specification |
|---|---|
| Model Number | SN-SPN202 |
| Dimensions (Unfolded) | 5.9 x 4.5 x 28.8 cm (59 depth x 45 width x 288 height mm) |
| Dimensions (Folded) | 4.5 x 16.4 x 5.9 cm |
| Weight | 310 grams |
| Compatible Smartphone Width | 50 - 90 mm |
| Compatible Smartphone Thickness | 6.5 - 10 mm |
| Max. Supported Smartphone Weight | Approx. 230g |
| Charging Port | USB-C |
| Max. Input Power | 12W |
| Color | Gray |
| Safety Features | Mounting sensor, Temperature sensor, Overvoltage protection, Short circuit prevention |
8. Warranty and Support
The SNOPPA ATOM2 comes with a warranty as detailed in the included Warranty Card. Please retain your proof of purchase for warranty claims.
For technical support, troubleshooting assistance, or warranty inquiries, please visit the official SNOPPA website or contact their customer service department. You can also find more information on the SNOPPA Japan Store on Amazon.
