AIRROBO T25+ Robot Vacuum and Mop Combo Instruction Manual

Product Overview

The AIRROBO T25+ is a versatile robot vacuum and mop combo designed for efficient home cleaning. It features powerful suction, intelligent navigation, and convenient self-emptying capabilities.

• 60 Days of Hands-Free Cleaning: Equipped with a 3.5L dust bag capacity for up to 60 days of automatic dust disposal. The 340 ml water tank offers 3 levels of water output adjustment.
• Auto-Detangling Roller Brush: Features a specially designed rubber brush to prevent hair tangling, ideal for households with pets.
• Advanced Ultrasonic Sensor: Automatically activates 'Carpet Lift Mode' for enhanced suction on carpets and 'Carpet Avoidance Mode' to prevent mopping on carpets.
• 5500Pa Ultra-Strong Suction: Offers 5-level suction modes to effectively lift dirt, dust, debris, pet hair, and stubborn stains from various floor types.
• Precision Home Mapping & Smart APP Control: Utilizes LDS laser navigation for precise mapping and efficient cleaning paths. Control via the Smart APP to set schedules, create no-go zones, and manage multi-floor maps.

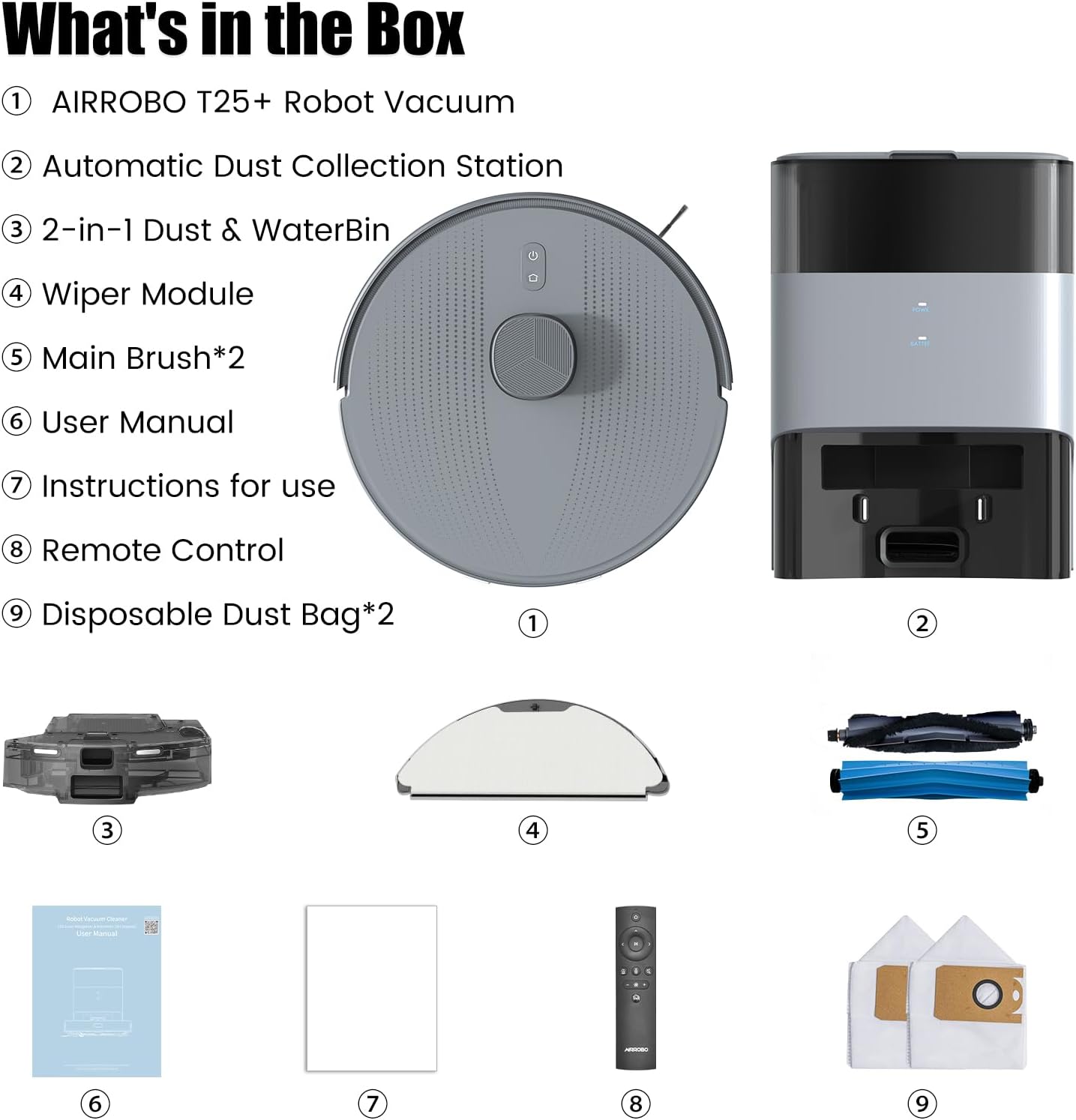

What's in the Box

The AIRROBO T25+ package includes all necessary components for immediate use and maintenance.

• AIRROBO T25+ Robot Vacuum
• Automatic Dust Collection Station
• 2-in-1 Dust & Water Bin
• Wiper Module
• Main Brush (x2)
• User Manual
• Instructions for Use
• Remote Control
• Disposable Dust Bag (x2)

Setup

Follow these steps to set up your AIRROBO T25+ for the first time.

1. Initial Preparation

• Unpack all components from the box.
• Remove all protective films and packaging materials from the robot and charging station.
• Place the Automatic Dust Collection Station against a wall on a flat, hard floor, ensuring no obstacles are within 1.5 meters (5 feet) in front and 0.5 meters (1.6 feet) on either side.
• Connect the power adapter to the charging station and plug it into a power outlet.

2. Install Brushes and Dust/Water Bin

• Flip the robot vacuum over. Install the side brushes by pressing them onto their respective posts until they click into place.
• Insert the 2-in-1 Dust & Water Bin into the designated slot at the back of the robot until it is securely latched.
• If using the mopping function, fill the water tank portion of the 2-in-1 bin with clean water. Attach the mop pad to the wiper module and then attach the module to the bottom of the robot.

3. App Connection and Network Operation

For smart control and advanced features, connect your robot vacuum to the AIRROBO app.

• Download the AIRROBO app from your smartphone's app store.
• Open the app and create a user account.
• Tap '+' in the upper right to go to the 'T25' page, and then select your device model RoboVacTB.
• Follow the instructions in the app to set up the Wi-Fi connection. Note: Only 2.4GHz Wi-Fi is supported. Ensure your phone is connected to your 2.4GHz Wi-Fi and Bluetooth is on. Keep the router, mobile phone, and robot vacuum cleaner close for smooth connection.

4. Initial Charging and Mapping

• Place the robot on the charging station. Ensure it is fully charged before its first cleaning cycle.
• During the first cleaning, the robot will map your home using its LDS laser navigation. Allow it to complete this process without interruption for accurate mapping.

Operating Instructions

The AIRROBO T25+ offers various cleaning modes and smart controls for customized cleaning.

1. Cleaning Modes

• Vac & Mop: Simultaneous vacuuming and mopping for comprehensive cleaning.
• Mop: Mopping only, suitable for hard floors.
• Sweep: Vacuuming only, suitable for all floor types including carpets.

2. Suction and Water Level Adjustment

• Adjust suction power (Quiet, Standard, Strong, Max) based on the level of dirt and floor type.
• Adjust water output (Low, Middle, High) for mopping based on desired wetness and floor material.

3. Smart Navigation and Features

• LDS Laser Navigation: Ensures precise mapping and efficient cleaning paths, avoiding missed spots.
• Carpet Detection: Automatically boosts suction on carpets and can be set to avoid carpets during mopping.
• No-Go Zones: Use the app to define areas the robot should avoid.
• Multi-Floor Mapping: Save maps for different floors in your home for seamless cleaning.
• Scheduling: Set custom cleaning schedules for specific times and areas via the app.
• Voice Control: Compatible with Alexa and Google Assistant for convenient voice commands.

Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your AIRROBO T25+.

Daily Maintenance

• If you have pets, set the suction level to Max and the self-empty frequency to 30 minutes.
• Regularly wipe the robot and base's connection pins and ensure the station's pins can rebound normally.
• Daily cleaning of the brush ends and the brush roller junction area to prevent brush reporting errors. If the robot reports an error "Brushes are tangled", clean the brushes of any hair or foreign matter after shutting down the robot.

Periodic Maintenance

• Refer to the accessory maintenance page in the app to clean the roller brush, side brushes, and filter at least once a week.
• Replace the disposable dust bag in the self-emptying station when full (approximately every 60 days, depending on usage).
• Clean the mop pads after each use. Extra mop pads are machine washable.
• Regularly check for new firmware updates in the app and upgrade to ensure optimal cleaning performance.

Troubleshooting

Here are solutions to common issues you might encounter with your AIRROBO T25+.

Q: What if my robot vacuum has shipping damage or missing accessories?

A: AIRROBO ensures that all our products are sold brand new. If you encounter any issues, such as damaged packaging, missing accessories, or signs of prior use, please contact AIRROBO support immediately. We are committed to promptly resolving your concerns and ensuring your satisfaction.

Q: How can I ensure the T25 completes its cleaning tasks efficiently?

A: 1. Clean up debris on the ground (such as wires, toys, etc.) to prevent the robot from getting stuck. 2. The robot should not be allowed to enter wet areas. 3. Set no-go zones in the app for long-pile carpets and furniture with similar bottom heights. 4. When the map is complete, it is recommended to backup the map in the app. If the map is abnormal, it can be restored.

Q: How to Ensure Efficient Recharging of T25 After Cleaning?

A: 1. Place the base station on a flat, hard floor against a wall, with no obstacles around it. 2. Do not place the base in areas exposed to sunlight or on carpets to avoid the failure of the robot to recharge.

Q: How to use the mopping function properly?

A: Do not use the mopping module on carpets. Please remove the mopping module when not using the mopping function. If the mopping module is installed, the robot will automatically avoid the carpet by default. You can make more settings on the app according to your needs.

Specifications

Warranty and Support

For any product-related inquiries, warranty claims, or technical assistance, please contact AIRROBO customer support. Refer to the warranty card included in your package for specific terms and conditions.
