Product Overview
The LEDLUX 52" Ceiling Fan with Light is a modern smart ceiling fan designed for indoor use, featuring a reversible DC motor, dimmable LED light, and three solid wood blades. It offers versatile control options including remote, mobile application, and voice control compatibility with Amazon Alexa and Google Assistant.
Figure 1: Overview of the LEDLUX 52" Ceiling Fan, showcasing its sleek design, included remote control, and smartphone application interface.

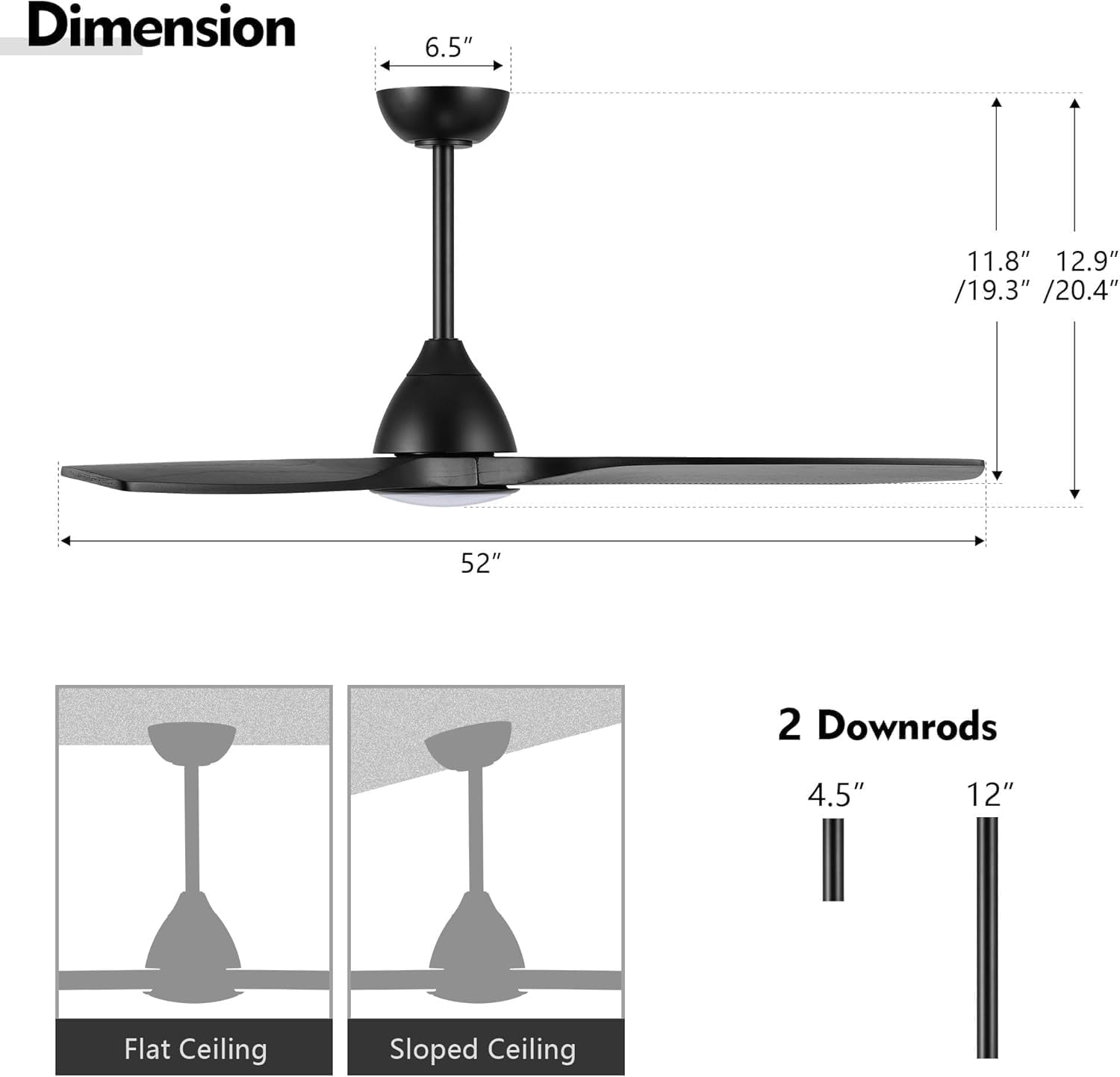

Figure 2: Detailed dimensions of the 52-inch ceiling fan, including measurements for the fan body, blades, and downrods, suitable for both flat and sloped ceilings.
Setup and Installation
This ceiling fan is designed for easy installation. It is recommended to follow the detailed instructions provided in the physical package. If you encounter any difficulties, professional assistance is advised.
Pre-Installation Checklist:
- Ensure power is disconnected at the circuit breaker before beginning installation.
- Verify all components listed in the packaging are present.
- Confirm the mounting location can support the fan's weight (approximately 15.12 pounds).
Mounting Options:
The fan supports installation on both flat and sloped ceilings. Two downrods (4.5" and 12") are included to accommodate different ceiling heights and preferences.
Operating Instructions
The LEDLUX ceiling fan offers multiple convenient control methods to enhance your comfort and experience.
Control Options:
- Remote Control: The included remote allows for direct control of fan speed, light settings, and fan direction.
- Mobile Application (APP Control): Download the "Smart Life" application to control all fan functions from your smartphone or tablet. This includes adjusting fan speed, light color temperature, brightness, and setting on/off timers.
- Voice Control: The fan is compatible with Amazon Alexa and Google Assistant, enabling hands-free operation through voice commands.
Figure 3: Illustration of the various control methods available for the smart ceiling fan, including the physical remote, the Smart Life mobile application, and integration with voice assistants like Amazon Alexa and Google Assistant.
Figure 4: An example demonstrating voice control functionality with Amazon Alexa, showing how users can command the fan using simple phrases.
Light Settings:
The integrated LED light offers three color temperatures and dimmable functionality:
- Color Temperatures: 3000K (Warm White), 4500K (Neutral White), 6000K (Cool White).
- Brightness Adjustment: Dimmable from 10% to 100%.
Figure 5: Visual representation of the three available color temperatures (3000K, 4500K, 6000K) and the dimmable range from 10% to 100% brightness.
Reversible DC Motor Function:
The fan features a reversible DC motor, allowing for optimal air circulation throughout the year.
- Summer Mode (Counter-clockwise): Pushes air downwards, creating a cooling effect.
- Winter Mode (Clockwise): Draws air upwards, circulating warm air trapped near the ceiling.
Figure 6: Diagram illustrating the airflow direction for summer (counter-clockwise) and winter (clockwise) modes, demonstrating how the reversible motor optimizes air circulation for different seasons.
Timer Settings:
Utilize the timer function via the remote or app to set the fan to turn off automatically after 1, 4, or 8 hours.
Figure 7: Image highlighting the quiet operation of the DC motor and the available timer settings (1h, 4h, 8h) for convenient use, especially during sleep.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your LEDLUX ceiling fan.
- Cleaning: Periodically wipe the fan blades and motor housing with a soft, damp cloth. Avoid using abrasive cleaners or solvents.
- Blade Inspection: Check the fan blades for any signs of warping or damage. Ensure all blade screws are securely tightened.
- Light Module: The LED light module is designed for long-term use. If issues arise with the LED light, please refer to the troubleshooting section or contact customer support. The manufacturer has reinforced welding points to improve durability.
- Motor Lubrication: The DC motor is permanently lubricated and does not require additional oiling.
Troubleshooting
This section addresses common issues you might encounter with your ceiling fan.
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not operate. | No power, loose wiring, remote control battery low. | Check circuit breaker. Ensure all wiring connections are secure. Replace remote control batteries. |
| Light does not work. | Loose wiring to light module, LED module failure. | Check light module wiring. If problem persists, contact customer support as the LED module is integrated. |
| Fan wobbles. | Loose mounting screws, unbalanced blades. | Ensure mounting bracket and downrod screws are tight. Check if blades are securely attached and balanced. |
| Remote control not responding. | Low battery, remote not paired. | Replace remote batteries. Refer to the full manual for remote pairing instructions if necessary. |
Specifications
| Feature | Detail |
|---|---|
| Brand | LEDLUX |
| Model Number | SYCF5205 |
| Fan Size | 52 inches |
| Color | Black |
| Power Source | DC Motor |
| Blades | 3 Solid Wood Blades |
| Light Type | Integrated Dimmable LED Light |
| Color Temperatures | 3000K, 4500K, 6000K |
| Control Options | Remote Control, APP Control ("Smart Life"), Voice Control (Alexa, Google Assistant) |
| Reversible Motor | Yes (Summer/Winter modes) |
| Indoor/Outdoor Usage | Indoor |
| Item Weight | 15.12 pounds |
| Package Dimensions | 27 x 13.5 x 9.5 inches |
| Country of Origin | China |
Warranty and Support
Warranty Information:
This LEDLUX ceiling fan comes with a 1-Year Warranty from the date of purchase. This warranty covers manufacturing defects and material flaws under normal use.
Customer Support:
For any questions regarding installation, operation, troubleshooting, or warranty claims, please contact LEDLUX customer support. You can reach us via Amazon mail for prompt assistance.
We are committed to providing support and ensuring your satisfaction with our product.
