TRIOBLADE F001-1000W 13Ah Folding Electric Bike User Manual

1. Introduction

Thank you for choosing the TRIOBLADE F001-1000W 13Ah Folding Electric Bike. This manual provides essential information for the safe operation, maintenance, and troubleshooting of your new electric bicycle. Please read this manual thoroughly before your first ride to ensure proper assembly, safe usage, and optimal performance. Retain this manual for future reference.

This electric bike is designed for adults, featuring a powerful 1000W peak motor, a 48V 13Ah removable lithium battery, and a top speed of 27 MPH. Its foldable design makes it convenient for commuting, beach rides, and general recreational use. It is UL 2849 certified for electrical safety.

Image: The TRIOBLADE folding electric bike shown in an outdoor environment, highlighting its design and suitability for various terrains.

2. Safety Information

Your safety is paramount. Always wear a helmet and appropriate safety gear when riding. Adhere to all local traffic laws and regulations. Regular maintenance is crucial for safe operation.

2.1 General Safety Precautions

• Always perform a pre-ride inspection: check tire pressure, brake function, battery charge, and ensure all quick releases are securely fastened.
• Do not ride under the influence of alcohol or drugs.
• Be aware of your surroundings and anticipate potential hazards.
• Avoid riding in adverse weather conditions (heavy rain, snow, ice) or on slippery surfaces.
• Do not exceed the maximum load capacity of 264 lbs (120 kg).
• Ensure the battery is securely locked in place before riding.

2.2 Battery Safety

• Use only the charger provided by TRIOBLADE.
• Do not expose the battery to extreme temperatures, direct sunlight, or fire.
• Do not puncture, drop, or disassemble the battery pack.
• Charge the battery in a well-ventilated area, away from flammable materials.
• If the battery shows signs of damage, swelling, or overheating, discontinue use immediately and contact customer support.

3. Components Overview

Familiarize yourself with the main components of your TRIOBLADE electric bike.

• Frame: Aluminum alloy folding frame.
• Motor: Rear hub motor (1000W Peak).
• Battery: 48V 13Ah Removable Lithium-ion Battery.
• Display: Digital LCD display.
• Brakes: Dual Disc Brakes (Front and Rear).
• Gears: 7-speed Shimano derailleur.
• Tires: 20-inch Fat Tires (4 inches wide).
• Suspension: Front suspension fork.

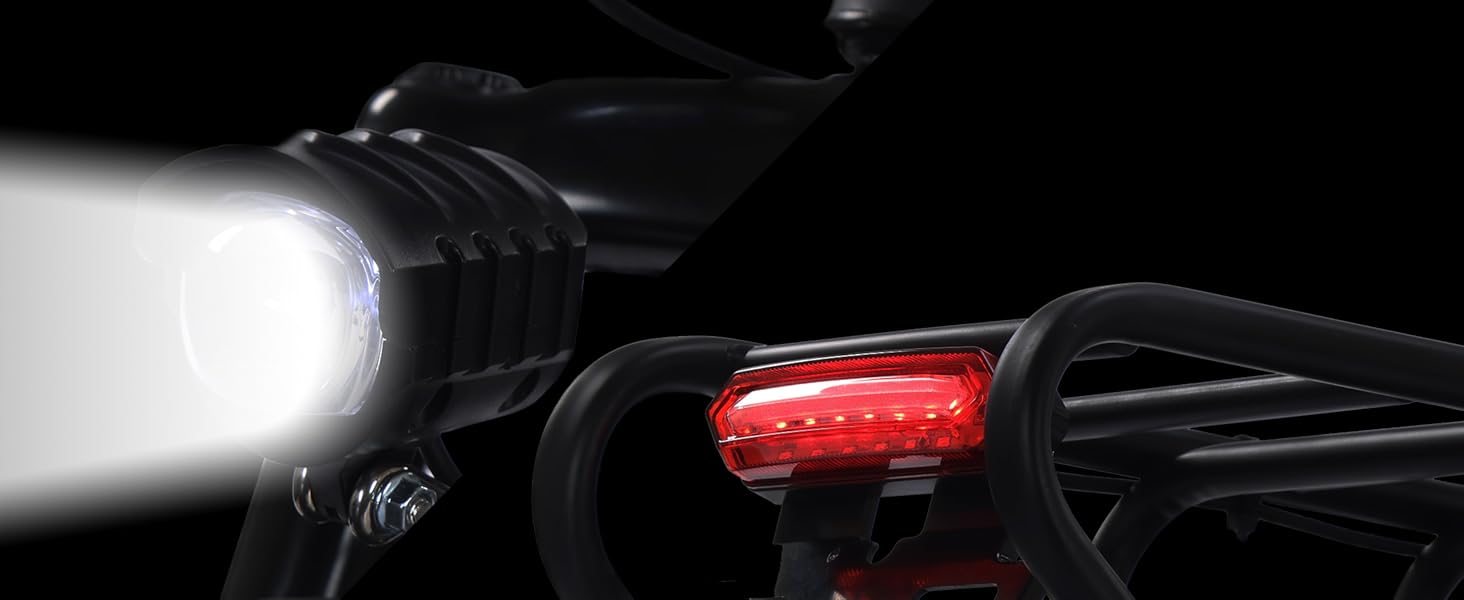

• Lights: Integrated Headlight and Taillight.
• Fenders: Front and Rear Fenders.

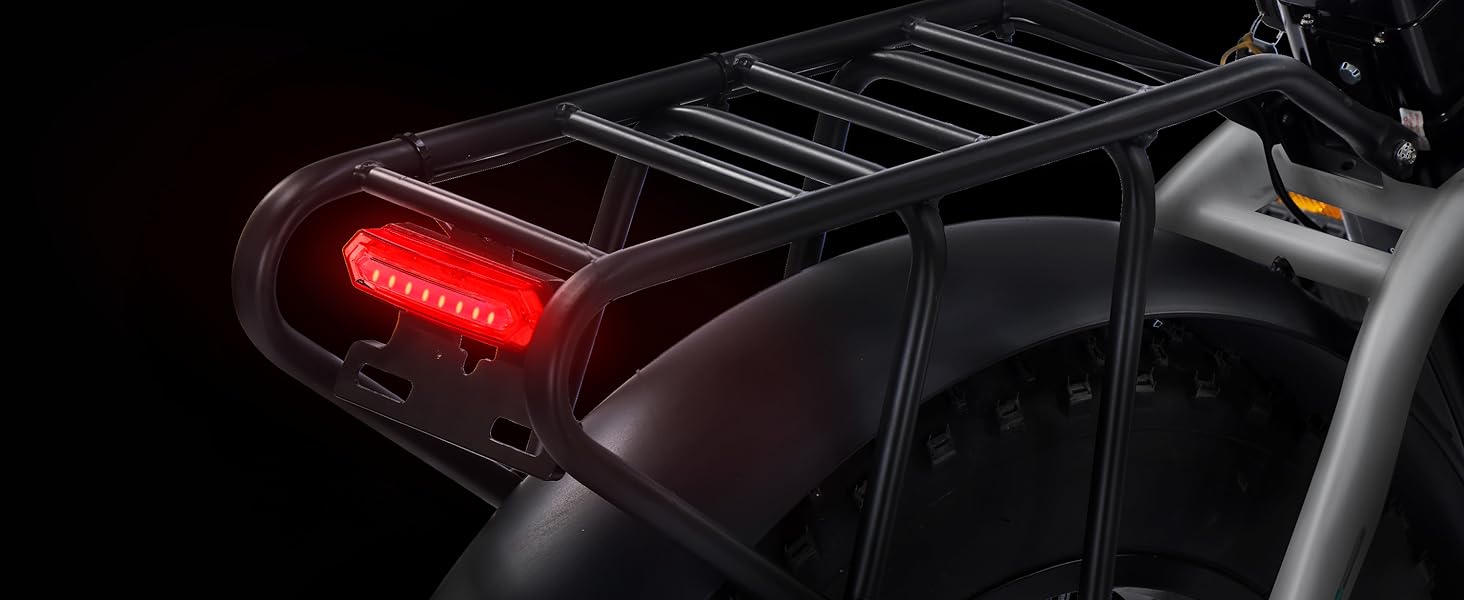

• Rear Rack: Integrated rear cargo rack.

Image: An exploded view or detailed close-up of the bike's key components, such as the motor, battery placement, and frame structure.

4. Setup and Assembly

Your TRIOBLADE electric bike comes partially assembled. Follow these steps to complete the assembly and prepare for your first ride.

4.1 Unboxing and Initial Inspection

1. Carefully remove the bike and all components from the packaging.
2. Inspect for any visible damage during shipping. Contact customer support immediately if you find any issues.
3. Verify all included components against the packing list.

4.2 Handlebar Installation

1. Unfold the handlebar stem and secure the quick-release lever.
2. Insert the handlebar into the stem and align it properly.
3. Tighten the handlebar clamp bolts evenly.

4.3 Pedal Installation

1. Identify the left (L) and right (R) pedals.
2. The right pedal (R) threads clockwise into the crank arm.
3. The left pedal (L) threads counter-clockwise into the crank arm.
4. Tighten securely with a wrench.

4.4 Seat Post and Saddle Adjustment

1. Insert the seat post into the frame.
2. Adjust the saddle height to ensure your feet can comfortably touch the ground when stopped.
3. Secure the seat post quick-release lever firmly.

4.5 Battery Installation and Charging

1. Insert the 48V 13Ah lithium battery into its compartment on the frame.
2. Use the provided key to lock the battery securely in place.
3. Before first use, fully charge the battery using the included charger. The charging port is typically located on the battery itself or the frame.
4. The charger indicator light will change from red to green when fully charged.

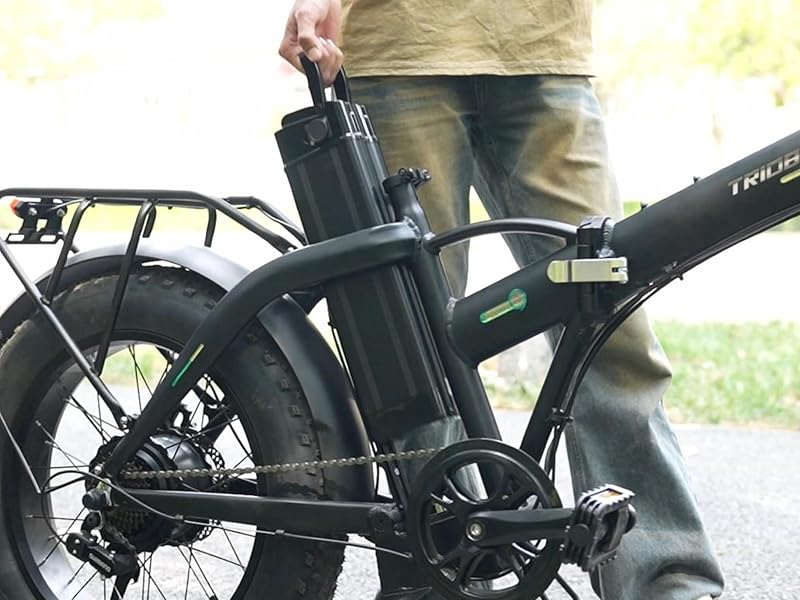

Image: A person demonstrating the removal or installation of the removable battery from the electric bike frame.

5. Operating Instructions

Learn how to operate your TRIOBLADE electric bike's various functions.

5.1 Powering On/Off

• To power on the bike, press and hold the power button on the digital display for a few seconds.
• To power off, press and hold the power button again until the display turns off.

5.2 Digital Display Functions

The digital display shows important information such as speed, battery level, pedal assist level, and trip distance. Refer to the display's specific manual for detailed navigation.

5.3 Pedal Assist System (PAS)

• The bike features multiple levels of pedal assist. Use the '+' and '-' buttons on the control panel to adjust the assist level.
• Higher levels provide more motor assistance, while lower levels provide less.
• The motor engages when you start pedaling.

5.4 Throttle Operation

• The bike is equipped with a twist throttle for power on demand, without pedaling.
• Gently twist the throttle to accelerate. Release the throttle to stop power assistance.
• Always be mindful of your speed and surroundings when using the throttle.

5.5 Gear Shifting (Shimano 7-Speed)

• Use the gear shifter on the handlebar to change gears.
• Shift to a lower gear for easier pedaling on inclines.
• Shift to a higher gear for faster speeds on flat terrain.
• Always pedal lightly when shifting gears to ensure smooth transitions and prevent damage to the drivetrain.

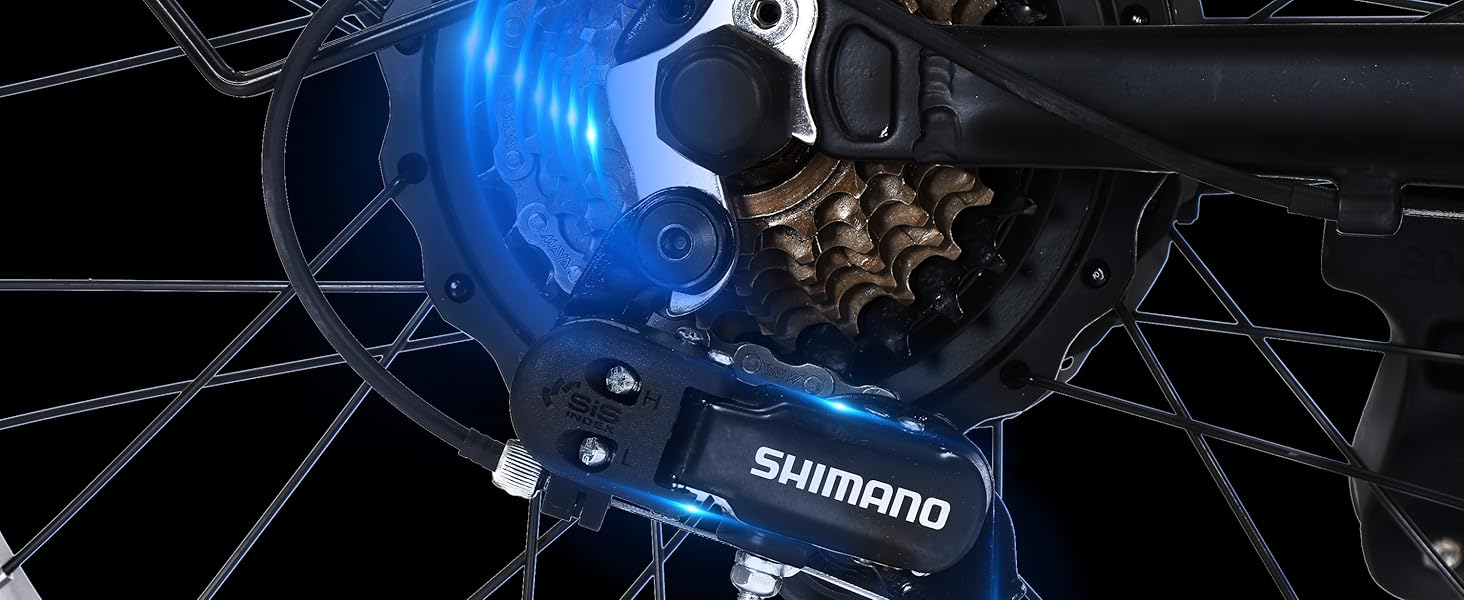

Image: A detailed view of the Shimano 7-speed derailleur and rear cassette, illustrating the gear shifting mechanism.

5.6 Braking System (Dual Disc Brakes)

• The bike is equipped with front and rear disc brakes for reliable stopping power.
• Always apply both brakes simultaneously for balanced and effective stopping.
• Avoid sudden, hard braking, especially at high speeds or on slippery surfaces.

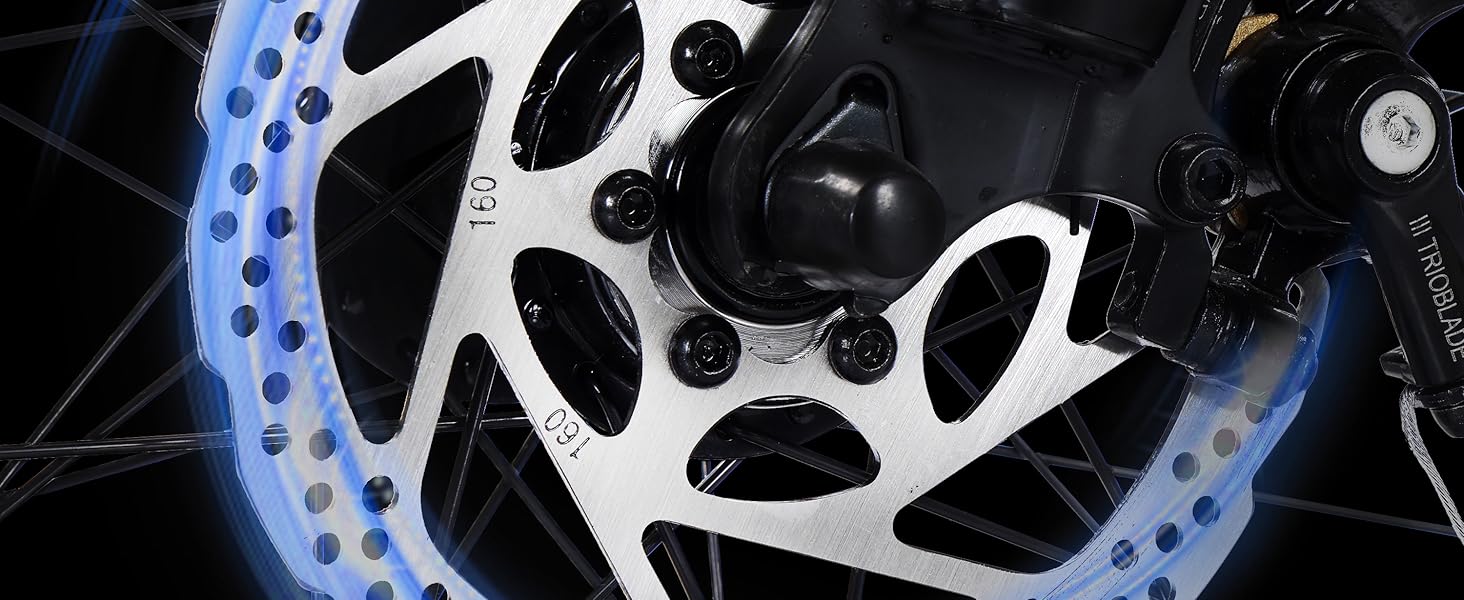

Image: A close-up shot of the disc brake rotor and caliper, demonstrating the bike's braking system.

5.7 Folding Mechanism

To fold the bike for storage or transport:

1. Lower the seat post completely.
2. Fold down the handlebars using the quick-release lever on the stem.
3. Open the main frame folding latch, typically located in the middle of the frame.
4. Carefully fold the front and rear sections of the frame together until they lock.
5. Ensure all folding mechanisms are securely latched before riding.

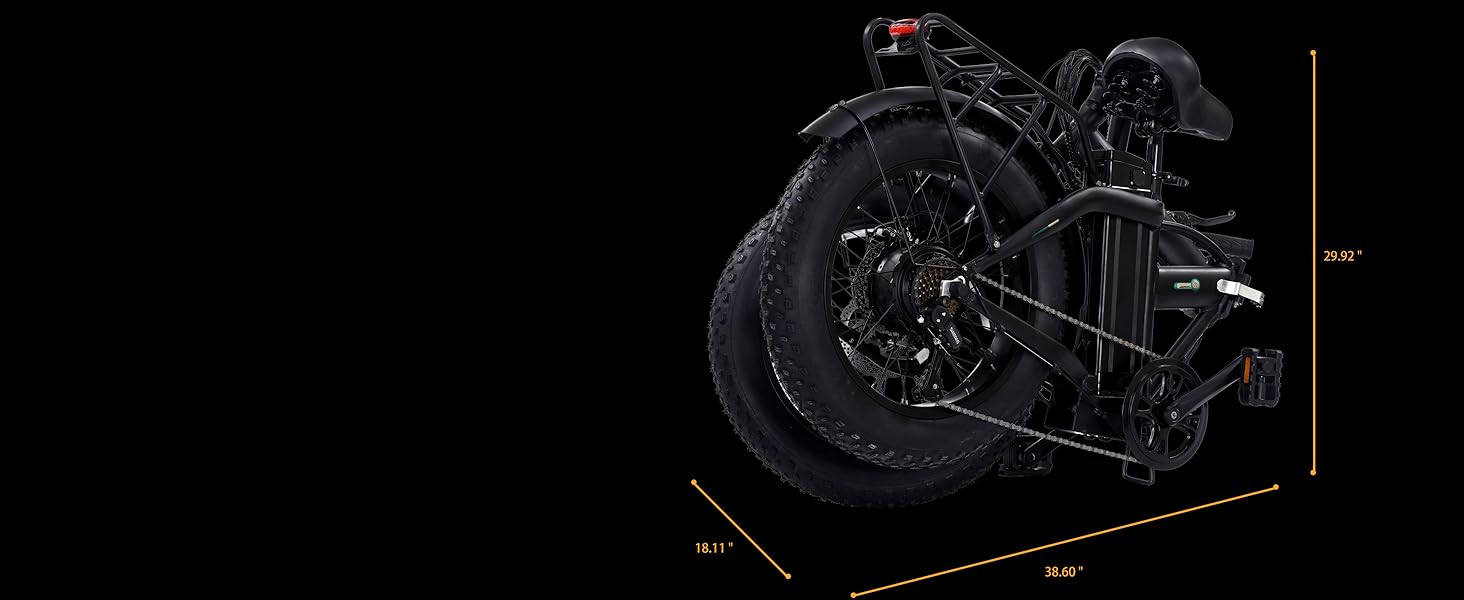

Image: The TRIOBLADE electric bike shown in its compact folded configuration, with approximate dimensions indicating its portability.

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your electric bike.

6.1 Cleaning

• Clean the bike regularly with a damp cloth and mild soap. Avoid high-pressure washers.
• Do not spray water directly onto electrical components (motor, battery, display).
• Dry the bike thoroughly after cleaning.

6.2 Tire Pressure

• Check tire pressure before each ride. Recommended pressure is typically indicated on the tire sidewall.
• Proper tire pressure improves ride quality, efficiency, and prevents punctures.

6.3 Brake Inspection

• Regularly inspect brake pads for wear and replace them when necessary.
• Ensure brake levers have proper tension and the brakes engage effectively.
• Check brake rotors for damage or warping.

6.4 Chain Lubrication

• Lubricate the chain regularly, especially after riding in wet conditions.
• Use bicycle-specific chain lubricant.

6.5 Battery Care and Storage

• Store the battery in a cool, dry place, away from direct sunlight.
• If storing for extended periods, charge the battery to 50-70% every 1-2 months to maintain its health.
• Do not fully discharge the battery before storing.

7. Troubleshooting

This section addresses common issues you might encounter with your electric bike.

For issues not listed here or if solutions do not resolve the problem, please contact TRIOBLADE customer support.

8. Specifications

Image: An illustration showing the recommended rider height range and the maximum load capacity for the TRIOBLADE electric bike.

9. Warranty and Support

TRIOBLADE stands behind the quality of its products. For warranty information and customer support, please refer to the warranty card included with your purchase or visit the official TRIOBLADE website.

Contact Information:

• Brand Store: TRIOBLADE Amazon Store
• For technical assistance, parts replacement, or warranty claims, please contact TRIOBLADE customer service.

Please have your model name (F001-1000W 13Ah) and purchase date ready when contacting support.
