1. Introduction
This manual provides essential information for the safe operation, assembly, and maintenance of your new TrailMaster Cheetah 6 Youth Go-Kart. Please read this manual thoroughly before operating the vehicle to ensure proper use and to prevent injury or damage.
The TrailMaster Cheetah 6 is designed for youth aged 6-12, featuring a robust 163cc, 5.5 HP horizontal OHV engine, a torque converter CVT transmission for smooth acceleration, and a top speed of up to 24 MPH. Key safety features include a 4-point safety belt, remote kill switch, and speed governor. The go-kart also comes equipped with a manual choke for easy starting in cold conditions, hydraulic disk brakes, a parking brake, fenders, a canopy top, and a cargo rack.

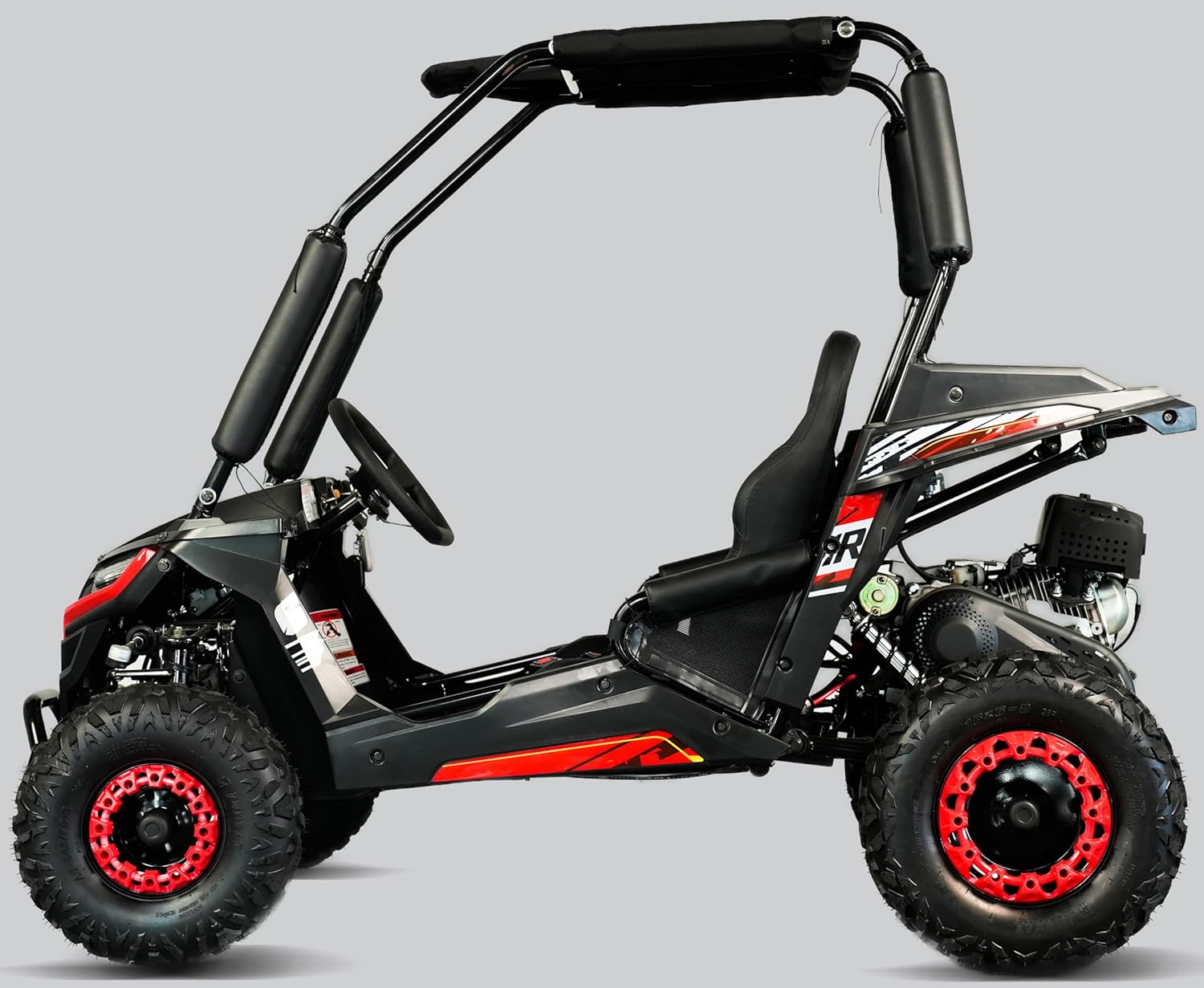

Figure 1: Side view of the TrailMaster Cheetah 6 Youth Go-Kart.
2. Safety Information
Your safety and the safety of others are paramount. Always follow these safety guidelines:
- Wear Appropriate Safety Gear: Always wear a helmet, eye protection, gloves, and sturdy footwear when operating the go-kart.
- Fasten Safety Belts: Ensure the 4-point safety belt is securely fastened before each ride.
- Adult Supervision: This go-kart is intended for children aged 6-12 and must always be operated under direct adult supervision.
- Remote Kill Switch: The remote kill switch is a critical safety feature. An adult supervisor should always have access to and be prepared to use the remote kill switch in emergencies.
- Speed Governor: Utilize the adjustable speed governor to match the rider's skill level and the operating environment.
- Operating Environment: Operate the go-kart only in safe, open areas free from obstacles, traffic, and pedestrians. Avoid public roads.
- Pre-Ride Inspection: Before each use, inspect the go-kart for loose parts, proper tire pressure, brake function, and fuel levels.
- Passenger Limit: Do not exceed the recommended passenger capacity.
- No Stunts: Avoid stunts, sharp turns at high speeds, or other dangerous maneuvers.
3. What's in the Box
Upon unpacking, verify that all components are present:
- TrailMaster Cheetah 6 Youth Go-Kart (main unit, mostly pre-assembled)
- Tool Kit
- Instruction Manual
- Remote Kill Switch Fob
4. Setup and Assembly
Your TrailMaster Cheetah 6 Go-Kart arrives almost fully assembled in its crate. This includes tires, shocks, and fenders already attached. Average assembly time is approximately 15 minutes.
Initial Setup Steps:
- Uncrating: Carefully remove the go-kart from its shipping crate. Retain packaging materials until you are satisfied with the product.
- Handlebar/Steering Wheel Attachment: Secure the steering wheel to the steering column using the provided hardware. Ensure it is firmly attached and allows for full range of motion.
- Battery Connection: Connect the battery terminals. Refer to the battery compartment for specific instructions and polarity.
- Fluid Checks: Check engine oil levels and add fuel (unleaded gasoline) to the fuel tank. The fuel capacity is 1 gallon.
- Tire Pressure: Verify and adjust tire pressure to the recommended PSI as indicated on the tires or in the specifications section.
- Safety Check: Perform a thorough safety check, ensuring all bolts are tightened, brakes are functional, and the remote kill switch operates correctly.

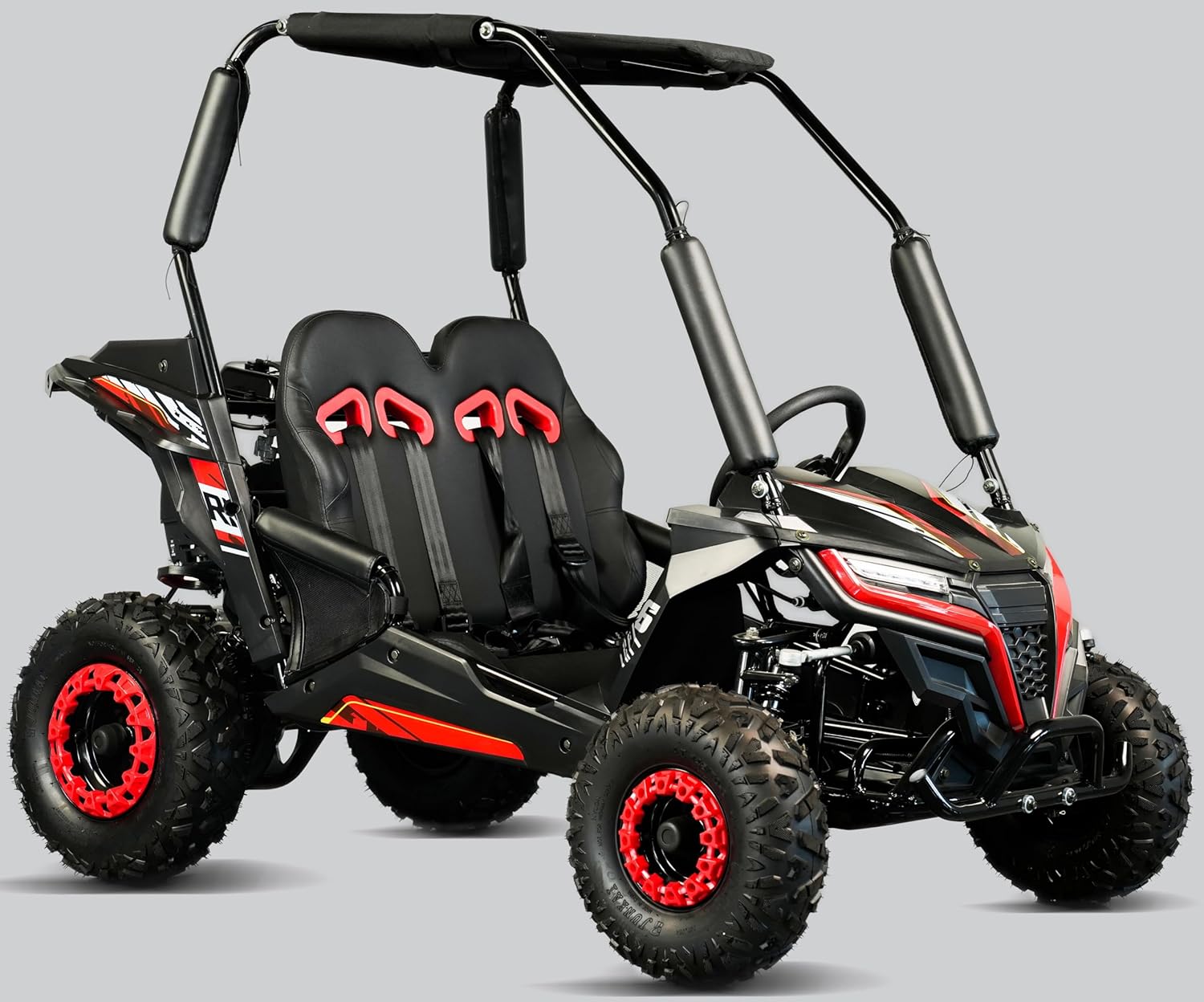

Figure 2: Front view, showing the headlights and front suspension.
5. Operating Instructions
Starting the Engine:
- Seating and Safety: Ensure the rider is properly seated with the 4-point safety belt securely fastened.
- Choke (if cold): If the engine is cold, engage the manual choke.
- Ignition: Insert the key into the ignition and turn it to the 'ON' position.
- Start: Press the electric start button. Once the engine starts, gradually disengage the choke.
Driving:
- Throttle Control: Use the foot pedal to control acceleration. Apply gentle pressure to begin moving.
- Steering: Use the steering wheel to navigate. Practice smooth turns at low speeds.
- Speed Governor: The speed governor can be adjusted to limit the maximum speed, which is crucial for younger riders or less experienced operators.
- CVT Transmission: The torque converter CVT transmission provides automatic, smooth power delivery without manual gear shifting.
Stopping:
- Braking: Apply the hydraulic disk brake pedal smoothly to slow down and stop.
- Parking Brake: Engage the parking brake when the go-kart is stationary to prevent accidental movement.
- Remote Kill: In an emergency, the adult supervisor can press the remote kill button to immediately shut off the engine.

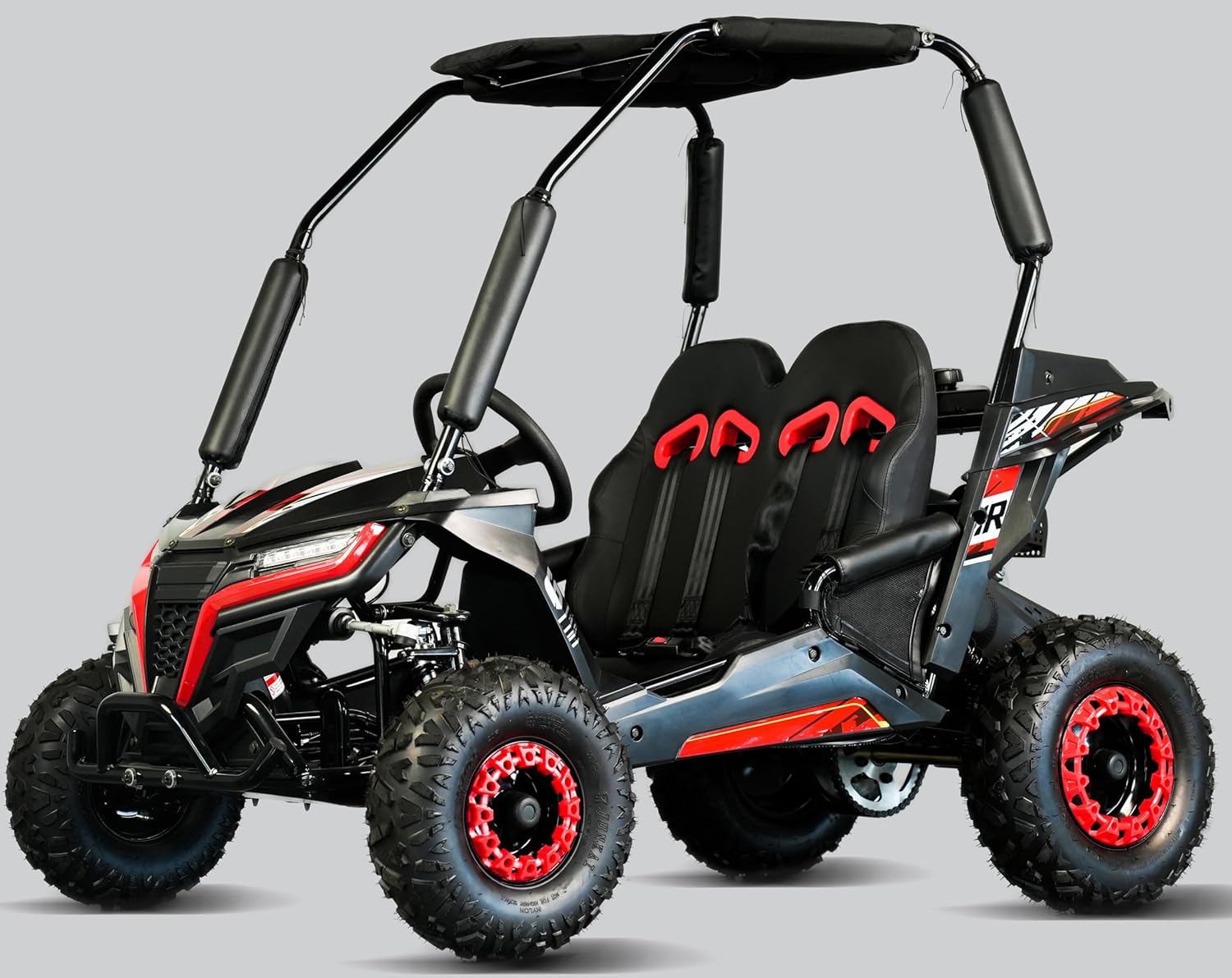

Figure 3: Interior view highlighting the adjustable seat and 4-point safety belts.
6. Maintenance
Regular maintenance is crucial for the longevity and safe operation of your go-kart.
Routine Checks:
- Engine Oil: Check engine oil level before each ride. Change oil according to the engine manufacturer's recommendations (typically after the first 5 hours, then every 25-50 hours).
- Tires: Inspect tires for wear, damage, and proper inflation before each use.
- Brakes: Test brake functionality before each ride. Ensure the hydraulic disk brakes respond effectively. Check brake fluid levels periodically.
- Chain/Belt: Inspect the drive chain or CVT belt for proper tension and wear. Lubricate the chain as needed.
- Fasteners: Regularly check all nuts, bolts, and other fasteners for tightness. Tighten any loose components.
- Air Filter: Clean or replace the air filter regularly, especially when operating in dusty conditions.
- Fuel System: Inspect fuel lines and connections for leaks or damage.
Figure 4: Rear view displaying the 163cc engine and cargo rack.
7. Troubleshooting
Here are some common issues and their potential solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine won't start | No fuel, dead battery, choke not set, remote kill engaged | Check fuel level, charge/replace battery, adjust choke, disengage remote kill |
| Loss of power | Low fuel, clogged air filter, spark plug issue | Refuel, clean/replace air filter, inspect/replace spark plug |
| Brakes feel weak | Low brake fluid, worn brake pads, air in brake lines | Check/add brake fluid, inspect/replace pads, bleed brake lines (professional service recommended) |
| Unusual noises | Loose components, worn bearings, engine issue | Inspect and tighten all fasteners, consult a qualified technician for engine/bearing issues |
8. Specifications
| Feature | Specification |
|---|---|
| Engine | 163cc, 5.5 HP Horizontal OHV Engine |
| Transmission | Torque Converter CVT (Automatic with Reverse) |
| Top Speed | Up to 24 MPH |
| Brakes | Hydraulic Disk Brake |
| Safety Features | 4-Point Safety Belts, Remote Kill Switch, Speed Governor |
| Starting System | Electric Start |
| Fuel Capacity | 1 Gallon |
| Product Dimensions | 63 x 36 x 50 inches |
| Item Weight | 308 pounds |
| Recommended Age | 6 years and up |
| Adjustable Seat | Pedal to seat back adjustable from 28” to 32” |
9. Official Product Videos
No official product videos specifically for the TrailMaster Cheetah 6 Youth Go-Kart were found from the seller. Please refer to the images and detailed instructions provided in this manual for guidance.
10. Warranty and Support
For warranty information, technical support, or to purchase replacement parts, please contact Trailmaster customer service or visit the official Trailmaster store. Keep your purchase receipt for warranty claims.
