1. Safety Information
Always read and understand this manual before operating the pressure washer. Failure to follow instructions can result in serious injury or property damage.
- Fuel Safety: Handle gasoline with extreme care. It is highly flammable. Store fuel in an approved container in a well-ventilated area away from ignition sources.
- Carbon Monoxide Hazard: Never operate the pressure washer indoors or in poorly ventilated areas. Exhaust contains carbon monoxide, a colorless, odorless, poisonous gas.
- High-Pressure Spray: The high-pressure spray can cause serious injury. Never direct the spray at people, pets, or electrical devices. Always wear appropriate eye protection.
- Electrical Safety: Ensure all electrical connections are dry and secure. Do not operate the pressure washer in standing water.
- Hot Surfaces: The engine and pump can become very hot during operation. Avoid contact with hot surfaces to prevent burns.
2. Package Contents
Verify that all items are present and undamaged upon unpacking:
- TOOLCY 3400 PSI Gas Pressure Washer Unit
- Ergonomic Spray Gun with Integrated Swivel Connection
- 21-inch Metal Extension Wand
- 35-foot High-Pressure Hose
- 5 Quick-Connect Nozzles (0°, 15°, 25°, 40°, Soap)
- 0.88-Gallon Onboard Soap Tank (Soap not included)
- Oil Funnel
- User Manual
Image: Main unit with spray gun, high-pressure hose, and quick-connect nozzles.
This image displays the complete TOOLCY 3400 PSI Gas Pressure Washer package, including the main unit, the professional-grade spray gun with swivel, the 35-foot high-pressure hose, and the five distinct nozzle tips for various cleaning tasks.
3. Setup
Follow these steps to prepare your pressure washer for first use:
- Add Engine Oil: The pressure washer is shipped without engine oil. Add 10W-30 engine oil to the crankcase. An oil funnel is provided to assist. Do not overfill.
- Add Fuel: Fill the fuel tank with fresh, unleaded gasoline.
- Attach Handle: Insert the handle assembly into the designated slots on the main unit. It should click and lock into place without the need for additional tools or bolts.
- Install Hose Hook: Attach the hose hook to the handle panel using the pre-drilled holes.
- Connect High-Pressure Hose: Connect one end of the 35-foot high-pressure hose to the pump outlet on the pressure washer unit. Connect the other end to the spray gun.
- Connect Water Supply: Attach a standard garden hose (not included) to the water inlet on the pressure washer. Ensure the connection is secure and leak-free.
- Attach Spray Wand: Screw the metal extension wand onto the spray gun.
- Select Nozzle: Choose the appropriate quick-connect nozzle for your task and insert it into the end of the spray wand.

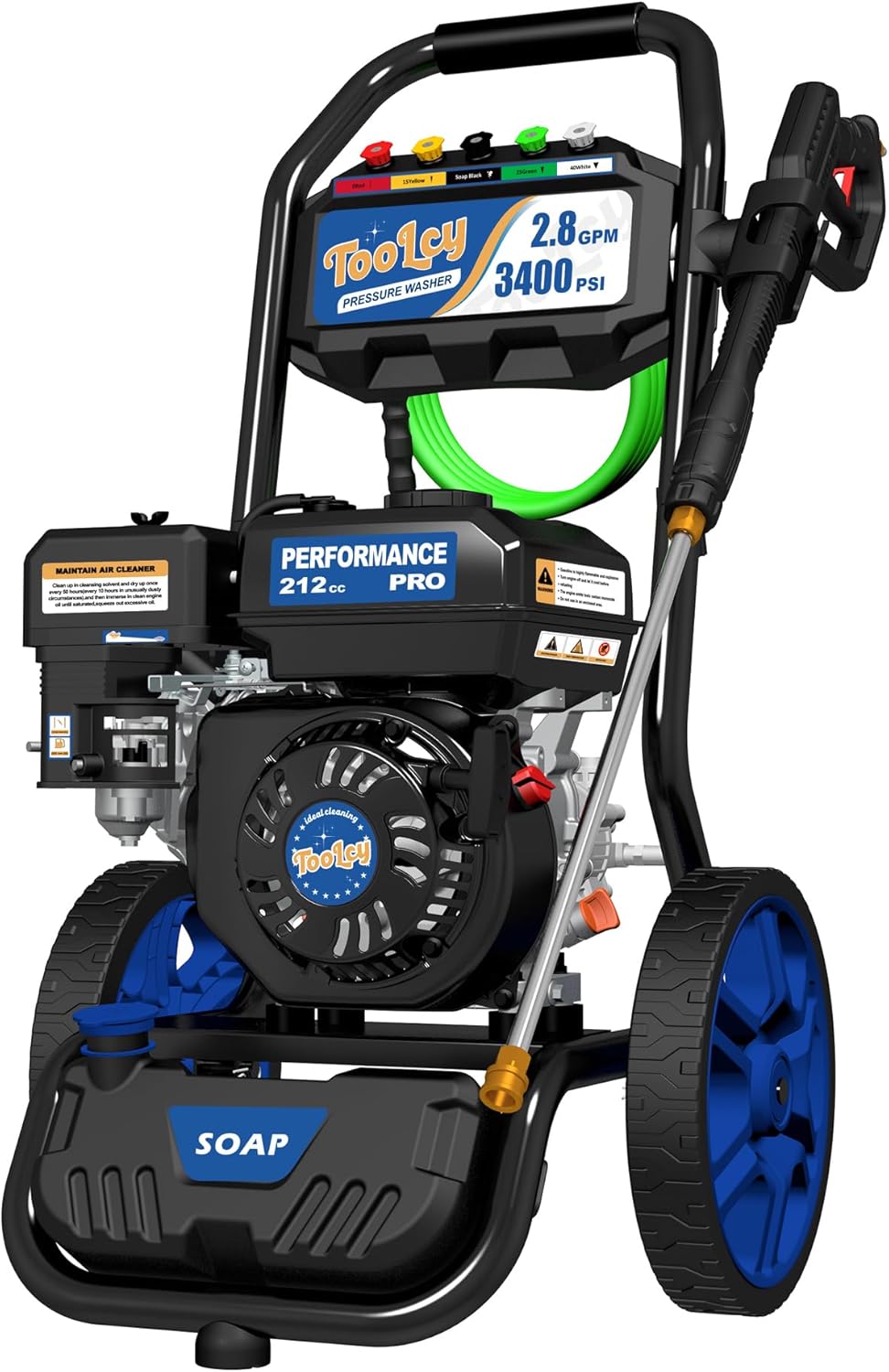

Image: The main unit of the TOOLCY 3400 PSI Gas Pressure Washer, showcasing its compact design and large wheels for easy maneuverability.
This image provides a clear view of the pressure washer's core components, including the 212cc OHV engine, reinforced pump, and onboard soap tank, all pre-assembled for quick setup.
Image: Close-up of the 212cc 4-stroke OHV engine.
This detailed view highlights the powerful 212cc 4-stroke OHV engine, designed for easy starting and reliable performance during extended use.
Image: View of the enhanced pump mechanism.
The image shows the reinforced, maintenance-free axial cam pump, which contributes to a longer service life and consistent high-pressure output.
Image: Close-up of the 0.88-gallon onboard soap tank.
This image illustrates the integrated soap tank, designed for efficient and effective application of detergents during cleaning tasks.
4. Operating Instructions
Proper operation ensures effective cleaning and extends the life of your pressure washer:
- Turn on Water Supply: Fully open the water faucet connected to your garden hose.
- Purge Air: Squeeze the trigger on the spray gun to purge air from the system until a steady stream of water flows out.
- Start Engine: Turn the fuel shut-off valve to the RIGHT position. Turn the engine switch to the ON position. Turn the choke lever to the LEFT position. Locate the recoil cord and pull slowly until resistance is felt, then pull rapidly to start the engine. Once the engine starts, turn the lever to the RIGHT position.
- Begin Cleaning: Direct the spray gun at the surface to be cleaned, maintaining a safe distance. Adjust the distance and nozzle type for desired pressure and spray pattern.
- Using the Soap Tank: To apply soap, ensure the soap tank is filled with appropriate pressure washer detergent. Switch to the black soap nozzle. The pressure washer will automatically draw soap and mix it with the water.
- Shutting Down: Release the spray gun trigger. Turn the engine switch to the OFF position. Turn off the water supply. Squeeze the trigger to release any remaining pressure in the system.
Image: Pressure washer actively cleaning outdoor stairs.
This image demonstrates the pressure washer's effectiveness in removing dirt and grime from concrete surfaces, highlighting its powerful cleaning capability.
Image: Close-up of the 360-degree swivel inlet on the spray gun.
This feature prevents hose kinking and improves efficiency, allowing for easier maneuverability during washing.
Image: The 35-foot high-pressure hose extending for greater reach.
The extended hose length minimizes the need to reposition the pressure washer, making it convenient for cleaning larger areas like vehicles.
Image: A selection of quick-connect nozzle tips.
The five quick-connect nozzles (0°, 15°, 25°, 40°, soap) allow for versatile cleaning, from tough weed removal with the 0° jet to gentle rinsing with the 40° tip.
5. Maintenance
Regular maintenance is crucial for the longevity and performance of your pressure washer:
- Engine Oil: Check engine oil levels before each use. The built-in Smart Oil Sensor prevents engine damage due to low oil levels.
- Fuel: Use fresh gasoline. For storage longer than 30 days, add a fuel stabilizer or drain the fuel tank.
- Pump: The reinforced axial cam pump is maintenance-free. However, ensure it is protected from freezing temperatures during storage.
- Nozzles: Clean nozzles regularly to prevent clogs and maintain optimal spray patterns.
- Hose: Inspect the high-pressure hose for kinks, cuts, or abrasions before each use.
- Storage: Store the pressure washer in a dry, protected area. If storing in freezing temperatures, ensure the pump is completely drained or protected with pump saver.
6. Troubleshooting
Common issues and their potential solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine will not start | No fuel or low oil; Engine switch OFF; Choke in wrong position; Recoil cord not pulled correctly. | Add fuel/oil; Turn engine switch ON; Adjust choke; Pull recoil cord rapidly. |
| Low pressure | Clogged nozzle; Insufficient water supply; Air in pump. | Clean nozzle; Ensure full water flow; Purge air from pump by squeezing trigger. |
| Water leaks | Loose connections; Damaged O-rings. | Tighten all hose connections; Inspect and replace O-rings if damaged. |
| Engine stops during use | Low oil level (Smart Oil Sensor activated); Overheating. | Check and add oil; Allow engine to cool down. |
7. Specifications
- Brand: TOOLCY
- Model: 3400PSI Green hose
- Power Source: Gas Engine Powered
- Engine: 212cc 4-stroke OHV Engine
- Maximum Pressure: 3400 PSI
- Water Flow: 2.8 GPM (Gallons Per Minute)
- Hose Length: 35 Feet
- Wand Length: 21 Inches
- Item Weight: 62 Pounds
- Product Dimensions: 25"L x 19"W x 39"H
- Wheels: Two large never-flat 12-inch wheels
8. Warranty and Support
TOOLCY is committed to delivering superior quality products. For any questions, technical assistance, or warranty claims, please contact TOOLCY customer support directly. Refer to the contact information provided in your product packaging or visit the official TOOLCY website.
