EDISHINE TF0514

EDISHINE Dimmable LED Floor Lamp (Model TF0514)

User Manual

Introduction

This manual provides instructions for the safe and efficient use of your EDISHINE Dimmable LED Floor Lamp, Model TF0514. Please read these instructions carefully before assembly and operation, and retain them for future reference.

Setup and Assembly

No professional skills are required for the installation of this floor lamp. Follow the steps below to assemble your lamp.

  1. Carefully unpack all components from the packaging. Ensure all parts are present before proceeding.
  2. Connect the four pole sections of the lamp one by one. Twist each section clockwise until securely fastened.
  3. Attach the assembled pole to the base. Ensure the pole is firmly screwed into the base for stability.
  4. Place the lamp in your desired location. Ensure the power cord is not pinched or obstructed.

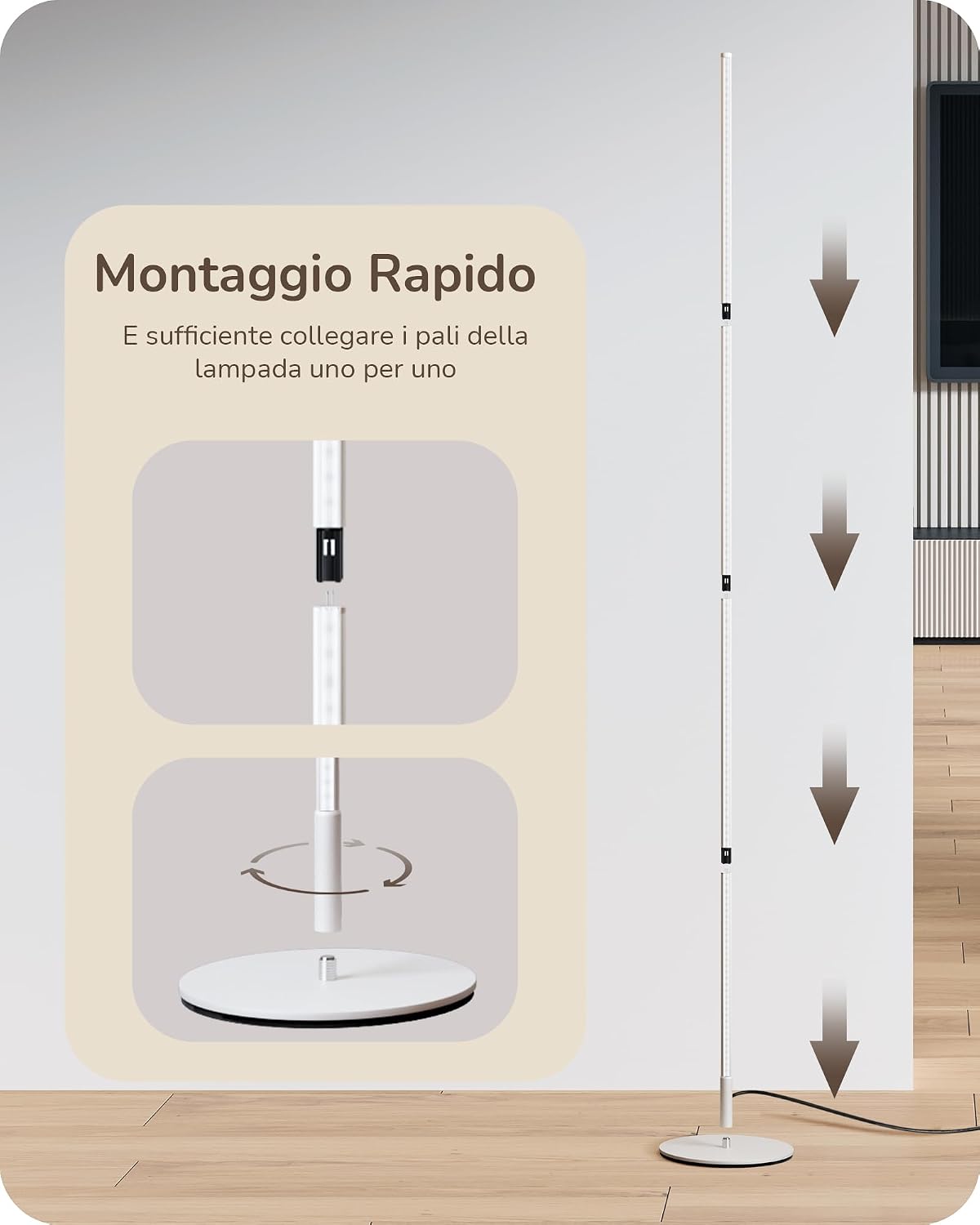

Diagram showing quick assembly of the EDISHINE floor lamp by connecting pole sections to the base.
Figure 1: Quick Assembly Diagram. This image illustrates how to connect the pole sections and attach them to the lamp base for easy setup.
Image showing the EDISHINE floor lamp with its individual components laid out for assembly.
Figure 2: Lamp Components. This image displays the lamp's parts, including the base, pole sections, and LED light strip, ready for assembly.
The EDISHINE floor lamp shown in various room settings, demonstrating its adjustable height and versatile placement.
Figure 3: Adjustable Height and Placement. The lamp can be configured to different heights and fits well in various indoor environments, such as bedrooms, living rooms, and offices.

Operating Instructions

Your EDISHINE LED Floor Lamp features continuous dimming and a convenient foot switch for operation.

Foot Switch Operation

  • Short Press: Press the foot switch briefly to turn the lamp ON or OFF.
  • Long Press: Press and hold the foot switch to continuously adjust the brightness from 10% to 100%. Release the switch when the desired brightness level is reached.

The foot switch design allows for easy control without bending down, enhancing user convenience.

Dimming and Memory Function

The lamp offers continuous dimming, allowing you to select any brightness level between 10% and 100%. It is equipped with a memory function that automatically restores the last brightness setting used before the lamp was turned off.

Close-up of a foot pressing the integrated foot switch of the EDISHINE floor lamp.
Figure 4: Foot Switch. The foot switch provides convenient on/off control and brightness adjustment.
The EDISHINE floor lamp demonstrating its continuous dimming feature, showing light levels from 10% to 100% brightness.
Figure 5: Continuous Dimming. This image illustrates the range of brightness from soft (10%) to bright (100%) that can be achieved with the lamp's dimming function.

Maintenance

To ensure the longevity and optimal performance of your EDISHINE LED Floor Lamp, follow these maintenance guidelines:

  • Cleaning: Disconnect the lamp from the power source before cleaning. Use a soft, dry cloth to wipe the lamp's surface. Avoid abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish.
  • Bulb Replacement: The lamp features an integrated LED light source. Do not attempt to replace the LED bulb yourself. If the light source fails, contact customer support for assistance.
  • Storage: If storing the lamp for an extended period, disassemble it carefully and store it in its original packaging in a dry, cool place.

Troubleshooting

If you encounter any issues with your EDISHINE LED Floor Lamp, refer to the following common problems and solutions:

ProblemPossible CauseSolution
Lamp does not turn on.Power cord not properly connected.Ensure the power cord is securely plugged into a working electrical outlet.
Lamp does not turn on.Foot switch malfunction.Press the foot switch firmly. If the issue persists, contact customer support.
Light flickers or is inconsistent.Loose connection in pole sections.Ensure all pole sections are tightly screwed together.
Light flickers or is inconsistent.Power supply issue.Try plugging the lamp into a different outlet.
Dimming function not working.Incorrect operation of foot switch.Ensure you are pressing and holding the foot switch for continuous dimming.

If the problem persists after attempting these solutions, please contact EDISHINE customer support for further assistance.

Specifications

FeatureDetail
Model NumberTF0514
BrandEDISHINE
MaterialMetal
ColorWhite
Light Source TypeLED (Integrated)
Wattage12 Watts
Switch TypeFoot Switch
DimmingContinuous (10% to 100%)
Memory FunctionYes
Product Dimensions (D x W x H)43P x 22l x 5H cm (This seems to be packaging or base dimensions, actual height is 146cm)
Lamp Height146 Centimeters
Item Weight1.6 Kilograms
Mounting TypeFloor Mount
Indoor/Outdoor UseIndoor
Diagram showing the dimensions of the EDISHINE floor lamp, including its height of 146 cm and base diameter.
Figure 6: Product Dimensions. Key measurements of the lamp, including its height and base size.

Warranty and Support

For warranty information or technical support, please refer to the documentation included with your product or visit the official EDISHINE website. You may also contact EDISHINE customer service directly for assistance with product issues, parts, or general inquiries.

Contact Information: Please check the product packaging or the EDISHINE brand store on Amazon for the most current contact details.
