Masupu 4 Drawer Dresser Instruction Manual

Introduction

Thank you for choosing the Masupu 4 Drawer Dresser. This instruction manual provides essential information for the safe assembly, proper use, and maintenance of your new furniture. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

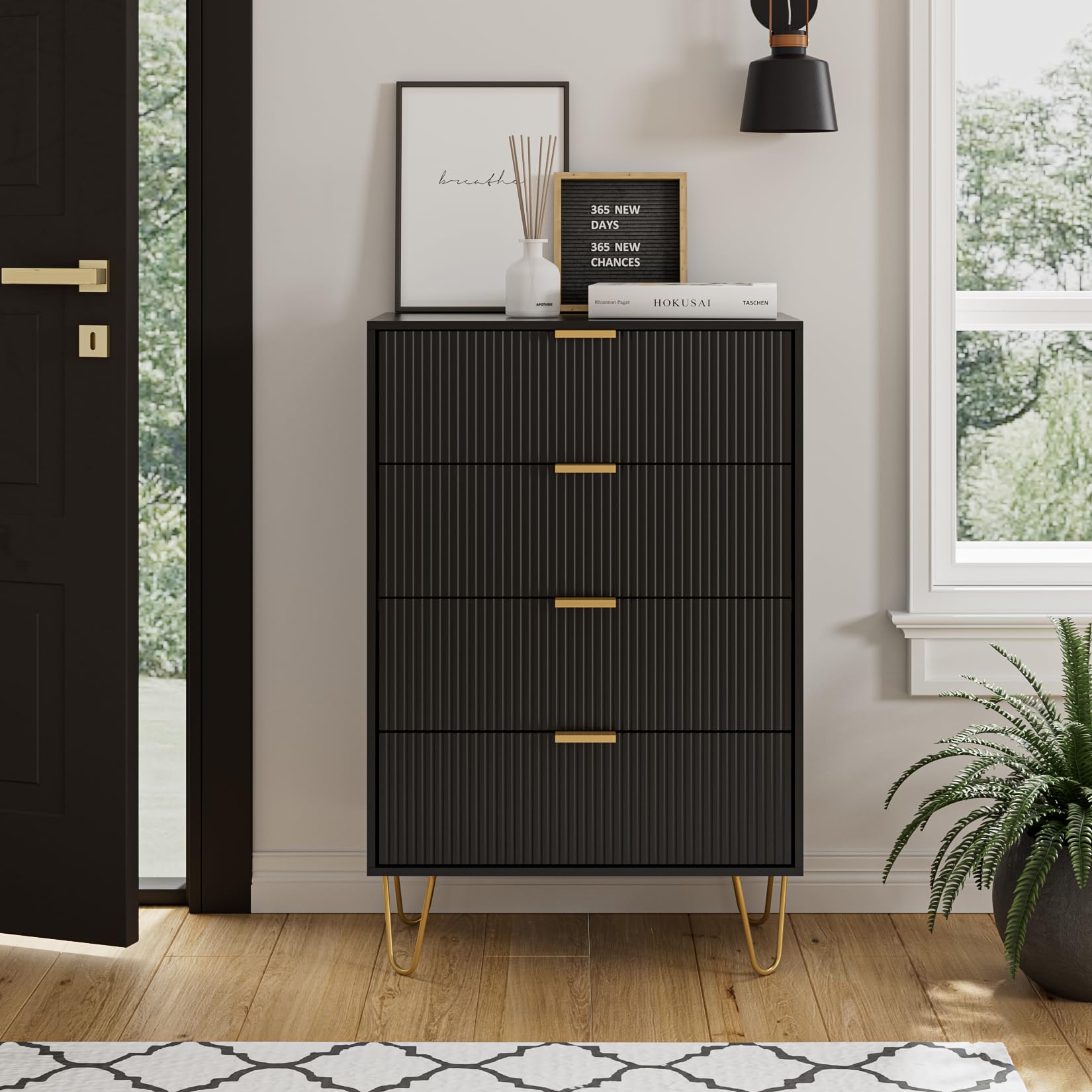

Image: The Masupu 4 Drawer Dresser, featuring a black finish with fluted drawer fronts and elegant gold metal legs and handles. This dresser offers a modern design suitable for various room settings.

Safety Information

To prevent serious injury, always follow these safety guidelines:

• Anti-Tip Device: This dresser is equipped with an anti-tip anchoring hardware. It is crucial to install this device to securely fasten the dresser to a wall. Failure to do so can result in the dresser tipping over, causing severe or fatal injuries.
• Weight Limits: Do not exceed the maximum weight capacity for the drawers or the top surface. Refer to the specifications section for details.
• Children's Safety: Keep children away from the assembly area. Do not allow children to climb on or play with the dresser.
• Level Surface: Always place the dresser on a flat, level surface to ensure stability.
• Assembly: Assemble the unit according to the instructions provided. Ensure all screws and fasteners are tightened securely.

Image: A safety diagram showing the correct installation of an anti-toppling device (left) versus the danger of a dresser tipping over without it (right). This highlights the critical need to secure the dresser to the wall.

Package Contents

Before assembly, verify that all parts and hardware are present. If any items are missing or damaged, please contact customer support.

Refer to the video at the 0:00 mark for a visual representation of all components and hardware.

Assembly Instructions

Follow these steps carefully for proper assembly. All necessary tools are included in the package. It is recommended to assemble the dresser with two people.

1. Step 1: Prepare Side Panels (0:04 in video)
   Attach the drawer slides to the two side panels (parts B and C). Ensure they are oriented correctly.
2. Step 2: Attach Support Bar (0:08 in video)
   Connect the top support bar (part A) between the two side panels using the specified fasteners.
3. Step 3: Prepare Top Panel (0:10 in video)
   Install the anti-tip bracket (part M) and other fasteners to the top panel (part D).
4. Step 4: Assemble Base Structure (0:12 in video)
   Connect the bottom panel (part E) to the side panels (B and C) using the designated fasteners.
5. Step 5: Attach Back Panel (0:16 in video)
   Slide the back panel into the grooves of the assembled frame.
6. Step 6: Secure Back Panel (0:17 in video)
   Fasten the back panel to the frame using small nails or screws as indicated.
7. Step 7: Install Rear Support (0:19 in video)
   Attach the rear support bar to the back of the dresser for added stability.
8. Step 8: Attach Legs (0:21 in video)
   Secure the four metal legs (part K) to the bottom of the dresser using the provided screws.
9. Step 9: Assemble Drawers (0:25 in video)
   Assemble each of the four drawers (parts F, G, H, I, J). This involves attaching the side, front, and back panels, then inserting the bottom panel. Finally, attach the metal handle to the front of each drawer. Repeat for all four drawers.
10. Step 10: Install Drawer Slides (0:35 in video)
    Attach the remaining drawer slide components to the sides of each assembled drawer.
11. Step 11: Fastener Installation (0:39 in video)
    Install the wall anchor for the anti-tip device. Drill a pilot hole, insert the wall plug, and then secure the bracket to the wall. Attach the dresser to this bracket.

Image: Detailed view of the dresser's features, including the waterproof tabletop, durable metal handles, and stable V-shaped metal legs, highlighting the quality of components.

Usage

The Masupu 4 Drawer Dresser is designed for versatile storage in various rooms.

• Storage: Utilize the four spacious drawers for organizing clothing, accessories, linens, or other personal belongings.
• Placement: Suitable for bedrooms, living rooms, closets, or hallways. Its compact design makes it ideal for smaller spaces.
• Top Surface: The top surface can be used to display decorative items, lamps, or books. Ensure items do not exceed the recommended weight capacity.

Image: An overhead view of the Masupu 4 Drawer Dresser with its drawers partially open, revealing neatly organized items such as folded clothes and accessories, demonstrating its storage capacity.

Maintenance

Proper care will extend the life and appearance of your dresser.

• Cleaning: Wipe the surface with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners, as they may damage the finish.
• Spills: Promptly clean up any spills to prevent staining or damage to the engineered wood.
• Inspection: Periodically check all fasteners and tighten them if necessary to maintain stability.
• Sunlight: Avoid prolonged exposure to direct sunlight to prevent fading or discoloration.

Troubleshooting

If you encounter any issues, refer to the following common problems and solutions:

Specifications

Image: A technical diagram illustrating the precise dimensions of the Masupu 4 Drawer Dresser, including overall height, width, depth, and individual drawer dimensions, along with the maximum weight capacity of 88 lbs.

Warranty and Support

For any questions, missing parts, or assistance with assembly, please contact Masupu customer support. While specific warranty details are not provided in this manual, Masupu is committed to customer satisfaction.

Please refer to your purchase documentation or the retailer's website for specific warranty terms and conditions.

Contact Information: Refer to the contact details provided with your purchase or on the official Masupu website.
