Introduction
Thank you for choosing the Yofidra 20000N Cordless Brushless Rivet Gun. This manual provides important information regarding the safe operation, setup, maintenance, and troubleshooting of your new tool. Please read this manual thoroughly before use and keep it for future reference.

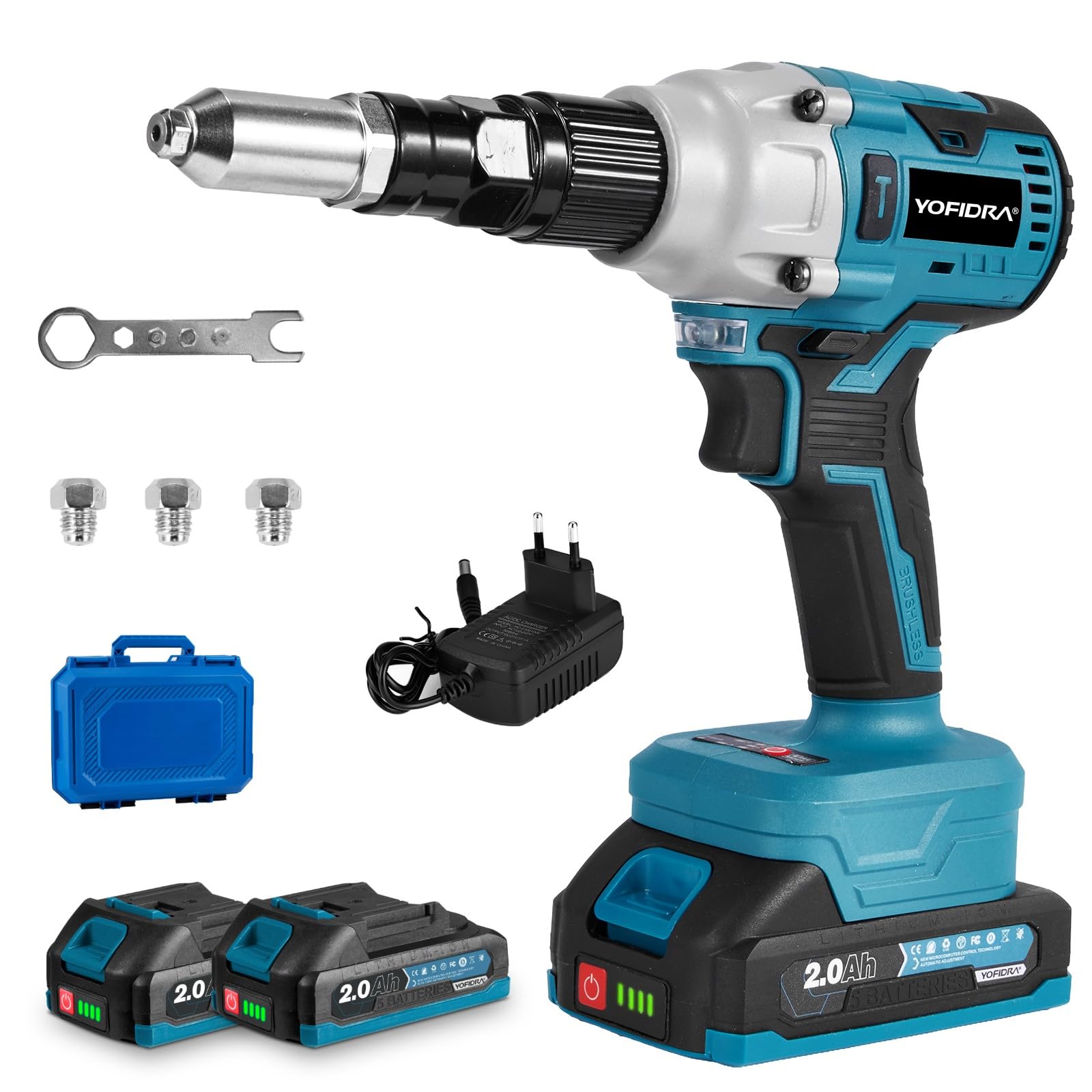

Image: The Yofidra 20000N Cordless Brushless Rivet Gun, showing the tool, two 2.0Ah batteries, and a charger.
Safety Information
Always observe general power tool safety warnings and instructions. Failure to follow all instructions may result in electric shock, fire, and/or serious injury. For detailed safety guidelines, please refer to the official safety document:
General Safety Precautions:
- Wear eye protection and hearing protection when operating the tool.
- Keep work area clean and well-lit.
- Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
- Keep children and bystanders away while operating a power tool.
- Ensure the battery is fully charged before use.
- Do not force the tool. Use the correct tool for your application.
Product Features
- High Performance: Features a 20,000 N pulling force and 12,000 RPM speed, capable of handling rivets up to 5 mm in diameter.
- Brushless Motor: Ensures high efficiency and extended tool life by up to 50%. Operates without sparks and eliminates the need for carbon brush replacement.
- Automatic Riveting: Simple switch operation for automatic rivet withdrawal and ejection. Includes a safety lock to prevent accidental operation.
- Versatile Compatibility: Compatible with common blind rivets of 2.4 mm, 3.2 mm, 4.0 mm, 4.8 mm, and 5.0 mm.
- Cordless Operation: Ideal for automotive repair, furniture assembly, and construction projects, offering unrestricted mobility.
Image: Diagram showing the upgraded brushless motor with integrated protection features: overcurrent, overvoltage, overtemperature, and charging protection, ensuring powerful and efficient operation.
Package Contents
The Yofidra 20000N Cordless Brushless Rivet Gun package typically includes:
- 1 x Yofidra Cordless Rivet Gun
- 2 x 2.0 Ah Lithium-ion Batteries
- 1 x Battery Charger
- Multiple Rivet Nozzles (for various rivet sizes)
- 1 x Wrench for nozzle changes
- 1 x Carrying Case (may vary by region/seller)
Product Overview
Familiarize yourself with the components of your rivet gun:
Image: Labeled diagram of the Yofidra Cordless Rivet Gun. Key components include: Tool-free Nozzle Change mechanism, LED Light, Power Switch, Forward and Reverse Buttons, Soft Rubber Grip, 2000mAh Battery, and Cooling Ventilation.
Specifications
| Feature | Specification |
|---|---|
| Model Number | sku006344Y_2-EU |
| Motor Type | Brushless |
| Pulling Force | 20,000 N |
| Speed | 12,000 RPM |
| Max Stroke Length | 16 mm |
| Applicable Rivet Material | Aluminum rivets (up to 5 mm) |
| Compatible Rivet Sizes | 2.4 mm, 3.2 mm, 4.0 mm, 4.8 mm, 5.0 mm |
| Battery Type | Lithium-ion |
| Battery Capacity | 2 x 2.0 Ah |
| Manufacturer | Nantong Qizao Electric Tools Co., Ltd |
Image: Illustration detailing the compatibility of the rivet gun with various aluminum rivet specifications, including 2.4mm, 3.2mm, 4.0mm, and 4.8mm, and their respective nozzles.
Setup
1. Charging the Battery
Before first use, fully charge both 2.0 Ah Lithium-ion batteries using the provided charger. Insert the battery into the charger, ensuring a secure connection. The charger indicator light will show the charging status.
2. Installing the Battery
Align the charged battery with the base of the rivet gun handle. Slide the battery into place until it clicks securely. To remove, press the battery release button and slide the battery out.
3. Selecting and Installing the Nozzle
Choose the appropriate nozzle size that matches the diameter of your blind rivet (2.4mm, 3.2mm, 4.0mm, 4.8mm, or 5.0mm). The rivet gun features a tool-free nozzle change mechanism:
- Unscrew the current nozzle by hand.
- Select the correct size nozzle for your rivet.
- Screw the new nozzle firmly onto the tool by hand.
Operating Instructions
1. Basic Operation Steps

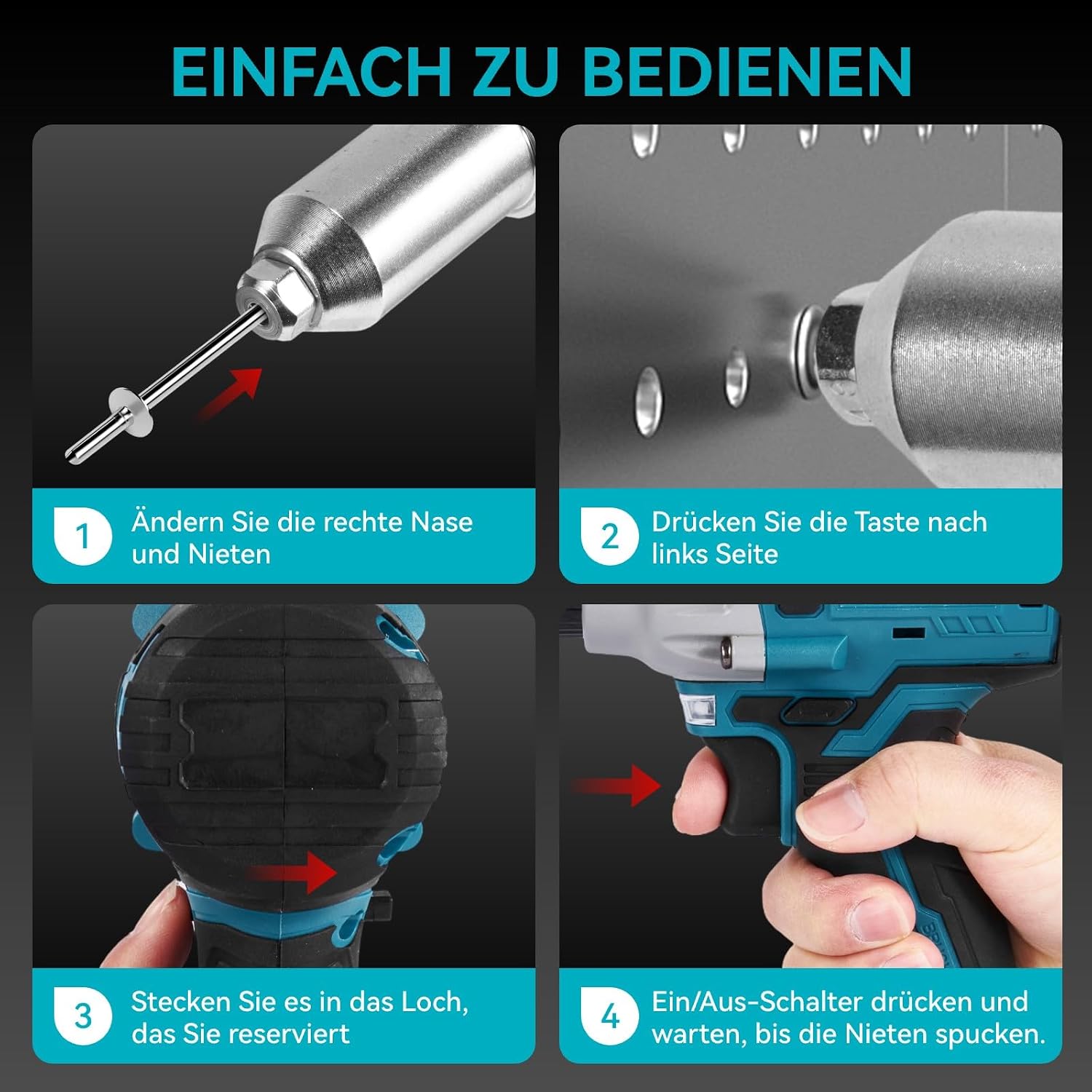

Image: Four-step guide to operating the rivet gun. 1. Insert rivet into the correct nozzle. 2. Press the button to the left side (likely for forward operation). 3. Insert the rivet into the pre-drilled hole. 4. Press the On/Off switch and wait for the rivet to eject.
- Insert Rivet: Place the blind rivet into the installed nozzle.
- Position Tool: Insert the rivet into the pre-drilled hole in your workpiece.
- Activate: Press the On/Off switch (trigger) to begin the riveting process. The tool will automatically pull the rivet mandrel until the rivet is set.
- Eject Mandrel: Continue holding the trigger until the spent rivet mandrel is ejected from the tool.
2. Forward and Reverse Function

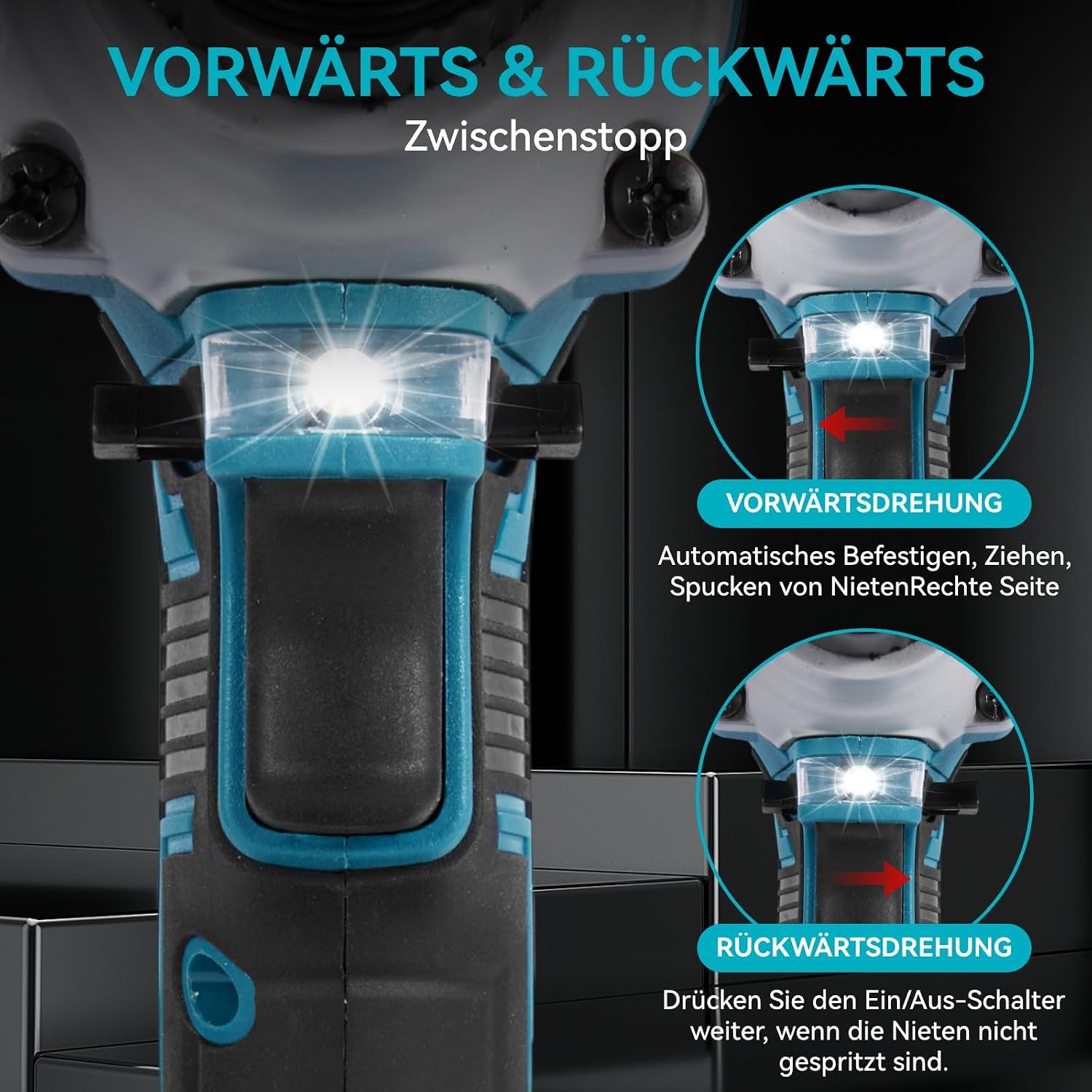

Image: Diagram illustrating the forward and reverse rotation functions. Forward rotation is for automatic fastening, pulling, and ejecting rivets. Reverse rotation is used to continue pressing the On/Off switch if rivets are not ejected.
The rivet gun features a forward and reverse button, typically located near the trigger:
- Forward Rotation: Used for the standard riveting process (fastening, pulling, and ejecting rivets).
- Reverse Rotation: If a rivet mandrel does not eject completely after setting the rivet, press the On/Off switch while in reverse mode to assist in its removal.
3. Safety Lock
The On/Off switch is equipped with a safety lock to prevent unintentional activation. Always engage the safety lock when the tool is not in use or when changing nozzles/batteries.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your rivet gun.
- Cleaning: After each use, wipe down the tool with a clean, dry cloth. Remove any debris or rivet mandrels from the nozzle area. Do not use harsh chemicals or abrasive cleaners.
- Nozzle Inspection: Periodically inspect the nozzles for wear or damage. Replace worn nozzles to ensure proper riveting.
- Battery Care: Store batteries in a cool, dry place away from direct sunlight. Do not store fully discharged batteries for extended periods.
- Storage: Store the rivet gun and its accessories in the provided carrying case in a dry, secure location, out of reach of children.
Troubleshooting
If you encounter issues with your Yofidra rivet gun, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Tool does not start | Battery not charged or improperly installed. Safety lock engaged. | Ensure battery is fully charged and correctly installed. Disengage the safety lock. |
| Rivet not setting properly | Incorrect nozzle size. Worn nozzle. Rivet material/size incompatible. | Use the correct nozzle for the rivet diameter. Replace worn nozzles. Ensure rivet specifications are within tool's capacity. |
| Rivet mandrel not ejecting | Debris in nozzle. Tool not fully cycled. | Clean the nozzle. Use the reverse function to assist ejection. Ensure the trigger is held until the mandrel is fully ejected. |
| Reduced power/performance | Low battery charge. Overheating. | Recharge the battery. Allow the tool to cool down if it has been used continuously. |
Warranty and Support
Yofidra products are manufactured to high-quality standards. For warranty information, please refer to the documentation included with your purchase or contact your retailer. Keep your proof of purchase for any warranty claims.
For technical support or service inquiries, please contact Yofidra customer service through their official website or the retailer where the product was purchased.
